Named modules tutorial (C++)
This tutorial is about creating C++20 modules. Modules replace header files. You'll learn how modules are an improvement on header files.
In this tutorial, learn how to:
- Create and import a module
- Create a primary module interface unit
- Create a module partition file
- Create a module unit implementation file
This tutorial requires Visual Studio 2022 17.1.0 or later.
You might get IntelliSense errors while working on the code example in this tutorial. Work on the IntelliSense engine is catching up with the compiler. IntelliSense errors can be ignored and won't prevent the code example from building. To track progress on the IntelliSense work, see this issue.
Header files are how declarations and definitions are shared between source files in C++. Header files are fragile and difficult to compose. They may compile differently depending on the order you include them in, or on the macros that are or aren't defined. They can slow compilation time because they're reprocessed for each source file that includes them.
C++20 introduces a modern approach to componentizing C++ programs: modules.
Like header files, modules allow you to share declarations and definitions across source files. But unlike header files, modules don't leak macro definitions or private implementation details.
Modules are easier to compose because their semantics don't change because of macro definitions or what else has been imported, the order of imports, and so on. They also make it easier to control what is visible to consumers.
Modules provide extra safety guarantees that header files don't. The compiler and linker work together to prevent possible name collision issues, and provide stronger one definition rule (ODR) guarantees.
A strong ownership model avoids clashes between names at link time because the linker attaches exported names to the module that exports them. This model allows the Microsoft Visual C++ compiler to prevent undefined behavior caused by linking different modules that report similar names in the same program. For more information, see Strong Ownership.
A module is made up of one or more source code files compiled into a binary file. The binary file describes all the exported types, functions, and templates in the module. When a source file imports a module, the compiler reads in the binary file that contains the contents of the module. Reading the binary file is much faster than processing a header file. Also, the binary file is reused by the compiler every time the module is imported, saving even more time. Because a module is built once rather than every time it's imported, build time can be reduced, sometimes dramatically.
More importantly, modules don't have the fragility problems that header files do. Importing a module doesn't change the module's semantics, or the semantics of any other imported module. Macros, preprocessor directives, and non-exported names declared in a module aren't visible to the source file that imports it. You can import modules in any order and it won't change the meaning of the modules.
Modules can be used side by side with header files. This feature is convenient if you're migrating a code base to use modules because you can do it in stages.
In some cases, a header file can be imported as a header unit rather than as an #include
file. Header units are the recommended alternative to precompiled header files (PCH). They're easier to set up and use than shared PCH files, but they provide similar performance benefits. For more information, see Walkthrough: Build and import header units in Microsoft Visual C++.
Your code can consume modules in the same project, or any referenced projects, automatically by using project-to-project references to static library projects.
As we build a simple project, we'll look at various aspects of modules. The project will implement an API using a module instead of a header file.
In Visual Studio 2022 or later, choose Create a new project and then the Console App (for C++) project type. If this project type isn't available, you may not have selected the Desktop development with C++ workload when you installed Visual Studio. You can use the Visual Studio Installer to add the C++ workload.
Give the new project the name ModulesTutorial
and create the project.
Because modules are a C++20 feature, use the /std:c++20
or /std:c++latest

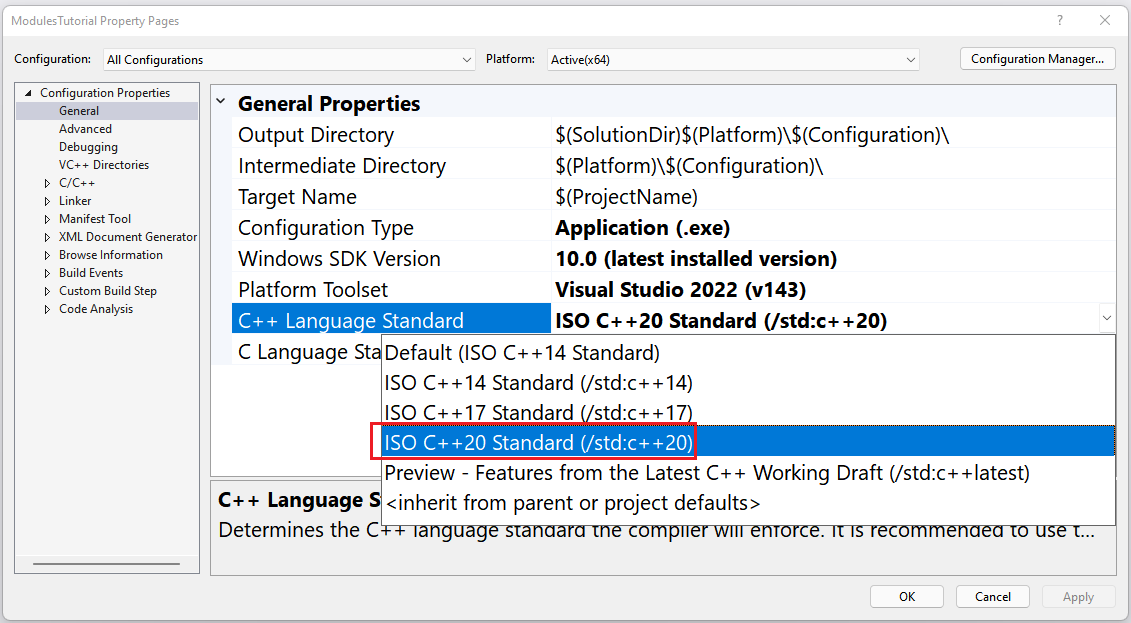

compiler option. In the Solution Explorer, right-click on the project name ModulesTutorial
, then choose Properties. In the project Property Pages dialog, change Configuration to All Configurations and Platform to All Platforms. Select Configuration Properties > General in the tree view pane on the left. Select the C++ Language Standard property. Use the dropdown to change the property value to ISO C++20 Standard (/std:c++20). Select OK to accept the change.
A module consists of one or more files. One of these files must be what is called the primary module interface unit. It defines what the module exports; that is, what importers of the module will see. There can only be one primary module interface unit per module.

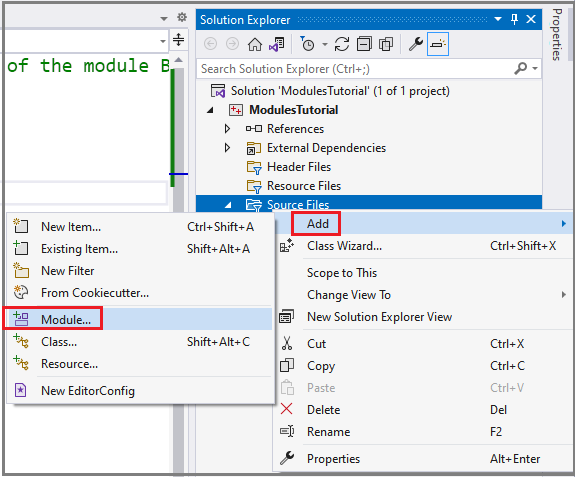

To add a primary module interface unit, in Solution Explorer, right-click Source Files then select Add > Module.
In the Add New Item dialog that appears, give the new module the name BasicPlane.Figures.ixx
and choose Add.
The default contents of the created module file has two lines:
export module BasicPlane;
export void MyFunc();
The export module
keywords in the first line declare that this file is a module interface unit. There's a subtle point here: for every named module, there must be exactly one module interface unit with no module partition specified. That module unit is called the primary module interface unit.
The primary module interface unit is where you declare the functions, types, templates, other modules, and module partitions to expose when source files import the module. A module can consist of multiple files, but only the primary module interface file identifies what to expose.
Replace the contents of BasicPlane.Figures.ixx
file with:
export module BasicPlane.Figures; // the export module keywords mark this file as a primary module interface unit
This line identifies this file as the primary module interface and gives the module a name: BasicPlane.Figures
. The period in the module name has no special meaning to the compiler. A period can be used to convey how your module is organized. If you have multiple module files that work together, you can use periods to indicate a separation of concerns. In this tutorial, we'll use periods to indicate different functional areas of the API.
This name is also where the "named" in "named module" comes from. The files that are part of this module use this name to identify themselves as part of the named module. A named module is the collection of module units with the same module name.
We should talk about the API we'll implement for a moment before going further. It impacts the choices we make next. The API represents different shapes. We're only going to provide a couple shapes in this example: Point
and Rectangle
. Point
is meant to be used as part of more complex shapes such as Rectangle
.
To illustrate some features of modules, we'll factor this API into pieces. One piece will be the Point
API. The other part will be Rectangle
. Imagine that this API will grow into something more complex. The division is useful for separating concerns or easing code maintenance.
So far, we've created the primary module interface that will expose this API. Let's now build the Point
API. We want it to be part of this module. For reasons of logical organization, and potential build efficiency, we want to make the code for this part of the API a module partition file.
Module partitions are useful for dividing the module implementation into manageable pieces. A module partition file is a piece, or component, of a module. What makes it unique is that it can be treated as an individual piece of the module--but only within the module. Module partitions can't be consumed outside of a module.
When you import a partition into the primary module, all its declarations become visible to the primary module regardless of whether they're exported. Partitions can be imported into any partition interface, primary module interface, or module unit that belongs to the named module.
To create a module partition file, in the Solution Explorer right-click Source Files, then select Add > Module. Name the file BasicPlane.Figures-Point.ixx
and choose Add.
Because it's a module partition file, we've added a hyphen and the name of the partition to the module name. This convention aids the compiler in the command-line case because the compiler uses name lookup rules based on the module name to find the compiled .ifc
file for the partition. This way you don't have to provide explicit /reference
command-line arguments to find the partitions that belong to the module. It's also helpful for organizing the files that belong to a module by name because you can easily see which files belong to which modules.
Replace the contents of BasicPlane.Figures-Point.ixx
with:
export module BasicPlane.Figures:Point; // defines a module partition, Point, that's part of the module BasicPlane.Figures
export struct Point
{
int x, y;
};
The file starts with export module
. These keywords are also how the primary module interface begins. What makes this file different is the colon (:
) following the module name, followed by the partition name. This naming convention identifies the file as a module partition. Because it defines the module interface for a partition, it isn't considered the primary module interface.
The name BasicPlane.Figures:Point
identifies this partition as part of the module BasicPlane.Figures
(remember, the period in the name has no special meaning to the compiler). The colon indicates that this file contains a module partition named Point
that belongs to the module BasicPlane.Figures
. We can import this partition into other files that are part of this named module.
In this file, the export
keyword makes struct Point
visible to consumers.
The next partition we'll define is Rectangle
. Create another module file using the same steps as before: In Solution Explorer, right-click on Source Files, then select Add > Module. Name the file BasicPlane.Figures-Rectangle.ixx
and select Add.
Replace the contents of BasicPlane.Figures-Rectangle.ixx
with:
export module BasicPlane.Figures:Rectangle; // defines the module partition Rectangle
import :Point;
export struct Rectangle // make this struct visible to importers
{
Point ul, lr;
};
// These functions are declared, but will
// be defined in a module implementation file
export int area(const Rectangle& r);
export int height(const Rectangle& r);
export int width(const Rectangle& r);
The file begins with export module BasicPlane.Figures:Rectangle;
which declares a module partition that's part of the module BasicPlane.Figures
. The :Rectangle
added to the module name defines it as a partition of the module BasicPlane.Figures
. It can be imported individually into any of the module files that are part of this named module.
Next, import :Point;
shows how to import a module partition. The import
statement makes all the exported types, functions, and templates in the module partition visible to the module. You don't have to specify the module name. The compiler knows that this file belongs to the BasicPlane.Figures
module because of the export module BasicPlane.Figures:Rectangle;
at the top of the file.
Next, the code exports the definition of struct Rectangle
and declarations for some functions that return various properties of the rectangle. The export
keyword indicates whether to make what it precedes visible to consumers of the module. It's used to make the functions area
, height
, and width
visible outside of the module.
All definitions and declarations in a module partition are visible to the importing module unit whether they have the export
keyword or not. The export
keyword governs whether the definition, declaration, or typedef will be visible outside of the module when you export the partition in the primary module interface.
Names are made visible to consumers of a module in several ways:
- Put the keyword
export
in front of each type, function, and so on, that you want to export. - If you put
export
in front of a namespace, for exampleexport namespace N { ... }
, everything defined within the braces is exported. But if elsewhere in the module you definenamespace N { struct S {...};}
, thenstruct S
isn't available to consumers of the module. It's not available because that namespace declaration isn't prefaced byexport
, even though there's another namespace with the same name that is. - If a type, function, and so on, shouldn't be exported, omit the
export
keyword. It will be visible to other files that are part of the module, but not to importers of the module. - Use
module :private;
to mark the beginning of the private module partition. The private module partition is a section of the module where declarations are only visible to that file. They aren't visible to files that import this module or to other files that are part of this module. Think of it as a section that is static local to the file. This section is visible only within the file. - To make an imported module or module partition visible, use
export import
. An example is shown in the next section.
Now that we have the two parts of the API defined, let's bring them together so that files that import this module can access them as a whole.
All module partitions must be exposed as part of the module definition that they belong to. Partitions are exposed in the primary module interface. Open the BasicPlane.Figures.ixx
file, which defines the primary module interface. Replace its contents with:
export module BasicPlane.Figures; // keywords export module marks this as a primary module interface unit
export import :Point; // bring in the Point partition, and export it to consumers of this module
export import :Rectangle; // bring in the Rectangle partition, and export it to consumers of this module
The two lines that begin with export import
are new here. When combined like this, these two keywords instruct the compiler to import the specified module and make it visible to consumers of this module. In this case, the colon (:
) in the module name indicates that we are importing a module partition.
The imported names don't include the full module name. For example, the :Point
partition was declared as export module BasicPlane.Figures:Point
. Yet here we're importing :Point
. Because we're in the primary module interface file for the module BasicPlane.Figures
, the module name is implied, and only the partition name is specified.
So far, we've defined the primary module interface, which exposes the API surface we want to make available. But we've only declared, not defined, area()
, height()
, or width()
. We'll do that next by creating a module implementation file.
Module unit implementation files don't end with an .ixx
extension--they're normal .cpp
files. Add a module unit implementation file by creating a source file with a right-click in the Solution Explorer on Source Files, select Add > New item and then select C++ File (.cpp). Give the new file the name BasicPlane.Figures-Rectangle.cpp
, then choose Add.
The naming convention for the module partition's implementation file follows the naming convention for a partition. But it has a .cpp
extension because it's an implementation file.
Replace the contents of the BasicPlane.Figures-Rectangle.cpp
file with:
module;
// global module fragment area. Put #include directives here
module BasicPlane.Figures:Rectangle;
int area(const Rectangle& r) { return width(r) * height(r); }
int height(const Rectangle& r) { return r.ul.y - r.lr.y; }
int width(const Rectangle& r) { return r.lr.x - r.ul.x; }
This file begins with module;
which introduces a special area of the module called the global module fragment. It precedes the code for the named module and is where you can use preprocessor directives such as #include
. Code in the global module fragment isn't owned or exported by the module interface.
When you include a header file, you generally don't want it to be treated as an exported part of the module. You typically include the header file as an implementation detail that shouldn't be part of the module interface. There may be advanced cases where want to do that, but generally you don't. No separate metadata (.ifc
files) are generated for #include
directives in the global module fragment. Global module fragments provide a good place to include header files such as windows.h
, or on Linux, unistd.h
.
The module implementation file we're building doesn't include any libraries because it doesn't need them as part of its implementation. But if it did, this area is where the #include
directives would go.
The line module BasicPlane.Figures:Rectangle;
indicates that this file is part of the named module BasicPlane.Figures
. The compiler automatically brings the types and functions exposed by the primary module interface into this file. A module implementation unit doesn't have the export
keyword before the module
keyword in its module declaration.
Next are the definition of the functions area()
, height()
, and width()
. They were declared in the Rectangle
partition in BasicPlane.Figures-Rectangle.ixx
. Because the primary module interface for this module imported the Point
and Rectangle
module partitions, those types are visible here in the module unit implementation file. An interesting feature of module implementation units: The compiler automatically makes everything in the corresponding module primary interface visible to the file. No imports <module-name>
is needed.
Anything you declare within an implementation unit is only visible to the module that it belongs to.
Now we'll make use of the module we've defined. Open the ModulesTutorial.cpp
file. It was created automatically as part of the project. It currently contains the function main()
. Replace its contents with:
#include <iostream>
import BasicPlane.Figures;
int main()
{
Rectangle r{ {1,8}, {11,3} };
std::cout << "area: " << area(r) << '\n';
std::cout << "width: " << width(r) << '\n';
return 0;
}
The statement import BasicPlane.Figures;
makes all the exported functions and types from the BasicPlane.Figures
module visible to this file. It can come before or after any #include
directives.
The app then uses the types and functions from the module to output the area and width of the defined rectangle:
area: 50
width: 10
Let's now look in more detail at the various module files.
A module consists of one or more files. One of them defines the interface that importers will see. This file contains the Primary module interface. There can only be one primary module interface per module. As pointed out earlier, the exported module interface unit doesn't specify a module partition.
It has an .ixx

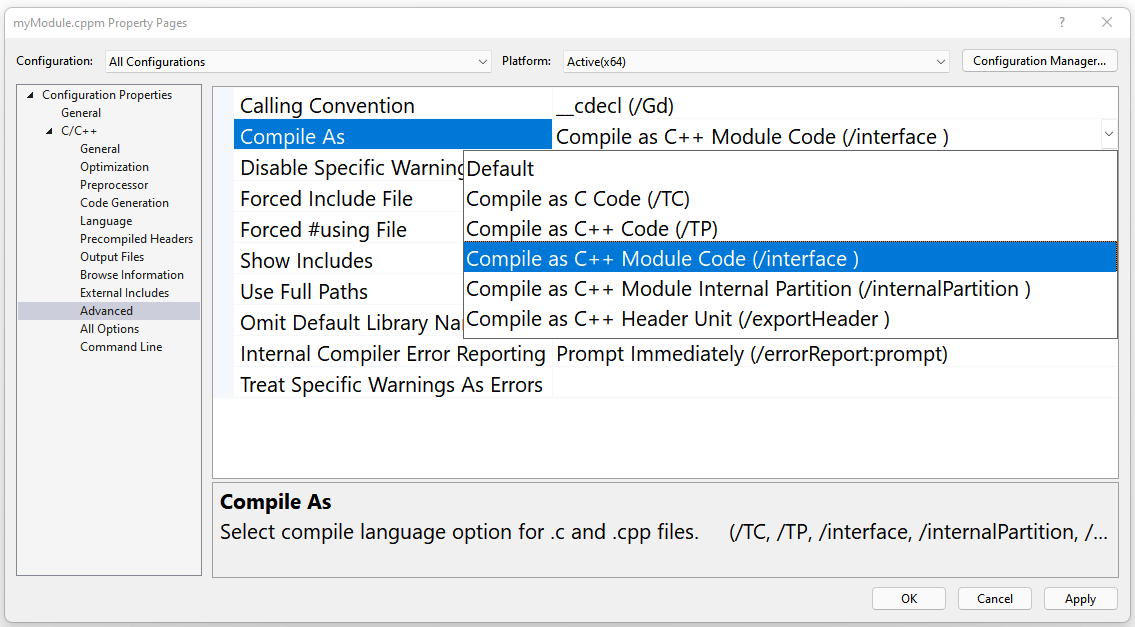

extension by default. However, you can treat a source file with any extension as a module interface file. To do so, set the Compile As property in the Advanced tab for the source file's properties page to Compile As Module (/interface):
The basic outline of a module interface definition file is:
module; // optional. Defines the beginning of the global module fragment
// #include directives go here but only apply to this file and
// aren't shared with other module implementation files.
// Macro definitions aren't visible outside this file, or to importers.
// import statements aren't allowed here. They go in the module preamble, below.
export module [module-name]; // Required. Marks the beginning of the module preamble
// import statements go here. They're available to all files that belong to the named module
// Put #includes in the global module fragment, above
// After any import statements, the module purview begins here
// Put exported functions, types, and templates here
module :private; // optional. The start of the private module partition.
// Everything after this point is visible only within this file, and isn't
// visible to any of the other files that belong to the named module.
This file must begin with either module;
to indicate the beginning of the global module fragment, or export module [module-name];
to indicate the start of the module purview.
The module purview is where functions, types, templates, and so on, go that you want to expose from the module.
It's also where you can expose other modules or module partitions via the export import
keywords, as shown in the BasicPlane.Figures.ixx
file.
The primary interface file must export all the interface partitions defined for the module directly or indirectly, or the program is ill-formed.
The private module partition is where you can put things that you want to be only visible in this file.
Module interface units preface the keyword module
with the keyword export
.
For a more in-depth look at module syntax, see Modules.
Module implementation units belong to a named module. The named module they belong to is indicated by the module [module-name]
statement in the file. Module implementation units provide implementation details that, for code hygiene or other reasons, you don't want to put in the primary module interface or in a module partition file.
Module implementation units are useful for breaking up a large module into smaller pieces, which can result in faster build times. This technique is covered briefly in the Best practices section.
Module implementation unit files have a .cpp
extension. The basic outline of a module implementation unit file is:
// optional #include or import statements. These only apply to this file
// imports in the associated module's interface are automatically available to this file
module [module-name]; // required. Identifies which named module this implementation unit belongs to
// implementation
Module partitions provide a way to componentize a module into different pieces, or partitions. Module partitions are meant to be imported only in files that are part of the named module. They can't be imported outside of the named module.
A partition has an interface file, and zero or more implementation files. A module partition shares ownership of all the declarations in the entire module.
All names exported by partition interface files must be imported and re-exported (export import
) by the primary interface file. A partition's name must begin with the module name, followed by a colon, and then the name of the partition.
The basic outline of a partition interface file looks like this:
module; // optional. Defines the beginning of the global module fragment
// This is where #include directives go. They only apply to this file and aren't shared
// with other module implementation files.
// Macro definitions aren't visible outside of this file or to importers
// import statements aren't allowed here. They go in the module preamble, below
export module [Module-name]:[Partition name]; // Required. Marks the beginning of the module preamble
// import statements go here.
// To access declarations in another partition, import the partition. Only use the partition name, not the module name.
// For example, import :Point;
// #include directives don't go here. The recommended place is in the global module fragment, above
// export imports statements go here
// after import, export import statements, the module purview begins
// put exported functions, types, and templates for the partition here
module :private; // optional. Everything after this point is visible only within this file, and isn't
// visible to any of the other files that belong to the named module.
...
A module and the code that imports it must be compiled with the same compiler options.
- You can use periods ('.') in your module names but they have no special meaning to the compiler. Use them to convey meaning to the users of your module. For example, start with the library or project top namespace. Finish with a name that describes the module's functionality.
BasicPlane.Figures
is meant to convey an API for geometric planes, and specifically figures that can be represented on a plane. - The name of the file that contains the module primary interface is generally the name of the module. For example, given the module name
BasicPlane.Figures
, the name of the file containing the primary interface would be namedBasicPlane.Figures.ixx
. - The name of a module partition file is generally
<primary-module-name>-<module-partition-name>
where the name of the module is followed by a hyphen ('-') and then the name of the partition. For example,BasicPlane.Figures-Rectangle.ixx
If you're building from the command line and you use this naming convention for module partitions, then you won't have to explicitly add /reference
for each module partition file. The compiler will look for them automatically based on the name of the module. The name of the compiled partition file (ending with an .ifc
extension) is generated from the module name. Consider the module name BasicPlane.Figures:Rectangle
: the compiler will anticipate that the corresponding compiled partition file for Rectangle
is named BasicPlane.Figures-Rectangle.ifc
. The compiler uses this naming scheme to make it easier to use module partitions by automatically finding the interface unit files for partitions.
You can name them using your own convention. But then you'll need to specify corresponding /reference
arguments to the command-line compiler.
Use module implementation files and partitions to factor your module for easier code maintenance and potentially faster compilation times.
For example, moving the implementation of a module out of the module interface definition file and into a module implementation file means that changes to the implementation won't necessarily cause every file that imports the module to recompile (unless you have inline
implementations).
Module partitions make it easier to logically factor a large module. They can be used to improve compilation time so that changes to a portion of the implementation don't cause all the module's files to be recompiled.
In this tutorial, you've been introduced to the basics of C++20 modules. You've created a primary module interface, defined a module partition, and built a module implementation file.
Overview of modules in C++
module
, import
, export
keywords
A Tour of C++ Modules in Visual Studio
Practical C++20 Modules and the future of tooling around C++ Modules
Moving a project to C++ named Modules
Walkthrough: Build and import header units in Microsoft Visual C++
