Overview of C++ development in Visual Studio

As part of the Visual Studio Integrated Development Environment (IDE), Microsoft C++ (MSVC) shares many windows and tools in common with other languages. Many of those, including Solution Explorer, the code editor, and the debugger, are documented under Visual Studio IDE. Often, a shared tool or window has a slightly different set of features for C++ than for other languages. A few windows or tools are only available in Visual Studio Professional or Visual Studio Enterprise editions.

In addition to shared tools in the Visual Studio IDE, MSVC has several tools specifically for native code development. These tools are also listed in this article. For a list of which tools are available in each edition of Visual Studio, see C++ Tools and Features in Visual Studio Editions.

Create projects

A project is basically a set of source code files and resources such as images or data files that are built into an executable program or library.

Visual Studio provides support for any project system or custom build tools that you wish to use, with full support for IntelliSense, browsing and debugging:

  • MSBuild is the native project system for Visual Studio. When you select File > New > Project from the main menu, you see many kinds of MSBuild project templates that get you started quickly developing different kinds of C++ applications.

    Screenshot of the Create a new Project dialog showing new project templates.

    Screenshot of the New Project dialog showing project templates.

    In general, you should use these templates for new projects unless you are using existing CMake projects, or you are using another project system. For more information, see Creating and managing MSBuild-based projects.

  • CMake is a cross-platform build system that is integrated into the Visual Studio IDE when you install the Desktop development with C++ workload. You can use the CMake project template for new projects, or simply open a folder with a CMakeLists.txt file. For more information, see CMake projects in Visual Studio.

  • Any other C++ build system, including a loose collection of files, is supported via the Open Folder feature. You create simple JSON files to invoke your build program and configure debugging sessions. For more information, see Open Folder projects for C++.

Add to source control

Source control enables you to coordinate work among multiple developers, isolate in-progress work from production code, and backup your source code. Visual Studio supports Git and Team Foundation Version Control (TFVC) through its Team Explorer window.

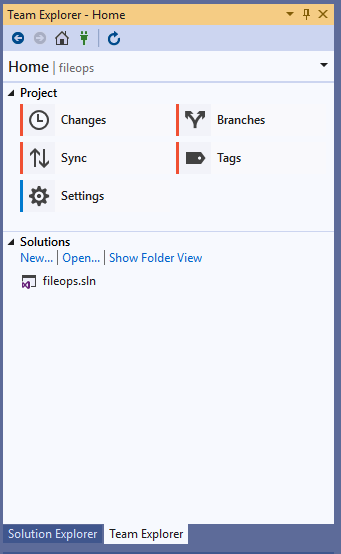

Screenshot of the Team Explorer window in Visual Studio 2019.

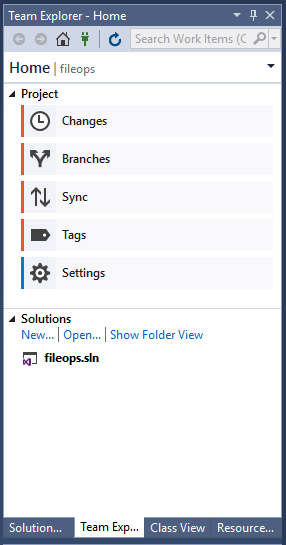

Screenshot of the Team Explorer window in Visual Studio 2017.

For more information about Git integration with repos in Azure, see Share your code with Azure Repos and Visual Studio. For information about Git integration with GitHub, see Visual Studio and GitHub: Better together.

Obtain libraries

Use the vcpkg package manager to obtain and install third-party libraries. Over 1700 open-source library packages are currently available in the catalog.

Create user interfaces with designers

If your program has a user interface, you can use a designer to quickly populate it with controls such as buttons, list boxes and so on. When you drag a control from the toolbox window and drop it onto the design surface, Visual Studio generates the resources and code required to make it all work. You then write the code to customize the appearance and behavior.

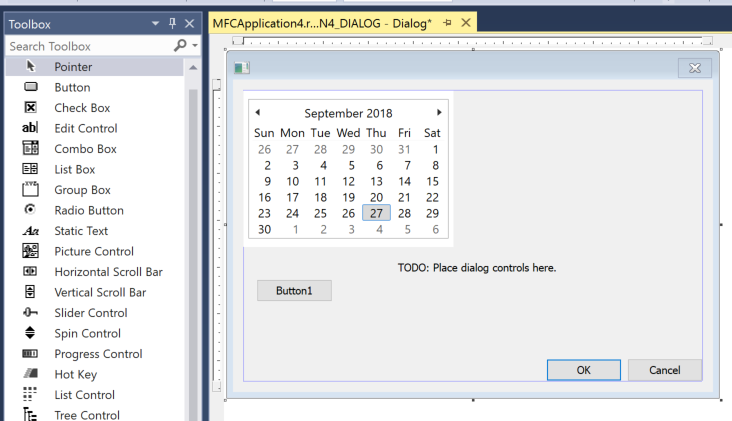

Screenshot of the Designer and Toolbox windows.

Write code

After you create a project, all the project files are displayed in the Solution Explorer window. (A solution is a logical container for one or more related projects.) When you click on a .h or .cpp file in Solution Explorer, the file opens up in the code editor.

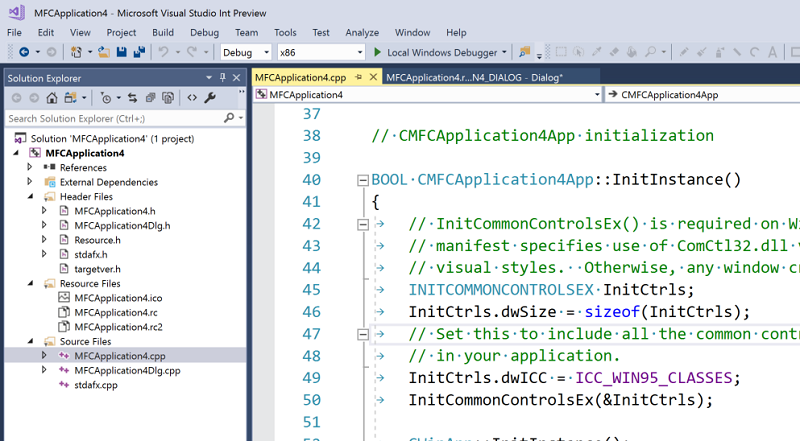

Screenshot of the Solution Explorer and code editor windows.

The code editor is a specialized word processor for C++ source code. It color-codes language keywords, method and variable names, and other elements of your code to make the code more readable and easier to understand. It also provides tools for refactoring code, navigating between different files, and understanding how the code is structured. For more information, see Writing and refactoring code.

Add and edit resources

A Windows program or DLL usually includes some resources, such as dialogs, icons, images, localizable strings, splash screens, database connection strings, or any arbitrary data. Visual Studio includes tools for adding and editing resources. For more information, see Working with Resource Files.

Choose Build > Build Solution on the menu bar, or enter the Ctrl+Shift+B key combination to compile and link a project. Build errors and warnings are reported in the Error List (Ctrl+\, E). The Output Window (Alt+2) shows information about the build process.

Screenshot of the Output Window and Error List.

For more information about configuring builds, see Working with Project Properties and Projects and build systems.

You can also use the compiler (cl.exe) and many other build-related standalone tools such as NMAKE and LIB directly from the command line. For more information, see Build C/C++ code on the command line and C/C++ Building Reference.


You can start debugging by pressing F5. Execution pauses on any breakpoints you have set (by pressing F9). You can also step through code one line at a time (F10), view the values of variables or registers, and even in some cases make changes in code and continue debugging without re-compiling. The following illustration shows a debugging session in which execution is stopped on a breakpoint. The values of the data structure members are visible in the Watch Window.

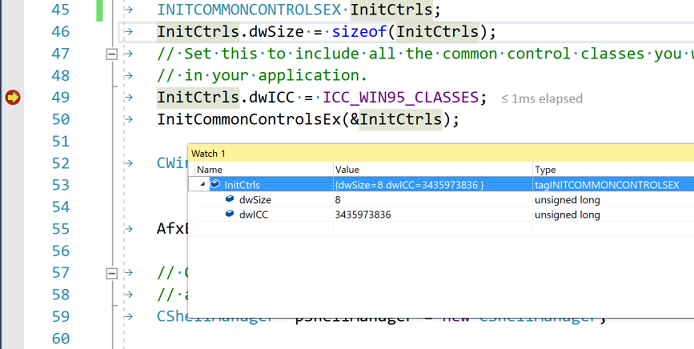

Screenshot of a debugging session.

For more information, see Debugging in Visual Studio.


Visual Studio includes the Microsoft Unit Test Framework for C++, as well as support for Boost.Test, Google Test, and CTest. Run your tests from the Test Explorer window:

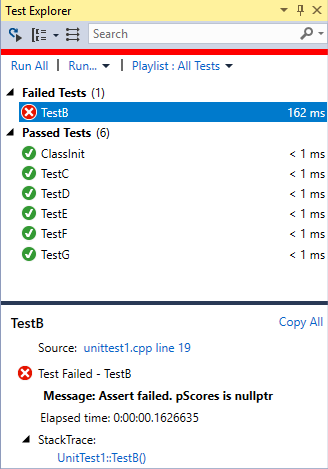

Screenshot showing Test Explorer.

For more information, see Verifying Code by Using Unit Tests and Write unit tests for C/C++ in Visual Studio.


Visual Studio includes static code analysis tools that can detect potential problems in your source code. These tools include an implementation of the C++ Core Guidelines rules checkers. For more information, see Code analysis for C/C++ overview.

Deploy completed applications

You can deploy both traditional desktop applications and UWP apps to customers through the Microsoft Store. Deployment of the CRT is handled automatically behind the scenes. For more information, see Publish Windows apps and games.

You can also deploy a native C++ desktop to another computer. For more information, see Deploying Desktop Applications.

For more information about deploying a C++/CLI program, see Deployment Guide for Developers,

Next steps

Explore Visual Studio further by following along with one of these introductory articles:
