Microsoft Defender Antivirus ring deployment using Intune and direct internet access for Microsoft Update

  • Article

Applies to:

Platforms

  • Windows
  • Windows Server

Want to experience Microsoft Defender for Endpoint? Sign up for a free trial.

Microsoft Defender for Endpoint is an enterprise endpoint security platform designed to help enterprise networks prevent, detect, investigate, and respond to advanced threats.

Tip

Microsoft Defender for Endpoint is available in two plans, Defender for Endpoint Plan 1 and Plan 2. A new Microsoft Defender Vulnerability Management add-on is now available for Plan 2.

Setting up the pilot environment

This section describes the process for setting up the pilot UAT / Test / QA environment.

Shows an example deployment schedule.

On about 10-500* Windows and/or Windows Server systems, depending on how many total systems that you all have:

In the Intune portal https://endpoint.microsoft.com, create or append to your Microsoft Defender Antivirus policy the following setting: For example, your pilot policy named MDAV_Settings_Pilot. If you have a Citrix environment, include at least one Citrix VM (non-persistent and/or persistent).

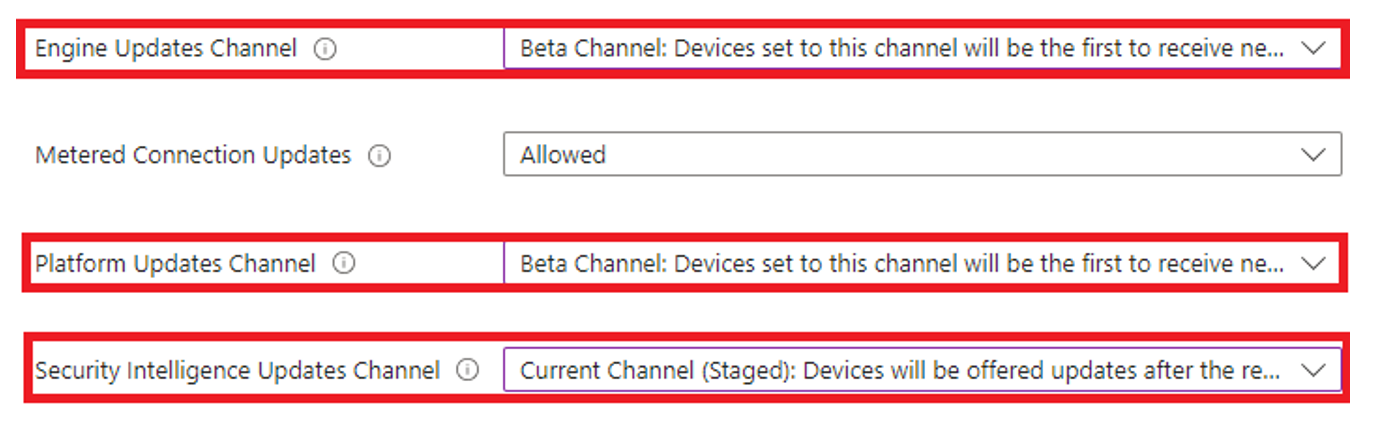

Shows recommended Intune Microsoft Defender Antivirus pilot policy settings.

Note

Security intelligence update (SIU) is equivalent to signature updates, which is the same as definition updates.

Recommended settings are as follows:

Feature Recommendation
Engine Updates Channel Beta Channel
Platform Updates Channel Beta Channel
Security Intelligence Updates Channel Current Channel (Staged)

References

Setting up the Production environment

In the Intune portal https://endpoint.microsoft.com, create or append to your Microsoft Defender Antivirus policy using the following setting: For example, your production policy named MDAV_Settings_Production.

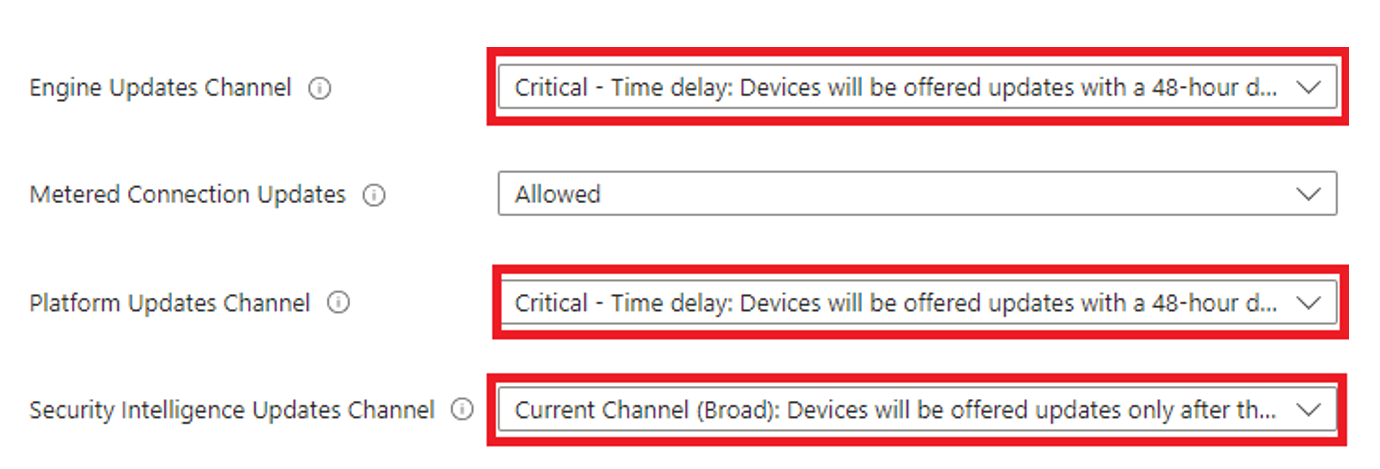

Shows recommended Intune Microsoft Defender Antivirus production policy settings.

Feature Recommendation Comments
Engine Updates Channel Critical – Time delay It's delayed by two days.
Platform Updates Channel Critical – Time delay It's delayed by two days.
Security Intelligence Updates Channel Current Channel (Broad) This configuration provides you with 3 hours of time to find an FP and prevent the production systems from getting an incompatible signature update.

If you encounter problems

If you encounter problems with your deployment, change the source of the Microsoft Defender Antivirus updates:

  1. In the Intune portal https://endpoint.microsoft.com, go to Endpoint Security, select Antivirus, and then find your Intune production policy (for example, MDAV_Settings_Production), and then, in Configuration settings, select Edit.

  2. Change the entry to FileShares. This change is shown in the following figure.

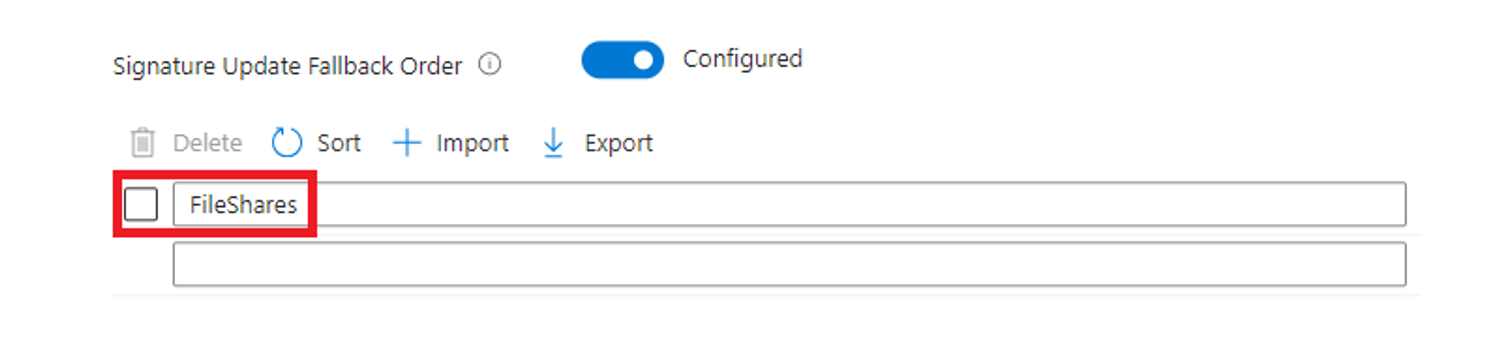

    Shows Intune Microsoft Defender Antivirus production policy fallback setting.

What this change does

It forces Microsoft Defender Antivirus to look for the Security Intelligence Update, Engine Update or Platform Update from a file share that doesn't exist.

How long does it take for the Intune policy to refresh?

If you update a policy, it's within a few minutes (3-5 minutes) via WNS, as long the WNS URLs' are open.

Reference: Intune actions that immediately send a notification to a device

After the issue is resolved, set the "Signature Update Fallback Order" back to the original setting"

InternalDefinitionUpdateServder|MicrosoftUpdateServer|MMPC|FileShare
