Implement value objects

  • Article

Tip

This content is an excerpt from the eBook, .NET Microservices Architecture for Containerized .NET Applications, available on .NET Docs or as a free downloadable PDF that can be read offline.

Download PDF

.NET Microservices Architecture for Containerized .NET Applications eBook cover thumbnail.

As discussed in earlier sections about entities and aggregates, identity is fundamental for entities. However, there are many objects and data items in a system that do not require an identity and identity tracking, such as value objects.

A value object can reference other entities. For example, in an application that generates a route that describes how to get from one point to another, that route would be a value object. It would be a snapshot of points on a specific route, but this suggested route would not have an identity, even though internally it might refer to entities like City, Road, etc.

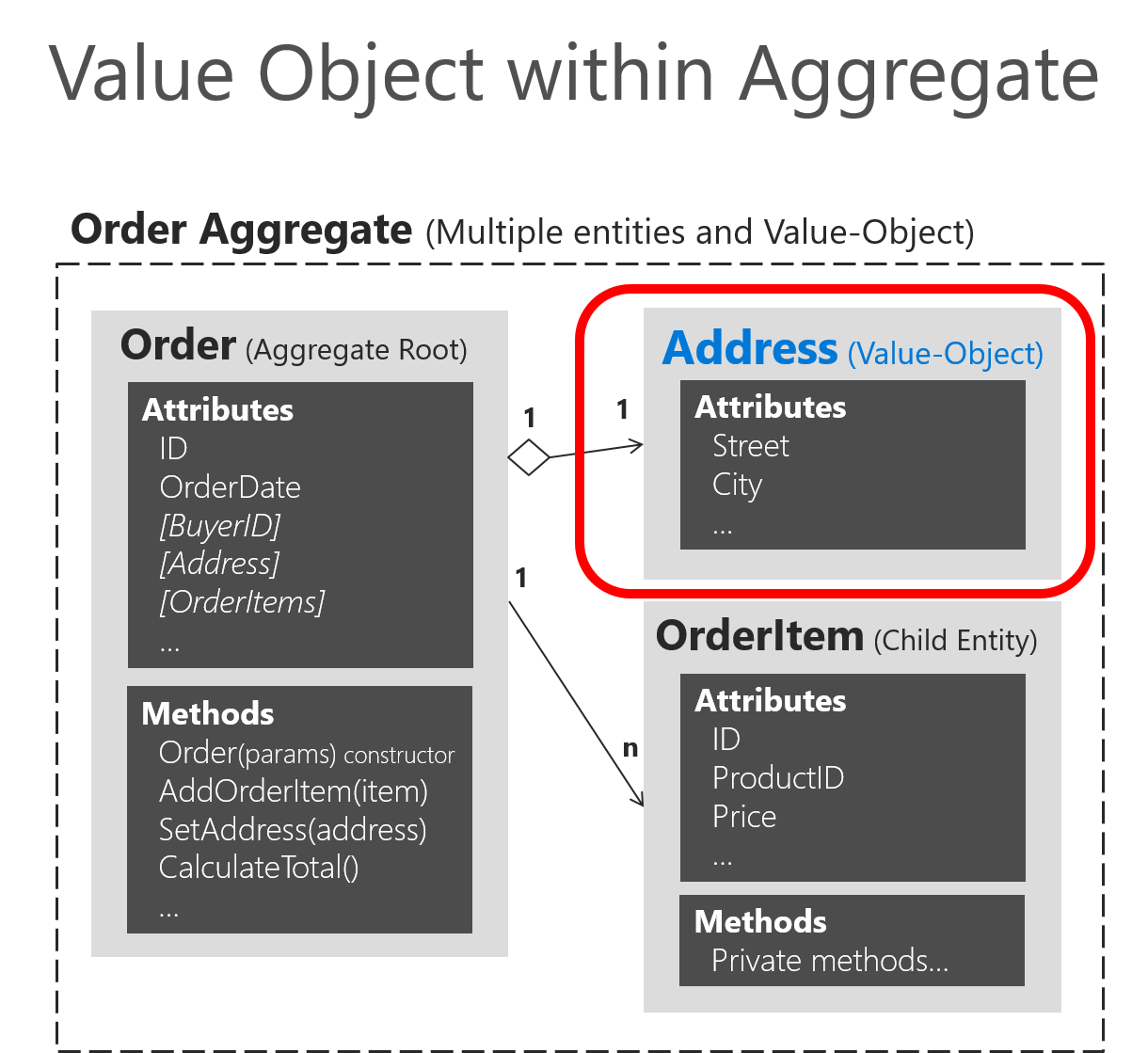

Figure 7-13 shows the Address value object within the Order aggregate.

Diagram showing the Address value-object inside the Order Aggregate.

Figure 7-13. Address value object within the Order aggregate

As shown in Figure 7-13, an entity is usually composed of multiple attributes. For example, the Order entity can be modeled as an entity with an identity and composed internally of a set of attributes such as OrderId, OrderDate, OrderItems, etc. But the address, which is simply a complex-value composed of country/region, street, city, etc., and has no identity in this domain, must be modeled and treated as a value object.

Important characteristics of value objects

There are two main characteristics for value objects:

  • They have no identity.

  • They are immutable.

The first characteristic was already discussed. Immutability is an important requirement. The values of a value object must be immutable once the object is created. Therefore, when the object is constructed, you must provide the required values, but you must not allow them to change during the object's lifetime.

Value objects allow you to perform certain tricks for performance, thanks to their immutable nature. This is especially true in systems where there may be thousands of value object instances, many of which have the same values. Their immutable nature allows them to be reused; they can be interchangeable objects, since their values are the same and they have no identity. This type of optimization can sometimes make a difference between software that runs slowly and software with good performance. Of course, all these cases depend on the application environment and deployment context.

Value object implementation in C#

In terms of implementation, you can have a value object base class that has basic utility methods like equality based on the comparison between all the attributes (since a value object must not be based on identity) and other fundamental characteristics. The following example shows a value object base class used in the ordering microservice from eShopOnContainers.

public abstract class ValueObject
{
    protected static bool EqualOperator(ValueObject left, ValueObject right)
    {
        if (ReferenceEquals(left, null) ^ ReferenceEquals(right, null))
        {
            return false;
        }
        return ReferenceEquals(left, right) || left.Equals(right);
    }

    protected static bool NotEqualOperator(ValueObject left, ValueObject right)
    {
        return !(EqualOperator(left, right));
    }

    protected abstract IEnumerable<object> GetEqualityComponents();

    public override bool Equals(object obj)
    {
        if (obj == null || obj.GetType() != GetType())
        {
            return false;
        }

        var other = (ValueObject)obj;

        return this.GetEqualityComponents().SequenceEqual(other.GetEqualityComponents());
    }

    public override int GetHashCode()
    {
        return GetEqualityComponents()
            .Select(x => x != null ? x.GetHashCode() : 0)
            .Aggregate((x, y) => x ^ y);
    }
    // Other utility methods
}

The ValueObject is an abstract class type, but in this example, it doesn't overload the == and != operators. You could choose to do so, making comparisons delegate to the Equals override. For example, consider the following operator overloads to the ValueObject type:

public static bool operator ==(ValueObject one, ValueObject two)
{
    return EqualOperator(one, two);
}

public static bool operator !=(ValueObject one, ValueObject two)
{
    return NotEqualOperator(one, two);
}

You can use this class when implementing your actual value object, as with the Address value object shown in the following example:

public class Address : ValueObject
{
    public String Street { get; private set; }
    public String City { get; private set; }
    public String State { get; private set; }
    public String Country { get; private set; }
    public String ZipCode { get; private set; }

    public Address() { }

    public Address(string street, string city, string state, string country, string zipcode)
    {
        Street = street;
        City = city;
        State = state;
        Country = country;
        ZipCode = zipcode;
    }

    protected override IEnumerable<object> GetEqualityComponents()
    {
        // Using a yield return statement to return each element one at a time
        yield return Street;
        yield return City;
        yield return State;
        yield return Country;
        yield return ZipCode;
    }
}

This value object implementation of Address has no identity, and therefore no ID field is defined for it, either in the Address class definition or the ValueObject class definition.

Having no ID field in a class to be used by Entity Framework (EF) was not possible until EF Core 2.0, which greatly helps to implement better value objects with no ID. That is precisely the explanation of the next section.

It could be argued that value objects, being immutable, should be read-only (that is, have get-only properties), and that's indeed true. However, value objects are usually serialized and deserialized to go through message queues, and being read-only stops the deserializer from assigning values, so you just leave them as private set, which is read-only enough to be practical.

Value object comparison semantics

Two instances of the Address type can be compared using all the following methods:

var one = new Address("1 Microsoft Way", "Redmond", "WA", "US", "98052");
var two = new Address("1 Microsoft Way", "Redmond", "WA", "US", "98052");

Console.WriteLine(EqualityComparer<Address>.Default.Equals(one, two)); // True
Console.WriteLine(object.Equals(one, two)); // True
Console.WriteLine(one.Equals(two)); // True
Console.WriteLine(one == two); // True

When all the values are the same, the comparisons are correctly evaluated as true. If you didn't choose to overload the == and != operators, then the last comparison of one == two would evaluate as false. For more information, see Overload ValueObject equality operators.

How to persist value objects in the database with EF Core 2.0 and later

You just saw how to define a value object in your domain model. But how can you actually persist it into the database using Entity Framework Core since it usually targets entities with identity?

Background and older approaches using EF Core 1.1

As background, a limitation when using EF Core 1.0 and 1.1 was that you could not use complex types as defined in EF 6.x in the traditional .NET Framework. Therefore, if using EF Core 1.0 or 1.1, you needed to store your value object as an EF entity with an ID field. Then, so it looked more like a value object with no identity, you could hide its ID so you make clear that the identity of a value object is not important in the domain model. You could hide that ID by using the ID as a shadow property. Since that configuration for hiding the ID in the model is set up in the EF infrastructure level, it would be kind of transparent for your domain model.

In the initial version of eShopOnContainers (.NET Core 1.1), the hidden ID needed by EF Core infrastructure was implemented in the following way in the DbContext level, using Fluent API at the infrastructure project. Therefore, the ID was hidden from the domain model point of view, but still present in the infrastructure.

// Old approach with EF Core 1.1
// Fluent API within the OrderingContext:DbContext in the Infrastructure project
void ConfigureAddress(EntityTypeBuilder<Address> addressConfiguration)
{
    addressConfiguration.ToTable("address", DEFAULT_SCHEMA);

    addressConfiguration.Property<int>("Id")  // Id is a shadow property
        .IsRequired();
    addressConfiguration.HasKey("Id");   // Id is a shadow property
}

However, the persistence of that value object into the database was performed like a regular entity in a different table.

With EF Core 2.0 and later, there are new and better ways to persist value objects.

Persist value objects as owned entity types in EF Core 2.0 and later

Even with some gaps between the canonical value object pattern in DDD and the owned entity type in EF Core, it's currently the best way to persist value objects with EF Core 2.0 and later. You can see limitations at the end of this section.

The owned entity type feature was added to EF Core since version 2.0.

An owned entity type allows you to map types that do not have their own identity explicitly defined in the domain model and are used as properties, such as a value object, within any of your entities. An owned entity type shares the same CLR type with another entity type (that is, it's just a regular class). The entity containing the defining navigation is the owner entity. When querying the owner, the owned types are included by default.

Just by looking at the domain model, an owned type looks like it doesn't have any identity. However, under the covers, owned types do have the identity, but the owner navigation property is part of this identity.

The identity of instances of owned types is not completely their own. It consists of three components:

  • The identity of the owner

  • The navigation property pointing to them

  • In the case of collections of owned types, an independent component (supported in EF Core 2.2 and later).

For example, in the Ordering domain model at eShopOnContainers, as part of the Order entity, the Address value object is implemented as an owned entity type within the owner entity, which is the Order entity. Address is a type with no identity property defined in the domain model. It is used as a property of the Order type to specify the shipping address for a particular order.

By convention, a shadow primary key is created for the owned type and it will be mapped to the same table as the owner by using table splitting. This allows to use owned types similarly to how complex types are used in EF6 in the traditional .NET Framework.

It is important to note that owned types are never discovered by convention in EF Core, so you have to declare them explicitly.

In eShopOnContainers, in the OrderingContext.cs file, within the OnModelCreating() method, multiple infrastructure configurations are applied. One of them is related to the Order entity.

// Part of the OrderingContext.cs class at the Ordering.Infrastructure project
//
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    modelBuilder.ApplyConfiguration(new ClientRequestEntityTypeConfiguration());
    modelBuilder.ApplyConfiguration(new PaymentMethodEntityTypeConfiguration());
    modelBuilder.ApplyConfiguration(new OrderEntityTypeConfiguration());
    modelBuilder.ApplyConfiguration(new OrderItemEntityTypeConfiguration());
    //...Additional type configurations
}

In the following code, the persistence infrastructure is defined for the Order entity:

// Part of the OrderEntityTypeConfiguration.cs class
//
public void Configure(EntityTypeBuilder<Order> orderConfiguration)
{
    orderConfiguration.ToTable("orders", OrderingContext.DEFAULT_SCHEMA);
    orderConfiguration.HasKey(o => o.Id);
    orderConfiguration.Ignore(b => b.DomainEvents);
    orderConfiguration.Property(o => o.Id)
        .ForSqlServerUseSequenceHiLo("orderseq", OrderingContext.DEFAULT_SCHEMA);

    //Address value object persisted as owned entity in EF Core 2.0
    orderConfiguration.OwnsOne(o => o.Address);

    orderConfiguration.Property<DateTime>("OrderDate").IsRequired();

    //...Additional validations, constraints and code...
    //...
}

In the previous code, the orderConfiguration.OwnsOne(o => o.Address) method specifies that the Address property is an owned entity of the Order type.

By default, EF Core conventions name the database columns for the properties of the owned entity type as EntityProperty_OwnedEntityProperty. Therefore, the internal properties of Address will appear in the Orders table with the names Address_Street, Address_City (and so on for State, Country, and ZipCode).

You can append the Property().HasColumnName() fluent method to rename those columns. In the case where Address is a public property, the mappings would be like the following:

orderConfiguration.OwnsOne(p => p.Address)
                            .Property(p=>p.Street).HasColumnName("ShippingStreet");

orderConfiguration.OwnsOne(p => p.Address)
                            .Property(p=>p.City).HasColumnName("ShippingCity");

It's possible to chain the OwnsOne method in a fluent mapping. In the following hypothetical example, OrderDetails owns BillingAddress and ShippingAddress, which are both Address types. Then OrderDetails is owned by the Order type.

orderConfiguration.OwnsOne(p => p.OrderDetails, cb =>
    {
        cb.OwnsOne(c => c.BillingAddress);
        cb.OwnsOne(c => c.ShippingAddress);
    });
//...
//...
public class Order
{
    public int Id { get; set; }
    public OrderDetails OrderDetails { get; set; }
}

public class OrderDetails
{
    public Address BillingAddress { get; set; }
    public Address ShippingAddress { get; set; }
}

public class Address
{
    public string Street { get; set; }
    public string City { get; set; }
}

Additional details on owned entity types

  • Owned types are defined when you configure a navigation property to a particular type using the OwnsOne fluent API.

  • The definition of an owned type in our metadata model is a composite of: the owner type, the navigation property, and the CLR type of the owned type.

  • The identity (key) of an owned type instance in our stack is a composite of the identity of the owner type and the definition of the owned type.

Owned entities capabilities

  • Owned types can reference other entities, either owned (nested owned types) or non-owned (regular reference navigation properties to other entities).

  • You can map the same CLR type as different owned types in the same owner entity through separate navigation properties.

  • Table splitting is set up by convention, but you can opt out by mapping the owned type to a different table using ToTable.

  • Eager loading is performed automatically on owned types, that is, there's no need to call .Include() on the query.

  • Can be configured with attribute [Owned], using EF Core 2.1 and later.

  • Can handle collections of owned types (using version 2.2 and later).

Owned entities limitations

  • You can't create a DbSet<T> of an owned type (by design).

  • You can't call ModelBuilder.Entity<T>() on owned types (currently by design).

  • No support for optional (that is, nullable) owned types that are mapped with the owner in the same table (that is, using table splitting). This is because mapping is done for each property, there is no separate sentinel for the null complex value as a whole.

  • No inheritance-mapping support for owned types, but you should be able to map two leaf types of the same inheritance hierarchies as different owned types. EF Core will not reason about the fact that they are part of the same hierarchy.

Main differences with EF6's complex types

  • Table splitting is optional, that is, they can optionally be mapped to a separate table and still be owned types.
