Carousel (Archived)

Warning

This document has been archived in the Windows Community Toolkit.

While the Carousel control is not included in WCT 8.x, there are plans to introduce a modern, improved version in Community Toolkit Labs. The existing implementation from 7.x was deprecated due to its age and limitations, particularly around infinite scrolling functionality.

Community interest and contributions are welcome to help accelerate this effort. You can track progress and express interest in the GitHub discussions:

For more information:

Original documentation follows below.

The Carousel control provides a new control, inherited from the ItemsControl, representing a nice and smooth carousel.
This control lets you specify a lot of properties for a flexible layouting.
The Carousel control works fine with mouse, touch, mouse and keyboard as well.

Try it in the sample app

Syntax

<Page ...
    xmlns:controls="using:Microsoft.Toolkit.Uwp.UI.Controls"/>

<controls:Carousel InvertPositive="True" ItemDepth="300"
                   ItemMargin="0" ItemRotationX="0"
                   ItemRotationY="45" ItemRotationZ="0"
                   Orientation="Horizontal">
    <controls:Carousel.EasingFunction>
        <CubicEase EasingMode="EaseOut" />
    </controls:Carousel.EasingFunction>

    <controls:Carousel.ItemTemplate>
        <DataTemplate>
            <!-- Carousel content -->
        </DataTemplate>
    </controls:Carousel.ItemTemplate>
</controls:Carousel>

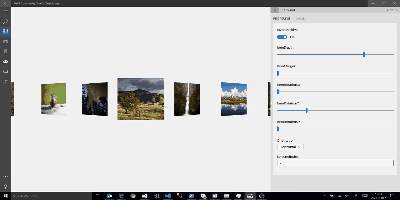

Sample Output

Carousel Overview

Properties

Property Type Description
EasingFunction EasingFunctionBase Gets or sets easing function to apply for each Transition
InvertPositive bool Gets or sets a value indicating whether the items rendered transformations should be opposite compared to the selected item If false, all the items (except the selected item) will have the exact same transformations If true, all the items where index > selected index will have an opposite tranformation (Rotation X Y and Z will be multiply by -1)
ItemDepth int Gets or sets depth of non Selected Index Items
ItemMargin int Gets or sets the item margin
ItemRotationX double Gets or sets rotation angle on X
ItemRotationY double Gets or sets rotation angle on Y
ItemRotationZ double Gets or sets rotation angle on Z
Orientation Orientation Gets or sets the Carousel orientation. Horizontal or Vertical
SelectedIndex int Gets or sets selected Index
SelectedItem object Gets or sets the selected Item
TransitionDuration int Gets or sets duration of the easing function animation in ms

Events

Events Description
SelectionChanged Occurs when the selected item has changed

Sample Project

Carousel Sample Page Source. You can see this in action in the Windows Community Toolkit Sample App.

Default Template

Carousel XAML File is the XAML template used in the toolkit for the default styling.

Requirements

Device family Universal, 10.0.16299.0 or higher
Namespace Microsoft.Toolkit.Uwp.UI.Controls
NuGet package Microsoft.Toolkit.Uwp.UI.Controls
