Use the WCF Web Service Reference Provider Tool

Over the years, many Visual Studio developers have enjoyed the productivity that the Add Service Reference tool provided when their .NET Framework projects needed to access web services.

The WCF Web Service Reference tool is a Visual Studio connected service extension that lets you connect your .NET 5+, .NET Core, or ASP.NET Core project to a web service. It provides an experience similar to the Add Service Reference functionality, which is for .NET Framework projects only. The WCF Web Service Reference tool retrieves metadata from a web service in the current solution, on a network location, or from a WSDL file, and generates a source file containing Windows Communication Foundation (WCF) client proxy code that your .NET app can use to access the web service.

Important

You should only reference services from a trusted source. Adding references from an untrusted source may compromise security.

Prerequisites

The screenshots in this article are from Visual Studio 2022.

How to use the extension

Note

The WCF Web Service Reference tool is applicable only to C# .NET Core and .NET Standard projects, including ASP.NET Core Web apps.

Using the ASP.NET Core Web Application project template as an example, this article walks you through adding a WCF service reference to the project.

  1. In Solution Explorer, double-click the Connected Services node of the project. (For a .NET Core or .NET Standard project, this option is available when you right-click on the Dependencies node of the project in Solution Explorer and choose Manage Connected Services.)

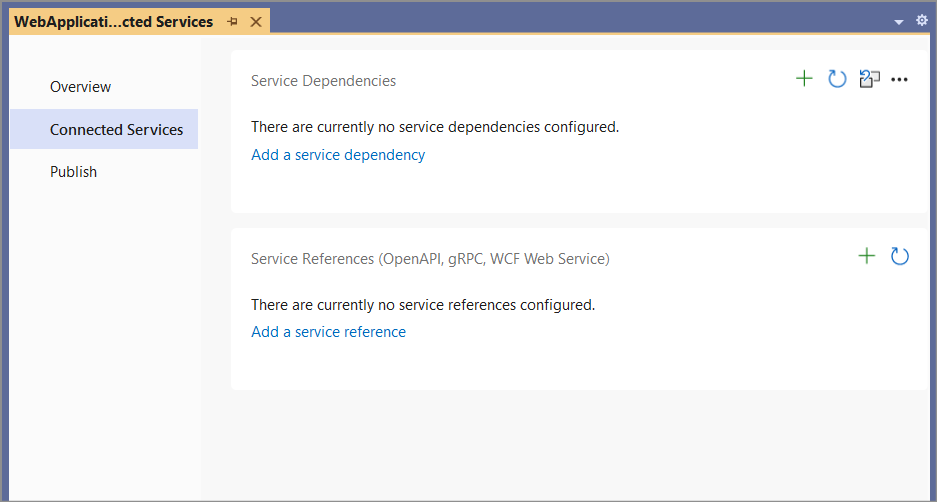

    The Connected Services page appears as shown in the following image:

    Visual Studio Connected Services tab for .NET Core

  2. On the Connected Services page, select Add Service Reference.

    The Add service reference page opens.

  3. Select WCF Web Service, and then choose Next.

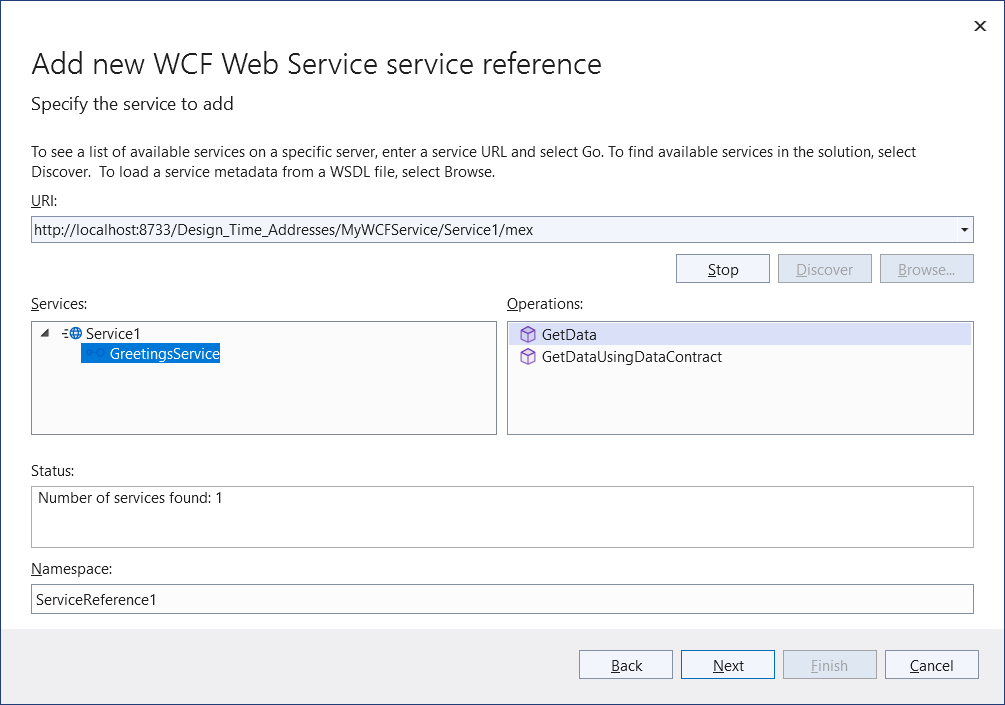

    This brings up the Add new WCF Web Service service reference wizard.

    Visual Studio Service Endpoint tab for .NET Core

  4. Select a service.

    a. There are several services search options available:

    • To search for services defined in the current solution, click the Discover button.
    • To search for services hosted at a specified address, enter a service URL in the Address box and click the Go button.
    • To select a WSDL file that contains the web service metadata information, click the Browse button.

    b. Select the service from the search results list in the Services box. If needed, enter the namespace for the generated code in the corresponding Namespace text box.

    c. Click the Next button to specify data type options or client options. Alternatively, click the Finish button to use the default options.

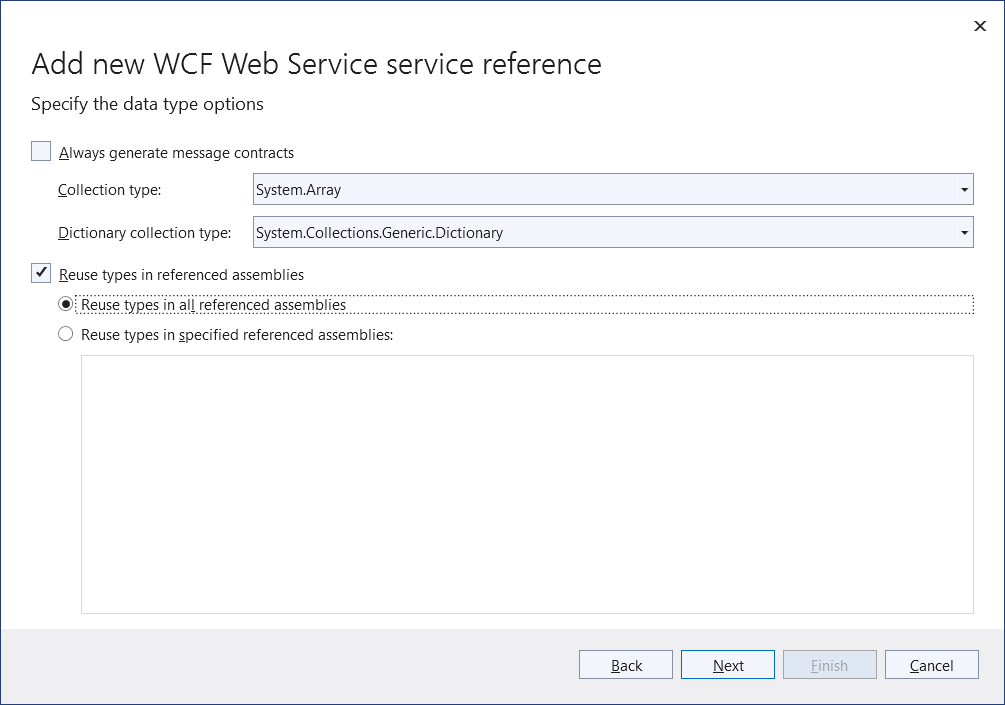

  5. The data type options page lets refine the generated service reference configuration settings:

    Visual Studio Data type options tab for .NET Core

    Note

    The Reuse types in referenced assemblies check box option is useful when data types needed for service reference code generation are defined in one of your project's referenced assemblies. It's important to reuse those existing data types to avoid compile-time type clash or runtime issues.

    There may be a delay while type information is loaded, depending on the number of project dependencies and other system performance factors. The Finish button is disabled during loading unless the Reuse types in referenced assemblies check box is unchecked.

  6. Click Finish when you are done.

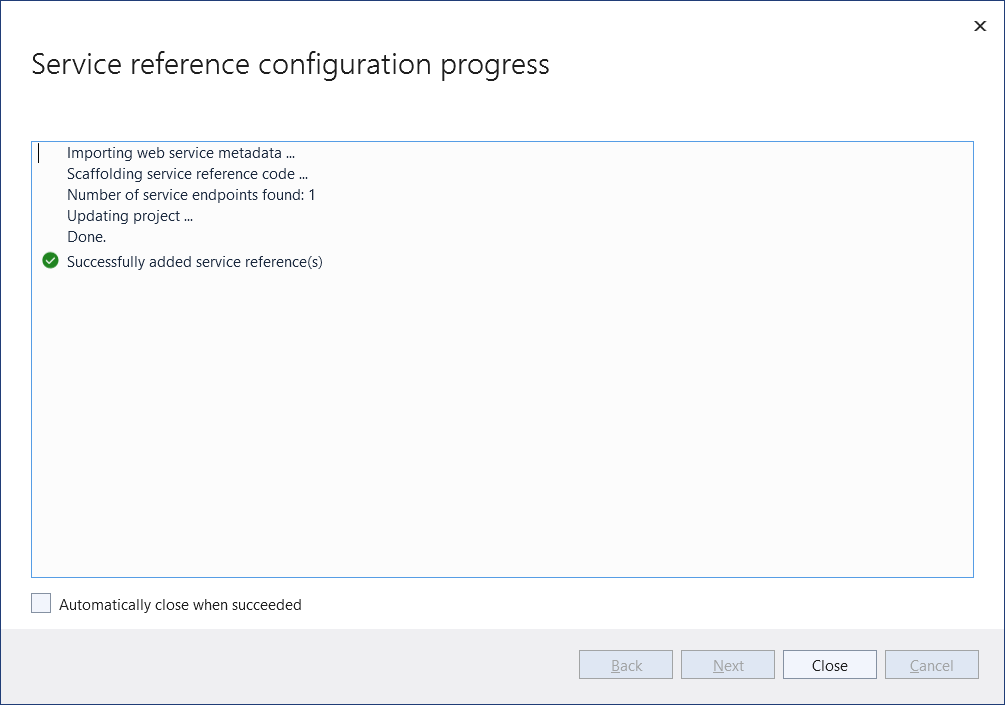

While displaying progress, the tool:

  • Downloads metadata from the WCF service.
  • Generates the service reference code in a file named reference.cs, and adds it to your project under the Connected Services node.
  • Updates the project file (.csproj) with NuGet package references required to compile and run on the target platform.

Visual Studio Progress window

When these processes complete, you can create an instance of the generated WCF client type and invoke the service operations.

See also

Feedback & questions

If you have any product feedback, report it at Developer Community using the Report a problem tool.

Release notes

  • Refer to the Release notes for updated release information, including known issues.
