Tutorial: Debug a .NET console application using Visual Studio Code

This tutorial introduces the debugging tools available in Visual Studio Code for working with .NET apps.

Prerequisites

Use Debug build configuration

Debug and Release are .NET's built-in build configurations. You use the Debug build configuration for debugging and the Release configuration for the final release distribution.

In the Debug configuration, a program compiles with full symbolic debug information and no optimization. Optimization complicates debugging, because the relationship between source code and generated instructions is more complex. The release configuration of a program has no symbolic debug information and is fully optimized.

By default, Visual Studio Code launch settings use the Debug build configuration, so you don't need to change it before debugging.

  1. Start Visual Studio Code.

  2. Open the folder of the project that you created in Create a .NET console application using Visual Studio Code.

Set a breakpoint

A breakpoint temporarily interrupts the execution of the application before the line with the breakpoint is run.

  1. Open the Program.cs file.

  2. Set a breakpoint on the line that displays the name, date, and time, by clicking in the left margin of the code window. The left margin is to the left of the line numbers. Other ways to set a breakpoint are by pressing F9 or choosing Run > Toggle Breakpoint from the menu while the line of code is selected.

    Visual Studio Code indicates the line on which the breakpoint is set by displaying a red dot in the left margin.

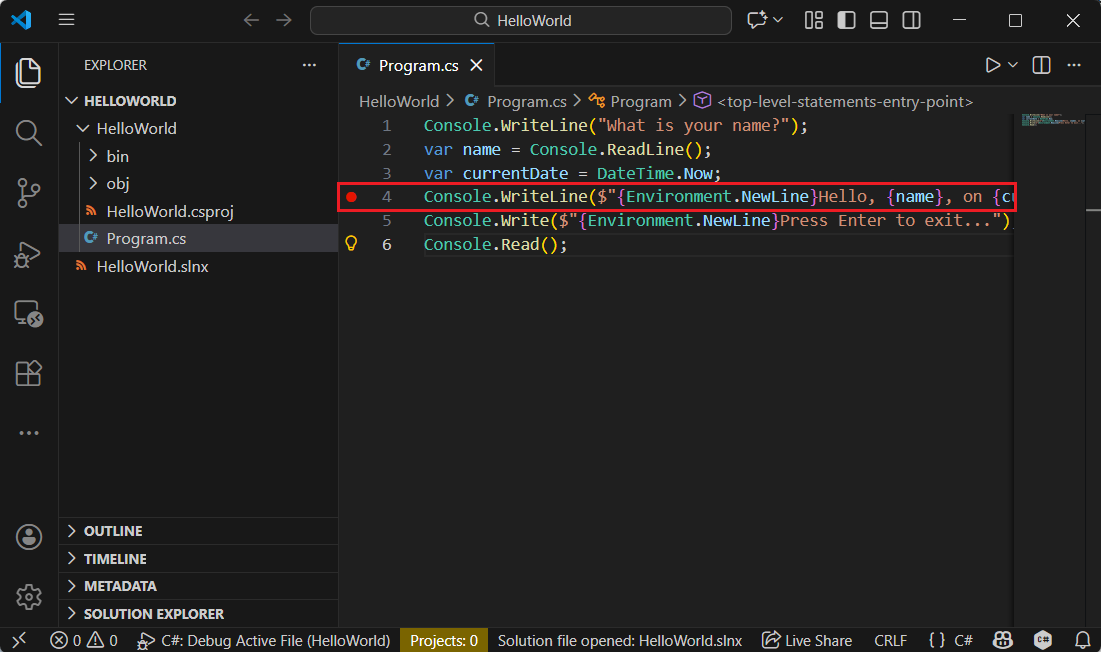

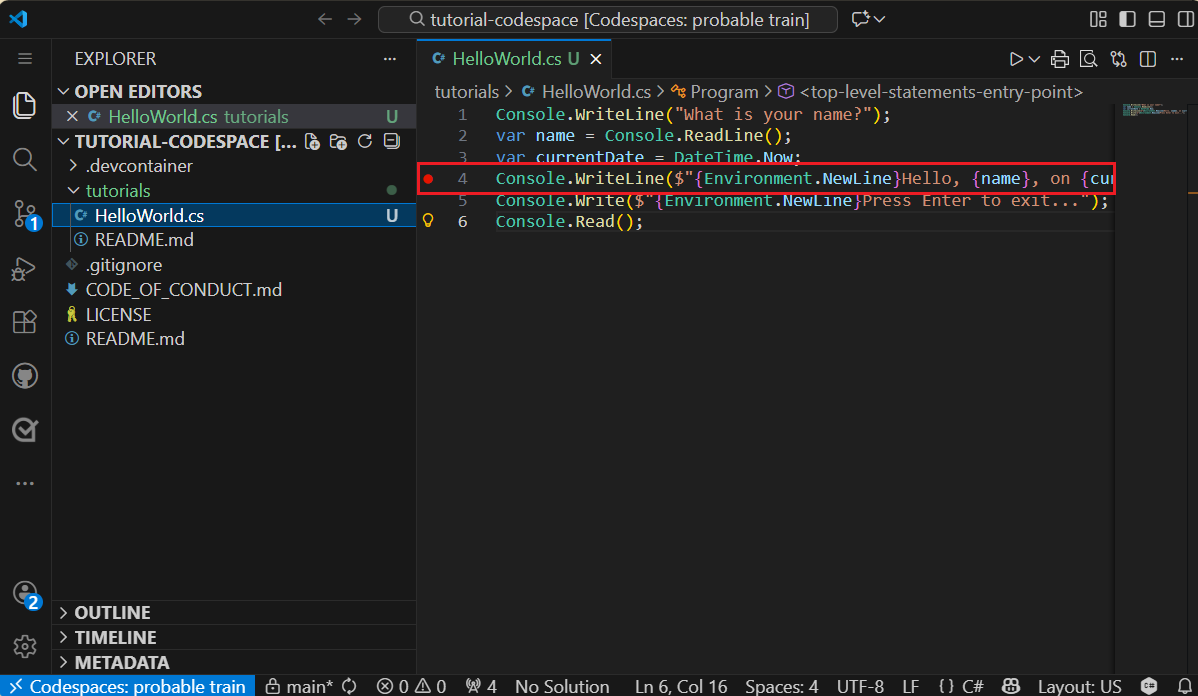

    Breakpoint set

Start debugging

  1. Open the Debug view by selecting the Debugging icon on the left side menu.

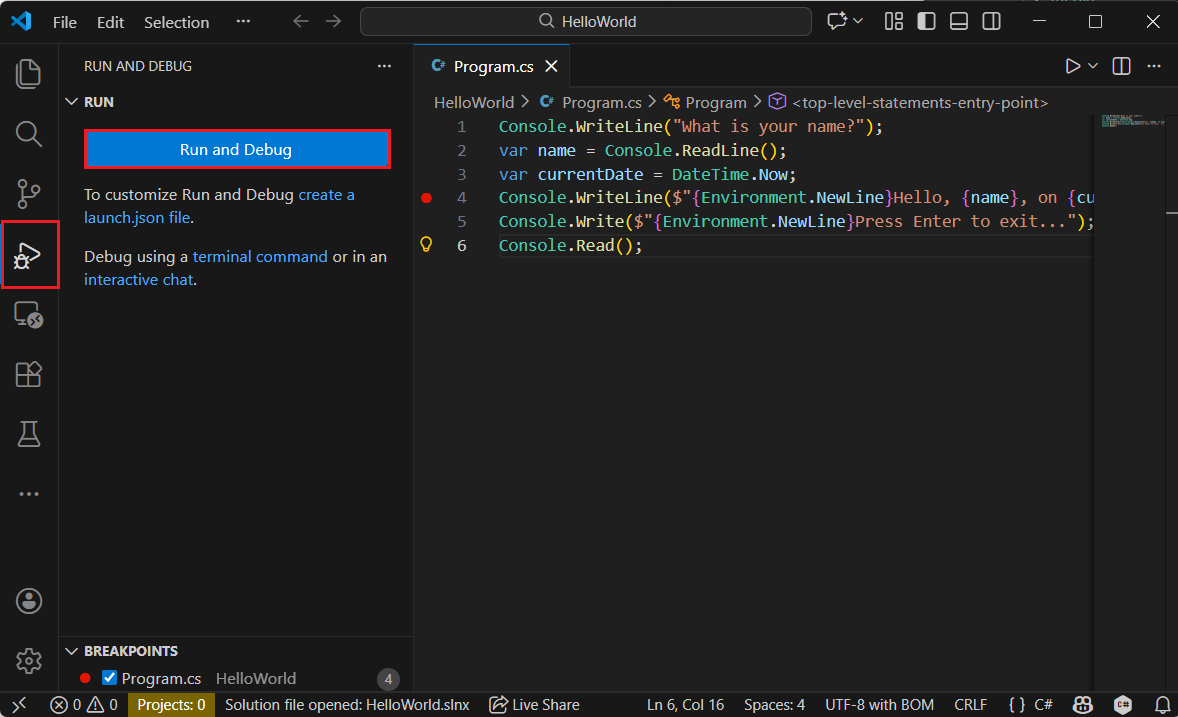

    Open the Debug tab in Visual Studio Code

  2. Select Run and Debug. If asked, select C# and then select C#: Launch startup project. Other ways to start the program in debugging mode are by pressing F5 or choosing Run > Start Debugging from the menu.

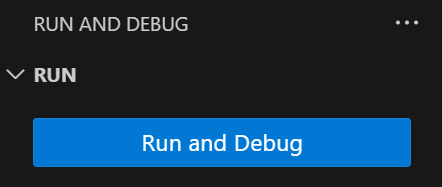

    Start debugging

  3. If asked to Select Launch Configuration, select C#: HelloWorld HelloWorld.

  4. Select the Debug Console tab to see the "What is your name?" prompt that the program displays before waiting for a response.

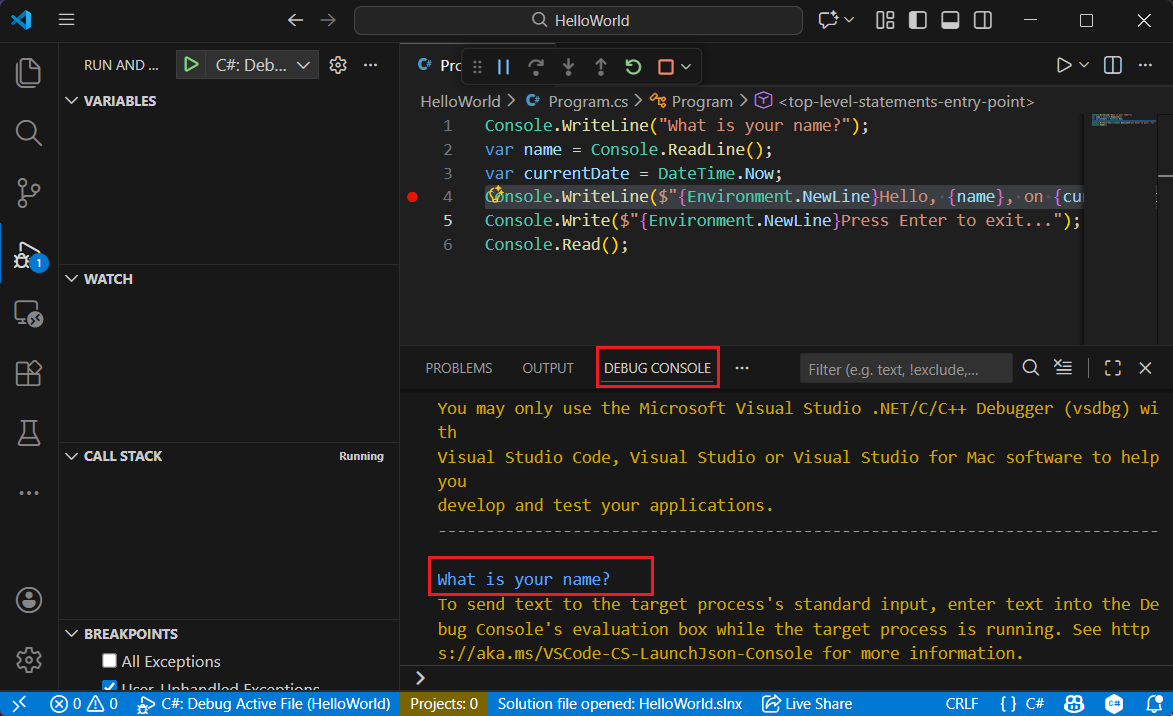

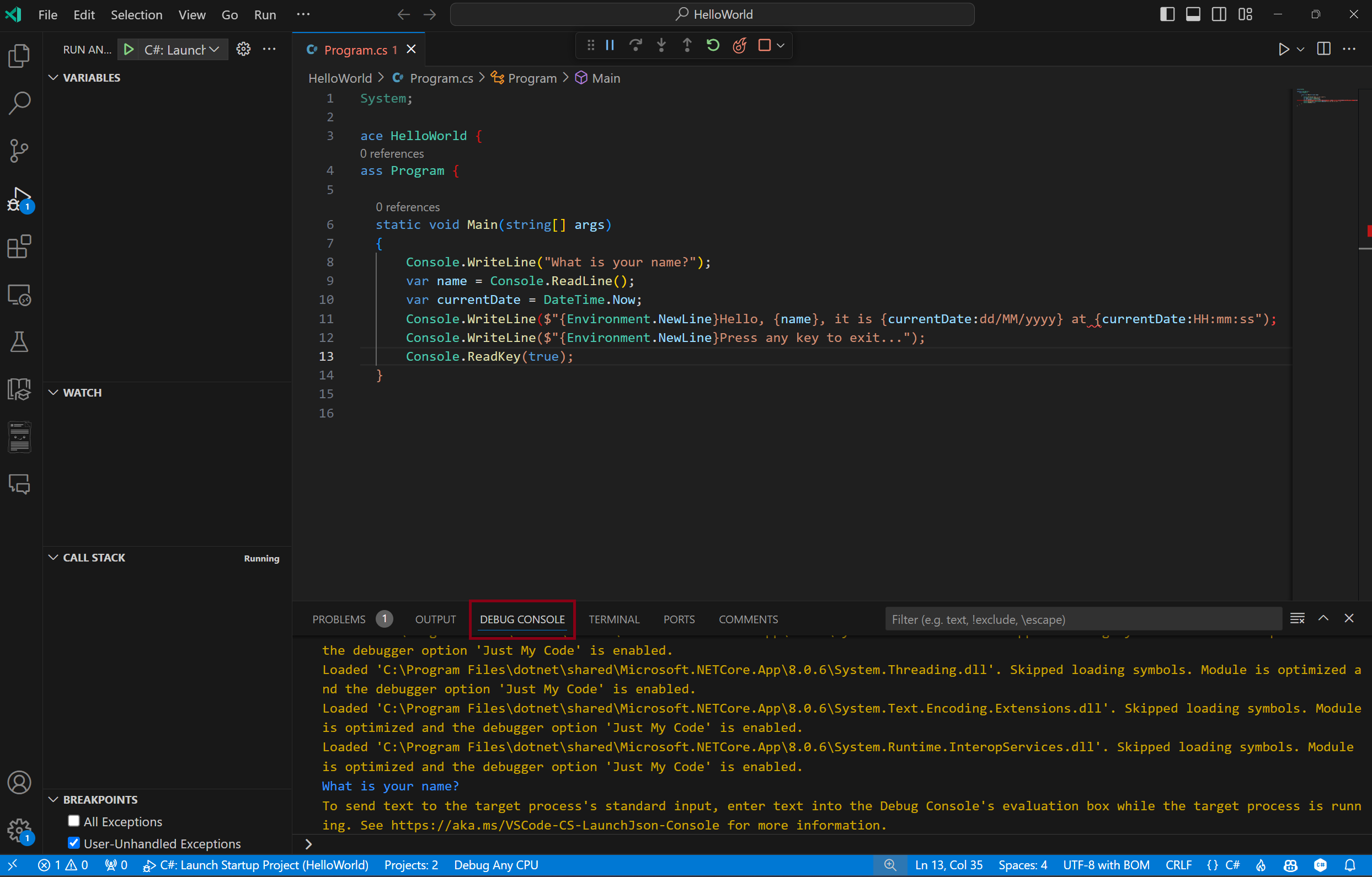

    Select the Debug Console tab

  5. Enter a string in the Debug Console window in response to the prompt for a name, and then press Enter.

    Program execution stops when it reaches the breakpoint and before the Console.WriteLine method runs. The Locals section of the Variables window displays the values of variables that are defined in the currently running method.

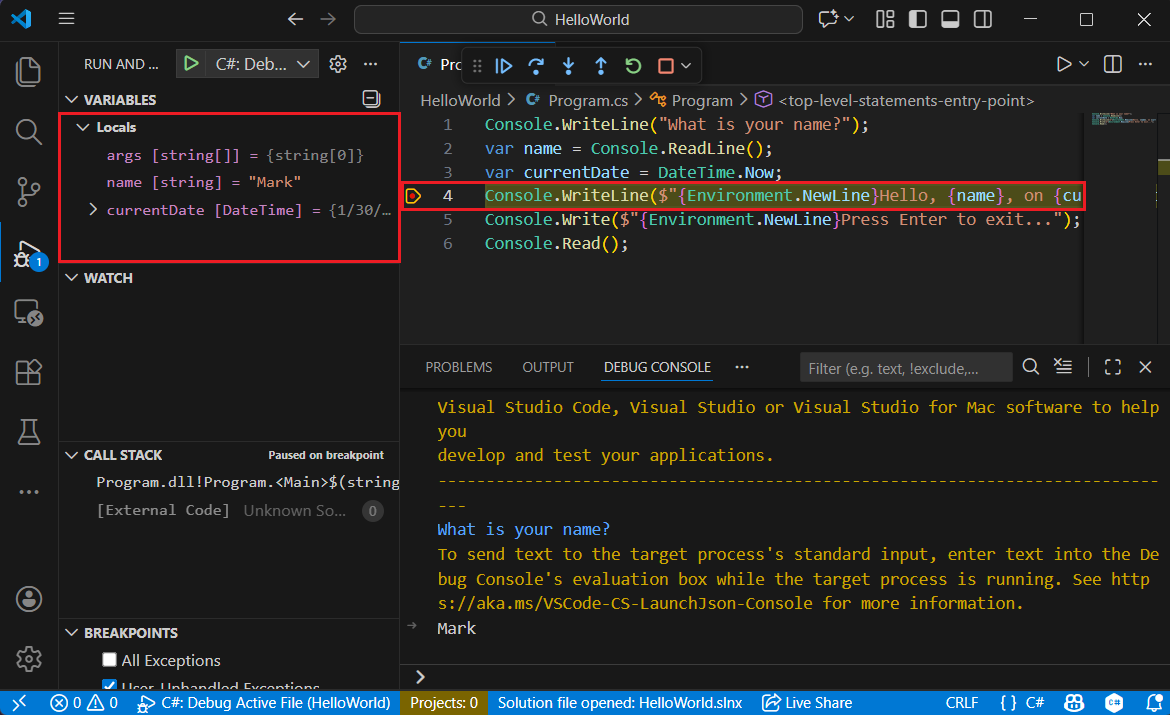

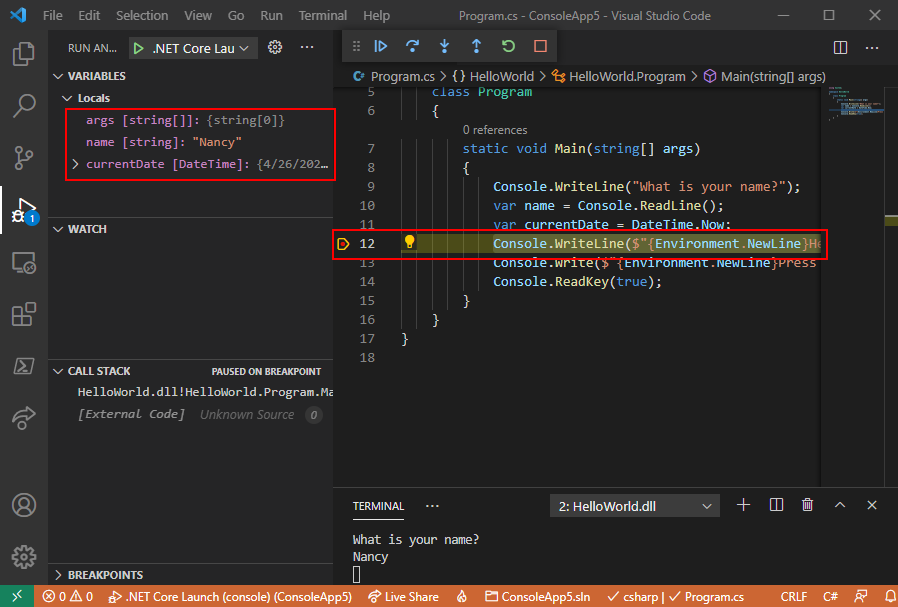

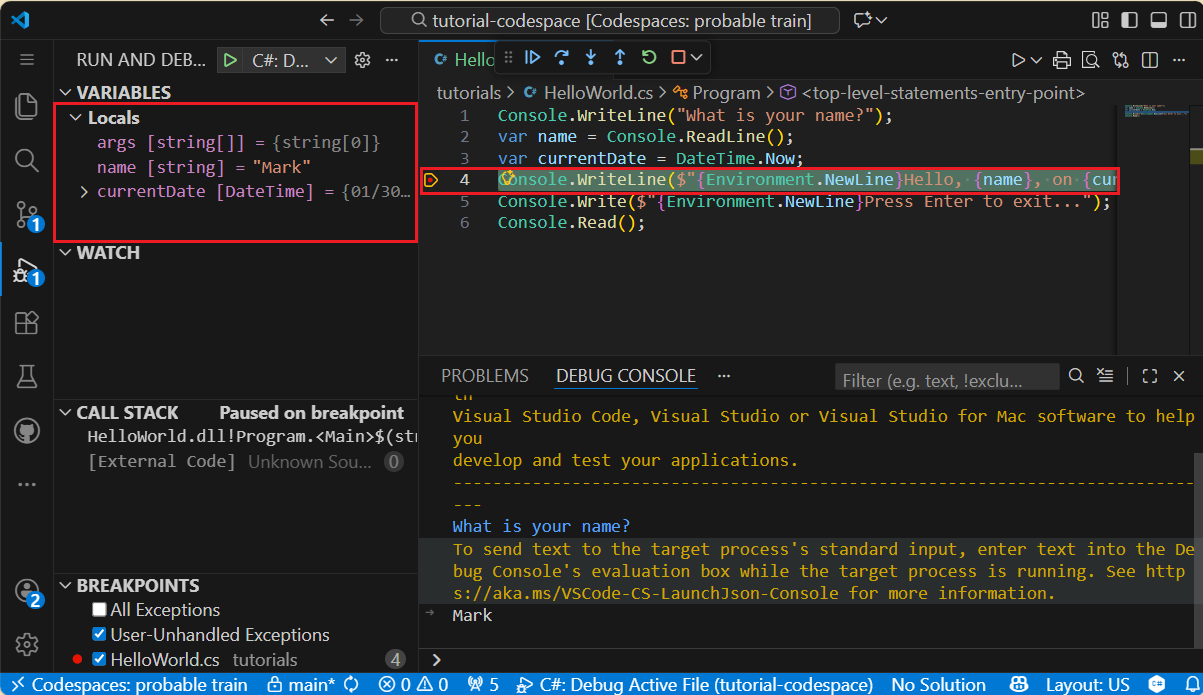

    Breakpoint hit, showing Locals

Use the Debug Console

The Debug Console window lets you interact with the application you're debugging. You can change the value of variables to see how it affects your program.

  1. Select the Debug Console tab.

  2. Enter name = "Gracie" at the prompt at the bottom of the Debug Console window and press Enter.

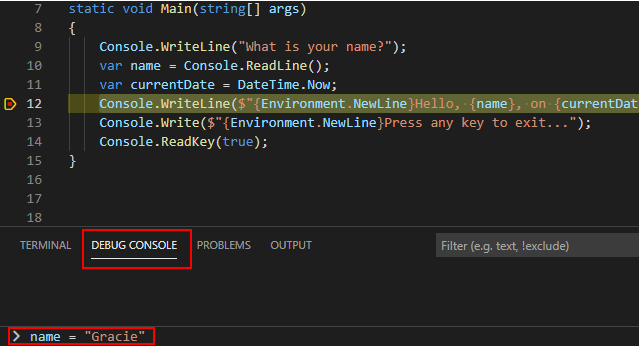

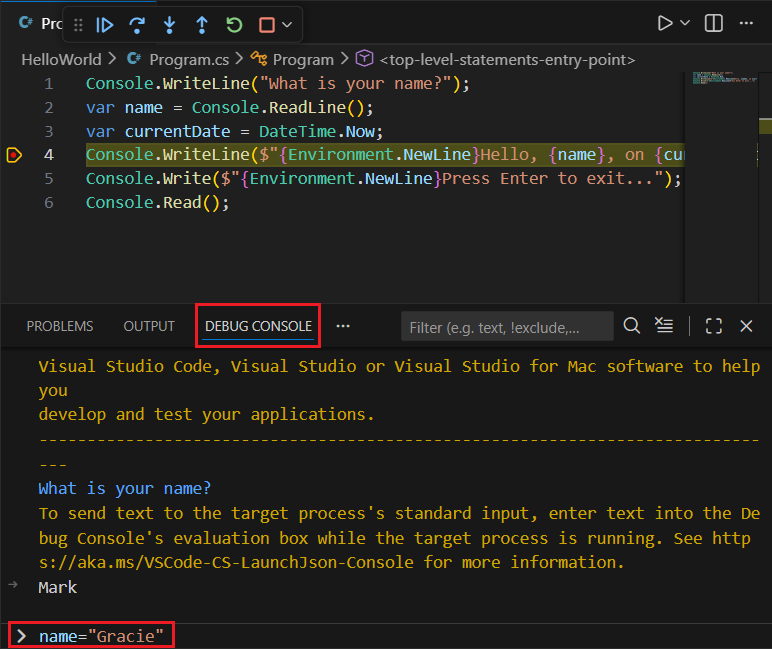

    Change variable values

  3. Enter currentDate = DateTime.Parse("2019-11-16T17:25:00Z").ToUniversalTime() at the bottom of the Debug Console window and press Enter.

    The Variables window displays the new values of the name and currentDate variables.

  4. Continue program execution by selecting the Continue button in the toolbar. Another way to continue is by pressing F5.

    Continue debugging

    The values displayed in the console window correspond to the changes you made in the Debug Console.

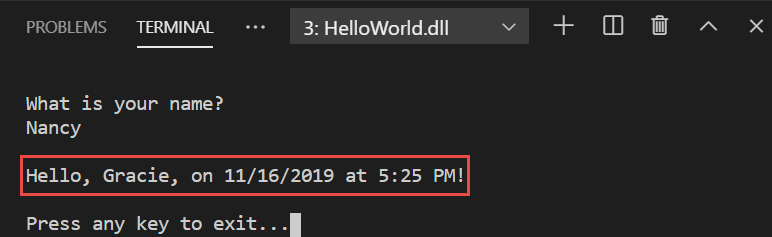

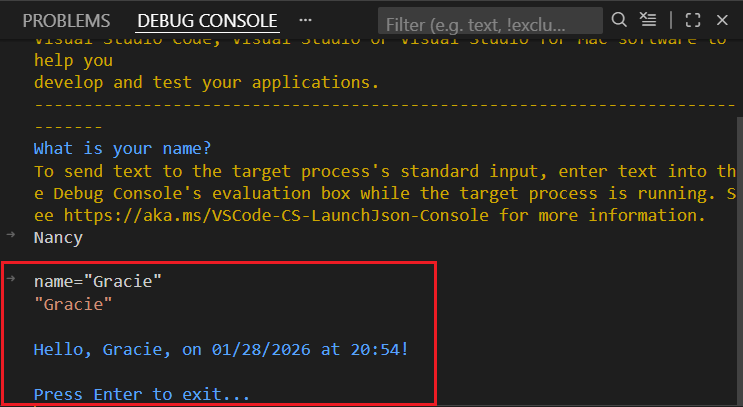

    Terminal showing the entered values

  5. Press Enter to exit the application and stop debugging.

Set a conditional breakpoint

The program displays the string that the user enters. What happens if the user doesn't enter anything? You can test this with a useful debugging feature called a conditional breakpoint.

  1. Right-click (Ctrl-click on macOS) on the red dot that represents the breakpoint. In the context menu, select Edit Breakpoint to open a dialog that lets you enter a conditional expression.

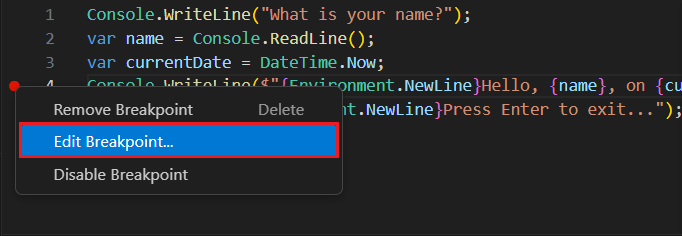

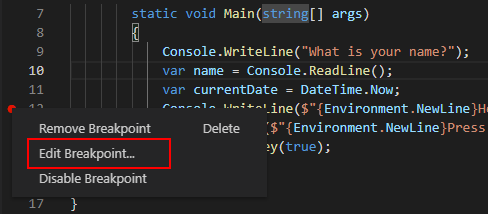

    Breakpoint context menu

  2. Select Expression in the drop-down, enter the following conditional expression, and press Enter.

    String.IsNullOrEmpty(name)

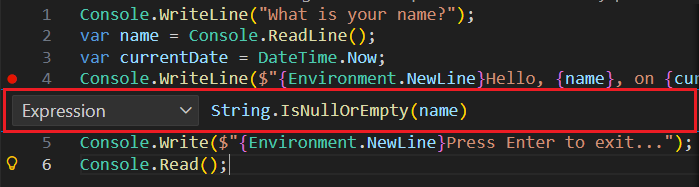

    Enter a conditional expression

    Each time the breakpoint is hit, the debugger calls the String.IsNullOrEmpty(name) method, and it breaks on this line only if the method call returns true.

    Instead of a conditional expression, you can specify a hit count, which interrupts program execution before a statement is run a specified number of times. Another option is to specify a filter condition, which interrupts program execution based on such attributes as a thread identifier, process name, or thread name.

  3. Start the program with debugging by pressing F5.

  4. In the Debug Console tab, press Enter when prompted to enter your name.

    Because the condition you specified (name is either null or String.Empty) has been satisfied, program execution stops when it reaches the breakpoint and before the Console.WriteLine method runs.

    The Variables window shows that the value of the name variable is "", or String.Empty.

  5. Confirm the value is an empty string by entering the following statement at the Debug Console prompt and pressing Enter. The result is true.

    name == String.Empty

  6. Select the Continue button on the toolbar to continue program execution.

  7. Press Enter to exit the program and stop debugging.

  8. Clear the breakpoint by clicking on the dot in the left margin of the code window. Other ways to clear a breakpoint are by pressing F9 or choosing Run > Toggle Breakpoint from the menu while the line of code is selected.

  9. If you get a warning that the breakpoint condition will be lost, select Remove Breakpoint.

Step through a program

Visual Studio Code also allows you to step line by line through a program and monitor its execution. Ordinarily, you'd set a breakpoint and follow program flow through a small part of your program code. Since this program is small, you can step through the entire program.

  1. Set a breakpoint on the opening curly brace of the Main method.

  2. Press F5 to start debugging.

    Visual Studio Code highlights the breakpoint line.

    At this point, the Variables window shows that the args array is empty, and name and currentDate have default values.

  3. Select Run > Step Into or press F11.

    Step-Into button

    Visual Studio Code highlights the next line.

  4. Select Run > Step Into or press F11.

    Visual Studio Code runs the Console.WriteLine for the name prompt and highlights the next line of execution. The next line is the Console.ReadLine for the name. The Variables window is unchanged, and the Terminal tab shows the "What is your name?" prompt.

  5. Select Run > Step Into or press F11.

    Visual Studio highlights the name variable assignment. The Variables window shows that name is still null.

  6. Respond to the prompt by entering a string in the Terminal tab and pressing Enter.

    The Debug Console tab might not display the string you enter while you're entering it, but the Console.ReadLine method will capture your input.

  7. Select Run > Step Into or press F11.

    Visual Studio Code highlights the currentDate variable assignment. The Variables window shows the value returned by the call to the Console.ReadLine method. The Terminal tab displays the string you entered at the prompt.

  8. Select Run > Step Into or press F11.

    The Variables window shows the value of the currentDate variable after the assignment from the DateTime.Now property.

  9. Select Run > Step Into or press F11.

    Visual Studio Code calls the Console.WriteLine(String, Object, Object) method. The console window displays the formatted string.

  10. Select Run > Step Out or press Shift+F11.

    Step-Out button

    The terminal displays "Press any key to exit..."

  11. Press any key to exit the program.

Use Release build configuration

Once you've tested the Debug version of your application, you should also compile and test the Release version. The Release version incorporates compiler optimizations that can affect the behavior of an application. For example, compiler optimizations that are designed to improve performance can create race conditions in multithreaded applications.

To build and test the Release version of your console application, open the Terminal and run the following command:

dotnet run --configuration Release

Additional resources

Next steps

In this tutorial, you used Visual Studio Code debugging tools. In the next tutorial, you publish a deployable version of the app.

This tutorial introduces the debugging tools available in Visual Studio Code for working with .NET apps.

Prerequisites

Use Debug build configuration

Debug and Release are .NET's built-in build configurations. You use the Debug build configuration for debugging and the Release configuration for the final release distribution.

In the Debug configuration, a program compiles with full symbolic debug information and no optimization. Optimization complicates debugging, because the relationship between source code and generated instructions is more complex. The release configuration of a program has no symbolic debug information and is fully optimized.

By default, Visual Studio Code launch settings use the Debug build configuration, so you don't need to change it before debugging.

  1. Start Visual Studio Code.

  2. Open the folder of the project that you created in Create a .NET console application using Visual Studio Code.

Set a breakpoint

A breakpoint temporarily interrupts the execution of the application before the line with the breakpoint is run.

  1. Open the Program.cs file.

  2. Set a breakpoint on the line that displays the name, date, and time, by clicking in the left margin of the code window. The left margin is to the left of the line numbers. Other ways to set a breakpoint are by pressing F9 or choosing Run > Toggle Breakpoint from the menu while the line of code is selected.

    Visual Studio Code indicates the line on which the breakpoint is set by displaying a red dot in the left margin.

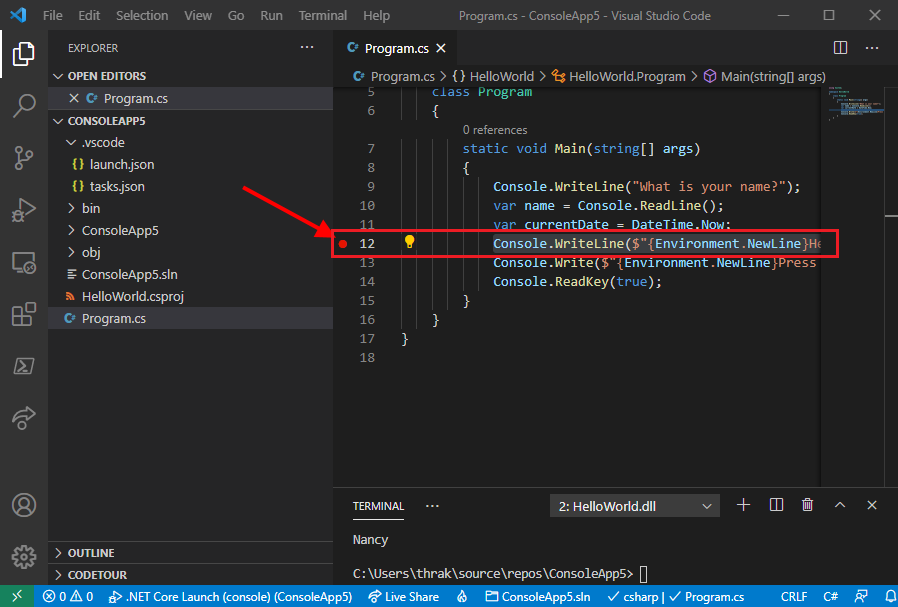

    Breakpoint set

Start debugging

  1. Open the Debug view by selecting the Debugging icon on the left side menu.

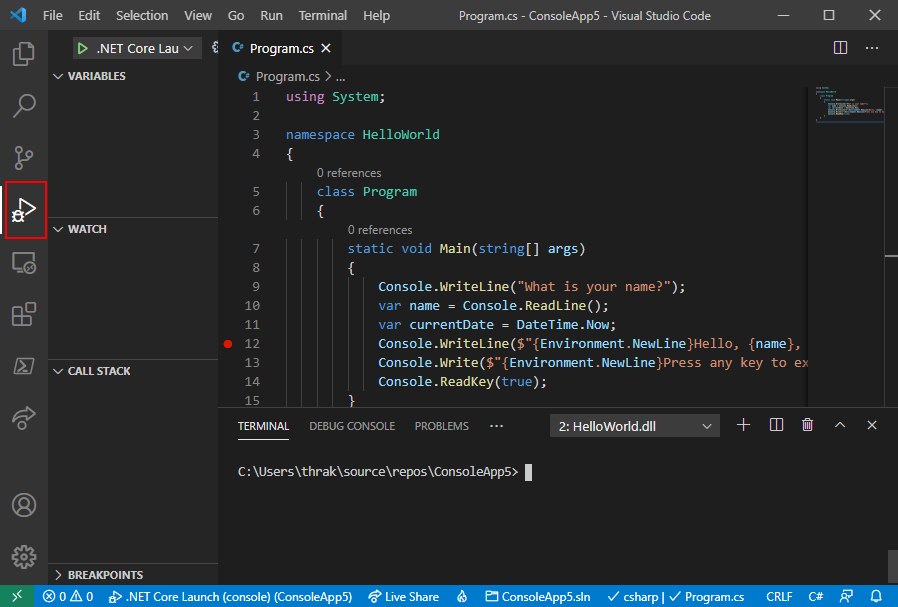

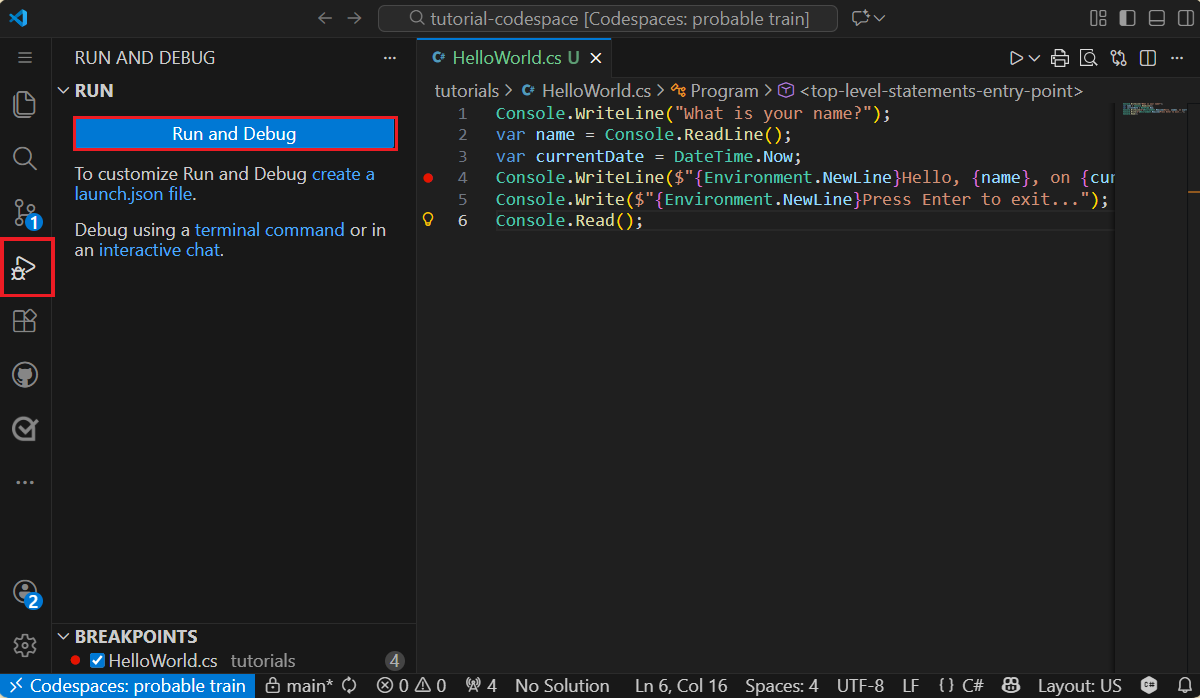

    Open the Debug tab in Visual Studio Code

  2. Select the green arrow at the top of the pane, next to .NET Core Launch (console). Other ways to start the program in debugging mode are by pressing F5 or choosing Run > Start Debugging from the menu.

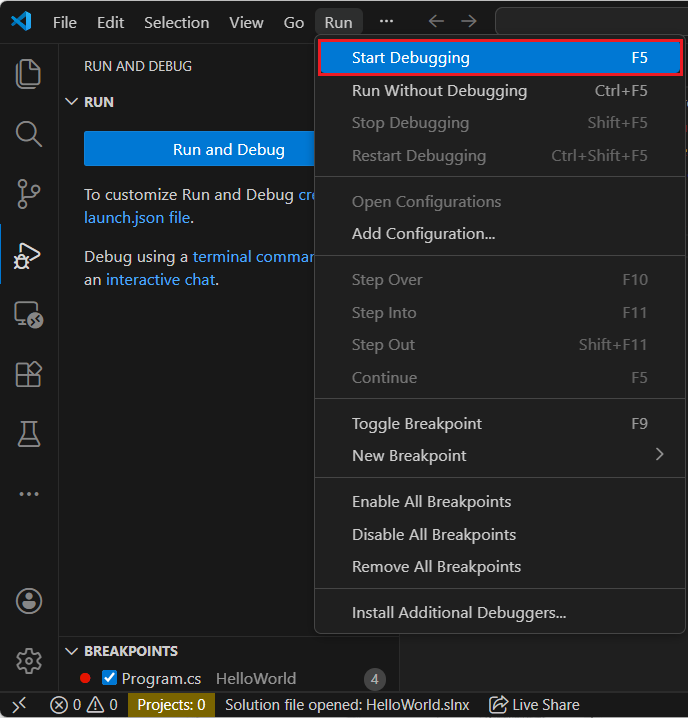

    Start debugging

  3. Select the Debug Conosle tab to see the "What is your name?" prompt that the program displays before waiting for a response.

    Select the Terminal tab

  4. Enter a string in the Debug Console window in response to the prompt for a name, and then press Enter.

    Program execution stops when it reaches the breakpoint and before the Console.WriteLine method runs. The Locals section of the Variables window displays the values of variables that are defined in the currently running method.

    Breakpoint hit, showing Locals

Use the Debug Console

The Debug Console window lets you interact with the application you're debugging. You can change the value of variables to see how it affects your program.

  1. Select the Debug Console tab.

  2. Enter name = "Gracie" at the prompt at the bottom of the Debug Console window and press the Enter key.

    Change variable values

  3. Enter currentDate = DateTime.Parse("2019-11-16T17:25:00Z").ToUniversalTime() at the bottom of the Debug Console window and press the Enter key.

    The Variables window displays the new values of the name and currentDate variables.

  4. Continue program execution by selecting the Continue button in the toolbar. Another way to continue is by pressing F5.

    Continue debugging

    The values displayed in the console window correspond to the changes you made in the Debug Console.

    Terminal showing the entered values

  5. Press any key to exit the application and stop debugging.

Set a conditional breakpoint

The program displays the string that the user enters. What happens if the user doesn't enter anything? You can test this with a useful debugging feature called a conditional breakpoint.

  1. Right-click (Ctrl-click on macOS) on the red dot that represents the breakpoint. In the context menu, select Edit Breakpoint to open a dialog that lets you enter a conditional expression.

    Breakpoint context menu

  2. Select Expression in the drop-down, enter the following conditional expression, and press Enter.

    String.IsNullOrEmpty(name)

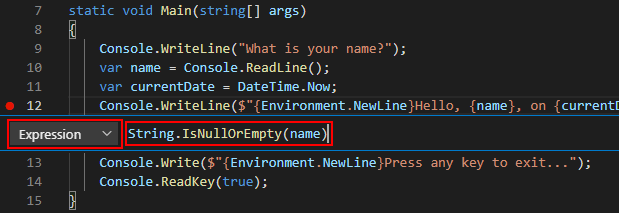

    Enter a conditional expression
