Set up a client ID and a client secret

Note

Community interest groups have now moved from Yammer to Microsoft Viva Engage. To join a Viva Engage community and take part in the latest discussions, fill out the Request access to Finance and Operations Viva Engage Community form and choose the community you want to join.

This article explains how to set up a client ID and a client secret for the Universal Tax Rate API.

Note

You can create a support request to ask Microsoft support to connect you with the Tax Calculation - Universal Tax Rate API product team for detailed guidance on setting up the client ID and client secret in your environment.

Prerequisites

Before you can access a tax provider's service, you must set up your client ID and client secret for the Universal Tax Rate API. Your tax provider provides these values. When you receive them, store them in a Microsoft Azure Key Vault, and configure Key Vault parameters for Dynamics 365 finance and operations apps. After you set up the client ID and client secret in the key vault, you can select the corresponding Key Vault secret name in the tax feature setup.

Create a key vault in the Azure portal

You must store all the secrets and certificates that are used in the Tax Calculation service in an Azure Key Vault. This approach helps ensure that you don't work directly with the secrets, and that the secrets are securely stored. When you must use digital signing or secure a connection to external web services, set the reference to the Key Vault secrets instead of using the secrets and certificates directly. For more information, see About Azure Key Vault.

Create a key vault

To create a key vault, follow these steps:

  1. From the Azure portal, open the menu or Home, and select Create a resource.

  2. Enter Key vault in the search field.

  3. Select Key vault in the list of results.

  4. In the Key Vault section, select Create.

  5. In the Create key vault section, set the following fields:

    • Subscription – Select a subscription.
    • Resource group – Select a resource group, or select Create new.
    • Name – Enter a unique name. For this example, use TaxProvider-vault.
    • Location – Select a location.

    Leave the other fields set to their default values.

    Note

    In the Set up Key Vault parameters in finance and operations apps section of this article, the name that you enter in the Name field is referred to as <KeyVaultName>.

  6. Select Next, and set the Permission model field to Vault access policy.

  7. Select Review + Create.

  8. After the deployment finishes, expand the Deployment details section, and select the Key vault detail.

    Note

    Copy and save the Vault URI value. You must enter it in the Key Vault URL field when you complete the procedure in the Set up Key Vault parameters in finance and operations apps section.

  9. Select Next, and set the Permission model field to Vault access policy.

  10. Select Secrets, and then select Generate/Import.

  11. Set the following fields:

    • Upload options – Specify Manual.
    • Name – Enter a name for the secret. For example, enter ClientID.
    • Secret value – Enter the client ID that you get from the tax provider.

  12. Select Create.

    Note

    The secret name is a mandatory parameter for integration with the key vault. Therefore, specify it in the application. In the Set up Key Vault parameters in finance and operations apps section, it's referred to as the <SecretName> parameter.

  13. Repeat step 10 for the client secret.

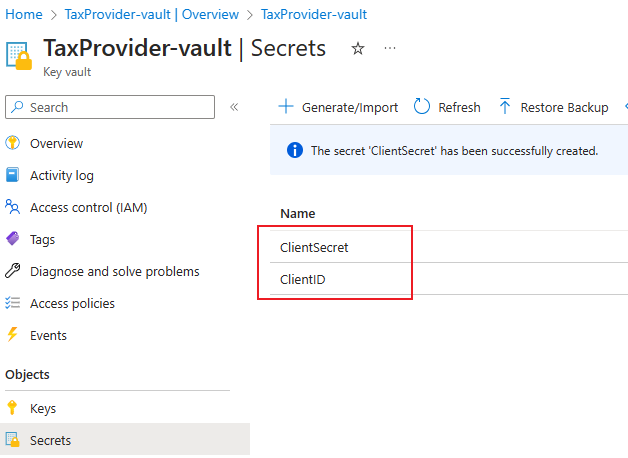

Screenshot of the TaxProvider-vault Secrets page with the ClientSecret and ClientId secrets highlighted.

Set up permissions

This section explains how to complete the following procedures:

  • Create an app registration.
  • Set up the access policy of the key vault.
  • Set up Key Vault parameters in finance and operations apps.

Create an app registration

To access Key Vault, you must create an app registration in Azure Active Directory (Azure AD).

To create an app registration, follow these steps:

  1. In Azure AD, search for register, and then select App registrations.

  2. Set the Name and Supported account types fields, and then select Register.

  3. Copy and save the Application (client) ID value. Specify it in the application. In the Set up Key Vault parameters in finance and operations apps section, it's referred to as the Key Vault client parameter.

  4. Create a new client secret.

    Note

    The client secret is a mandatory parameter for integration with the key vault. Copy it and specify it in the application. In the Set up Key Vault parameters in finance and operations apps section, it's referred to as the Key Vault secret key parameter.

Set up the access policy of the key vault

Set up the access policy to grant the app registration the correct level of secure access to the secret that you created.

  1. Open the Key Vault storage that you created earlier.
  2. Go to Settings > Access policies, and select Create.
  3. In the Secret permissions section, select the Get and List operations.
  4. Select Next.
  5. In the Select principal step, select the app registration that you created earlier.
  6. Select Next until you reach the Review + create step, and then select Create.

Set up Key Vault parameters in finance and operations apps

After you finish the prerequisite steps, set up the Key Vault parameters to link to the key vault in finance and operations apps.

  1. Go to System administration > Setup > Key vault parameters.

  2. Select New to create a new instance.

  3. Enter a name and description. On the General tab, set the following fields that are required for integration with Key Vault storage:

    • Key Vault URL – Enter the key vault URI that you saved in the Create a key vault section.
    • Key Vault client – Enter the interactive client ID of the Microsoft Entra ID application that's associated with the Key Vault storage for authentication.
    • Key Vault secret key – Enter the secret key that's associated with the Microsoft Entra ID application that's used for authentication with the Key Vault storage.

  4. On the Secrets tab, select Add to add your secret. For each secret, set the following fields:

    • Name
    • Description
    • Secret – Enter a secret reference to the Key Vault secret.

    The format of a secret must resemble the following example: vault://<KeyVaultName>/<SecretName>/<SecretVersion>.

    The <KeyVaultName> and <SecretVersion> attributes are optional. However, the <SecretName> attribute is required. In most cases, you can define a Key Vault secret key in the following format: vault:///<SecretName>.

    If the secret version isn't defined in the Key Vault secret key, the system retrieves the active secret that has the latest expiration date.

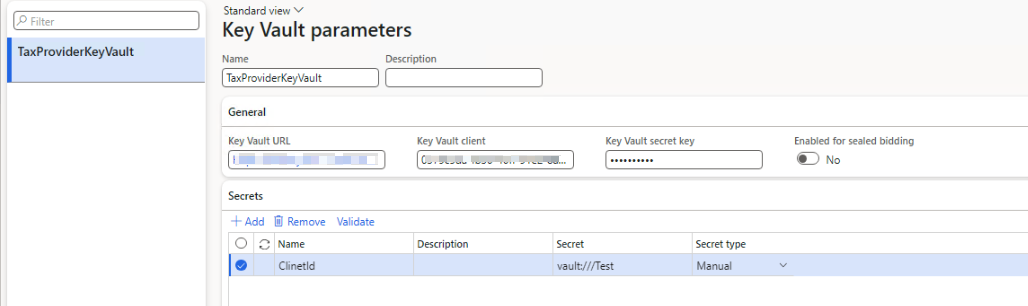

    Screenshot of the Key Vault parameters page.

    Note

    You must create the Key vault parameters in each legal entity that connects to the external tax solution provider for tax calculation.
