Add required custom fields to price setup and transactional entities

Applies To: Project Operations for resource/non-stocked based scenarios, Lite deployment - deal to proforma invoicing

This article assumes that you have completed the procedures in the article, Create custom fields and entities to be used as pricing dimensions. If you haven't completed those procedures, go back and complete them and then return to this article.

In this article, the procedures will show you how to add the required custom field references to entities and to the user interface (UI) elements such as forms and views.

Add custom pricing dimension fields

After custom fields and entities have been created, the next step is to make price setup and transactional entities aware of any custom entities or option sets by creating reference fields. Depending on whether your pricing dimensions list includes option set dimensions or entity dimensions or both, follow only the steps in Option set-based custom pricing dimensions or Entity-based custom pricing dimensions, or both, respectively.

Option set-based custom pricing dimensions

When a custom pricing dimension is option set-based, add it as a field to key entities. In the following procedure, Resource Work Location and Resource Work Hours are used as the option set-based pricing dimensions. These must first be added as fields to the pricing entities, Role Price and Role Price Markup.

  1. In Project operations, select Settings > Solutions, and double-click <your organization name> pricing dimensions.
  2. In Solution Explorer, on the left navigation pane, select Entities > Role Price.
  3. Expand the entity Role Price and select Fields.
  4. Select New to create a new field called Resource Work Location and select Option set as the field type.
  5. Select Use an existing Option set, select the Resource Work Location option set, and then select Save.
  6. Repeat steps 1 - 5 to add this field to the Role Price Markup entity.
  7. Repeat steps 1 - 5 for the Resource Work Hours option set.

Important

When you add a field to more than one entity, use the same field name across all of the entities.

Adding Resource Work Location to Role Price.

In the sales and estimation phases for a project, estimates of the work effort that is required to complete Local and Onsite work, in Regular hours and Overtime hours are used to estimate the value of the Quote/Project. The fields Resource Work Location and Resource Work Hours will be added to the estimation entities, Quote Line Detail, Contract Line detail, Project Team Member, and Estimate Line.

  1. In Project operations, select Settings > Solutions, and then double-click <your organization name> pricing dimensions.
  2. In Solution Explorer, on the left navigation pane, select Entities > Quote Line Detail.
  3. Expand the Quote Line Detail entity, and select Fields.
  4. Select New to create a new field called Resource Work Location and select the field type, Option set.
  5. Select Use an existing Option set and Resource Work Location, and then select Save.
  6. Repeat steps 1 - 5 to add this field to the Project Contract line detail, Project Team Member, and Estimate Line entities.
  7. Repeat steps 1 - 6 for the Resource Work Hours option set.

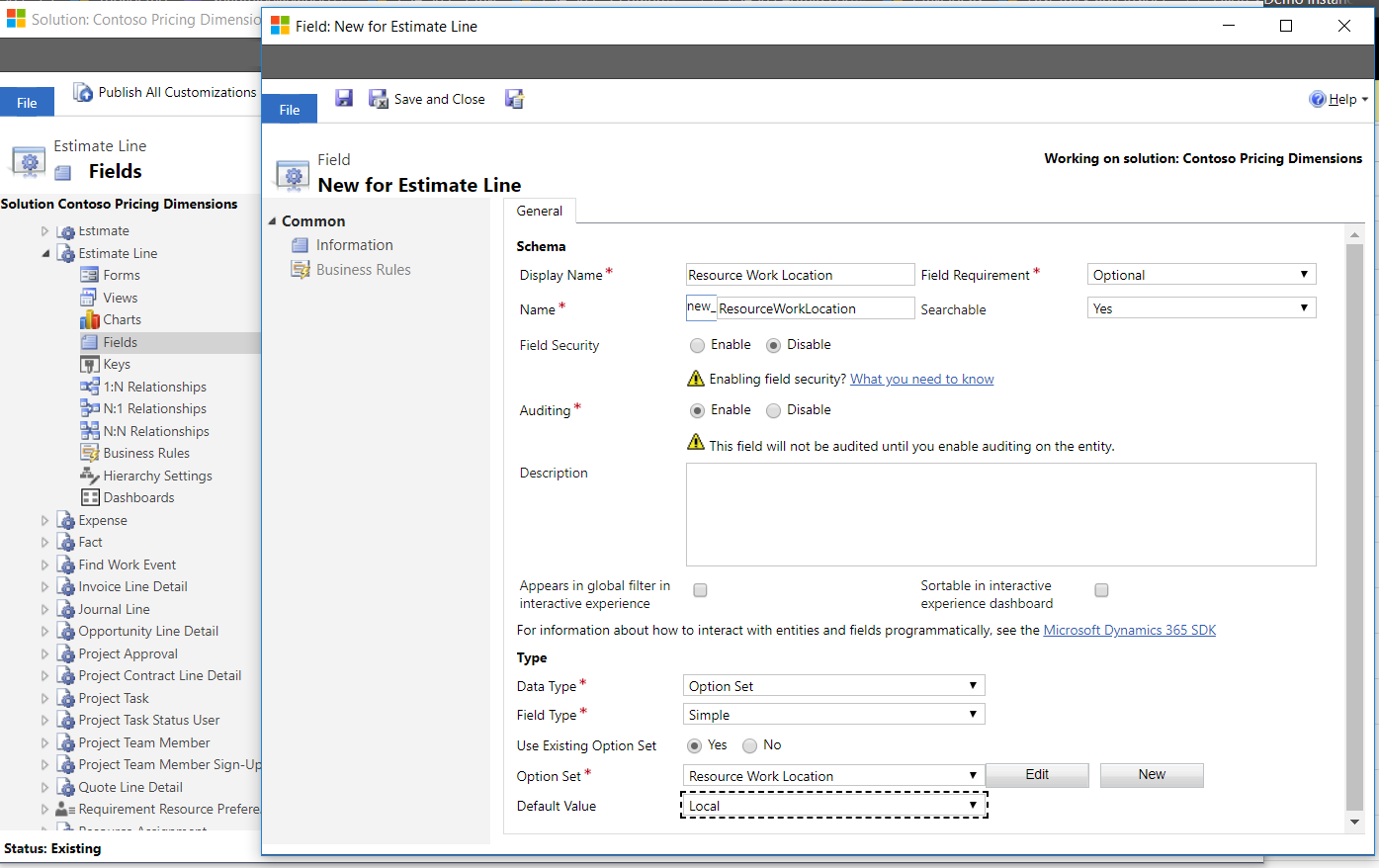

Adding Resource Work Location to Estimate Line.

For delivery and invoicing, completed work needs to be accurately priced to select whether it was performed Local or Onsite, and whether it was completed during Regular hours or Overtime on the Project Actuals. The Resource Work Location and Resource Work hours fields should be added to the Time Entry, Actual, Invoice Line Detail, and Journal Line entities.

  1. Select Settings > Solutions, and then double-click <your organization name> pricing dimensions.
  2. In Solution Explorer, on the left navigation pane, select Entities > Time Entry.
  3. Expand the Quote Line Detail entity, and then select Fields.
  4. Select New to create a new field called Resource Work Location and select Option set as the field type.
  5. Select Use an existing Option set, select the Resource Work Location option set, and then select Save.
  6. Repeat steps 1 - 5 to add this field to the Actual, Invoice Line Detail, and Journal Line entities.
  7. Repeat steps 1 - 6 for the Resource Work Hours option set.

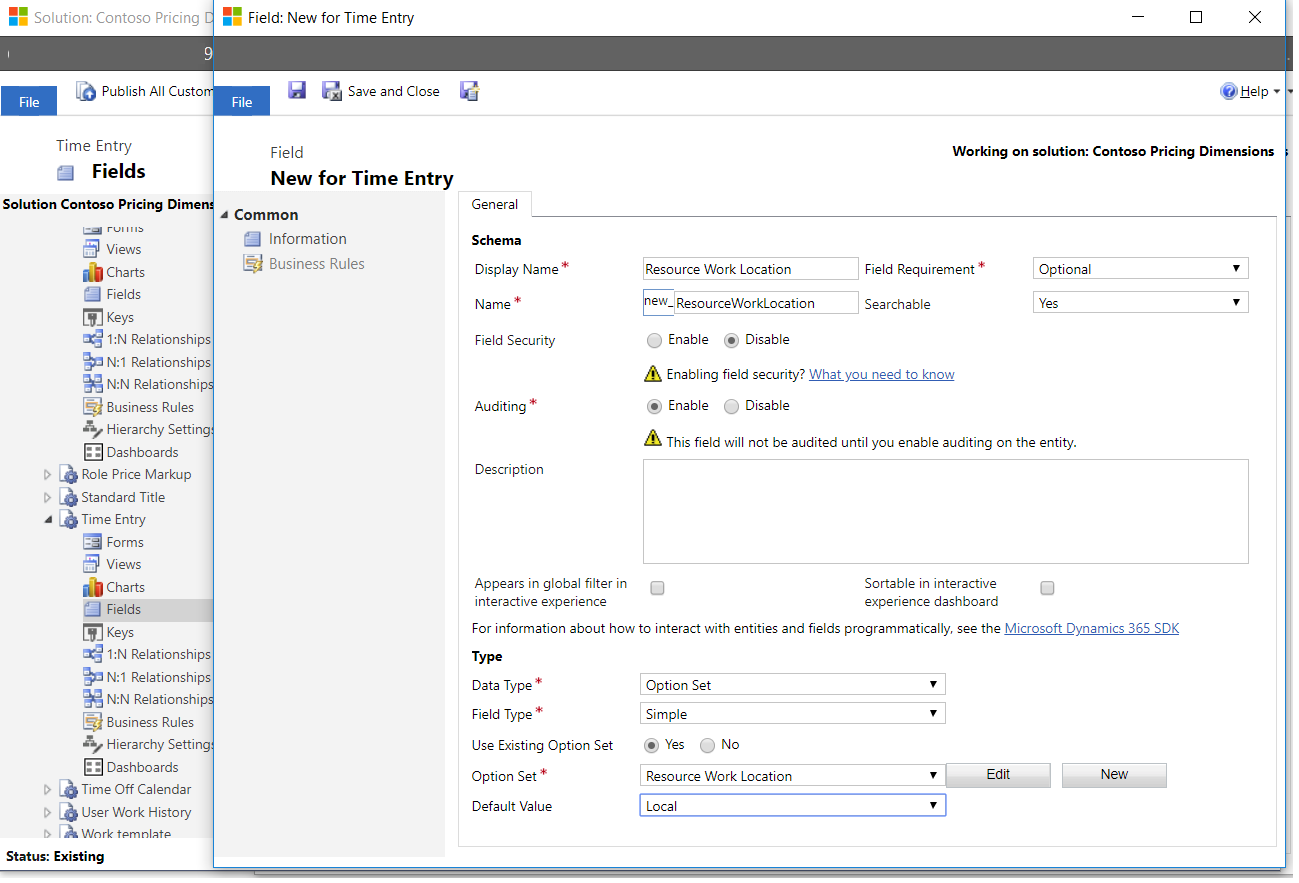

Adding Resource Work Location to Time Entry.

This completes the schema changes required for option set-based custom dimensions.

Entity-based custom pricing dimensions

When the custom pricing dimension is an entity, you will add 1:N relationships between the dimension entity and key entities. Using the Standard Title example from above, it is reasonable to expect that each employee is assigned a standard title. SAs a result, you will need a 1:N relationship from Standard Title to Bookable Resource, or a N:1 relationship if it were created from Bookable Resource to Standard Title.

  1. In Project operations, select Settings > Solutions, and then double-click <your organization name> pricing dimensions.
  2. In Solution Explorer, on the left navigation pane, select Entities > Standard Title.
  3. Expand the Standard Title entity and select 1:N Relationships.
  4. Select New to create a new 1:N relationship called Standard Title to Bookable Resource. Enter the required information, and then select Save.

Adding Standard Title as a reference field to Bookable Resource.

The Standard Title will also need to be added to Pricing entities, Role Price and Role Price Markup. This is also completed using 1:N relationships between the Standard Title and Role Price entities and Standard Title and Role Price Markup entities.

  1. In Solution Explorer, on the left navigation pane, select Entities > Standard Title.
  2. Expand the Standard Title entity and select 1:N Relationships.
  3. Select New to create a new 1:N relationship called Standard Title to Role Price. Enter the required information, and then select Save.
  4. Repeat steps 1 - 4 to create 1:N relationships between the Standard Title and Role Price Markup entities,

In the sales and estimation phases for the project, to price the Quote/Project, estimates of the work effort are required for each standard title. This means that 1:N relationships from Standard Title to each of these estimation entities are needed:

  • Quote line Detail
  • Project Contract Line Detail
  • Project Team Member
  • Estimate Line
  1. Repeat steps 1 - 5 to create 1:N relationships from Standard Title to Quote line Detail, Project Contract Line Detail, Project Team Member, and Estimate Line.

Adding Standard Title as a reference field to Estimate Line.

In the Delivery and Invoicing phases, the work completed by each standard title must be accurately priced on the Project Actuals. This means that there needs to be 1:N relationships from Standard Title to Time Entry, Actual, Invoice Line Detail, and Journal Line entities.

  1. Repeat steps 1 - 6 to create 1:N relationships from Standard Title to Time Entry, Actual, Invoice Line Detail, and Journal Line entities.

Adding Standard Title as a reference field to Time Entry.

Set up Dimension value defaulting using the mappings features of the platform

For Time Entry, it would be helpful to have the system default the standard title on the Time Entry from the Bookable Resource that is recording the time entry. Use the following steps to add field mappings on the 1:N relationship from Bookable Resource to Time Entry.

  1. In Solution Explorer, on the left navigation pane, select Entities > Standard Title.
  2. Expand the Standard Title entity and select 1:N Relationships.
  3. Double-click Bookable Resource to Time Entry. On the Relationship page, select Use Field mappings.
  4. Select New to create a new field mapping between the Standard Title field on the Bookable Resource entity to the Standard Title reference field on Time Entry entity.

Setup field mappings to allow defaulting of Standard Title from Bookable Resource to Time Entry.

This completes the schema changes required for entity-based custom dimensions.

Add custom fields to forms, views, and business rules

After you have made all of the required schema changes, the next step is to make the fields visible in the UI by adding the fields to the forms and views.

  1. Open the form or the view. On the right navigation pane, select the field and drag it on to the form canvas.
  2. If you are editing a view, use the right navigation pane, select Add fields, and in the Field listing dialog box, select the fields that you need and select Ok.

The following table provides a comprehensive list of out-of-the-box forms and views, by entity, that will need to be updated with the new fields. If you have any additional views or forms in your customizations on these entities, add the new fields to those as well.

Entity Forms that need the new field Views that need the new field
Role Price • Information • Active Resource Category Prices
• Resource Category Price Associated View
Role Price Markup • Information • Active Role Price Markup
• Role Price Markup Associated View
Quote line detail • Project Information
• Project Quick Create
• Active Quote Line Detail
• Combined Quote Line Details
• Quote Line Detail associated view
Project Contract line detail • Project Information
• Project Quick Create
• Combined Contract Line Details
• Active Contract Line Details
• Contract Line Details Associated View
Project Team Member • Information
• New Form
• Active Project Team Members
• Project Team Members
• Project Team members associated View
Time Entry • Information
• Create Time Entry
• My Time Entries By Date
• My time Entries for this week
• Time entries for approval
Journal Line • Information
• Quick create
• Active journal lines
• Journal Line associated view
Invoice Line Detail • Information
• Quick create
• Active Invoice Line Details
• Chargeable Invoice Transactions
• Complimentary Invoice Transactions
• Invoice Line Detail associated view
• Non-Chargeable Invoice Transactions
Actual • Information
• Active Actuals
• Actual Associated view

Custom fields may also need to be added on business rules depending on what you have defined. One out-of-the-box example is for the business rule Editability of Time Entry based on status. This rule defines which fields need to be locked when the Time Entry is in a non-editable status such as Approved. Add fields to this business rule so that the fields are locked for editing when the Time Entry is in a status other than Draft or Returned.
