Note
Access to this page requires authorization. You can try signing in or changing directories.
Access to this page requires authorization. You can try changing directories.
Access Azure services using Microsoft Entra Private Access with a virtual network service endpoint. The combination provides direct connectivity using an optimal network route. A virtual network service endpoint lets you limit network access to Azure service resources and remove access from the internet. Service endpoints provide a direct connection between your virtual network and supported Azure services. You use your virtual networks private address space to access the Azure services.
To learn more about virtual networks, see What is Azure Virtual Network?.
This article shows you how to access Azure SQL with a service endpoint using Microsoft Entra Private Access.
Prerequisites
- Administrators who interact with Global Secure Access features must have one or more of the following role assignments depending on the tasks they're performing.
- The Global Secure Access Administrator role role to manage the Global Secure Access features.
- The Conditional Access Administrator to create and interact with Conditional Access policies.
- Azure SQL Server configured with service endpoint
- Microsoft Entra private network connector deployed in the service endpoint subnet. To learn how to deploy a connector, see How to configure private network connectors for Microsoft Entra Private Access and Microsoft Entra application proxy. To learn more about connectors, see Understand the Microsoft Entra private network connector. To learn more about connector groups, see Understand Microsoft Entra private network connector groups.
Change Azure SQL Server connection policy to proxy
Since users are connecting from outside Azure, your Azure SQL server should have a connection policy of proxy
. The proxy
policy establishes the Transmission Control Protocol (TCP) session via the Azure SQL Database gateway and all subsequent packets flow via the gateway.
To set the policy to proxy
:

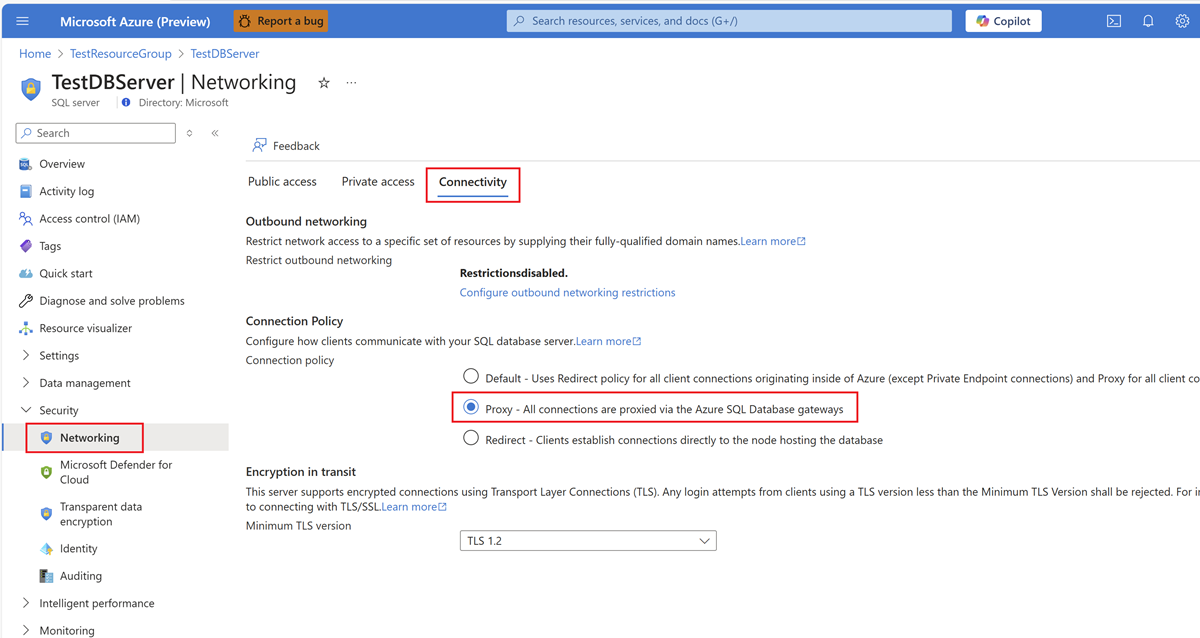

- Sign in to the Azure portal and navigate to your SQL server.
- In the left hand navigation under Security, select Networking.
- On the Connectivity tab, set Connection Policy to
Proxy
. - Select Save.
Create a Global Secure Access application for the Azure SQL server
- Sign in to the Microsoft Entra admin center as a Global Secure Access Administrator.
- Browse to Global Secure Access > Applications > Enterprise applications.
- Select New application.
- Choose the right connector group with the connector deployed in the service endpoint subnet.
- Select Add application segment:
- Destination type:
FQDN
- Fully Qualified Domain Name (FQDN):
<fqdn of the storage account>
. For example,contosodbserver1.database.windows.net
. - Ports:
1443
- Protocol:
TCP
- Destination type:
- Select Apply to add the application segment.
- Select Save to save the application.
- Assign users to the application.
Validate the configuration
Ensure connectivity to the SQL server works from the connector machine. The connector is deployed on the service endpoint subnet.
Check connectivity to the SQL server from outside the service endpoint subnet. Computers that don't the Global Secure Access client installed should fail. Computers that have the Global Secure Access client installed should succeed.
