Microsoft Entra External ID credential management API reference

Applies to: External tenants (learn more)

The Microsoft Entra External ID credential management API lets your application give signed-in customers a self-service flow for listing, registering, and deleting passkeys. Your application owns the client experience and calls the API on the customer's behalf.

The credential management API complements Microsoft Entra native authentication, where your application hosts the sign-in experience instead of delegating it to a browser. Use the credential management API after a customer signs in.

Successful resource responses use HAL+JSON (application/hal+json). Activation requests use JSON (application/json), delete success responses have no body, and errors use JSON.

Prerequisites

• A Microsoft Entra external tenant. If you don't already have one, create an external tenant.

• An application registered in the Microsoft Entra admin center. Record the Application (client) ID and Directory (tenant) ID for later use.

Configure credential management API access

Before your app can acquire access tokens for the credential management API, provision the API's service principal and add a delegated permission:

1. Provision the credential management API's service principal in your tenant. The credential management API is a Microsoft-published resource. Until automatic provisioning is available, you must create its service principal manually. In Graph Explorer, sign in as an administrator of the tenant where you want to provision it, then run:

   POST https://graph.microsoft.com/v1.0/servicePrincipals
   Content-Type: application/json

   {
     "appId": "6bf38b3c-a70f-49aa-a1d9-10e4cc74dde9"
   }


2. Add a delegated permission to your app for the credential management API. For passkeys, the least-privileged choice is Me.UserAuthenticationMethod.Passkey.Read (read) or Me.UserAuthenticationMethod.Passkey.ReadWrite (write). See Authentication and authorization for the full list of accepted permissions. Grant admin consent if your tenant requires it.

Authentication and authorization

The credential management API acts on behalf of a signed-in customer. Every endpoint URL has the form https://{tenant-subdomain}.ciamlogin.com/{tenant-id}/api/v1.0/me/..., where {tenant-subdomain} is your external tenant's subdomain, {tenant-id} is your external tenant's ID, and me is the customer whose access token you send with the request. Your application:

1. Signs the customer in.
2. Obtains an access token for the credential management API.
3. Includes that token on every call.

Without a signed-in customer, me has no meaning and the call can't be authenticated. If you've worked with Microsoft Graph or other Microsoft Entra REST APIs, this follows the same model: standard OAuth 2.0 with delegated permissions.

Include the access token in the standard HTTP Authorization header on every request:

Authorization: Bearer <access_token>

Acquire a delegated access token

Use a delegated access token to call the credential management API on behalf of the signed-in customer. The API rejects app-only tokens, including tokens acquired through the client credentials flow. When the customer signs in, request one of the permissions listed in Required permissions. The requested permission determines the token audience; you don't set the audience separately.

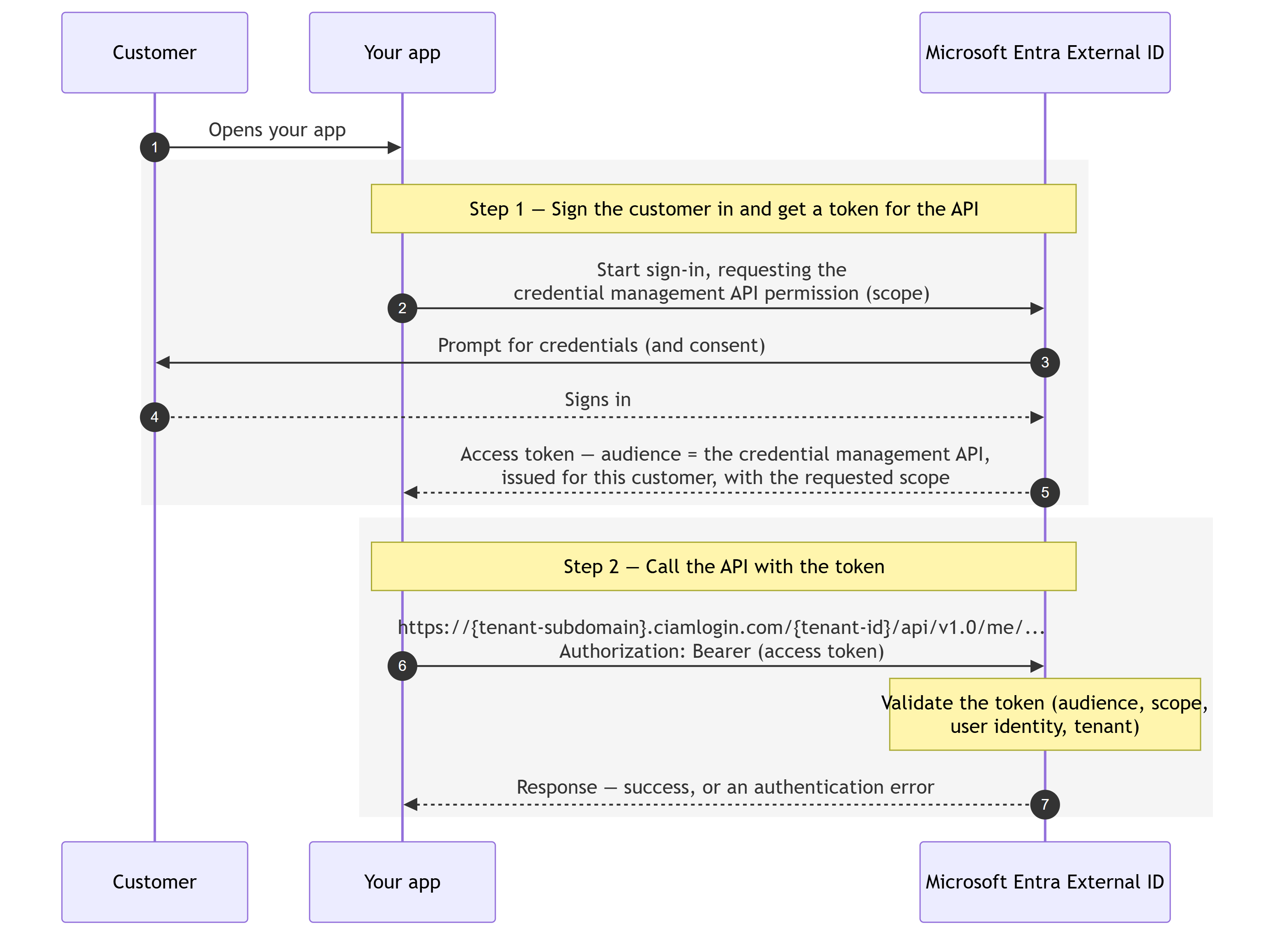

The following diagram shows how a call is authenticated, from signing the customer in to calling the API with the resulting token.

Acquire the delegated token through the Microsoft Entra sign-in flow that applies to your application:

• Single-page, mobile, and desktop apps: use the Microsoft Authentication Library (MSAL).
• Server-side web apps: use the OAuth 2.0 authorization code flow with PKCE.
• Apps using native authentication: use the native authentication API to sign in or sign up the customer, then redeem the result for an access token at the /token endpoint.

Note

For native authentication, only the web experience is supported for now. Native authentication on mobile platforms (Android and iOS) isn't currently supported for the credential management API.

Pass the resulting token as Authorization: Bearer <access_token> on every credential management API call.

Required permissions

All permissions are delegated permissions exposed by the credential management API. Add one to your app registration and request it when you sign the customer in. Because this release supports passkeys only, the passkey-scoped permissions are the least-privileged choice.

Operation	Accepted delegated permissions (least privileged first)
Read (for example, listing the customer's passkeys)	Me.User.Read, Me.UserAuthenticationMethod.Passkey.Read, Me.UserAuthenticationMethod.Read, Me.UserAuthenticationMethod.Passkey.ReadWrite, Me.UserAuthenticationMethod.ReadWrite
Write (for example, registering or deleting a passkey)	Me.UserAuthenticationMethod.Passkey.ReadWrite, Me.UserAuthenticationMethod.ReadWrite

Application-only access (the client credentials flow) isn't supported.

Continuation token

When you call a multi-step operation such as registering a passkey, the credential management API returns a continuation token in the response. This token uniquely identifies the current flow and lets Microsoft Entra maintain state across its endpoints. Include the token in every subsequent request in that flow. It's valid only for a limited time and can only be used for the subsequent requests within the same flow.

Supported credential methods

In this release, the credential management API supports one type of credential method:

Method	URL segment ({type})	Description
Passkey	fido	A phishing-resistant credential based on the WebAuthn standard.

Other credential methods, such as software OATH one-time passcodes, email, phone, and recovery methods, aren't supported by this API yet.

List user credential methods

Returns the credential methods the signed-in customer has currently registered, along with the method types they can still register. For example, your app calls this endpoint when rendering a page where the customer can review their existing passkeys and start registering a new one.

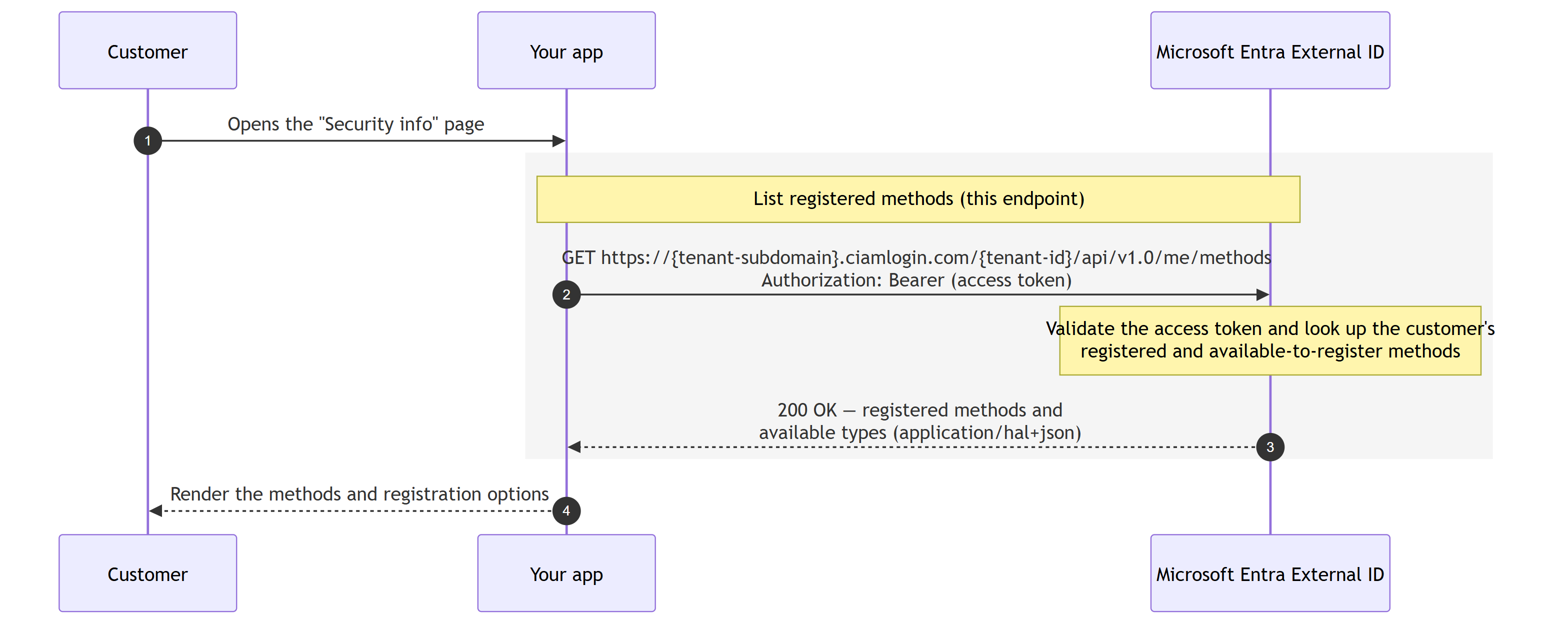

The following sequence diagram shows the list flow.

See Authentication and authorization for the access token your application needs to call this endpoint. This endpoint accepts any of the read or write permissions listed in Required permissions.

HTTP request

GET https://{tenant-subdomain}.ciamlogin.com/{tenant-id}/api/v1.0/me/methods

{tenant-subdomain} in the URL is your external tenant's subdomain, for example contoso in contoso.ciamlogin.com.

Sample request:

GET https://contoso.ciamlogin.com/8f1c8e2a-1234-4abc-9876-1f1e1d1c1b1a/api/v1.0/me/methods HTTP/1.1
Host: contoso.ciamlogin.com
Authorization: Bearer <access_token>

Request parameters

Path parameters:

Name	Required	Description
tenant-id	Yes	Your external tenant identifier, either the tenant ID (GUID) or a verified domain. Use a tenant-specific value, not common, client, organizations, or consumers. A GUID value must match the tenant in the access token.

Request headers:

Name	Required	Value
Authorization	Yes	Bearer <access_token>

This endpoint doesn't perform Accept-header content negotiation. The response is always application/hal+json regardless of the Accept header value.

Success response

Here's an example of a successful response:

HTTP/1.1 200 OK
Content-Type: application/hal+json

{
  "_embedded": {
    "methods": [
      {
        "aaGuid": "<authenticator-aaguid>",
        "attestationLevel": "notAttested",
        "model": "Windows Hello VBS Hardware Authenticator",
        "passkeyType": "deviceBound",
        "displayName": "<display-name>",
        "id": "<credential-id-1>",
        "type": "fido",
        "createdDateTime": "<timestamp>",
        "_links": {
          "self": {
            "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id-1}",
            "name": "self"
          },
          "delete": {
            "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id-1}",
            "name": "delete"
          }
        }
      },
      {
        "aaGuid": "<authenticator-aaguid>",
        "attestationCertificates": [
          "<certificate-thumbprint>"
        ],
        "attestationLevel": "attested",
        "model": "YubiKey 5 FIPS Series with NFC",
        "passkeyType": "deviceBound",
        "displayName": "<display-name>",
        "id": "<credential-id-2>",
        "type": "fido",
        "createdDateTime": "<timestamp>",
        "_links": {
          "self": {
            "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id-2}",
            "name": "self"
          },
          "delete": {
            "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id-2}",
            "name": "delete"
          }
        }
      }
    ]
  },
  "_links": {
    "self": {
      "href": "/{tenant-id}/api/v1.0/me/methods",
      "name": "self"
    },
    "enroll": [
      {
        "href": "/{tenant-id}/api/v1.0/me/methods/fido",
        "name": "fido"
      }
    ],
    "methods": [
      {
        "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id-1}",
        "name": "<credential-id-1>"
      },
      {
        "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id-2}",
        "name": "<credential-id-2>"
      }
    ]
  }
}

Follow the returned HAL links instead of constructing operation URLs from identifiers.

Property	Type	Required	Description
_embedded.methods	array of objects	Yes	Registered credential methods. The array is present even when the customer has no registered methods.
_links.self	object	Yes	Link to the credential-method collection.
_links.enroll	array of objects	No	Enrollment links, one for each credential type the customer can register.
_links.methods	array of objects	No	Links to the customer's registered methods.

Registered passkey properties

Authenticator-specific properties can vary or be absent. For example, a nonattested passkey can omit attestationCertificates, while an attested device-bound passkey can include certificate values.

Property	Type	Required	Description
id	string	Yes	Durable, case-sensitive base64url identifier for the registered passkey.
type	string	Yes	Credential method type. The value is fido.
createdDateTime	string	No	Time when the passkey was registered.
lastUsedDateTime	string	No	Time when the passkey was last used.
aaGuid	string	No	Authenticator Attestation GUID (AAGUID), when returned by the authenticator.
attestationCertificates	array of strings	No	Attestation certificate values, when the authenticator provides attestation.
attestationLevel	string	No	Attestation level reported for the authenticator.
model	string	No	Authenticator model.
passkeyType	string	No	Passkey classification reported by the service.
displayName	string	No	Customer-provided passkey name.
_links	object	Yes	self and delete links for the registered passkey.

This endpoint can return 400, 401, or 403. For the shared envelope and caller actions, see Error responses.

Provisioning

Provisioning a passkey for the signed-in customer takes two HTTP calls. First, your application calls the begin registration endpoint, which returns WebAuthn creation options, a continuation token, and an activate link. The customer's authenticator uses the creation options to create a new passkey. Your application then calls the activate endpoint with the result to complete registration. Start this flow when the customer chooses to add a passkey in your application's credential-management experience.

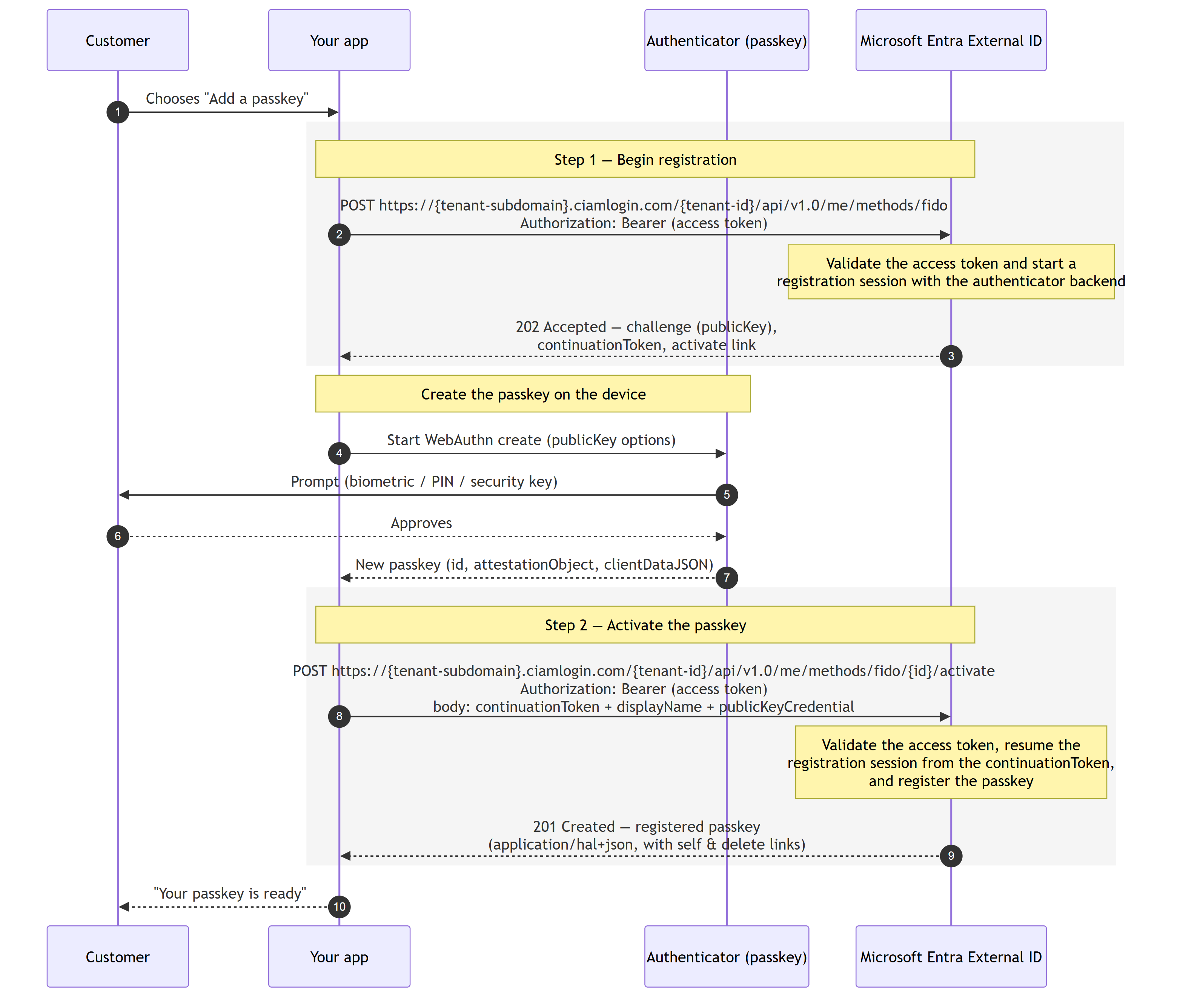

The following sequence diagram shows the two-step provisioning flow.

See Authentication and authorization for the access token your application needs to call these endpoints. Both calls require a write permission, Me.UserAuthenticationMethod.Passkey.ReadWrite or Me.UserAuthenticationMethod.ReadWrite (see Required permissions).

Step 1: Begin registration

HTTP request

POST https://{tenant-subdomain}.ciamlogin.com/{tenant-id}/api/v1.0/me/methods/{type}

{tenant-subdomain} in the URL is your external tenant's subdomain, for example contoso in contoso.ciamlogin.com.

Sample request:

POST https://contoso.ciamlogin.com/8f1c8e2a-1234-4abc-9876-1f1e1d1c1b1a/api/v1.0/me/methods/fido HTTP/1.1
Host: contoso.ciamlogin.com
Authorization: Bearer <access_token>

Request parameters

Path parameters:

Name	Required	Description
tenant-id	Yes	Your external tenant identifier, either the tenant ID (GUID) or a verified domain. Use a tenant-specific value, not common, client, organizations, or consumers. A GUID value must match the tenant in the access token.
type	Yes	The credential method type to register. Currently only fido (passkey) is supported.

Request headers:

Name	Required	Value
Authorization	Yes	Bearer <access_token>

This endpoint doesn't take a request body. All inputs are carried in the URL path and the Authorization header.

Success response

Here's an example of a successful response:

HTTP/1.1 202 Accepted
Content-Type: application/hal+json

{
  "publicKey": {
    "rp": {
      "id": "<relying-party-id>",
      "name": "Microsoft"
    },
    "user": {
      "id": "<user-handle>",
      "name": "<user-name>",
      "displayName": "<user-display-name>"
    },
    "challenge": "<challenge>",
    "pubKeyCredParams": [
      {
        "type": "public-key",
        "alg": -7
      },
      {
        "type": "public-key",
        "alg": -257
      }
    ],
    "timeout": 0,
    "excludeCredentials": [
      {
        "type": "public-key",
        "id": "<excluded-credential-id>",
        "transports": []
      }
    ],
    "authenticatorSelection": {
      "authenticatorAttachment": "cross-platform",
      "requireResidentKey": true,
      "userVerification": "required"
    },
    "attestation": "direct",
    "extensions": {
      "hmacCreateSecret": true,
      "enforceCredentialProtectionPolicy": true,
      "credentialProtectionPolicy": "userVerificationOptional"
    }
  },
  "challengeTimeout": "<timestamp>",
  "id": "<registration-id>",
  "type": "fido",
  "continuationToken": "<continuation-token>",
  "state": "interactionRequired",
  "action": "activate",
  "_links": {
    "self": {
      "href": "/{tenant-id}/api/v1.0/me/methods/fido/{registration-id}",
      "name": "self"
    },
    "activate": {
      "href": "/{tenant-id}/api/v1.0/me/methods/fido/{registration-id}/activate",
      "name": "activate"
    }
  }
}

The response has the following properties:

Property	Type	Required	Description
id	string	Yes	Transient identifier for the in-progress registration.
type	string	Yes	Credential method type. The value is fido.
publicKey	object	No	WebAuthn credential creation options for the client ceremony.
challengeTimeout	string	No	Time when the challenge expires.
state	string	Yes	Flow state. The value is interactionRequired.
action	string	Yes	Next action. The value is activate.
continuationToken	string	Yes	Opaque state that must be returned during activation.
_links	object	Yes	self and activate links for the in-progress registration.

The publicKey object aligns with the common fields in webauthnPublicKeyCredentialCreationOptions. The service can also preserve additional WebAuthn properties for forward compatibility.

Property	Type	Required	Description
rp	object	No	Relying-party information.
user	object	No	User information for the registration ceremony.
challenge	string	No	Base64url-encoded WebAuthn challenge.
pubKeyCredParams	array of objects	No	Supported public-key credential types and algorithms.
timeout	integer	No	Ceremony timeout in milliseconds.
excludeCredentials	array of objects	No	Existing credentials that the authenticator should exclude.
authenticatorSelection	object	No	Authenticator selection requirements.
attestation	string	No	Requested attestation conveyance preference.
hints	array of strings	No	Optional authenticator hints.
extensions	object	No	WebAuthn extension inputs.

Pass publicKey to the customer's authenticator to create the passkey. Preserve continuationToken exactly, and follow _links.activate.href for the activation request.

The begin registration endpoint can return 400, 401, 403, or 500. For the shared envelope and caller actions, see Error responses.

Step 2: Activate the passkey

HTTP request

POST https://{tenant-subdomain}.ciamlogin.com/{tenant-id}/api/v1.0/me/methods/{type}/{id}/activate

{tenant-subdomain} in the URL is your external tenant's subdomain, for example contoso in contoso.ciamlogin.com.

Sample request:

POST https://contoso.ciamlogin.com/8f1c8e2a-1234-4abc-9876-1f1e1d1c1b1a/api/v1.0/me/methods/fido/{registration-id}/activate HTTP/1.1
Host: contoso.ciamlogin.com
Authorization: Bearer <access_token>
Content-Type: application/json

{
  "continuationToken": "<continuation-token>",
  "displayName": "My laptop",
  "publicKeyCredential": {
    "id": "<credential-id>",
    "attestationObject": "<attestation-object>",
    "clientDataJSON": "<client-data-json>"
  }
}

Request parameters

Path parameters:

Name	Required	Description
tenant-id	Yes	Your external tenant identifier, either the tenant ID (GUID) or a verified domain. Use a tenant-specific value, not common, client, organizations, or consumers. A GUID value must match the tenant in the access token.
type	Yes	The credential method type being registered. Currently only fido (passkey) is supported. Must match the value used in the begin registration step.
id	Yes	The in-progress registration identifier returned by the begin registration step. Take it from _links.activate.href in the begin registration response rather than constructing it yourself.

Request headers:

Name	Required	Value
Authorization	Yes	Bearer <access_token>
Content-Type	Yes	application/json

Request body

A JSON object with the following fields:

Name	Type	Required	Description
continuationToken	string	Yes	The opaque token returned by the begin registration response. It carries the server-side state of the in-progress registration so Microsoft Entra can resume exactly where it left off. Treat it as opaque and don't parse or modify it. See Continuation token.
displayName	string	No	A friendly name the customer gives the passkey, for example My laptop.
publicKeyCredential	object	No	WebAuthn credential data produced by the customer's authenticator.

The publicKeyCredential value is derived from the WebAuthn PublicKeyCredential. The API flattens the credential ID, attestation response, and extension results into the following properties:

Name	Type	Required	Description
id	string	No	Base64url-encoded credential identifier returned by the authenticator.
attestationObject	string	No	Base64url-encoded attestation object returned by the authenticator.
clientDataJSON	string	No	Base64url-encoded client data returned by the authenticator.
clientExtensionResults	string	No	Serialized WebAuthn client extension results.

Success response

Here's an example of a successful response:

HTTP/1.1 201 Created
Content-Type: application/hal+json

{
  "aaGuid": "<authenticator-aaguid>",
  "attestationLevel": "notAttested",
  "model": "Windows Hello VBS Hardware Authenticator",
  "passkeyType": "deviceBound",
  "displayName": "<display-name>",
  "id": "<credential-id>",
  "type": "fido",
  "createdDateTime": "<timestamp>",
  "_links": {
    "self": {
      "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id}",
      "name": "self"
    },
    "delete": {
      "href": "/{tenant-id}/api/v1.0/me/methods/fido/{credential-id}",
      "name": "delete"
    }
  }
}

The activation response has the following properties:

Property	Type	Required	Description
id	string	Yes	Identifier returned for the registered passkey.
type	string	Yes	Credential method type. The value is fido.
createdDateTime	string	No	Time when registration completed.
displayName	string	No	Customer-provided passkey name.
aaGuid	string	No	Authenticator Attestation GUID (AAGUID), when returned by the authenticator.
attestationCertificates	array of strings	No	Attestation certificate values, when the authenticator provides attestation.
attestationLevel	string	No	Attestation level reported for the authenticator.
model	string	No	Authenticator model.
passkeyType	string	No	Passkey classification reported by the service.
_links	object	Yes	self and delete links for the registered passkey.

Authenticator-specific properties can vary or be absent. The activation endpoint can return 400, 401, or 403. For the shared envelope and caller actions, see Error responses.

Delete a credential method

Permanently deletes one of the signed-in customer's registered passkeys. Use this endpoint after listing the customer's credential methods and when the customer chooses to remove a passkey in your application's credential-management flow. Deletion is immediate and can't be undone. A replacement passkey is a new credential with no relation to the deleted passkey.

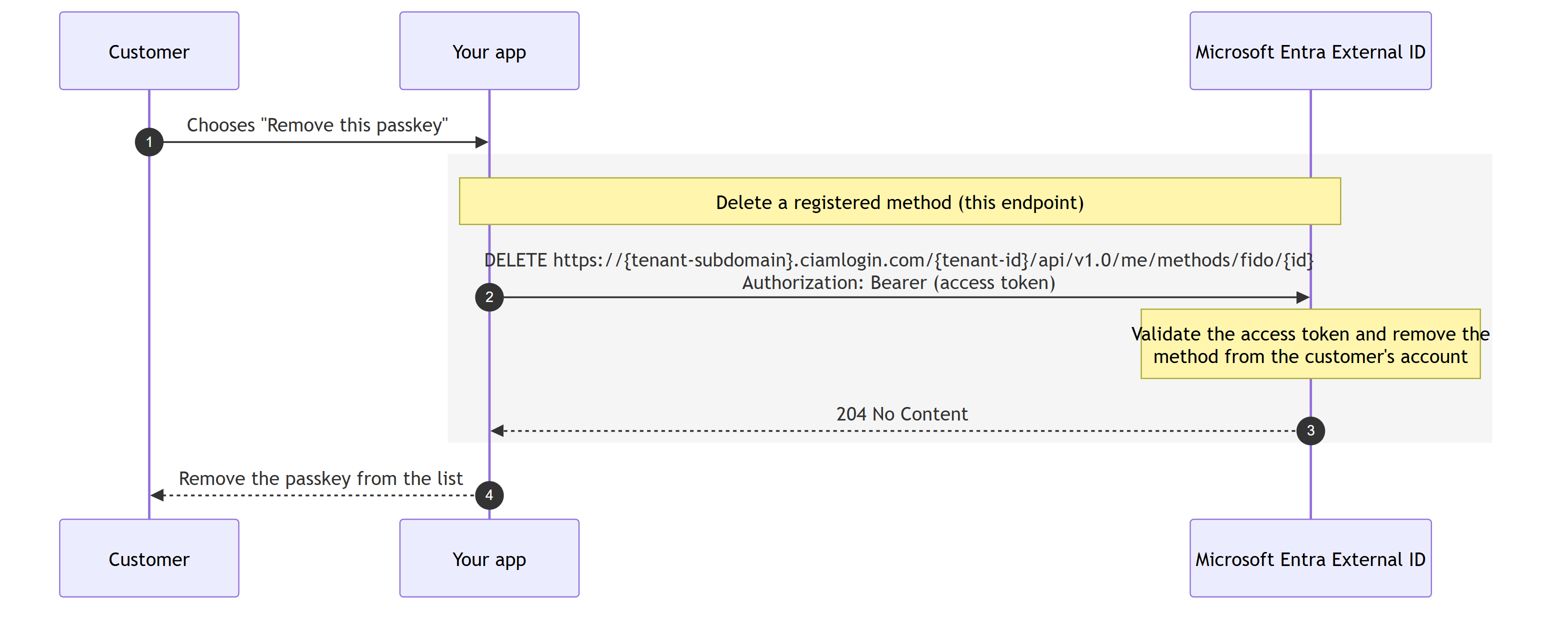

The following sequence diagram shows the delete flow.

See Authentication and authorization for the access token your application needs to call this endpoint. This endpoint requires a write permission, Me.UserAuthenticationMethod.Passkey.ReadWrite or Me.UserAuthenticationMethod.ReadWrite (see Required permissions).

HTTP request

DELETE https://{tenant-subdomain}.ciamlogin.com/{tenant-id}/api/v1.0/me/methods/{type}/{id}

{tenant-subdomain} in the URL is your external tenant's subdomain, for example contoso in contoso.ciamlogin.com.

Sample request:

DELETE https://contoso.ciamlogin.com/8f1c8e2a-1234-4abc-9876-1f1e1d1c1b1a/api/v1.0/me/methods/fido/{id} HTTP/1.1
Host: contoso.ciamlogin.com
Authorization: Bearer <access_token>

Request parameters

Path parameters:

Name	Required	Description
tenant-id	Yes	Your external tenant identifier, either the tenant ID (GUID) or a verified domain. Use a tenant-specific value, not common, client, organizations, or consumers. A GUID value must match the tenant in the access token.
type	Yes	The credential method type to delete. Currently only fido (passkey) is supported.
id	Yes	The identifier of the registered passkey to delete. Use the id (or follow the delete link) from List user credential methods, the source of truth for the customer's registered methods.

Request headers:

Name	Required	Value
Authorization	Yes	Bearer <access_token>

This endpoint doesn't take a request body. The passkey to delete is identified entirely by the URL.

Success response

A successful delete returns an empty response:

HTTP/1.1 204 No Content

This endpoint can return 400, 401, or 403. For the shared envelope and caller actions, see Error responses.

Error responses

Error responses use a shared JSON envelope. The following example shows the required properties:

{
  "error": {
    "code": "invalidRequest",
    "message": "<error-message>",
    "timestamp": "<timestamp>",
    "traceId": "<trace-id>",
    "correlationId": "<correlation-id>"
  }
}

The error response has the following properties:

Property	Type	Required	Description
error	object	Yes	Error details.
error.code	string	Yes	Machine-readable error code.
error.message	string	Yes	Human-readable description of the failure. Don't use this value for programmatic branching.
error.timestamp	string	Yes	Time when the error occurred.
error.traceId	string	Yes	Identifier used to trace the request.
error.correlationId	string	Yes	Identifier used to correlate the request across components.
error.target	string	No	Request element associated with the error.
error.innerError	object	No	Additional error details.
clientHints	array of strings	No	Optional response-wide hint tokens.

The following status and code combinations are confirmed for these endpoints:

HTTP status	Error code	Confirmed causes
400 Bad Request	invalidRequest	Missing or malformed bearer token, invalid token signature, expired token, app-only token, insufficient delegated scope, a non-specific tenant route, or invalid registration state such as a malformed continuation token.
401 Unauthorized	invalidRequest	The token wasn't issued for the credential management API.
403 Forbidden	forbidden	The tenant in the request URL doesn't match the tenant in the access token.
500 Internal Server Error	serverError	The begin registration endpoint received an invalid WebAuthn creation-options response from an upstream component.

The shared error model also defines unknown, invalidGrant, expiredToken, tooManyRequests, and unsupportedRedirect. Don't assume that every endpoint emits every code.

Handle confirmed errors as follows:

Response	Caller action
400 invalidRequest	Use error.message to diagnose the invalid input. Acquire a new delegated token when the token is missing, malformed, invalid, expired, app-only, or lacks an accepted scope. Use a tenant-specific route value. If registration state is invalid, restart the two-step registration flow.
401 invalidRequest	Request an accepted credential management API permission when acquiring the token, then retry the request.
403 forbidden	Verify that the {tenant-id} in the request URL matches the tenant represented by the access token.
500 serverError	Record traceId and correlationId for diagnostics. Don't assume that the operation succeeded.
