Working with claims-aware apps in application proxy

Claims-aware apps perform a redirection to the Security Token Service (STS). The STS requests credentials from the user in exchange for a token and then redirects the user to the application. There are a few ways to enable application proxy to work with these redirects. Use this article to configure your deployment for claims-aware apps.


The STS that the claims-aware app redirects to must be available outside of your on-premises network. Expose it through a proxy or by allowing outside connections.

Publish your application

  1. Publish your application according to the instructions described in Publish applications with application proxy.
  2. Navigate to the application page in the portal and select Single sign-on.
  3. If you chose Microsoft Entra ID as your Preauthentication Method, select Microsoft Entra single sign-on disabled as your Internal Authentication Method. If you chose Passthrough as your Preauthentication Method, you don't need to change anything.

Configure Active Directory Federation Services

You can configure Active Directory Federation Services for claims-aware apps in one of two ways. The first is by using custom domains. The second is with WS-Federation.

Option 1: Custom domains

If all the internal URLs for your applications are fully qualified domain names (FQDNs), then you can configure custom domains for your applications. Use the custom domains to create external URLs that are the same as the internal URLs. When your external URLs match your internal URLs, then the STS redirections work whether your users are on-premises or remote.

Option 2: WS-Federation

  1. Open Active Directory Federation Services management.

  2. Go to Relying Party Trusts, right-click on the app you're publishing with application proxy, and choose Properties.

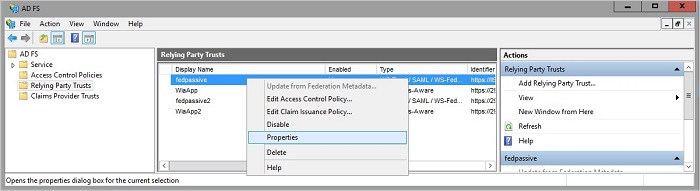

    Relying Party Trusts right-click on app name - screenshot

  3. On the Endpoints tab, under Endpoint type, select WS-Federation.

  4. Under Trusted URL, enter the URL you entered in the application proxy under External URL and select OK.

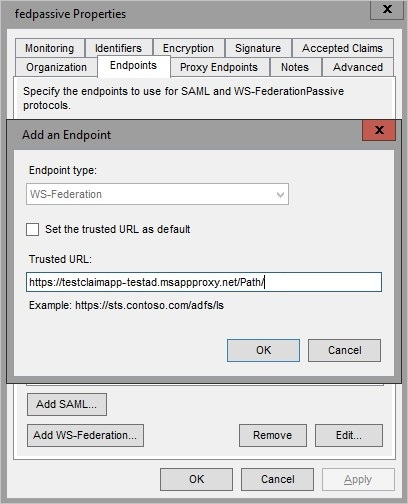

    Add an Endpoint - set Trusted URL value - screenshot
