Microsoft Entra Connect: Enabling device writeback


A subscription to Microsoft Entra ID P1 or P2 is required for device writeback.

The following documentation provides information on how to enable the device writeback feature in Microsoft Entra Connect. Device Writeback is used in the following scenarios:

This provides additional security and assurance that access to applications is granted only to trusted devices. For more information on Conditional Access, see Managing Risk with Conditional Access and Setting up On-premises Conditional Access using Microsoft Entra Device Registration.


  • Devices must be located in the same forest as the users. Since devices must be written back to a single forest, this feature does not currently support a deployment with multiple user forests.
  • Only one device registration configuration object can be added to the on-premises Active Directory forest. This feature isn't compatible with a topology where the on-premises Active Directory is synchronized to multiple Microsoft Entra directories.
  • Part 1: Install Microsoft Entra Connect

    Install Microsoft Entra Connect using Custom or Express settings. Microsoft recommends to start with all users and groups successfully synchronized before you enable device writeback.

    Part 2: Enable device writeback in Microsoft Entra Connect

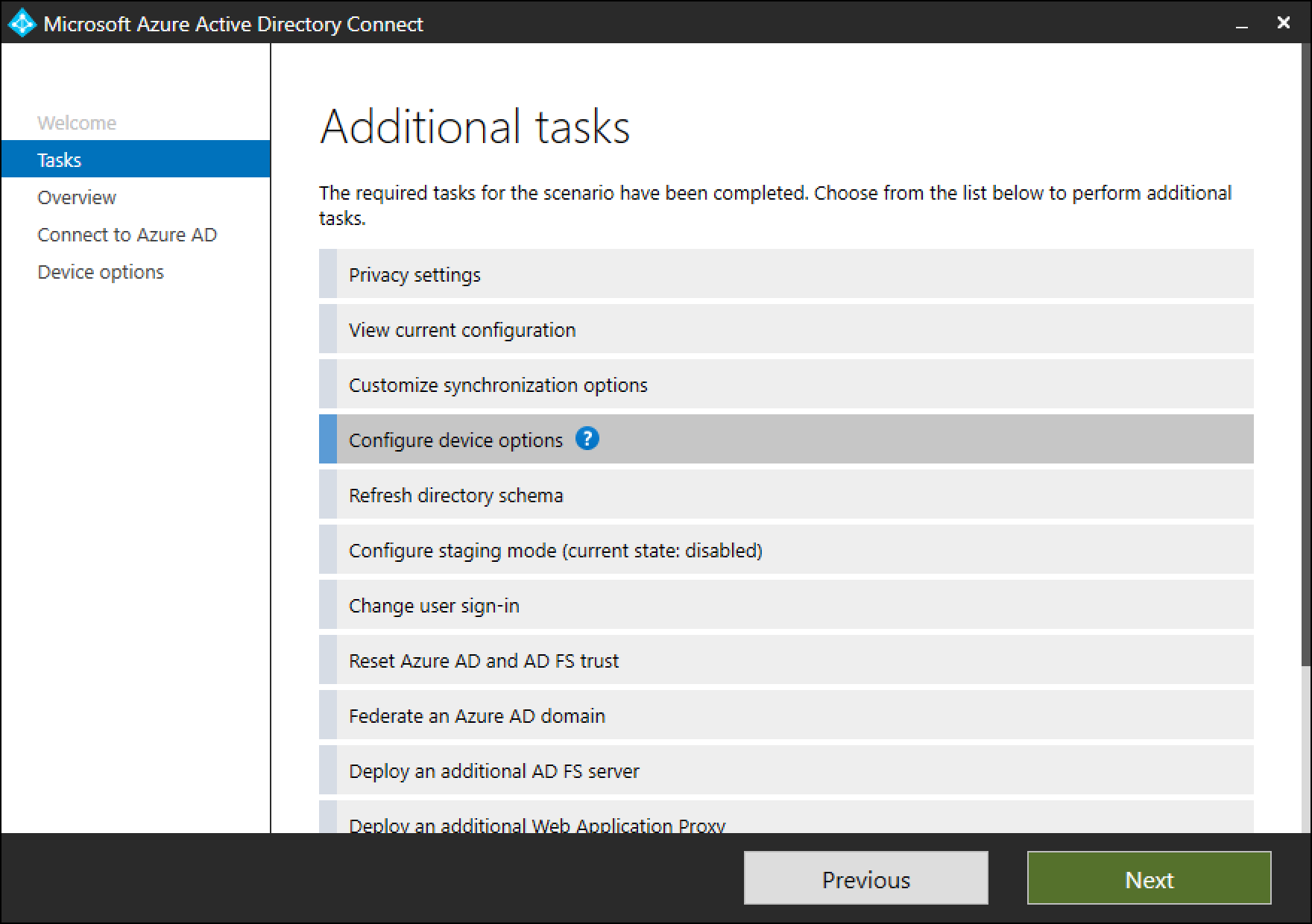

    1. Run the installation wizard again. Select Configure device options from the Additional Tasks page and click Next.

      Configure device options


      The new Configure device options is available only in version 1.1.819.0 and newer.

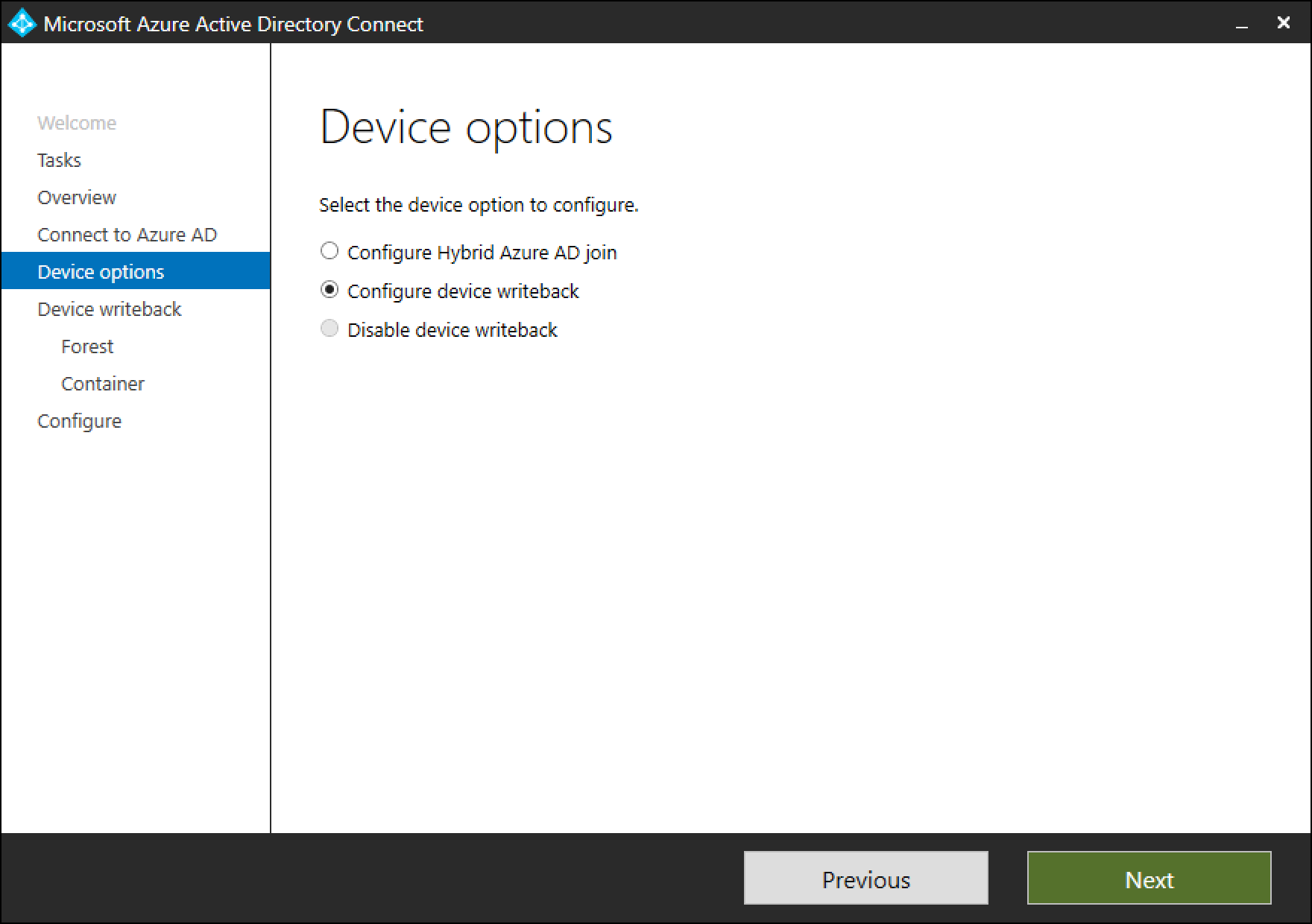

    2. On the device options page, select Configure device writeback. Option to Disable device writeback won't be available until device writeback is enabled. Click on Next to move to the next page in the wizard. Chose device operation

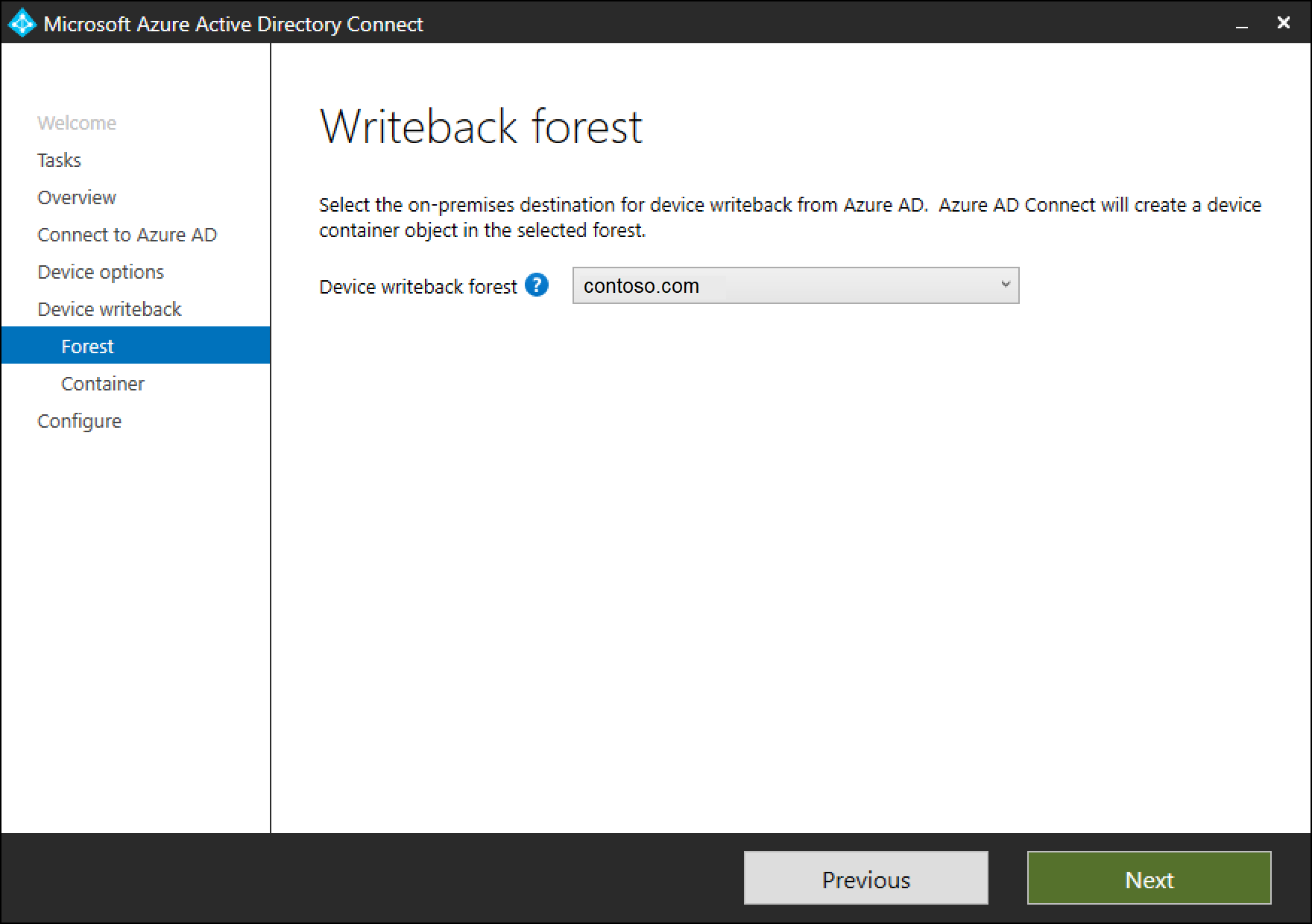

    3. On the writeback page, you'll see the supplied domain as the default Device writeback forest. Custom Install device writeback target forest

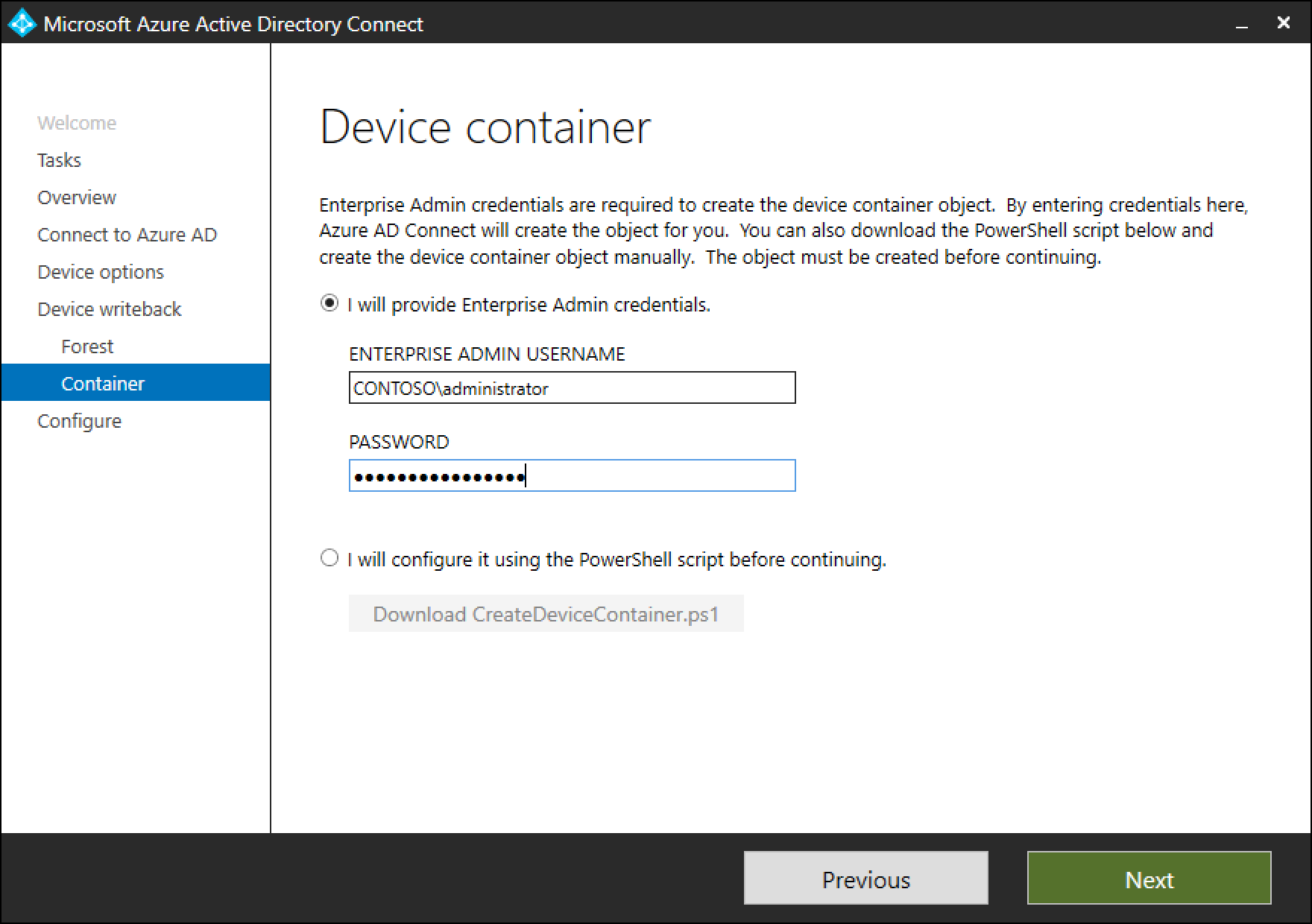

    4. Device container page provides option of preparing the active directory by using one of the two available options:

      a. Provide enterprise administrator credentials: If the enterprise administrator credentials are provided for the forest where devices need to be written back, Microsoft Entra Connect will prepare the forest automatically during the configuration of device writeback.

      b. Download PowerShell script: Microsoft Entra Connect auto-generates a PowerShell script that can prepare the active directory for device writeback. In case the enterprise administrator credentials can't be provided in Microsoft Entra Connect, it's suggested to download the PowerShell script. Provide the downloaded PowerShell script CreateDeviceContainer.ps1 to the enterprise administrator of the forest where devices will be written back to. Prepare active directory forest

      The following operations are performed for preparing the active directory forest:

      • If they don't exist already, creates and configures new containers and objects under CN=Device Registration Configuration,CN=Services,CN=Configuration,[forest-dn].
      • If they don't exist already, creates and configures new containers and objects under CN=RegisteredDevices,[domain-dn]. Device objects will be created in this container.
      • Sets necessary permissions on the Microsoft Entra Connector account, to manage devices on your Active Directory.
      • Only needs to run on one forest, even if Microsoft Entra Connect is being installed on multiple forests.

    Verify Devices are synchronized to Active Directory

    Device writeback should now be working properly. Be aware that it can take up to 3 hours for device objects to be written-back to AD. To verify that your devices are being synced properly, do the following after the sync rules complete:

    1. Launch Active Directory Administrative Center.

    2. Expand RegisteredDevices, within the Domain that is being federated.

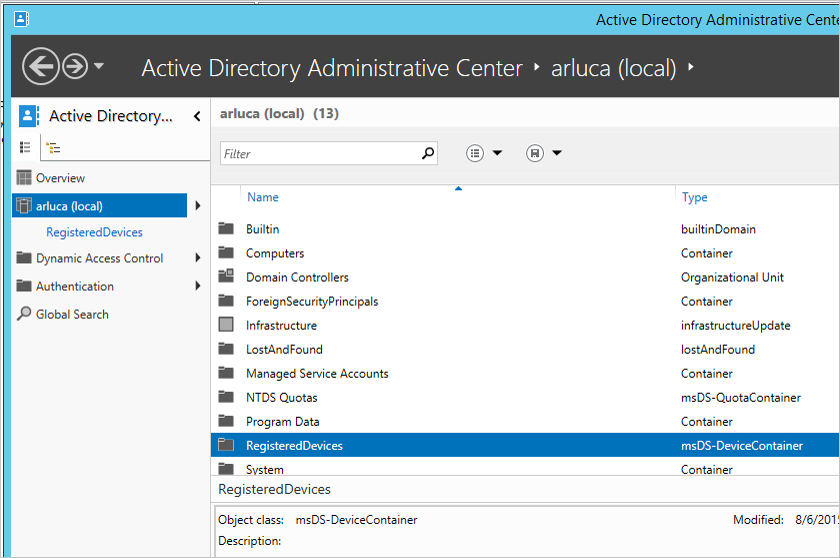

      Active Directory Admin Center Registered Devices

    3. Current registered devices will be listed there.

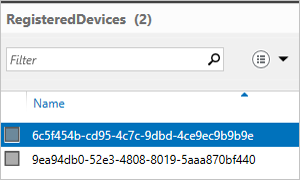

      Active Directory Admin Center Registered Devices List

    Enable Conditional Access

    Detailed instructions to enable this scenario are available within Setting up On-premises Conditional Access using Microsoft Entra Device Registration.


    The writeback checkbox is still disabled

    If the checkbox for device writeback isn't enabled even though you've followed the steps above, the following steps will guide you through what the installation wizard is verifying before the box is enabled.

    First things first:

    • The forest where the devices are present must have the forest schema upgraded to Windows 2012 R2 level so that the device object and associated attributes are present .
    • If the installation wizard is already running, then any changes won't be detected. In this case, complete the installation wizard and run it again.
    • Make sure the account you provide in the initialization script is actually the correct user used by the Active Directory Connector. To verify this, follow these steps:
      • From the start menu, open Synchronization Service.
      • Open the Connectors tab.
      • Find the Connector with type Active Directory Domain Services and select it.
      • Under Actions, select Properties.

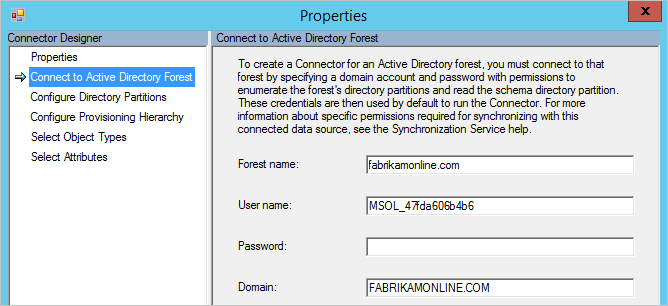

      • Go to Connect to Active Directory Forest. Verify that the domain and user name specified on this screen match the account provided to the script. Connector account in Sync Service Manager

    Verify configuration in Active Directory:

    • Verify that the Device Registration Service is located in the location below (CN=DeviceRegistrationService,CN=Device Registration Services,CN=Device Registration Configuration,CN=Services,CN=Configuration) under configuration naming context.

    Troubleshoot, DeviceRegistrationService in configuration namespace

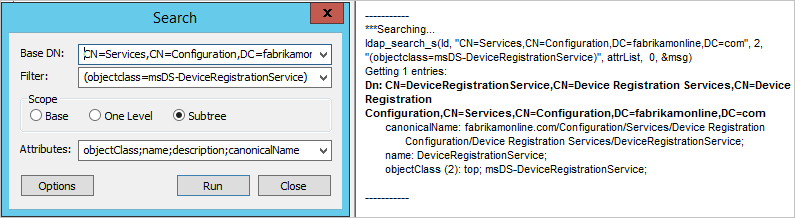

    • Verify there's only one configuration object by searching the configuration namespace. If there's more than one, delete the duplicate.

    Troubleshoot, search for the duplicate objects

    • On the Device Registration Service object, make sure the attribute msDS-DeviceLocation is present and has a value. Lookup this location and make sure it's present with the objectType msDS-DeviceContainer.

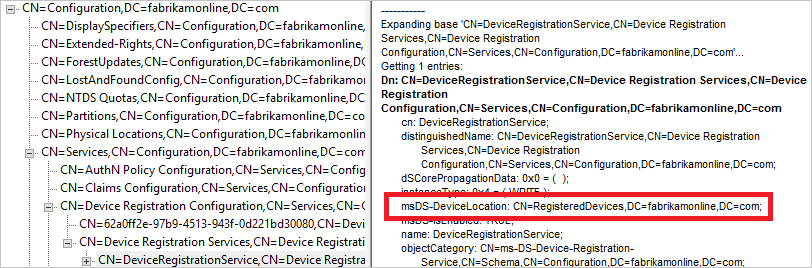

    Troubleshoot, msDS-DeviceLocation

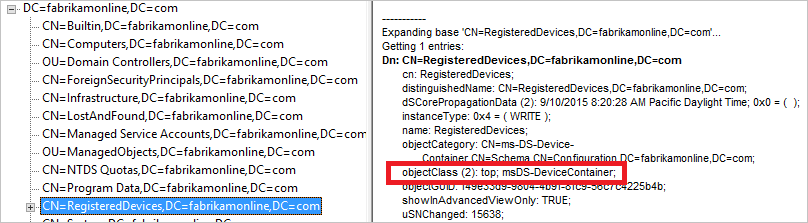

    Troubleshoot, RegisteredDevices object class

    • Verify the account used by the Active Directory Connector has required permissions on the Registered Devices container found by the previous step. This is the expected permissions on this container:

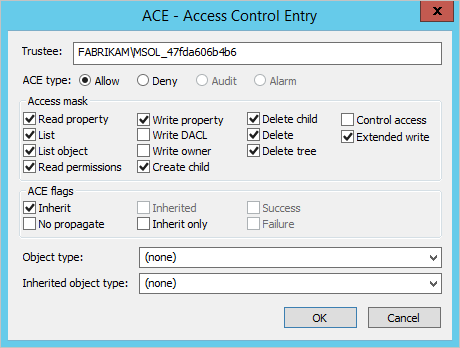

    Troubleshoot, verify permissions on container

    • Verify the Active Directory account has permissions on the CN=Device Registration Configuration,CN=Services,CN=Configuration object.

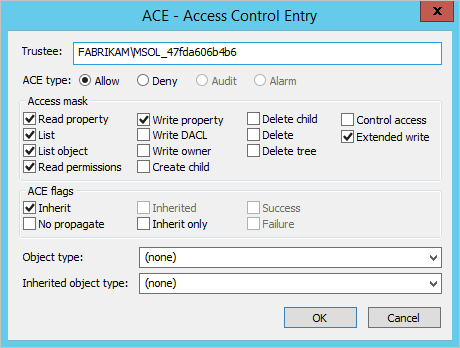

    Troubleshoot, verify permissions on Device Registration Configuration

    Additional Information

    Next steps

    Learn more about Integrating your on-premises identities with Microsoft Entra ID.
