Autoscale Billing for Spark introduces a new pay-as-you-go billing model for Apache Spark workloads in Microsoft Fabric, designed to provide greater flexibility and cost optimization. With this model enabled, Spark jobs no longer consume compute from the Fabric capacity but instead use dedicated, serverless resources billed independently—similar to Azure Synapse Spark.
This model complements the existing capacity-based model in Fabric, allowing organizations to choose the right compute model for their workloads.
Choosing between Autoscale Billing and Capacity Model
| Feature | Capacity Model | Autoscale Billing for Spark |
|---|---|---|
| Billing | Fixed cost per capacity tier | Pay-as-you-go for Spark jobs |
| Scaling | Capacity shared across workloads | Spark scales independently |
| Resource Contention | Possible between workloads | Dedicated compute limits for Spark |
| Best Use Case | Predictable workloads | Dynamic or bursty Spark jobs |
By strategically using both models, teams can balance cost and performance—running stable, recurring jobs on capacity while offloading ad-hoc or compute-heavy Spark workloads to Autoscale Billing.
Key benefits
- ✅ Cost efficiency – Pay only for Spark job runtime.
- ✅ Independent scaling – Spark workloads run without affecting other capacity-based operations.
- ✅ Enterprise-ready – Integrates with Azure Quota Management for scaling flexibility.
How Autoscale Billing works
When enabled, Autoscale Billing changes how Spark workloads are handled:
- Spark jobs will be offloaded from the Fabric Capacity and do not consume CU from Fabric capacity.
- A max CU limit can be configured to align with budget or governance policies. This limit is just a max limit(more like a quota) for your Spark workloads. You only get charged for the CUs your jobs use and there is no idle compute costs.
- There is no change to the bill rate for Spark. Cost of Spark remains the same which is 0.5 CU Hour
- Once the CU limit is reached, Spark jobs will queue (batch) or throttle (interactive).
- Spark usage and cost are reported separately in the Fabric Capacity Metrics App and Azure Cost Analysis.
Important
Autoscale Billing is opt-in per Capacity and does not burst from or fall back to the Fabric capacity. It is purely serverless and pay-as-you-go. You enable the autoscale billing and you set the max limits and only get charged for CUs consumed by the jobs that you run.
Job concurrency and queuing behavior
When Autoscale Billing is enabled, Spark job concurrency is governed by the maximum Capacity Unit (CU) limit defined by the Fabric Capacity Admin. Unlike the standard capacity model, there is no bursting or smoothing.
- Interactive Spark jobs (such as Lakehouse operations, table preview, Load to Table, or interactive notebook queries) will be throttled once the available CUs are fully utilized.
- Background Spark jobs (triggered by pipelines, job scheduler, API executions, Spark job definitions, or table maintenance) will be queued.
The queue size is directly tied to the CU limit:
For example, if the max CU limit is set to 2048, the Spark job queue can hold up to 2048 jobs.
This model ensures that resource allocation remains predictable and controllable while still supporting high-volume, bursty workloads.
Request additional quotas
If your data engineering or data science workloads require a higher quota than your current maximum Capacity Unit (CU) limit, you can request an increase via the Azure Quotas page:

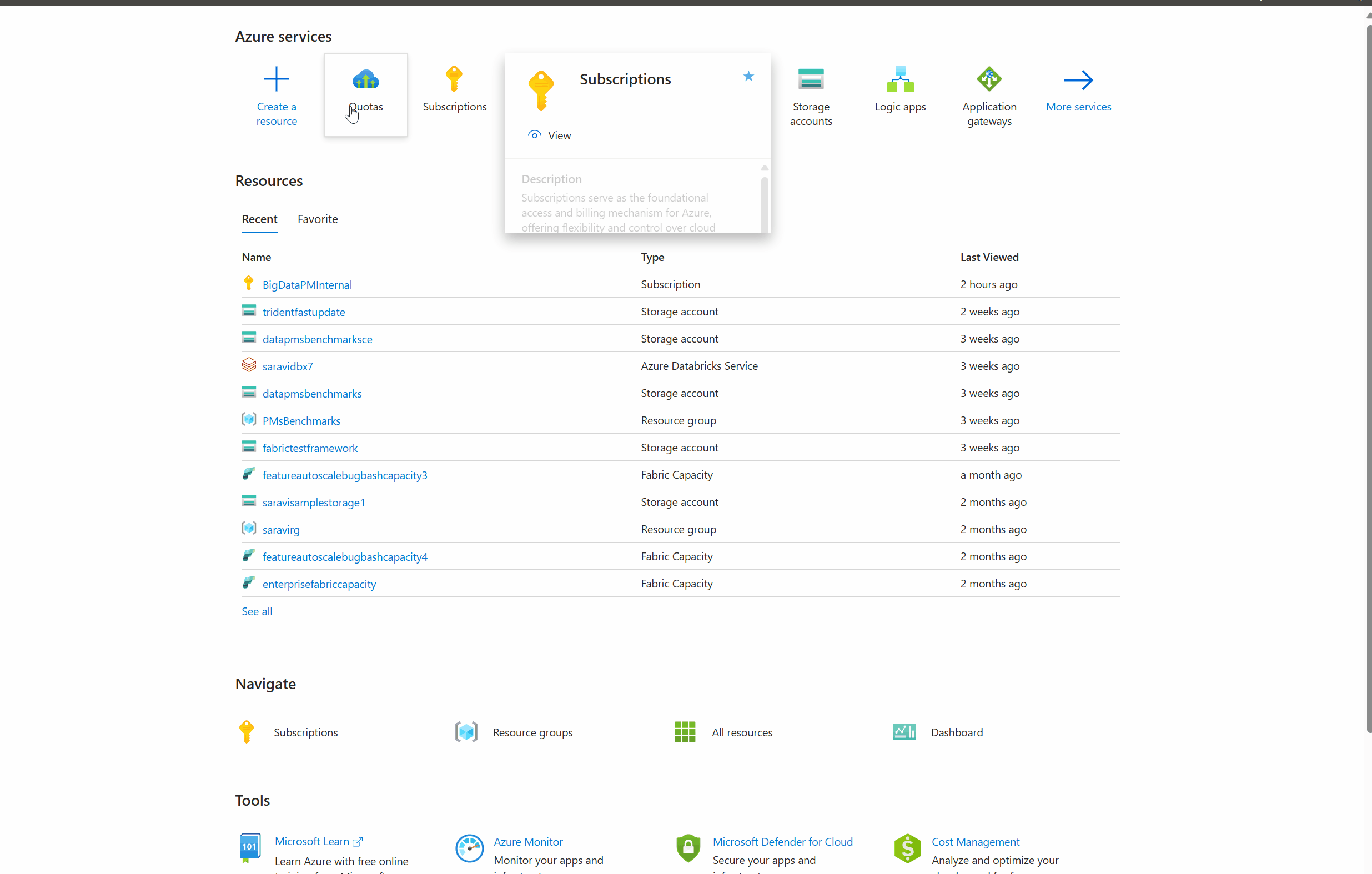

- Navigate to the Azure portal and sign in.
- In the search bar, type and select Azure Quotas.
- Choose Microsoft Fabric from the list of available services.
- Select the subscription associated with your Fabric capacity.
- Edit the quota limit by entering the new CU limit that you intend to acquire.
- Submit your quota request.
Once the request is approved, the new CU limits will be refreshed and applied to your Fabric capacity. This ensures that your Autoscale Billing model can accommodate increased demand without interrupting Spark workloads.
