Enable Azure Key Vault as a secret backend

Note

Apache Airflow job is powered by Apache Airflow.

Apache Airflow offers various backends for securely storing sensitive information such as variables and connections. One of these options is Azure Key Vault. This article walks you through the process of configuring Key Vault as the secret backend for Apache Airflow Job.

Prerequisites

• Azure subscription: If you don't have an Azure subscription, create a free Azure account before you begin.
• Azure Key Vault: You can follow this tutorial to create a new Key Vault instance if you don't have one.
• Service principal: You can create a new service principal or use an existing one and grant it permission to access your Key Vault instance. For example, you can grant the key-vault-contributor role to the service principal name (SPN) for your Key Vault instance so that the SPN can manage it. You also need to get the service principal's Client ID and Client Secret (API Key) to add them as environment variables, as described later in this article.

Permissions

Assign your SPN the following roles in your Key Vault instance from the built-in roles:

• Key Vault Contributor
• Key Vault Secrets User

Configurations to enable the Azure Key Vault as a secret backend in Apache Airflow Job.

• Airflow Requirements: Install apache-airflow-providers-microsoft-azure during your initial Airflow environment setup.

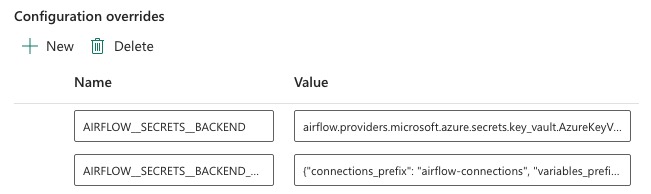

• Configuration overrides: Add the following settings for the Airflow configuration overrides in integration runtime properties:

  • AIRFLOW__SECRETS__BACKEND: airflow.providers.microsoft.azure.secrets.key_vault.AzureKeyVaultBackend
  • AIRFLOW__SECRETS__BACKEND_KWARGS: {"connections_prefix": "airflow-connections", "variables_prefix": "airflow-variables", "vault_url": **\<your keyvault uri\>**}



• Environment variables: Add the following variables for the configuration in the Airflow integration runtime properties:

  • AZURE_CLIENT_ID = <Client ID of SPN>
  • AZURE_TENANT_ID = <Tenant Id>
  • AZURE_CLIENT_SECRET = <Client Secret of SPN>

• With these settings you can use variables and connections inside your Airflow DAGs. The names of the connections and variables need to follow AIRFLOW__SECRETS__BACKEND_KWARGS, as defined previously. For example if the variable name is sample_var, then you should store it as airflow-variables-sample-var. For more information, see Azure Key Vault as secret backend.

Sample DAG using Key Vault as the backend

1. Create the new Python file adf.py with the following contents:

   from datetime import datetime, timedelta
   from airflow.operators.python_operator import PythonOperator
   from textwrap import dedent
   from airflow.models import Variable
   from airflow import DAG
   import logging

   def retrieve_variable_from_akv():
       variable_value = Variable.get("sample-variable")
       logger = logging.getLogger(__name__)
       logger.info(variable_value)

   with DAG(
      "tutorial",
      default_args={
          "depends_on_past": False,
          "email": ["airflow@example.com"],
          "email_on_failure": False,
          "email_on_retry": False,
          "retries": 1,
          "retry_delay": timedelta(minutes=5),
       },
      description="This DAG shows how to use Azure Key Vault to retrieve variables in Apache Airflow DAG",
      schedule_interval=timedelta(days=1),
      start_date=datetime(2021, 1, 1),
      catchup=False,
      tags=["example"],
   ) as dag:

       get_variable_task = PythonOperator(
           task_id="get_variable",
           python_callable=retrieve_variable_from_akv,
       )

   get_variable_task


2. Stored variable in Azure Key Vault.
