Set up SMTP Server in Apache Airflow Job

Note

Apache Airflow job is powered by Apache Airflow.

Apache Airflow includes a powerful feature that allows you to send email notifications and alerts when tasks fail, succeed, or retry. This capability is essential for monitoring your workflows and troubleshooting any issues that may arise.

To enable email notifications and alerts, you need to set up a Simple Mail Transfer Protocol (SMTP) server that can send emails on behalf of Airflow. SMTP is a standard protocol for sending and receiving emails over the internet. You can use your own SMTP server or a third-party service like Outlook, Gmail, SendGrid, or Mailgun. This article demonstrates how to configure an SMTP server for your Apache Airflow job using Gmail.

Prerequisites

• SMTP server: You need the SMTP host, port, username, and password for your server or service. If you're using Gmail, create an app password for your account.

• An email address that you want to use as the sender of the notifications and alerts. This email address can be the same as your SMTP username, or a different one if your SMTP service allows it.

• One or more email addresses that you want to receive the notifications and alerts. These can be your own email addresses, or the email addresses of your team members, stakeholders, or clients.

Set up the environment variables

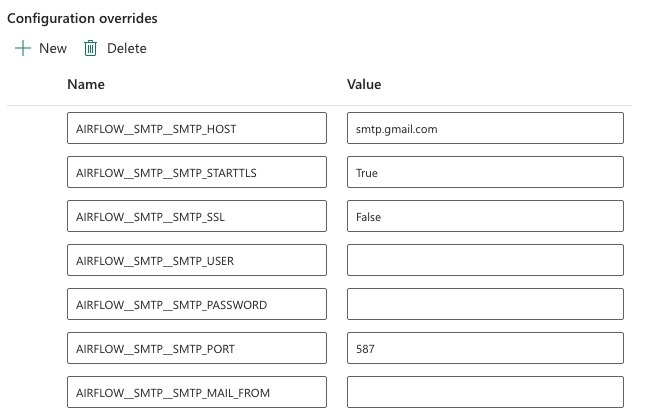

• Once you have the prerequisites, you can configure the Apache Airflow Job to use your SMTP server or service. Edit the Airflow configurations section, with the following fields:

  • AIRFLOW__SMTP__SMTP_HOST: The hostname or IP address of your SMTP server or service.
  • AIRFLOW__SMTP__SMTP_STARTTLS: Whether to use TLS (Transport Layer Security) encryption when connecting to your SMTP server or service. Set this config to True if your SMTP server or service supports TLS, or False otherwise.
  • AIRFLOW__SMTP__SMTP_SSL: Whether to use SSL (Secure Sockets Layer) encryption when connecting to your SMTP server or service. Set this config to True if your SMTP server or service requires SSL, or False otherwise.
  • AIRFLOW__SMTP__SMTP_USER: The username for your SMTP server or service. This username is usually your email address, or an API key if you're using SendGrid.
  • AIRFLOW__SMTP__SMTP_PASSWORD: The password for your SMTP server or service. This password is usually your email password, or an app password if you're using Gmail.
  • AIRFLOW__SMTP__SMTP_PORT: The port number for your SMTP server or service. This port is usually 25, 465, or 587, depending on the encryption method and the SMTP service.
  • AIRFLOW__SMTP__SMTP_MAIL_FROM: The email address that you want to use as the sender of the notifications and alerts. This mail can be the same as your SMTP username, or a different one if your SMTP service allows it.

  If you're using Gmail, refer to the following values.

  Airflow Configuration	Gmail
  AIRFLOW__SMTP__SMTP_HOST	smtp.gmail.com
  AIRFLOW__SMTP__SMTP_STARTTLS	True
  AIRFLOW__SMTP__SMTP_SSL	False
  AIRFLOW__SMTP__SMTP_USER	your_email@gmail.com
  AIRFLOW__SMTP__SMTP_PASSWORD	your_app_password
  AIRFLOW__SMTP__SMTP_PORT	587
  AIRFLOW__SMTP__SMTP_MAIL_FROM	your_email@gmail.com



Example: A DAG that sends an email on the DAG Failure

   from airflow import DAG
   from airflow.operators.bash_operator import BashOperator
   from airflow.utils.email import send_emailfrom datetime import datetime


   default_args = {
   "owner": "airflow",
   "start_date": datetime(2024, 3, 1),
   "email": ["your_email@gmail.com"], # The email address that you want to receive the notifications and alerts
   "email_on_failure": True,
   "email_on_retry": False,
   "retries": 0
   }

   with DAG(
       "email_callback_test",
       default_args=default_args,
       schedule_interval=None
   ) as dag:

   fail_task = BashOperator(
           task_id="fail_task",
           bash_command="cd fail",
       )

   fail_task

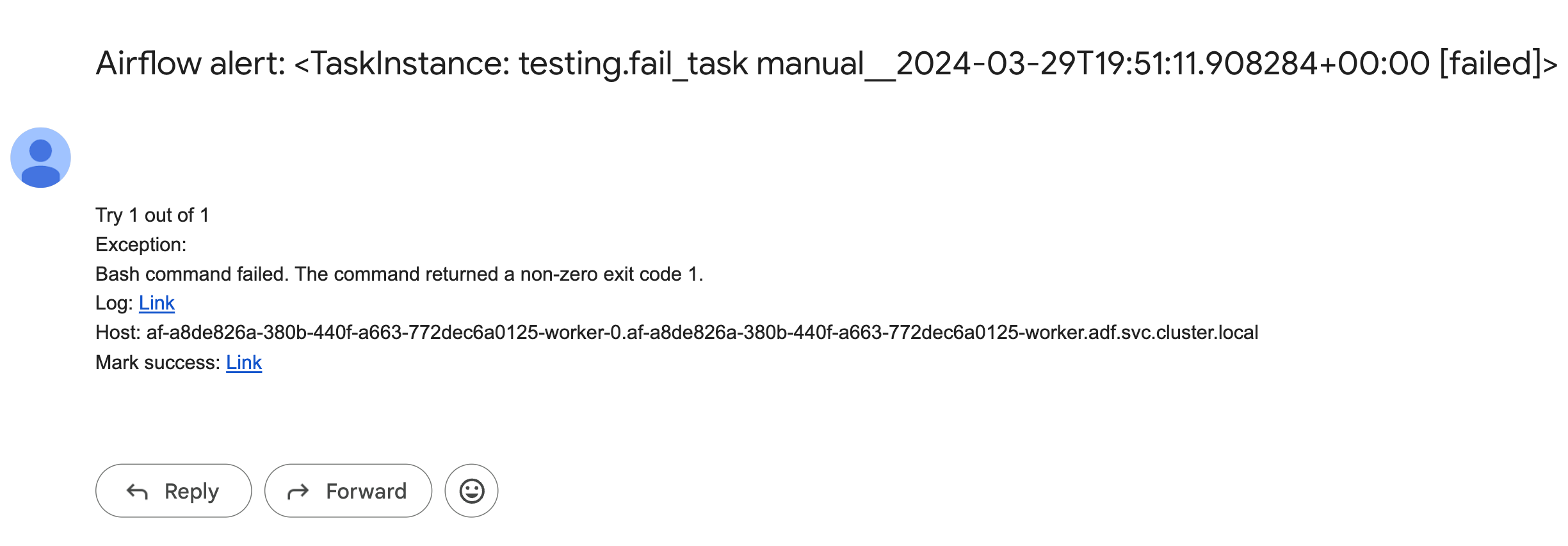

Sample Email received from SMTP server

The email contains the following information:

• Number of Attempts

• Error

• Log: Link that redirects to the failed task logs.

• Host: Host Name of Apache Airflow Job

• Host: Host Name of Apache Airflow Job

• Mark success: Link that redirects to the Failed DAG state.
