Integrate OneLake with Azure Databricks

This article shows how to access OneLake data from Azure Databricks. Both approaches use service principal authentication and the OneLake ABFS endpoint. Choose the section that matches your Databricks compute type:

  • Standard or job cluster: Use the Spark ABFS driver with OAuth configuration to read and write data directly through Spark DataFrames.
  • Serverless compute: Serverless runtimes don't allow you to set custom Spark configuration properties. Instead, use the Microsoft Authentication Library (MSAL) and the Python deltalake library to authenticate and read or write Delta tables.

For related Databricks integration scenarios, see the following resources:

Scenario Documentation
Query OneLake data from Unity Catalog without copying it Enable OneLake catalog federation
Access Databricks Unity Catalog data from Fabric Mirroring Azure Databricks Unity Catalog

Prerequisites

Before you connect, make sure you have:

  • A Fabric workspace and lakehouse.
  • A premium Azure Databricks workspace.
  • A service principal with at least the Contributor workspace role assignment.
  • Databricks secrets or Azure Key Vault (AKV) to store and retrieve secrets. The examples in this article use Databricks secrets.

Connect to OneLake with a standard cluster

Use the correct OneLake ABFS path format

Use one of the following URI formats:

  • abfss://<workspace_id_or_name>@onelake.dfs.fabric.microsoft.com/<lakehouse_id_or_name>.lakehouse/Files/<path>
  • abfss://<workspace_id_or_name>@onelake.dfs.fabric.microsoft.com/<lakehouse_id_or_name>.lakehouse/Tables/<path>

You can use IDs or names. If you use names, avoid special characters and whitespace in workspace and lakehouse names.

Use service principal authentication

Use this option for automated jobs and centralized secret rotation.

workspace_name = "<workspace_name>"
lakehouse_name = "<lakehouse_name>"
tenant_id = dbutils.secrets.get(scope="<scope-name>", key="<tenant-id-key>")
service_principal_id = dbutils.secrets.get(scope="<scope-name>", key="<client-id-key>")
service_principal_secret = dbutils.secrets.get(scope="<scope-name>", key="<client-secret-key>")

spark.conf.set("fs.azure.account.auth.type", "OAuth")
spark.conf.set(
   "fs.azure.account.oauth.provider.type",
   "org.apache.hadoop.fs.azurebfs.oauth2.ClientCredsTokenProvider",
)
spark.conf.set("fs.azure.account.oauth2.client.id", service_principal_id)
spark.conf.set("fs.azure.account.oauth2.client.secret", service_principal_secret)
spark.conf.set(
   "fs.azure.account.oauth2.client.endpoint",
   f"https://login.microsoftonline.com/{tenant_id}/oauth2/token",
)

# Read
df = spark.read.format("parquet").load(
   f"abfss://{workspace_name}@onelake.dfs.fabric.microsoft.com/{lakehouse_name}.lakehouse/Files/data"
)
df.show(10)

# Write
df.write.format("delta").mode("overwrite").save(
   f"abfss://{workspace_name}@onelake.dfs.fabric.microsoft.com/{lakehouse_name}.lakehouse/Tables/dbx_delta_spn"
)

Connect to OneLake with serverless compute

Databricks serverless compute lets you run workloads without provisioning a cluster, but it only allows a subset of supported Spark properties. You can't set the fs.azure.* Spark configuration used on standard clusters.

Note

This limitation isn't unique to Azure Databricks. Databricks serverless implementations on Amazon Web Services (AWS) and Google Cloud have the same behavior.

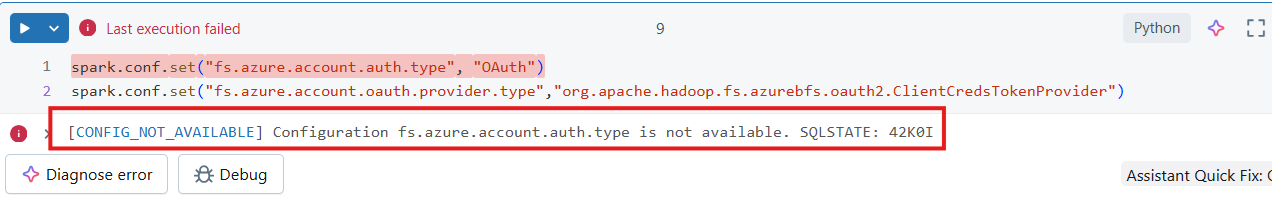

If you attempt to set an unsupported Spark configuration in a serverless notebook, the system returns a CONFIG_NOT_AVAILABLE error.

Screenshot showing error message if a user attempts to modify unsupported Spark config in serverless compute.

Instead, use MSAL to acquire an OAuth token and the Python deltalake library to read or write Delta tables with that token.

Set up a serverless notebook

  1. Create a notebook in your Databricks workspace and attach it to serverless compute.

    Screenshot showing how to connect Databricks notebook with serverless compute.

  2. Import Python modules. In this sample, use two modules:

    • msal authenticates with the Microsoft identity platform.
    • deltalake reads and writes Delta Lake tables with Python.
    from msal import ConfidentialClientApplication
from deltalake import DeltaTable, write_deltalake

  3. Declare variables for Microsoft Entra tenant including application ID. Use the tenant ID of the tenant where Microsoft Fabric is deployed.

    # Fetch from Databricks secrets.
tenant_id = dbutils.secrets.get(scope="<replace-scope-name>",key="<replace value with key value for tenant_id>")
client_id = dbutils.secrets.get(scope="<replace-scope-name>",key="<replace value with key value for client_id>")
client_secret = dbutils.secrets.get(scope="<replace-scope-name>",key="<replace value with key value for secret>")

  4. Declare Fabric workspace variables.

    workspace_id = "<replace with workspace name>"
lakehouse_id = "<replace with lakehouse name>"
table_to_read = "<name of lakehouse table to read>"
onelake_uri = f"abfss://{workspace_id}@onelake.dfs.fabric.microsoft.com/{lakehouse_id}.lakehouse/Tables/{table_to_read}"

  5. Initialize client to acquire token.

    authority = f"https://login.microsoftonline.com/{tenant_id}"

app = ConfidentialClientApplication(
    client_id,
    authority=authority,
    client_credential=client_secret
)

result = app.acquire_token_for_client(scopes=["https://onelake.fabric.microsoft.com/.default"])

if "access_token" in result:
    print("Access token acquired.")
    token_val = result['access_token']
else:
    raise Exception(f"Failed to acquire token: {result.get('error_description', result)}")

  6. Read a Delta table from OneLake.

    dt = DeltaTable(onelake_uri, storage_options={"bearer_token": f"{token_val}", "use_fabric_endpoint": "true"})
df = dt.to_pandas()
print(df.head())

  7. Write a Delta table to OneLake.

    target_uri = f"abfss://{workspace_id}@onelake.dfs.fabric.microsoft.com/{lakehouse_id}.lakehouse/Tables/<target_table_name>"
write_deltalake(
    target_uri,
    df,
    mode="overwrite",
    storage_options={"bearer_token": f"{token_val}", "use_fabric_endpoint": "true"}
)

Design considerations

  • Use one writer pattern per table path where possible. Writing to the same storage paths from multiple compute engines or runtime versions can cause conflicts.
  • Use secrets management for service principal credentials.
  • Use OneLake shortcuts when you need virtualized access instead of physically writing data into another lakehouse location.
