Get data from Azure storage

In this article, you learn how to get data from Azure storage (ADLS Gen2 container, blob container, or individual blobs) into either a new or existing table.

Prerequisites

• A workspace with a Microsoft Fabric-enabled capacity
• A KQL database with editing permissions
• A storage account

Source

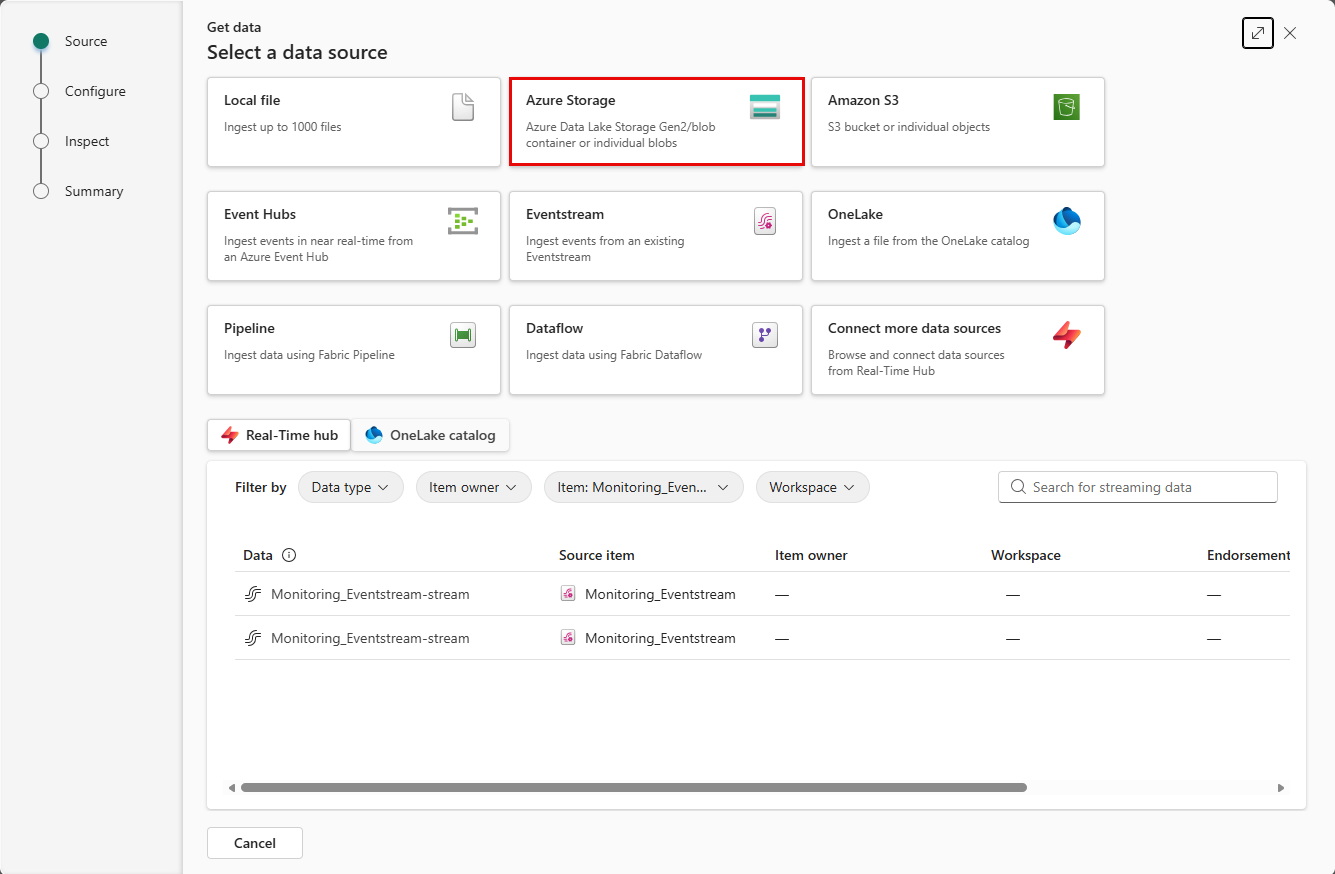

1. On the lower ribbon of your KQL database, select Get Data.

   In the Get data window, the Source tab is selected.

2. Select the data source from the available list. In this example, you're ingesting data from Azure storage.



Configure

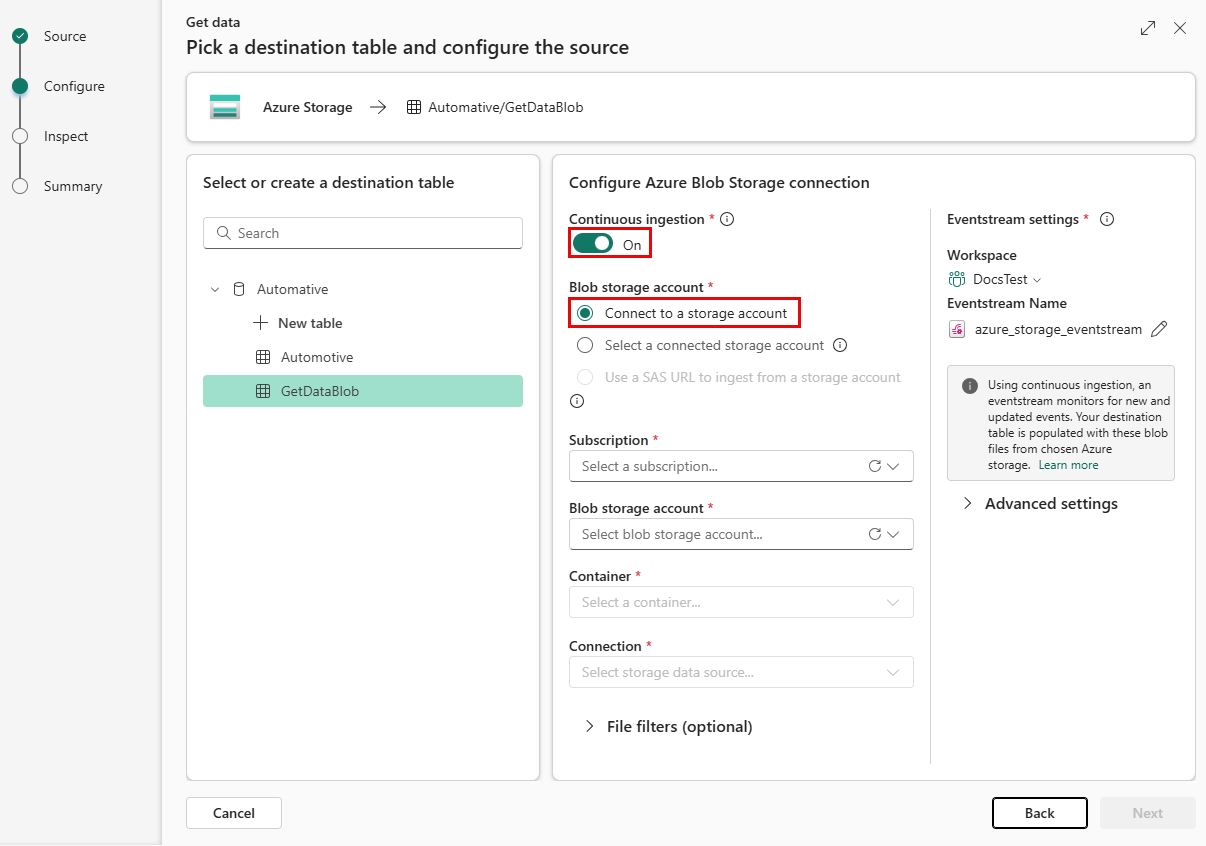

1. Select a target table. If you want to ingest data into a new table, select + New table and enter a table name.

   Note

   Table names can be up to 1024 characters including spaces, alphanumeric, hyphens, and underscores. Special characters aren't supported.

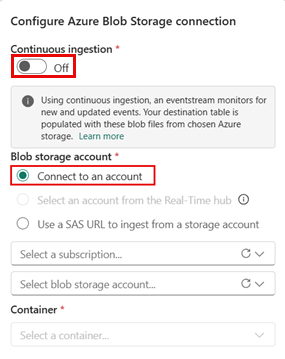

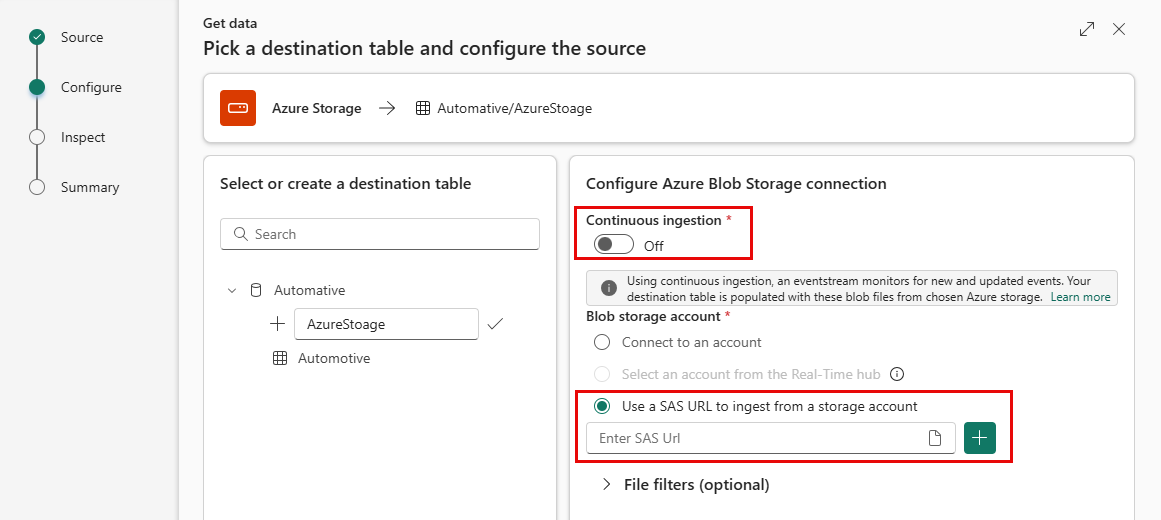

2. To add your data source, paste your storage connection string in the URI field, and then select +. The following table lists the supported authentication methods and the permissions needed for ingesting data from Azure storage.

   Authentication method	Individual blob	Blob container	Azure Data Lake Storage Gen2
   Shared Access (SAS) token	Read and Write	Read and List	Read and List
   Storage account access key

   Note

   • You can either add up to 10 individual blobs, or ingest up to 5000 blobs from a single container. You can't ingest both at the same time.
   • Each blob can be a max of 1 GB uncompressed.

   1. If you pasted a connection string for a blob container or an Azure Data Lake Storage Gen2, you can then add the following optional filters:



      Setting	Field description
      File filters (optional)
      Folder path	Filters data to ingest files with a specific folder path.
      File extension	Filters data to ingest files with a specific file extension only.

3. Select Next

Inspect

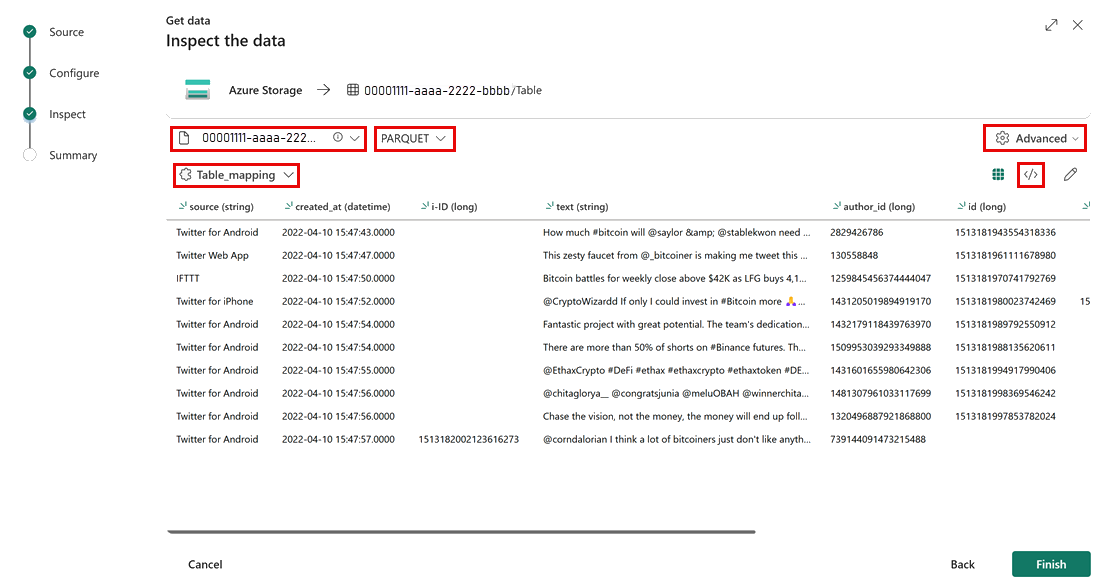

The Inspect tab opens with a preview of the data.

To complete the ingestion process, select Finish.

Optionally:

• Select Command viewer to view and copy the automatic commands generated from your inputs.
• Use the Schema definition file dropdown to change the file that the schema is inferred from.
• Change the automatically inferred data format by selecting the desired format from the dropdown. For more information, see Data formats supported by Real-Time Intelligence.
• Edit columns.
• Explore Advanced options based on data type.

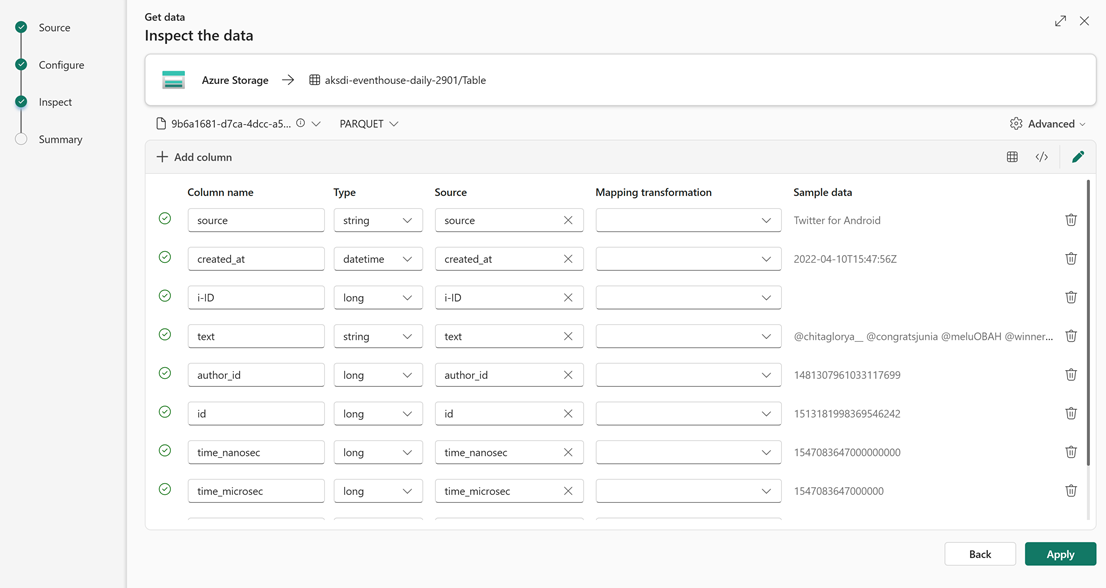

Edit columns

Note

• For tabular formats (CSV, TSV, PSV), you can't map a column twice. To map to an existing column, first delete the new column.
• You can't change an existing column type. If you try to map to a column having a different format, you may end up with empty columns.

The changes you can make in a table depend on the following parameters:

• Table type is new or existing
• Mapping type is new or existing

Table type	Mapping type	Available adjustments
New table	New mapping	Rename column, change data type, change data source, mapping transformation, add column, delete column
Existing table	New mapping	Add column (on which you can then change data type, rename, and update)
Existing table	Existing mapping	none

Mapping transformations

Some data format mappings (Parquet, JSON, and Avro) support simple ingest-time transformations. To apply mapping transformations, create or update a column in the Edit columns window.

Mapping transformations can be performed on a column of type string or datetime, with the source having data type int or long. Supported mapping transformations are:

• DateTimeFromUnixSeconds
• DateTimeFromUnixMilliseconds
• DateTimeFromUnixMicroseconds
• DateTimeFromUnixNanoseconds

Advanced options based on data type

Tabular (CSV, TSV, PSV):

• If you're ingesting tabular formats in an existing table, you can select Advanced > Keep table schema. Tabular data doesn't necessarily include the column names that are used to map source data to the existing columns. When this option is checked, mapping is done by-order, and the table schema remains the same. If this option is unchecked, new columns are created for incoming data, regardless of data structure.

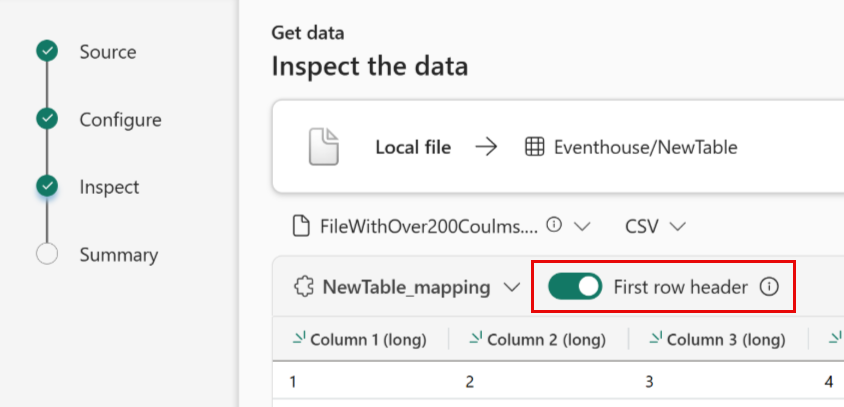

• To use the first row as column names, select Advanced > First row is column header.



JSON:

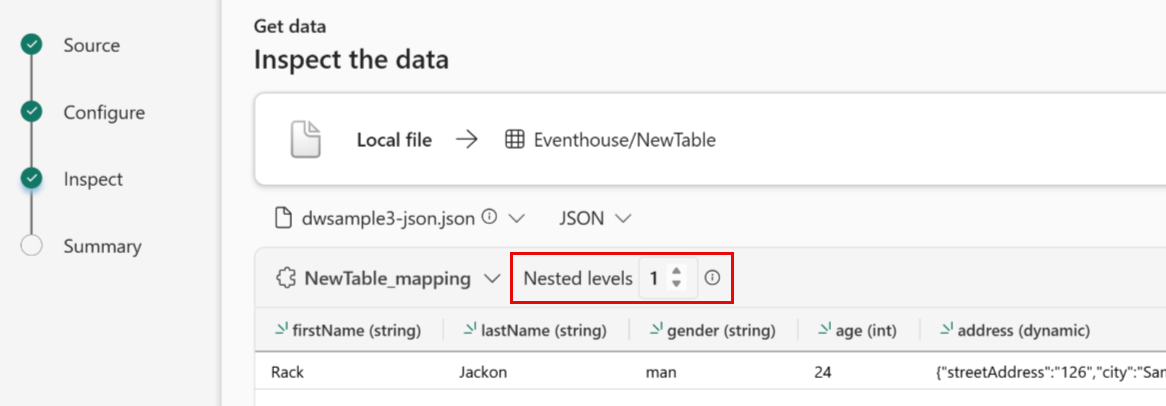

• To determine column division of JSON data, select Advanced > Nested levels, from 1 to 100.

• If you select Advanced > Skip JSON lines with errors, the data is ingested in JSON format. If you leave this check box unselected, the data is ingested in multijson format.

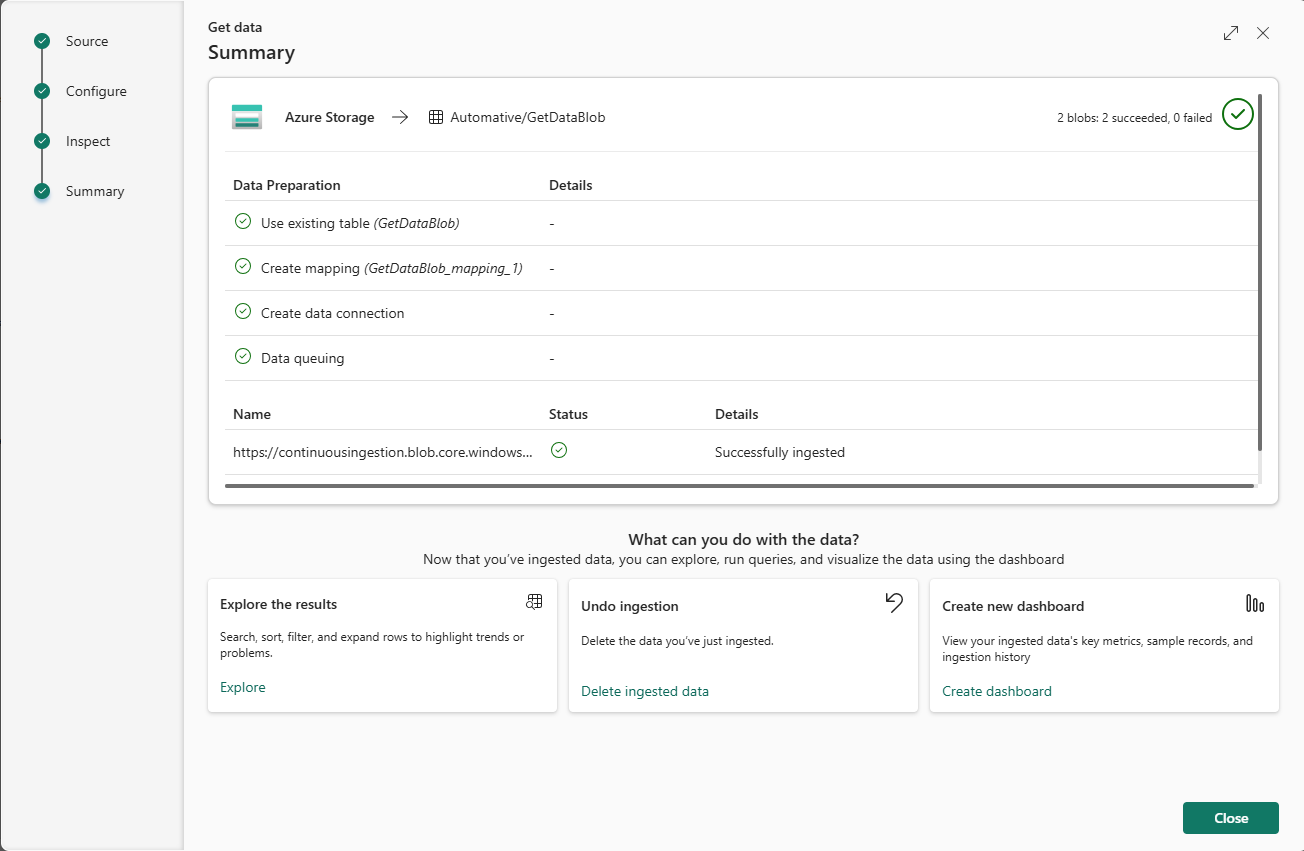

Summary

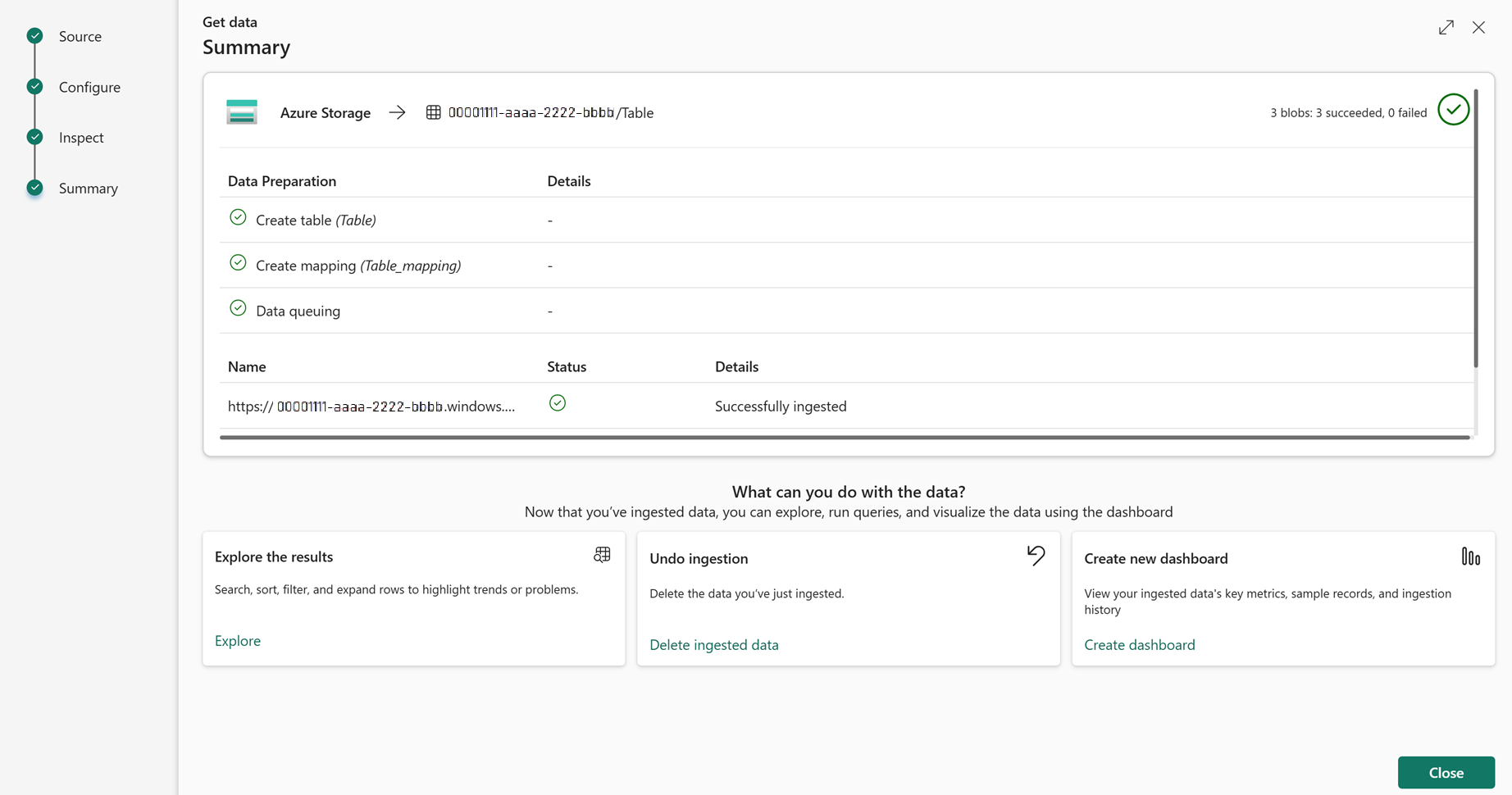

In the Data preparation window, all three steps are marked with green check marks when data ingestion finishes successfully. You can select a card to query, drop the ingested data, or see a dashboard of your ingestion summary.
