Install FSLogix Applications

Article
03/31/2023

This article describes how to download and install FSLogix Apps (Core Product), Rule Editor, and Java Rule Editor.

Note

All FSLogix installations use the same steps regardless if it's a new or upgrade install.

Prerequisites

Review: FSLogix prerequisites.
Review: Installation FAQ.
Review: Release Notes.

Download FSLogix

Note

We recommend customers upgrade to the latest version of FSLogix as quickly as their deployment process can allow. FSLogix will provide hotfix releases which address current and potential bugs that impact customer deployments. Additionally, it is the first requirement when opening any support case.

FSLogix can be downloaded via direct download or through the Microsoft Download Center.

Direct download

For customers who integrate the download and installation of FSLogix as part of an automated build routine, the latest version of FSLogix can be obtained here.

Microsoft Download Center

The download center allows customers to search and find previous versions¹ of FSLogix.

^{1 Microsoft download center only provides the last 2 feature and associated hotfix releases.}

Install FSLogix Apps (Core Product)

Extract the downloaded zip file.
Navigate to the directory where the files were extracted.
Double-click on Win32 (32-bit) or x64 (64-bit), based on your environment.
Double-click on Release.
Double-click on FSLogixAppsSetup.exe.
Agree to the licensing terms, select Install.

Note

You can install to an alternate location, but it isn't recommended.
FSLogix Apps installation progress.
Reboot.

Install FSLogix Apps Rule Editor and Java Rule Editor

Note

The RuleEditor and Java RuleEditor are intended for administrator workstations.
Both the RuleEditor and Java RuleEditor installation dialogs are identical to the screenshots and are not provided.
You can install to an alternate location, but it isn't recommended.

Extract the downloaded zip file.
Navigate to the directory where the files were extracted.
Double-click on Win32 (32-bit) or x64 (64-bit), based on your environment.
Double-click on Release.
Double-click on FSLogixAppsRuleEditorSetup.exe or FSLogixAppsJavaRuleEditorSetup.exe.
Agree to the licensing terms, select Install.

Unattended installation options

Each of the FSLogix installers supports unattended and silent installation for automated use cases. Installation commands and descriptions are described in the following table.

Command Switch	Description
/install	Default product installation
/repair	Repairs a previous product installation
/uninstall	Uninstalls a previous product installation
/layout	Creates a local copy of the install bundle
/passive	Displays minimal UI and No prompts
/quiet	Displays No UI and No prompts
/norestart	Suppresses any attempts to restart. By default the UI prompts before restart
/log log.txt	Logs installation to a specific path and file. Default log is in %TEMP%.

Verify product installation and version

You manually installed FSLogix.
It was installed as part of your golden image.
It was preinstalled as part of the Windows 10 / 11 Azure Marketplace image.

It doesn't matter how FSLogix was installed, verifying the install and version is a valuable step before configuration.

Tip

The most recent release can be found on our release notes page.

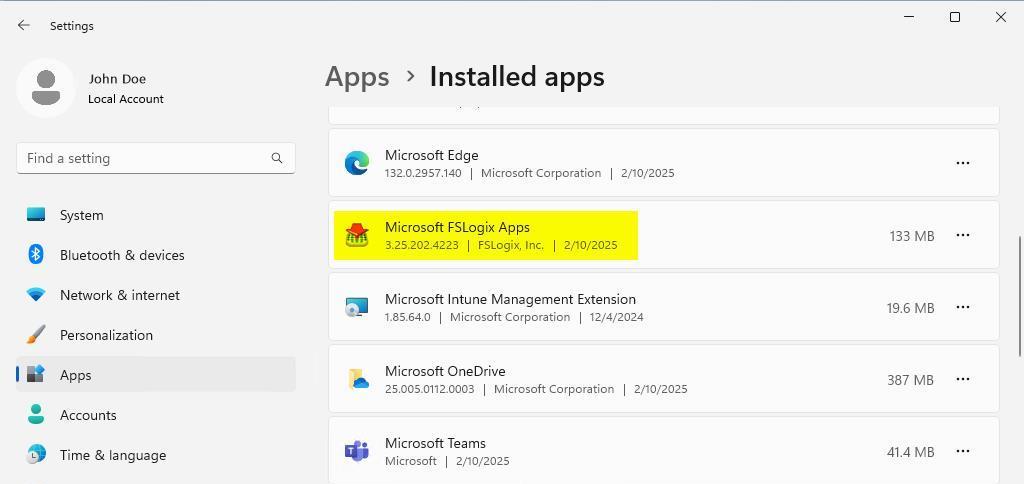

Installed Apps

Sign in to the virtual machine as a local Administrator or an account with administrative privileges.
Right-click the Start icon.
Select Installed Apps.
Locate Microsoft FSLogix Apps.

Command-line

Sign in to the virtual machine as a local Administrator or an account with administrative privileges.
Select Start and Type command prompt directly into the Start Menu.
Select Command Prompt from the Start Menu.
Change directory to C:\Program Files\FSLogix\Apps.
Type frx version.
