Quick Start Overview

This article provides an overview of Halo 3 modding tools and the structure of folders used during modding. In addition, it contains the diagram of the general modding pipeline for the creation of a level. For the full description of this pipeline, please refer to the Creation of Simple Level doc.

Halo 3 Modding Tools

This section contains brief descriptions of the modding tools that are included in the Halo 3 Editing Kit (H3EK).

In the root folder of this package, you will find executables of all these tools, except the 3D modelling package (such as Blender, 3DSMax, or Maya) that needs to be installed separately.

Once downloaded, Halo 3 modding tools do not require any extra installation steps. You can simply launch them from the appropriate folder.

Tool and Tool_Fast: "Aggregators" for Commands

The tool and tool_fast apps (tool.exe and tool_fast.exe) are command-line programs that are very important in the world of Halo 3 modding. Roughly speaking, we can say that these two apps are slightly different implementations of the same concept – the necessity to have some central point for launching various commands. Both of these apps aggregate a large set of sub-commands that are necessary for the different parts of the modding pipeline.

The most important ability of tool (tool.exe) is to transform source data (level geometry and models in the format of FBX files, images, text, etc.) to the format used by the engine. For example, you can generate an asset file (ASS) with the static geometry of the level from an FBX file using the fbx-to-ass command of tool in the following format:

tool fbx-to-ass <fbx_file> <ass_file>

Note

However, the tool app is used not only for that. You can list all of the sub-commands available in tool by launching tool.exe in the command line prompt without parameters.

The tool_fast app (tool.exe) is an optimized version of tool that supports multi-threading, which allows it to perform the same operations faster. Some commands of tool_fast duplicate the commands of tool, and we recommend you to use tool_fast commands in this case. Commands inside tool_fast should be sufficient for most popular modding tasks. However, tool_fast displays fewer errors and warnings, so if you need to do debugging or have some issues, switch back to tool.

Sets of sub-commands within tool and tool_fast are slightly different and some commands exist only in one tool or the other. For example, the structure sub-command exists only in the tool_fast. This command allows you to build a .scenario tag file of the level for Sapien from the ASS file. The format of this command is the following:

tool_fast structure <ass-file>

Note

Similar to the tool app, you can list all sub-commands of tool_fast by launching tool_fast.exe in the command line prompt without parameters.

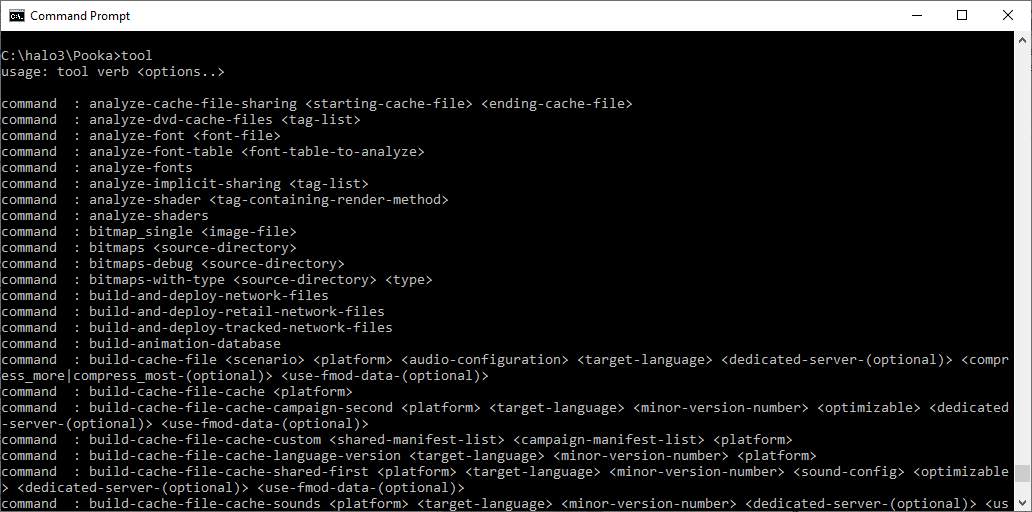

View of the command prompt when using the tool.exe and a list of the sub-commands.

Fig 1. Sub-commands of tool (part of the full list).

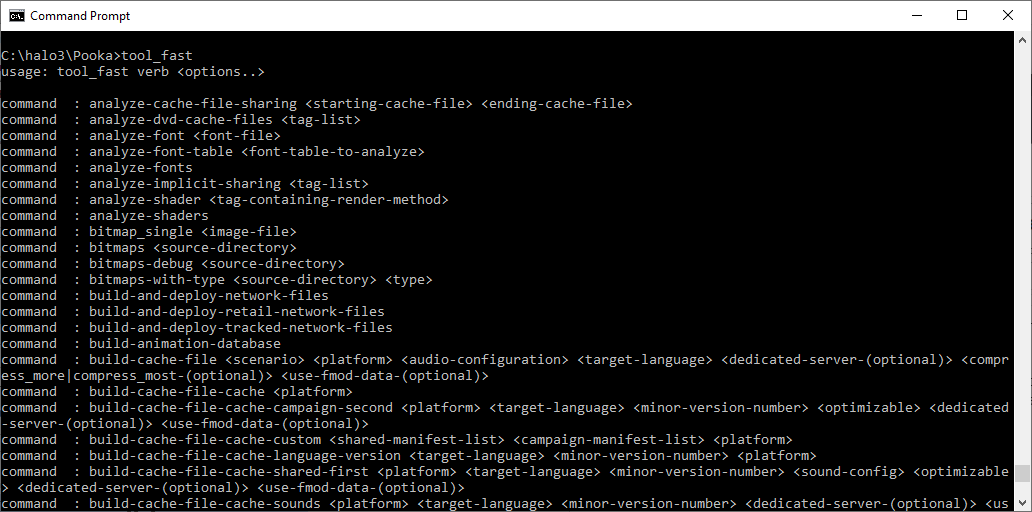

View of the command prompt when using the tool_fast.exe and a list of the sub-commands.

Fig 2. Sub-commands of tool_fast (part of the full list).

Guerilla and the concept of "Tags"

Guerilla (guerilla.exe) is used to edit the "tags" of modding entities. The concept of "tags" is a cornerstone of Halo 3 modding.

A single Tag can be described as a set of properties that describe the game entity of a particular kind to the game engine. Please note that these properties can link to some resources (textures, files, etc.) called tag's resource references. There are tags for levels (scenarios), game objects, AI, shaders, sounds, textures, network properties, effects, global variables, UI, cinematics, and so on. Almost every source object of the game is transformed into a single or multiple tags in the modding pipeline. However, not all game properties are editable as tags, and not all properties of individual tags are editable. This is done intentionally since modification of some aspects of the game can lead to incorrect behavior and crashes.

Every data tag in the game can be opened and viewed in Guerilla.

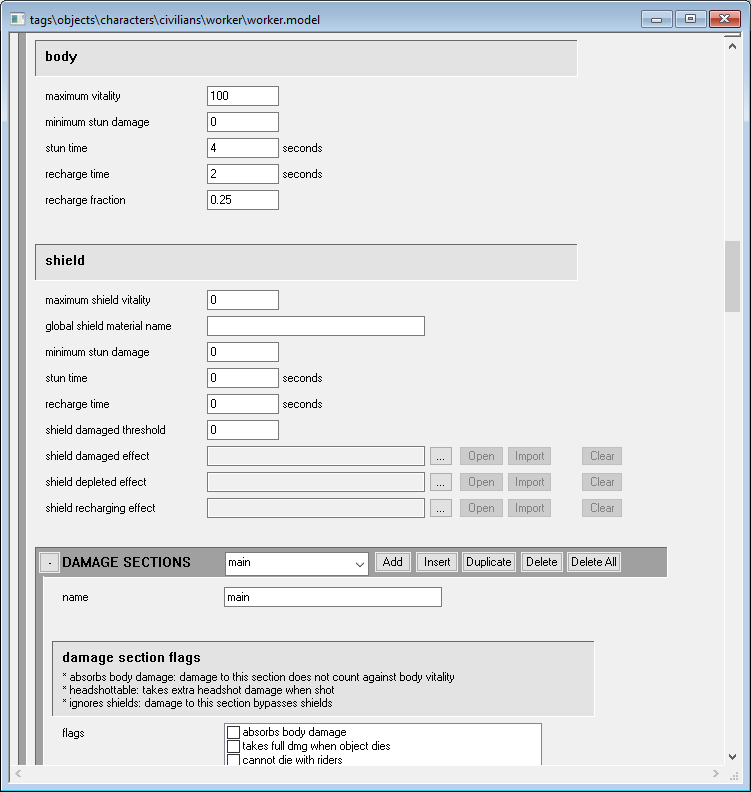

View of the Guerilla UI showing an opened Tag file.

Fig 3. A window in the UI of Guerilla with a particular tag opened.

Sapien: Visual Level Editing

Sapien (sapien.exe) is a visual editor for Halo 3 levels (they are called "scenarios" in Halo 3 modding). It allows you to fill your scenario with objects, set up lighting, spawn points, AI used on the level, etc.

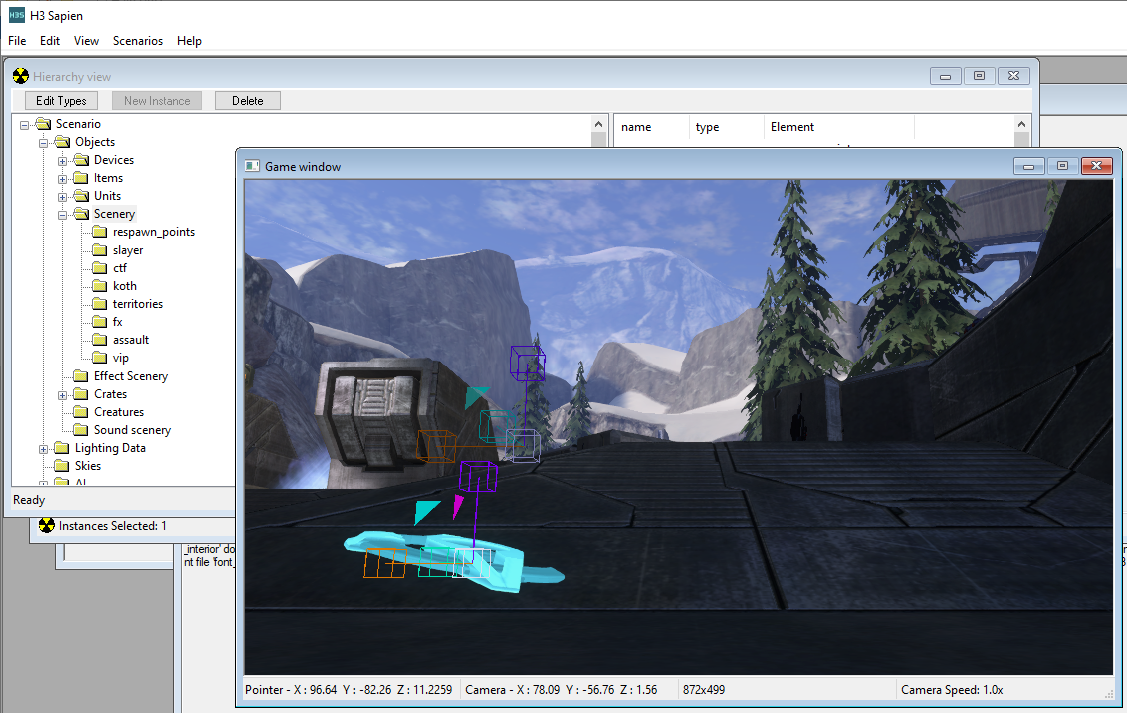

View of the Sapien UI showing an opened level with the various UI windows.

Fig 4. Editing a level in Sapien, part of the UI.

Note

Modding tools for some previous versions of Halo used photon mapping (direct simulation of real-life light particles) to calculate lighting of the level. It was done in tool by the specific lightmaps sub-command, currently obsolete. Now, lighting is calculated using the calc_lm_farm_local.py python script, see below.

halo3_tag_test.exe: Game Version Loaded from Tags

halo3_tag_test.exe is a specifically modified version of the Halo 3 game that is able to load itself not from regular game files, but from tags (see 2.2 above for a definition of tags).

Please note that this version of the Halo 3 game can load itself only this way.

The main purpose of this application is local testing of the tags you have created from the source files, tags' resource references, and so on, without doing a final build of the level/model.

To be able to launch halo3_tag_test.exe you will need to create its configuration file – init.txt, in the same directory. The app will execute Halo Script commands specified in this file and load settings from it. So, in this file, you will need to specify such parameters as the starting level, necessary debug parameters and cheats, and so on.

In its most basic setup, the init.txt file must contain only the staring level as a parameter, which is specified by the game_start <path_to_level_from_the_"tags"_folder> command.

For example:

game_start levels\multi\riverworld\riverworld

The full list of commands that can be used in this file can be obtained by opening the Halo 3 console in the game (type "~" to open it) and executing the script_doc command in this console. This will generate the hs_doc.txt file with the command descriptions in the folder of halo3_tag_test.exe.

Along with commands, in this file, you can set values of various game settings, such as cheats and debug options. For example, cheat_deathless_player on – will enable invulnerability, cheat_infinite_ammo on – will give infinite ammo, debug_objects on – will enable the debug visualization of the game objects, models, and collision models.

Note

For details on this, see Console Commands.

When launching halo3_tag_test.exe you may want to change the resolution of the game. It can be changed by the -width and -height parameters of the executable that can be specified in the command prompt. You can omit one of these parameters (the default 16x9 ratio will be used in this case).

For example

halo3_tag_test.exe -width 1280 -height 720

During its launch, halo3_tag_test.exe will display errors, warnings, and other debug info.

View of the the halo3_tag_test.exe tool UI while launching a level.

Fig 5. halo3_tag_test.exe loading a level.

View of a level loaded within the halo3_tag_Test.exe tool with debug visualization enabled.

Fig 6. Loaded level in halo3_tag_test.exe (with some debug visualization enabled).

calc_lm_farm_local.py: Script that Calculates Lighting

The calc_lm_farm_local.py file is a Python script that is used for the calculation of lighting of the level.

This script simply executes appropriate commands from tool_fast, so you can calculate lighting without it, if necessary. However, the script simplifies this process for you.

As any other script in Python, calc_lm_farm_local.py requires Python to be installed for the execution. You can install Python from https://wiki.python.org/moin/BeginnersGuide/Download.

Note

Versions greater than Python 3.6 should be used for launching this script.

After Python is installed, you will be able to launch the script and calculate lighting by the command in the following format:

python calc_lm_farm_local.py <scenario tag file, w/o .ext> <bsp name> <quality> (<light_group>)

For example:

python calc_lm_farm_local.py levels\multi\s3d_turf\s3d_turf s3d_turf high

Note

A level can be divided into multiple BSPs (Binary Space Partitions) during its creation in the 3D modelling program. However, most of the custom levels have a single BSP only. Large campaign levels may have multiple BSPs.

Note

<light_group> can be omitted since all light groups are calculated by default.

3D Modelling Program of Your Choice

Along with these tools, you will probably need the 3D modelling program for modding. The following popular 3D programs can be used for that:

All of these tools support FBX (.fbx) files as an export format. These FBX files can be used as the source files for the creation of levels and models.

Note

Support of the FBX format as a data source is a new part of the Halo 3 modding pipeline. Due to this feature, you can perform modelling not only in 3ds Max as before, but, also, in Maya, or even in an open-source and free 3D modelling tool – Blender.

Main Folders Used for Modding

In the root folder of the modding package for Halo 3, you will find executables of all modding tools mentioned above.

During modding with these tools you will use the following main folders:

  • data

  • tags

  • maps

The data and tags folders are initially provided in the form of .zip archives, so you will need to extract them to create the data and tags folders used by the modding tools.

"data": Source Folder

The data folder is intended for source data.

In the modding package itself, this folder is almost empty since we do not provide all initial source files of game data, only their tags (see below). However, you will probably gradually fill this folder during your modding activities.

Warning

Please do not delete the initial contents of the data folder. They are necessary for the game engine to be able to start the game and load all of the provided maps. Particularly, the initial contents of data include some game scripts and XML descriptions of levels.

During the process of modding, the data folder should contain the source files of the levels and models, various resource files (textures, sounds, etc.), and so on.

For contents of this folder, you must follow the same folder structure as exists in the tags folder (except temp_scenario):

  • ai

  • camera

  • cinematics

  • effects

  • fx

  • globals

  • levels – this folder will contain source data for your levels. Please note that if you want to make some resources common for multiple levels, we recommend you to put them into the shared subfolder.

  • multiplayer

  • objects – this folder will contain source data for your objects (models, their animations, etc.)

  • rasterizer

  • shaders

  • sound

  • ui

Note

For descriptions of all folders in this folder structure, please refer to the description of the tags folder (see tags below).

File formats that are stored in subfolders of data include the following:

  • Source files of modelling scenes (from 3ds Max, Maya, or Blender) – these are exported to FBX (see below) by the means of the used 3D modelling program.

  • FBX files – act as source files for ASS, JMS, and JMA (see below).

  • ASS files – static geometry of the level.

  • JMS files – files of the model. Please note that each model has three JMS files (or two, if a model has no constraints). These are located in the objects folder, in the sub folder of the model in the objects hierarchy and these JMS files must be put into the separate subfolders (see below). For example, the path to the "render" JMS for Cortana will look like this: data\objects\characters\cortana\render\cortana.jms.

    • render – in this folder, you should put the JMS file with visible geometry and the skeleton of the model.

    • collision – in this folder, you should put the JMS file with collision objects of the model.

    • physics – in this folder, you should put the JMS file with constraints (i.e. physical joints) of the model. This folder/JMS is optional since not all models have constraints.

  • JMA files – animation files.

  • TIFF/TIF files – source files of textures/images.

  • WAV files – source sound files.

Note

One source file from the data folder can correspond to multiple tag files in the tags folder. And, vice versa, multiple source files can be used to generate a single tag file.

"tags": Folder with All Tags

The tags folder is used for tag files of various types. Roughly speaking, tag files correspond to the particular game entities in the format of the Halo 3 engine. Please note that a single source file can correspond to multiple tag files generated on its basis. For example, the conversion of a JMS file (of a model) will result in multiple tag files.

Warning

Please do not delete the initial contents of the tags folder. They are necessary for the game engine to be able to start the game and load all of the provided maps.

The folder structure within the tags folder is the following:

  • ai – This folder contains tag files related to default behavior that is common for some types of AI encounters (both with friendly and enemy NPCs). Please note that the AI encounters themselves are described in the scenario tag files in levels (and these encounters should be edited in Sapien, not in Guerilla).

  • camera – This folder contains tag files related to vehicle camera movement only.

  • cinematics – This folder contains tag files related to cinematics.

  • effects – This folder contains a few legacy tag files related to particle effects. Please use the fx folder for your effects, but do not delete the old legacy effects from the effects folder since they are still used by the game engine.

  • fx – This folder contains tag files related to various special effects.

  • globals – This folder contains tag files related to the global parameters of the game and all its subsystems.

  • levels – This folder contains tag files related to levels. Please note that it contains the shared subfolder, which contains tags for resources that are shared between all levels of the game.

  • multiplayer – This folder contains tag files related to the setup of the multiplayer in the game. Please note that this folder does not contain the multiplayer levels. Multiplayer levels are in levels\multi.

  • objects – This folder contains tag files related to various objects: characters, vehicles, weapons, skies of the levels, objects' physics, and so on. Please note that objects related to particular levels are in objects\levels.

  • rasterizer – This folder contains tag files related to global shaders that are not dependent on materials.

  • shaders – This folder contains tag files related to shaders that are dependent on the materials.

  • sound – This folder contains tag files related to various sounds.

  • temp_scenario – a temporary folder of Sapien. If you have closed Sapien without saving your changes, it will restore them from the temporary files in this folder.

  • ui – This folder contains tag files related to UI used by the game.

Note

Except for the minor changes described above, the folder structures of tags and data must be similar for your custom files. This is necessary for the correct operation of modding tools. Along with it, this will allow you to found your source files easily when you know their tag files and vice versa.

There are a lot of different types of tag files in the game. Most of them have extension names that speak for themselves. For example, .scenario tag files correspond to the main tag files of the level, .bitmap tag files correspond to textures and images, and so on.

"maps": Folder with Compiled Maps

At first, there is no maps folder in the root folder of the modding package for Halo 3. It will appear as soon as you build the cache files for your first level.

During your work with the level, the maps folder may contain the following:

  • .map files – the cache files for the scenarios. These files contain all contents of the level.

The .map files are generated by the build-cache-file command of tool_fast based on .scenario tag files.

To display possible parameters for this command, you can execute the tool_fast build-cache-file command in the command prompt. In its simplest form the command requires only the name of the .scenario file (without the extension) and the type of the target platform (e.g. x64):

tool_fast build-cache-file <scenario> <platform>

For example:

tool_fast build-cache-file levels\multi\riverworld\riverworld x64

After the execution of this command, the tool app will start to build the .map file.

View of the command prompt when running tool_fast.exe and building a level cache file.

Fig 7. Building .map file.

Level modding Pipeline: Basic Diagram

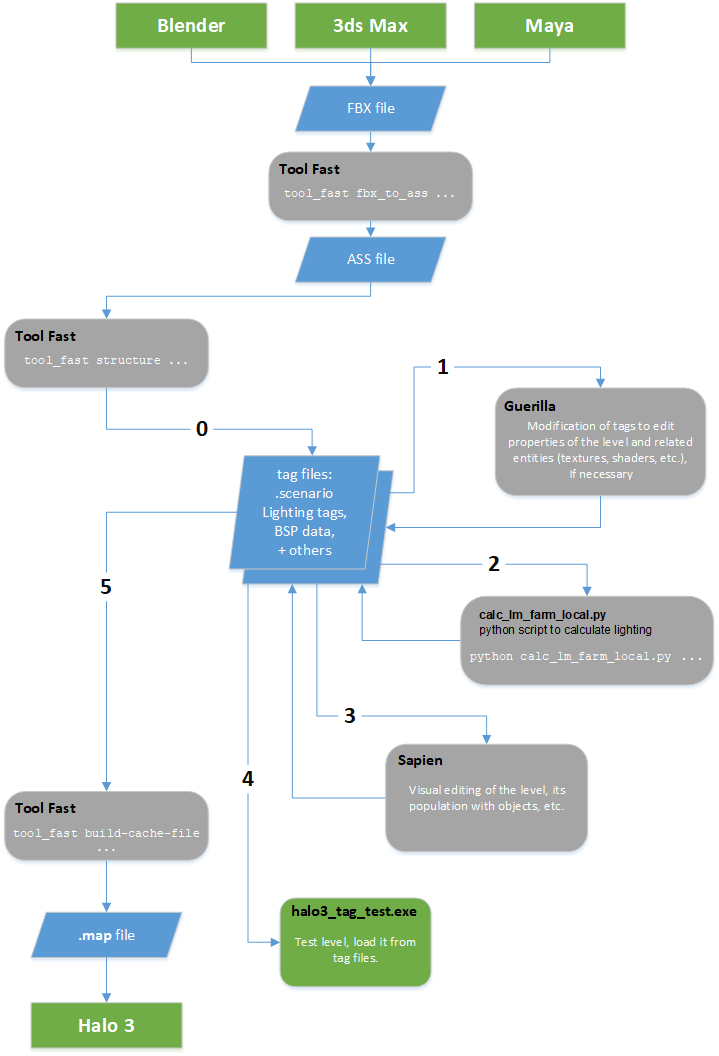

Diagram showing the basic pipline of modding a level.

Fig 8. General pipeline for the creation of a level.

For full details of this workflow, please refer to the creation process.
