FTP Custom Features <customFeatures>

  • Article

Overview

The <customFeatures> element is used to specify the collection of FTP providers that will implement custom functionality for an FTP site.

Note

The providers that are added to this collection can implement custom logging or home directory lookups; custom FTP providers that implement authentication and role lookups are added to the <ftpServer/security/authentication/customAuthentication> collection.

Note

The custom features that are added to the <customFeatures/providers> element must be registered in the <system.ftpServer/providerDefinitions> collection.

Note

Support for creating custom feature providers was introduced in FTP 7.5. For additional information about how to create FTP custom feature providers, see the Developing for FTP 7.5 topic on Microsoft's IIS.net Web site.

Compatibility

Version Notes
IIS 10.0 The <customFeatures> element was not modified in IIS 10.0.
IIS 8.5 The <customFeatures> element was not modified in IIS 8.5.
IIS 8.0 The <customFeatures> element was not modified in IIS 8.0.
IIS 7.5 The <customFeatures> element of the <ftpServer> element ships as a feature of IIS 7.5.
IIS 7.0 The <customFeatures> element of the <ftpServer> element was introduced in FTP 7.0, which was a separate download for IIS 7.0.
IIS 6.0 The FTP service in IIS 6.0 did not support extensibility.

Note

The FTP 7.0 and FTP 7.5 services shipped out-of-band for IIS 7.0, which required downloading and installing the modules from the following URL:

https://www.iis.net/expand/FTP

With Windows 7 and Windows Server 2008 R2, the FTP 7.5 service ships as a feature for IIS 7.5, so downloading the FTP service is no longer necessary.

Setup

To support FTP publishing for your Web server, you must install the FTP service. To do so, use the following steps.

Windows Server 2012 or Windows Server 2012 R2

  1. On the taskbar, click Server Manager.

  2. In Server Manager, click the Manage menu, and then click Add Roles and Features.

  3. In the Add Roles and Features wizard, click Next. Select the installation type and click Next. Select the destination server and click Next.

  4. On the Server Roles page, expand Web Server (IIS), and then select FTP Server.

    Note

    To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will need to select FTP Extensibility,in addition to FTP Service.
    Screenshot shows F T P Server node expanded and F T P Extensibility selected. .

  5. Click Next, and then on the Select features page, click Next again.

  6. On the Confirm installation selections page, click Install.

  7. On the Results page, click Close.

Windows 8 or Windows 8.1

  1. On the Start screen, move the pointer all the way to the lower left corner, right-click the Start button, and then click Control Panel.

  2. In Control Panel, click Programs and Features, and then click Turn Windows features on or off.

  3. Expand Internet Information Services, and then select FTP Server.

    Note

    To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will also need to select FTP Extensibility.
    Screenshot of Internet Information Services and F T P Server pane expanded displaying F T P Extensibility highlighted.

  4. Click OK.

  5. Click Close.

Windows Server 2008 R2

  1. On the taskbar, click Start, point to Administrative Tools, and then click Server Manager.

  2. In the Server Manager hierarchy pane, expand Roles, and then click Web Server (IIS).

  3. In the Web Server (IIS) pane, scroll to the Role Services section, and then click Add Role Services.

  4. On the Select Role Services page of the Add Role Services Wizard, expand FTP Server.

  5. Select FTP Service.

    Note

    To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will also need to select FTP Extensibility.

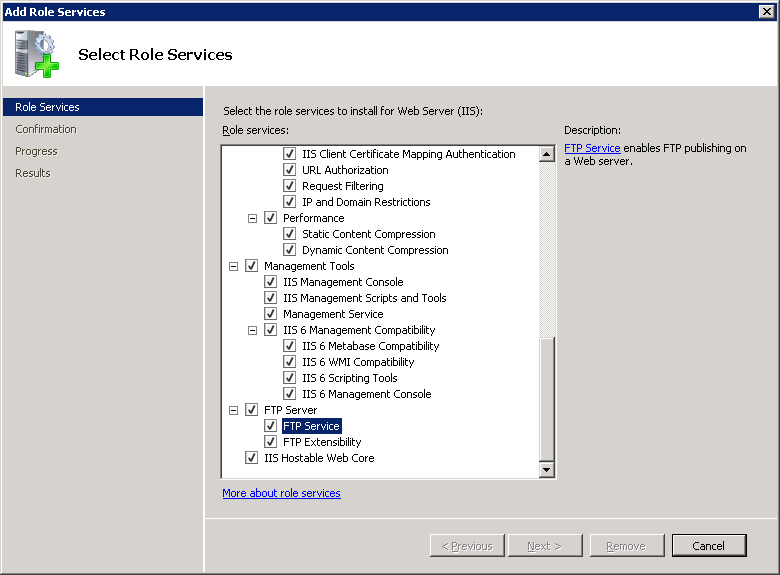

    Screenshot displays F T P Server node expanded and F T P Service selected.

  6. Click Next.

  7. On the Confirm Installation Selections page, click Install.

  8. On the Results page, click Close.

Windows 7

  1. On the taskbar, click Start, and then click Control Panel.

  2. In Control Panel, click Programs and Features, and then click Turn Windows Features on or off.

  3. Expand Internet Information Services, and then FTP Server.

  4. Select FTP Service.

    Note

    To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will also need to select FTP Extensibility.

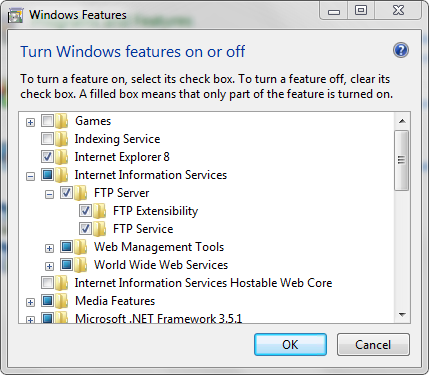

    Screenshot of Internet Information Services and F T P Server node expanded showing F T P Extensibility and F T P Service both selected.

  5. Click OK.

Windows Server 2008 or Windows Vista

  1. Download the installation package from the following URL:

  2. Follow the instructions in the following walkthrough to install the FTP service:

How To

At this time there is no user interface that enables you to add custom features to a site. See the Configuration and Sample Code sections of this document for additional information about how to add custom features to an FTP site.

Configuration

The <customFeatures> element is configured at the site level.

Attributes

None.

Note

An unused attribute named <impersonationLevel> was declared in the FTP 7.0 schema, but this was removed from the FTP 7.5 schema and should not be used.

Child Elements

Element Description
providers Optional element.

Specifies the collection of custom FTP features.

Configuration Sample

The following sample displays a <customFeatures> element for an FTP site that adds a custom logging provider that is named "FtpLoggingDemo" to an FTP site.

<site name="ftp.example.com" id="5">
  <application path="/">
    <virtualDirectory path="/" physicalPath="c:\inetpub\www.example.com" />
  </application>
  <bindings>
    <binding protocol="ftp" bindingInformation="*:21:" />
  </bindings>
  <ftpServer>
    <customFeatures>
      <providers>
        <add name="FtpLoggingDemo" enabled="true" />
      </providers>
    </customFeatures>
    <security>
      <authentication>
        <basicAuthentication enabled="true" />
        <anonymousAuthentication enabled="false" />
      </authentication>
    </security>
  </ftpServer>
</site>

Sample Code

The following examples demonstrate how to add a custom logging provider for an FTP site.

Note

FTP custom features must be registered in the <system.ftpServer/providerDefinitions> collection.

AppCmd.exe

appcmd.exe set config -section:system.applicationHost/sites /+"[name='ftp.example.com'].ftpServer.customFeatures.providers.[name='CustomLoggingModule',enabled='True']" /commit:apphost

Note

You must be sure to set the commit parameter to apphost when you use AppCmd.exe to configure these settings. This commits the configuration settings to the appropriate location section in the ApplicationHost.config file.

C#

using System;
using System.Text;
using Microsoft.Web.Administration;

internal static class Sample
{
   private static void Main()
   {
      using (ServerManager serverManager = new ServerManager())
      {
         Configuration config = serverManager.GetApplicationHostConfiguration();
         ConfigurationSection sitesSection = config.GetSection("system.applicationHost/sites");
         ConfigurationElementCollection sitesCollection = sitesSection.GetCollection();

         ConfigurationElement siteElement = FindElement(sitesCollection, "site", "name", @"ftp.example.com");
         if (siteElement == null) throw new InvalidOperationException("Element not found!");

         ConfigurationElement ftpServerElement = siteElement.GetChildElement("ftpServer");
         ConfigurationElement customFeaturesElement = ftpServerElement.GetChildElement("customFeatures");
         ConfigurationElementCollection providersCollection = customFeaturesElement.GetCollection("providers");

         ConfigurationElement addElement = providersCollection.CreateElement("add");
         addElement["name"] = @"CustomLoggingModule";
         addElement["enabled"] = true;
         providersCollection.Add(addElement);

         serverManager.CommitChanges();
      }
   }

   private static ConfigurationElement FindElement(ConfigurationElementCollection collection, string elementTagName, params string[] keyValues)
   {
      foreach (ConfigurationElement element in collection)
      {
         if (String.Equals(element.ElementTagName, elementTagName, StringComparison.OrdinalIgnoreCase))
         {
            bool matches = true;
            for (int i = 0; i < keyValues.Length; i += 2)
            {
               object o = element.GetAttributeValue(keyValues[i]);
               string value = null;
               if (o != null)
               {
                  value = o.ToString();
               }
               if (!String.Equals(value, keyValues[i + 1], StringComparison.OrdinalIgnoreCase))
               {
                  matches = false;
                  break;
               }
            }
            if (matches)
            {
               return element;
            }
         }
      }
      return null;
   }
}

VB.NET

Imports System
Imports System.Text
Imports Microsoft.Web.Administration

Module Sample
   Sub Main()
      Dim serverManager As ServerManager = New ServerManager
      Dim config As Configuration = serverManager.GetApplicationHostConfiguration
      Dim sitesSection As ConfigurationSection = config.GetSection("system.applicationHost/sites")
      Dim sitesCollection As ConfigurationElementCollection = sitesSection.GetCollection

      Dim siteElement As ConfigurationElement = FindElement(sitesCollection, "site", "name", "ftp.example.com")
      If (siteElement Is Nothing) Then
         Throw New InvalidOperationException("Element not found!")
      End If

      Dim ftpServerElement As ConfigurationElement = siteElement.GetChildElement("ftpServer")
      Dim securityElement As ConfigurationElement = ftpServerElement.GetChildElement("security")
      Dim authenticationElement As ConfigurationElement = securityElement.GetChildElement("authentication")
      Dim basicAuthenticationElement As ConfigurationElement = authenticationElement.GetChildElement("basicAuthentication")
      basicAuthenticationElement("enabled") = False

      serverManager.CommitChanges()
   End Sub

   Private Function FindElement(ByVal collection As ConfigurationElementCollection, ByVal elementTagName As String, ByVal ParamArray keyValues() As String) As ConfigurationElement
      For Each element As ConfigurationElement In collection
         If String.Equals(element.ElementTagName, elementTagName, StringComparison.OrdinalIgnoreCase) Then
            Dim matches As Boolean = True
            Dim i As Integer
            For i = 0 To keyValues.Length - 1 Step 2
               Dim o As Object = element.GetAttributeValue(keyValues(i))
               Dim value As String = Nothing
               If (Not (o) Is Nothing) Then
                  value = o.ToString
               End If
               If Not String.Equals(value, keyValues((i + 1)), StringComparison.OrdinalIgnoreCase) Then
                  matches = False
                  Exit For
               End If
            Next
            If matches Then
               Return element
            End If
         End If
      Next
      Return Nothing
   End Function


End Module

JavaScript

var adminManager = new ActiveXObject('Microsoft.ApplicationHost.WritableAdminManager');
adminManager.CommitPath = "MACHINE/WEBROOT/APPHOST";
var sitesSection = adminManager.GetAdminSection("system.applicationHost/sites", "MACHINE/WEBROOT/APPHOST");
var sitesCollection = sitesSection.Collection;

var siteElementPos = FindElement(sitesCollection, "site", ["name", "ftp.example.com"]);
if (siteElementPos == -1) throw "Element not found!";
var siteElement = sitesCollection.Item(siteElementPos);

var ftpServerElement = siteElement.ChildElements.Item("ftpServer");
var customFeaturesElement = ftpServerElement.ChildElements.Item("customFeatures");
var providersCollection = customFeaturesElement.ChildElements.Item("providers").Collection;

var addElement = providersCollection.CreateNewElement("add");
addElement.Properties.Item("name").Value = "CustomLoggingModule";
addElement.Properties.Item("enabled").Value = true;
providersCollection.AddElement(addElement);

adminManager.CommitChanges();

function FindElement(collection, elementTagName, valuesToMatch) {
   for (var i = 0; i < collection.Count; i++) {
      var element = collection.Item(i);
      if (element.Name == elementTagName) {
         var matches = true;
         for (var iVal = 0; iVal < valuesToMatch.length; iVal += 2) {
            var property = element.GetPropertyByName(valuesToMatch[iVal]);
            var value = property.Value;
            if (value != null) {
               value = value.toString();
            }
            if (value != valuesToMatch[iVal + 1]) {
               matches = false;
               break;
            }
         }
         if (matches) {
            return i;
         }
      }
   }
   return -1;
}

VBScript

Set adminManager = createObject("Microsoft.ApplicationHost.WritableAdminManager")
adminManager.CommitPath = "MACHINE/WEBROOT/APPHOST"
Set sitesSection = adminManager.GetAdminSection("system.applicationHost/sites", "MACHINE/WEBROOT/APPHOST")
Set sitesCollection = sitesSection.Collection

siteElementPos = FindElement(sitesCollection, "site", Array("name", "ftp.example.com"))
If siteElementPos = -1 Then
WScript.Echo "Element not found!"
WScript.Quit
End If
Set siteElement = sitesCollection.Item(siteElementPos)

Set ftpServerElement = siteElement.ChildElements.Item("ftpServer")
Set customFeaturesElement = ftpServerElement.ChildElements.Item("customFeatures")
Set providersCollection = customFeaturesElement.ChildElements.Item("providers").Collection

Set addElement = providersCollection.CreateNewElement("add")
addElement.Properties.Item("name").Value = "CustomLoggingModule"
addElement.Properties.Item("enabled").Value = True
providersCollection.AddElement(addElement)

adminManager.CommitChanges()

Function FindElement(collection, elementTagName, valuesToMatch)
   For i = 0 To CInt(collection.Count) - 1
      Set element = collection.Item(i)
      If element.Name = elementTagName Then
         matches = True
         For iVal = 0 To UBound(valuesToMatch) Step 2
            Set property = element.GetPropertyByName(valuesToMatch(iVal))
            value = property.Value
            If Not IsNull(value) Then
               value = CStr(value)
            End If
            If Not value = CStr(valuesToMatch(iVal + 1)) Then
               matches = False
               Exit For
            End If
         Next
         If matches Then
            Exit For
         End If
      End If
   Next
   If matches Then
      FindElement = i
   Else
      FindElement = -1
   End If
End Function
