FTP Site Start Method <Start>

Overview

The <Start> method of the <ftpServer> element starts the FTP site that <ftpServer> applies to. Once the <Start> method has been called, the run-time state for the FTP site can be determined by the value of the state attribute.

Compatibility

Version	Notes
IIS 10.0	The <ftpServer> element was not modified in IIS 10.0.
IIS 8.5	The <ftpServer> element that includes the <Start> method was not modified in IIS 8.5.
IIS 8.0	The <ftpServer> element that includes the <Start> method was not modified in IIS 8.0.
IIS 7.5	The <ftpServer> element that includes the <Start> method shipped as a feature of IIS 7.5.
IIS 7.0	The <ftpServer> element that includes the <Start> method was introduced in FTP 7.0, which was a separate download for IIS 7.0.
IIS 6.0	N/A

Setup

To support FTP publishing for your Web server, you must install the FTP service. To do so, use the following steps.

Windows Server 2012 or Windows Server 2012 R2

1. On the taskbar, click Server Manager.

2. In Server Manager, click the Manage menu, and then click Add Roles and Features.

3. In the Add Roles and Features wizard, click Next. Select the installation type and click Next. Select the destination server and click Next.

4. On the Server Roles page, expand Web Server (IIS), and then select FTP Server.

   Note

   To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will need to select FTP Extensibility, in addition to FTP Service.
   .

5. Click Next, and then on the Select features page, click Next again.

6. On the Confirm installation selections page, click Install.

7. On the Results page, click Close.

Windows 8 or Windows 8.1

1. On the Start screen, move the pointer all the way to the lower left corner, right-click the Start button, and then click Control Panel.

2. In Control Panel, click Programs and Features, and then click Turn Windows features on or off.

3. Expand Internet Information Services, and then select FTP Server.

   Note

   To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will also need to select FTP Extensibility.


4. Click OK.

5. Click Close.

Windows Server 2008 R2

1. On the taskbar, click Start, point to Administrative Tools, and then click Server Manager.

2. In the Server Manager hierarchy pane, expand Roles, and then click Web Server (IIS).

3. In the Web Server (IIS) pane, scroll to the Role Services section, and then click Add Role Services.

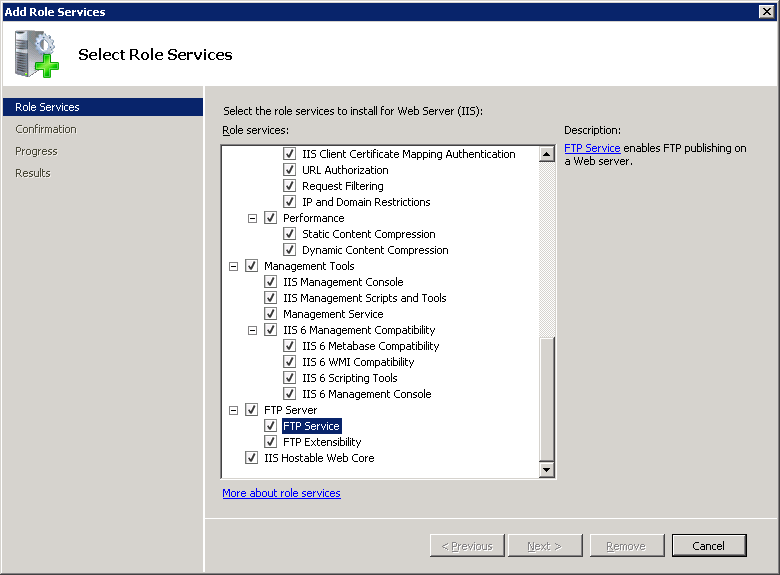

4. On the Select Role Services page of the Add Role Services Wizard, expand FTP Server.

5. Select FTP Service.

   Note

   To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will also need to select FTP Extensibility.


6. Click Next.

7. On the Confirm Installation Selections page, click Install.

8. On the Results page, click Close.

Windows 7

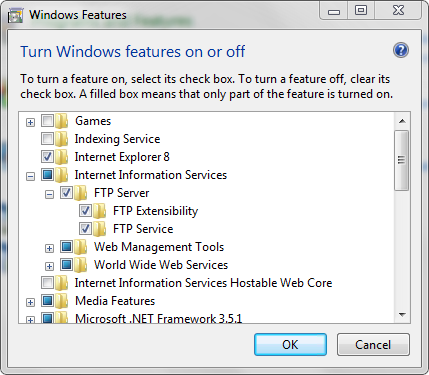

1. On the taskbar, click Start, and then click Control Panel.

2. In Control Panel, click Programs and Features, and then click Turn Windows Features on or off.

3. Expand Internet Information Services, and then FTP Server.

4. Select FTP Service.

   Note

   To support ASP.Membership authentication or IIS Manager authentication for the FTP service, you will also need to select FTP Extensibility.


5. Click OK.

Windows Server 2008 or Windows Vista

1. Download the installation package from the following URL:

   • https://www.iis.net/expand/FTP

2. Follow the instructions in the following walkthrough to install the FTP service:

   • Installing and Troubleshooting FTP 7

How To

How to start an FTP site

1. Open Internet Information Services (IIS) Manager:

   • If you are using Windows Server 2012 or Windows Server 2012 R2:

     • On the taskbar, click Server Manager, click Tools, and then click Internet Information Services (IIS) Manager.

   • If you are using Windows 8 or Windows 8.1:

     • Hold down the Windows key, press the letter X, and then click Control Panel.
     • Click Administrative Tools, and then double-click Internet Information Services (IIS) Manager.

   • If you are using Windows Server 2008 or Windows Server 2008 R2:

     • On the taskbar, click Start, point to Administrative Tools, and then click Internet Information Services (IIS) Manager.

   • If you are using Windows Vista or Windows 7:

     • On the taskbar, click Start, and then click Control Panel.
     • Double-click Administrative Tools, and then double-click Internet Information Services (IIS) Manager.

2. In the Connections pane, expand the server name, expand the Sites node, and then click the name of the FTP site.

3. In the Manage Website section of the Actions pane, click Start.

Configuration

The site-specific <ftpServer> element is configured at the site-level.

Attributes

Not applicable.

Child Elements

Not applicable.

Sample Code

The following examples enable you to start an FTP site programmatically.

C#

using System;
using System.Text;
using Microsoft.Web.Administration;

internal static class Sample
{
    private static void Main()
    {
        using (ServerManager serverManager = new ServerManager())
        {
            Configuration config = serverManager.GetApplicationHostConfiguration();
            // Retrieve the sites collection.
            ConfigurationSection sitesSection = config.GetSection("system.applicationHost/sites");
            ConfigurationElementCollection sitesCollection = sitesSection.GetCollection();

            // Locate a specific site.
            ConfigurationElement siteElement = FindElement(sitesCollection, "site", "name", @"mySite");
            if (siteElement == null) throw new InvalidOperationException("Element not found!");

            // Create an object for the ftpServer element.
            ConfigurationElement ftpServerElement = siteElement.GetChildElement("ftpServer");
            // Create an instance of the Start method.
            ConfigurationMethodInstance Start = ftpServerElement.Methods["Start"].CreateInstance();
            // Execute the method to start the FTP site.
            Start.Execute();
        }
    }
   private static ConfigurationElement FindElement(ConfigurationElementCollection collection, string elementTagName, params string[] keyValues)
   {
      foreach (ConfigurationElement element in collection)
      {
         if (String.Equals(element.ElementTagName, elementTagName, StringComparison.OrdinalIgnoreCase))
         {
            bool matches = true;
            for (int i = 0; i < keyValues.Length; i += 2)
            {
               object o = element.GetAttributeValue(keyValues[i]);
               string value = null;
               if (o != null)
               {
                  value = o.ToString();
               }
               if (!String.Equals(value, keyValues[i + 1], StringComparison.OrdinalIgnoreCase))
               {
                  matches = false;
                  break;
               }
            }
            if (matches)
            {
               return element;
            }
         }
      }
      return null;
   }
}

VB.NET

Imports System
Imports System.Text
Imports Microsoft.Web.Administration

Module Sample
    Sub Main()
        Dim serverManager As ServerManager = New ServerManager
        Dim config As Configuration = serverManager.GetApplicationHostConfiguration
        ' Retrieve the sites collection.
        Dim sitesSection As ConfigurationSection = config.GetSection("system.applicationHost/sites")
        Dim sitesCollection As ConfigurationElementCollection = sitesSection.GetCollection

        ' Locate a specific site.
        Dim siteElement As ConfigurationElement = FindElement(sitesCollection, "site", "name", "mySite")
        If (siteElement Is Nothing) Then
            Throw New InvalidOperationException("Element not found!")
        End If

        ' Create an object for the ftpServer element.
        Dim ftpServerElement As ConfigurationElement = siteElement.GetChildElement("ftpServer")
        ' Create an instance of the FlushLog method.
        Dim Start As ConfigurationMethodInstance = ftpServerElement.Methods("Start").CreateInstance()
        ' Execute the method to start the FTP site.
        Start.Execute()

    End Sub
   Private Function FindElement(ByVal collection As ConfigurationElementCollection, ByVal elementTagName As String, ByVal ParamArray keyValues() As String) As ConfigurationElement
      For Each element As ConfigurationElement In collection
         If String.Equals(element.ElementTagName, elementTagName, StringComparison.OrdinalIgnoreCase) Then
            Dim matches As Boolean = True
            Dim i As Integer
            For i = 0 To keyValues.Length - 1 Step 2
               Dim o As Object = element.GetAttributeValue(keyValues(i))
               Dim value As String = Nothing
               If (Not (o) Is Nothing) Then
                  value = o.ToString
               End If
               If Not String.Equals(value, keyValues((i + 1)), StringComparison.OrdinalIgnoreCase) Then
                  matches = False
                  Exit For
               End If
            Next
            If matches Then
               Return element
            End If
         End If
      Next
      Return Nothing
   End Function

End Module

JavaScript

// Create a Writable Admin Manager object.
var adminManager = new ActiveXObject('Microsoft.ApplicationHost.WritableAdminManager');
adminManager.CommitPath = "MACHINE/WEBROOT/APPHOST";

// Retrieve the sites collection.
var sitesSection = adminManager.GetAdminSection("system.applicationHost/sites","MACHINE/WEBROOT/APPHOST");
var sitesCollection = sitesSection.Collection;

// Locate a specific site.
var siteElementPos = FindElement(sitesCollection,"site",["name","MySite"]);
if (siteElementPos == -1) throw "Element not found!";

// Retrieve the site element.
var siteElement = sitesCollection.Item(siteElementPos);
// Create an object for the ftpServer element.
var ftpServerElement = siteElement.ChildElements.Item("ftpServer");
// Create an instance of the start method.
var Start = ftpServerElement.Methods.Item("Start").CreateInstance();
// Execute the method to start the FTP site.
Start.Execute();

function FindElement(collection, elementTagName, valuesToMatch) {
   for (var i = 0; i < collection.Count; i++) {
      var element = collection.Item(i);
      if (element.Name == elementTagName) {
         var matches = true;
         for (var iVal = 0; iVal < valuesToMatch.length; iVal += 2) {
            var property = element.GetPropertyByName(valuesToMatch[iVal]);
            var value = property.Value;
            if (value != null) {
               value = value.toString();
            }
            if (value != valuesToMatch[iVal + 1]) {
               matches = false;
               break;
            }
         }
         if (matches) {
            return i;
         }
      }
   }
   return -1;
}

VBScript

' Create a Writable Admin Manager object.
Set adminManager = CreateObject("Microsoft.ApplicationHost.WritableAdminManager")
adminManager.CommitPath = "MACHINE/WEBROOT/APPHOST"

' Retrieve the sites collection.
Set sitesSection = adminManager.GetAdminSection("system.applicationHost/sites","MACHINE/WEBROOT/APPHOST")
Set sitesCollection = sitesSection.Collection

' Locate a specific site.
siteElementPos = FindElement(sitesCollection,"site",Array("name","MySite"))
If siteElementPos = -1 Then
   WScript.Echo "Element not found!"
   WScript.Quit
End If

' Retrieve the site element.
Set siteElement = sitesCollection.Item(siteElementPos)
' Create an object for the ftpServer element.
Set ftpServerElement = siteElement.ChildElements.Item("ftpServer")
' Create an instance of the Start method.
Set Start = ftpServerElement.Methods.Item("Start").CreateInstance()
' Execute the method to start the FTP site.
Start.Execute()

Function FindElement(collection, elementTagName, valuesToMatch)
   For i = 0 To CInt(collection.Count) - 1
      Set element = collection.Item(i)
      If element.Name = elementTagName Then
         matches = True
         For iVal = 0 To UBound(valuesToMatch) Step 2
            Set property = element.GetPropertyByName(valuesToMatch(iVal))
            value = property.Value
            If Not IsNull(value) Then
               value = CStr(value)
            End If
            If Not value = CStr(valuesToMatch(iVal + 1)) Then
               matches = False
               Exit For
            End If
         Next
         If matches Then
            Exit For
         End If
      End If
   Next
   If matches Then
      FindElement = i
   Else
      FindElement = -1
   End If
End Function
