Dropbox Microsoft 365 Copilot connector (preview)

With the Dropbox Microsoft 365 Copilot connector, your organization in M365 can index files that are accessible to anyone in Dropbox, using Microsoft Copilot and Search.

This article is for Microsoft 365 administrators or anyone who configures, runs, and monitors Dropbox Copilot connector.

Capabilities

• Access Dropbox files using the power of Semantic search
• Retain access control lists (ACLs) defined by your organization
• Customize your crawl frequency
• Create workflows using this connection and plugins from Microsoft Copilot Studio

Limitations

• Folder, replies & comments aren't indexable

Prerequisites

Before you create a Dropbox Copilot connector, you must:

1. Set up a team admin user

Created a Dropbox account for business and set up a team admin user.

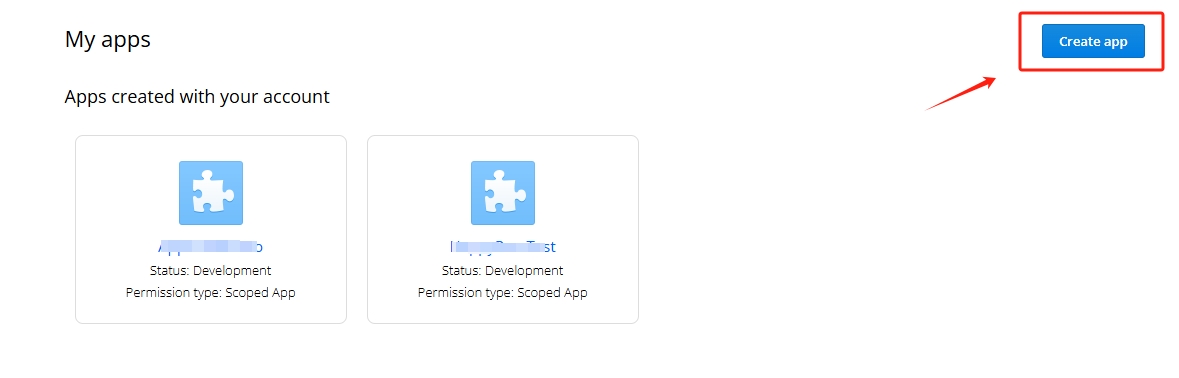

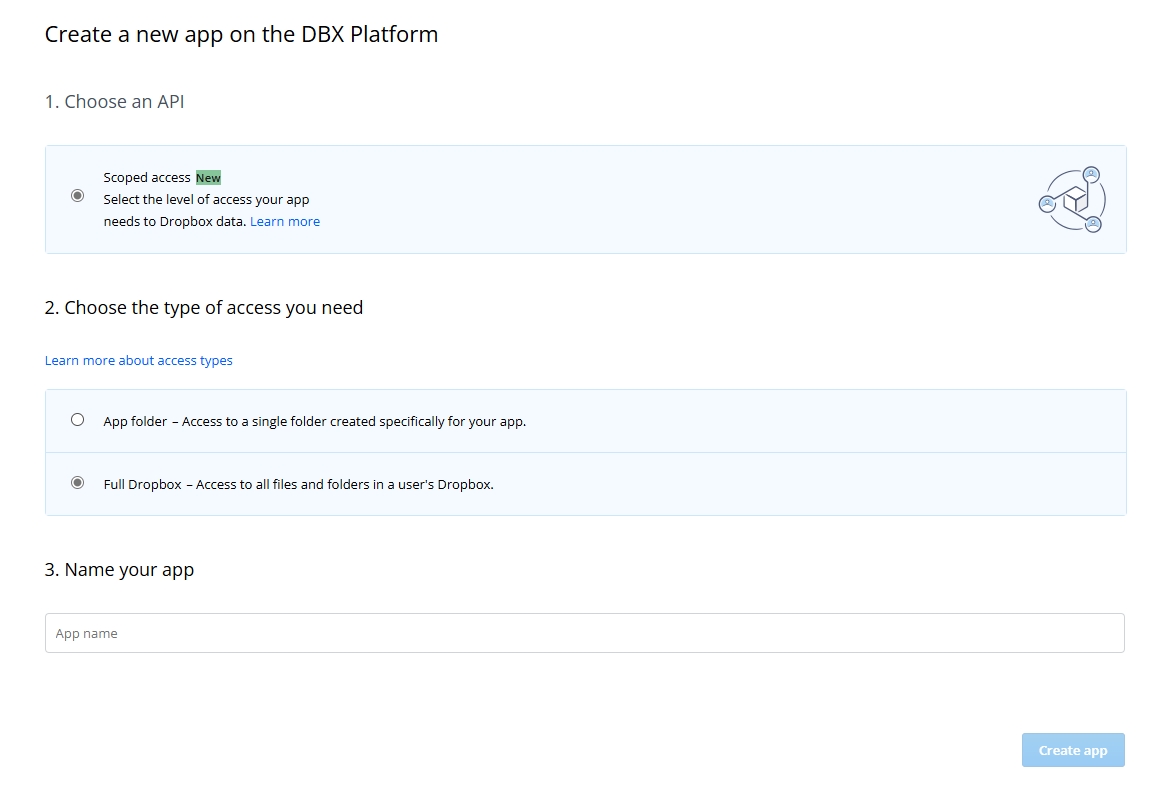

2. Configure a Dropbox app

Configured a Dropbox app with a unique App name, activated Scoped Access, and Full Dropbox permissions. See Dropbox documentation on creating an app.

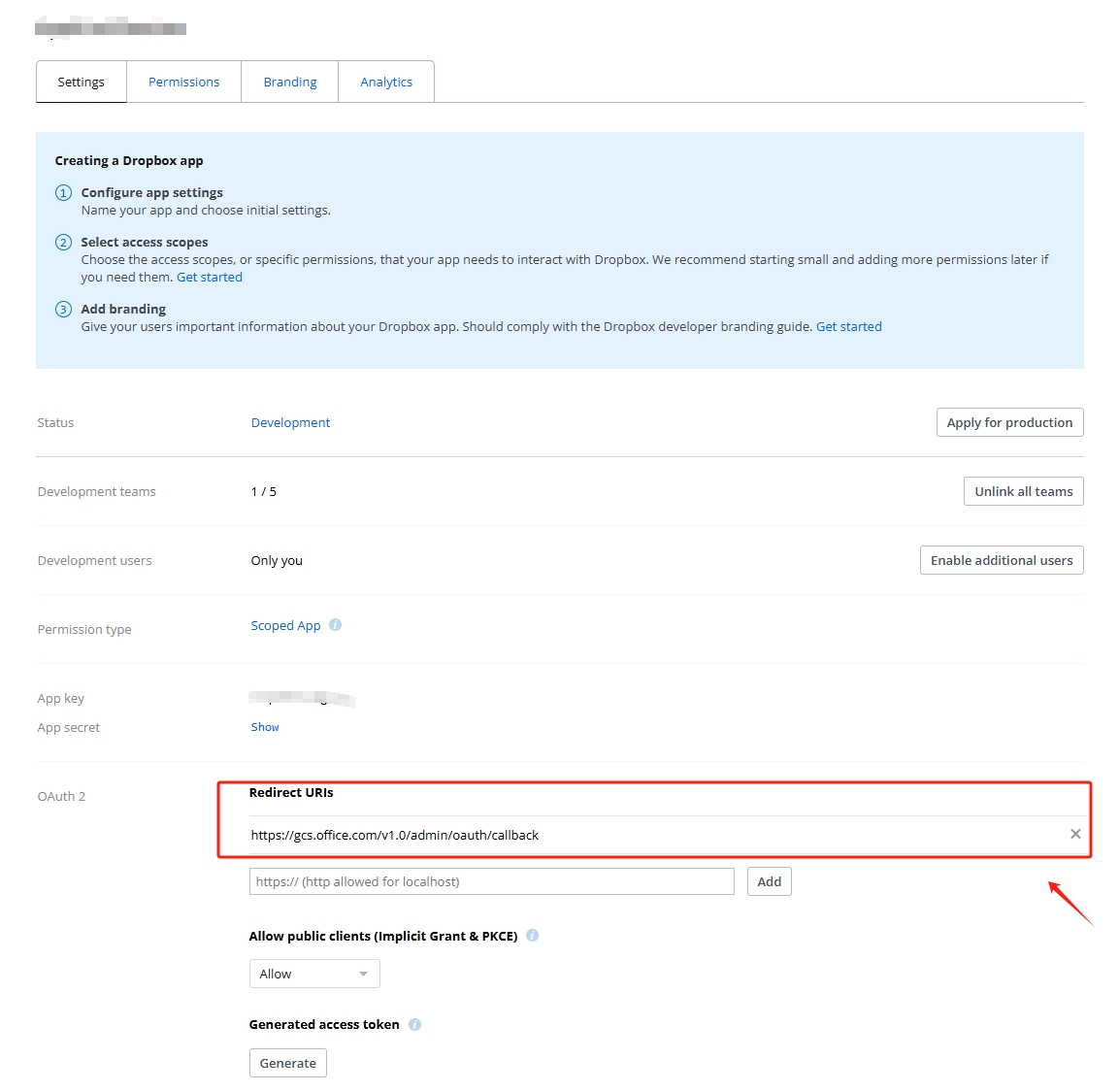

3. Add direct URLs

Add the following links into the filed "Redirect URLs" in the section OAuth 2 of the setting tab in the Dropbox app console:

For M365 Enterprise, copy and paste: https://gcs.office.com/v1.0/admin/oauth/callback

For M365 Government, copy and paste: https://gcsgcc.office.com/v1.0/admin/oauth/callback

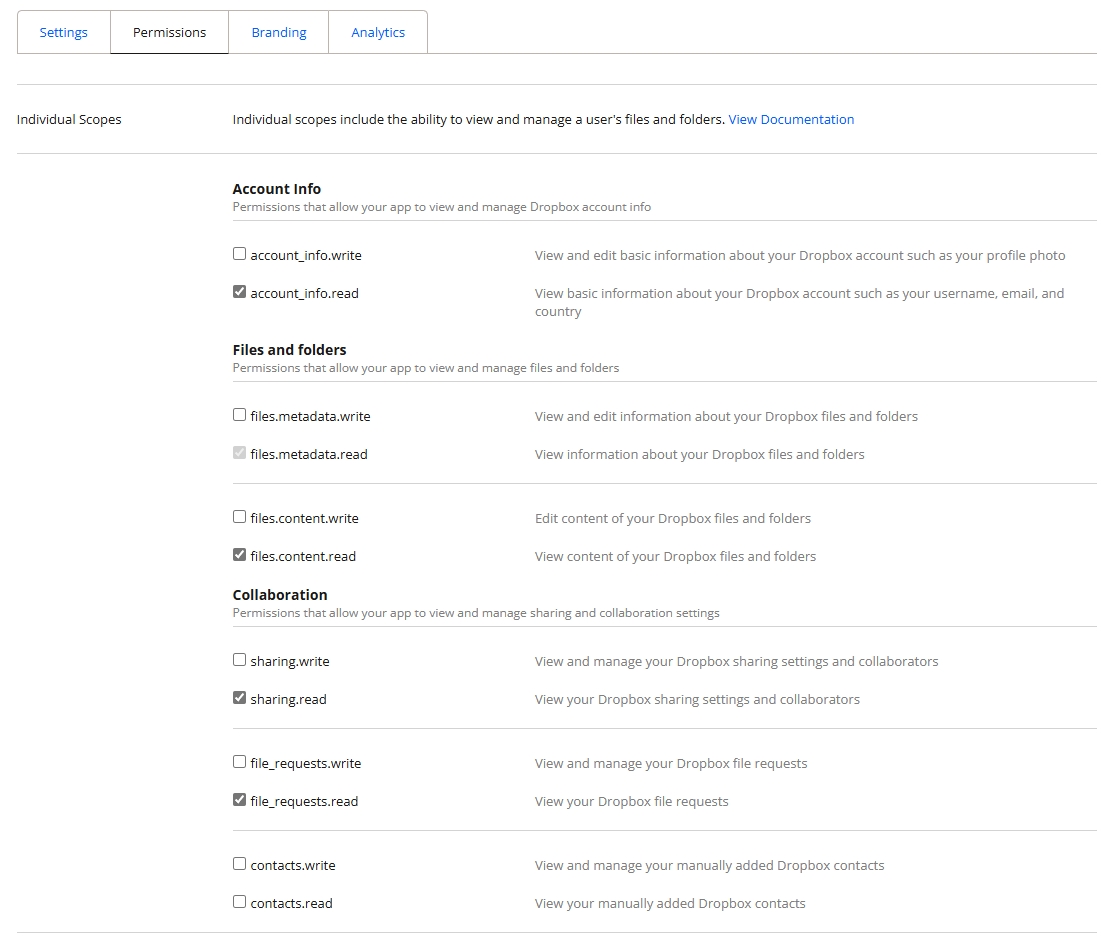

4. Add API Scopes

Navigate to Permissions tab on the Dropbox app console and added the following permissions:

Individual Scopes:

files.metadata.read

files.content.read

sharing.read

file_requests.read

Team Scopes:

team_info.read

team_data.member

team_data.governance.write

team_data.governance.read

team_data.content.read

files.team_metadata.read

members.read

groups.read

events.read

5. Get App key and App secret

Navigate to the Settings tab from the navigation pane on the left to get the App key and App secret from this page.

Set up

1. Display name

Choose a display name that helps users easily recognize associated files or items in a Copilot response.

2. Authentication type

Enter the app key and app secret you obtained from your Dropbox app console.

3. Rollout to limited audience

Deploy this connection to a limited user base if you want to validate it in Copilot and other search surfaces before expanding the rollout to a broader audience.

For other settings, like Access Permissions, Data inclusion rules, Schema, Crawl frequency etc., we set defaults based on what works best with data in Dropbox. The default values settings are as follows.

Page	Settings	Default Values
Users	Access Permissions	All files that are accessible to anyone in Dropbox are visible to all Microsoft 365 users in your tenant, from Microsoft Search or Copilot.
Content	Index Content	All published posts and pages are selected by default.
Content	Manage Properties	To check default properties and their schema.
Sync	Incremental Crawl	Frequency: Every 4 hours
Sync	Full crawl	Frequency: Every day

If you want to edit any of these values, you need to choose the Custom Setup option.

Custom Setup

Custom setup is for those admins who want to edit the default values for settings. Once you click on the "Custom Setup" option, you should see three other tabs – Users, Content, and Sync.

Users

Access permissions

The Dropbox Copilot connector supports data visible to Only people with access to this data source (recommended) or Everyone. If you choose Everyone, indexed data appears in the search results for all users.

If you choose Only people with access to this data source, you need to further choose whether your has Microsoft Entra ID provisioned users or non-AAD users.

To identify which option is suitable for your organization:

1. Choose the Microsoft Entra ID option if the email ID of Dropbox users is same as the UserPrincipalName (UPN) of users in Microsoft Entra ID.

2. Choose the non-AAD option if the email ID of Dropbox users is different from the UserPrincipalName (UPN) of users in Microsoft Entra ID.

Important

• If you choose Microsoft Entra ID as the type of identity source, the connector maps the email IDs of users obtained from Dropbox directly to UPN property from Microsoft Entra ID.
• If you chose "non-AAD" for the identity type see Map your non-Azure AD Identities for instructions on mapping the identities. You can use this option to provide the mapping regular expression from email ID to UPN.
• Updates to users or groups governing access permissions are synced in full crawls only. Incremental crawls do not currently support the processing of updates to permissions.

Content

Manage Properties

Here, you can add or remove available properties from your Dropbox data source. Assign a schema to the property (define whether a property is searchable, queryable, retrievable, or refinable), change the semantic label and add an alias to the property. Properties that are selected by default are:

Source Property	Label	Description	Schema
CreatedBy	Created by	The email address of the creator	Query, Retrieve, Search
FileExtension	File extension	The file name extension.	Query, Refine, Retrieve
IconUrl	IconUrl	The URL of the icon.	Retrieve
LastModifiedBy	Last modified date time	The email address of the user who last modified this file.	Query, Retrieve, Search
LastModifiedTime	lastModifiedDateTime	The last user to modify the file. The user who performed the last modificationThis must be a sign-in user.	Query, Refine, Retrieve
Name	File name	The file name	Query, Retrieve, Search
PreviewUrl	url	URL for displaying a web preview of the shared file.	Retrieve
Size		The file size in bytes.

Sync

You can configure full and incremental crawls based on the scheduling options present here. By default, incremental crawl is set for every 4 hours, and full crawl is set for every day. If needed, you can adjust these schedules to fit your data refresh needs.

Troubleshooting

1. Required permission scopes are missing. Ensure the necessary scopes are selected in the Dropbox App.

Lack of the required permission scopes, make sure you selected all the scopes in Dropbox app console:

Individual Scopes:

files.metadata.read

files.content.read

sharing.read

file_requests.read

Team Scopes:

team_info.read

team_data.member

team_data.governance.write

team_data.governance.read

team_data.content.read

files.team_metadata.read

members.read

groups.read

events.read

2. OAuth 2.0 flow failed. Verify the credential information and ensure the Dropbox App is configured with the correct settings.

Common authentication error. Go back to the Dropbox app console and check if the OAuth2 in the setting tab is correctly configured.

3. OAuth 2.0 flow failed. Confirm that the Dropbox user associated with this team access token holds the team admin role and is an active user.

Common authentication error. Go back to the Dropbox app console and check if the creator has an admin role and the account status is active.

4. Your security credentials have expired for this session. Go back and sign in again with your App key and App secret.

Credential info has expired. Refresh the Dropbox app console and copy the latest App key and App secret from the setting tab to authenticate.

5. Invalid Credentials detected. Check the credential info and check the permission scopes of the Dropbox App.

Common credential error. Go back to the Dropbox App console and check if the scopes in the permission tab are correctly configured.
