The GitHub Server Issues Microsoft 365 Copilot connector integrates GitHub issue data into Microsoft 365.
This article provides information about the configuration steps that GitHub admins need to complete so your organization can deploy the GitHub Server Issues connector. For information about how to deploy the connector, see Deploy the GitHub Server Issues connector.
Setup checklist
The following checklist lists the steps involved in configuring the environment and setting up the connector prerequisites.
| Task | Role |
|---|---|
| Identify the organization name | GitHub admin |
| Ensure API access to the target GitHub instance | GitHub admin |
| Identify Microsoft Entra ID identity mapping rules | GitHub admin |
| Sign in to the GitHub account | GitHub admin |
| Verify search admin permissions | GitHub admin |
| Use a custom GitHub app for authentication | GitHub admin |
| Adjust GitHub Server API rate limit | GitHub admin |
| Configure firewall settings | Network admin |
Identify the organization name
Determine which GitHub organization to use for the connector setup.
Ensure API access to the target GitHub instance
Confirm that your GitHub Enterprise Server instance is accessible via API. API accessibility is required for the connector to index issues.
Identify Microsoft Entra ID mapping rules
Define the Microsoft Entra ID mapping rules. Make sure that users who access the indexed GitHub data have corresponding Microsoft Entra ID identities to allow accurate permission mapping.
Sign in to the GitHub account
For enterprise-managed users who authenticate via single sign-on (SSO), make sure the account is signed in before you perform any setup actions. Currently, the GitHub authentication flow doesn't support SSO-based sign-in during configuration.
Verify search admin permissions
Make sure the person setting up the connector is a Search admin for your organization’s Microsoft 365 tenant.
Use a custom GitHub app for authentication
For the most streamlined setup experience, use the GitHub app managed by Microsoft.
You can also choose to use your own GitHub app for authentication. If you choose this option, follow the steps in the following checklist to complete the setup.
| Task | Role |
|---|---|
| Create and configure the GitHub app | GitHub admin |
| Create credentials for the GitHub app | GitHub admin |
| Install the GitHub app | GitHub admin |
| Configure firewall settings | Network admin |
Create and configure the GitHub app
To create a GitHub app for use with the GitHub Server Issues connector:

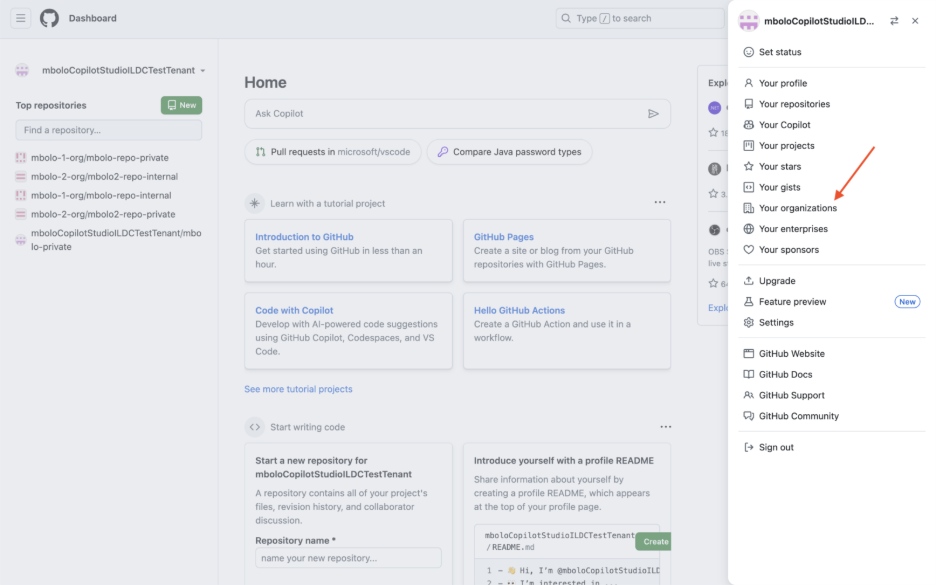

- In GitHub, select your profile photo on the top right, select Your organizations, and choose the organization the connector should pull data from.

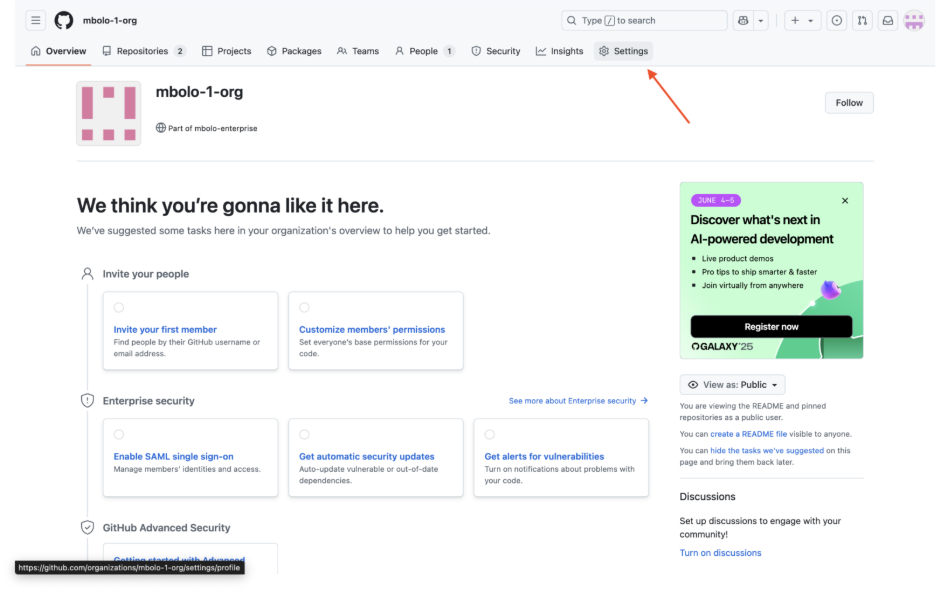

- On the organization overview page, select Settings.

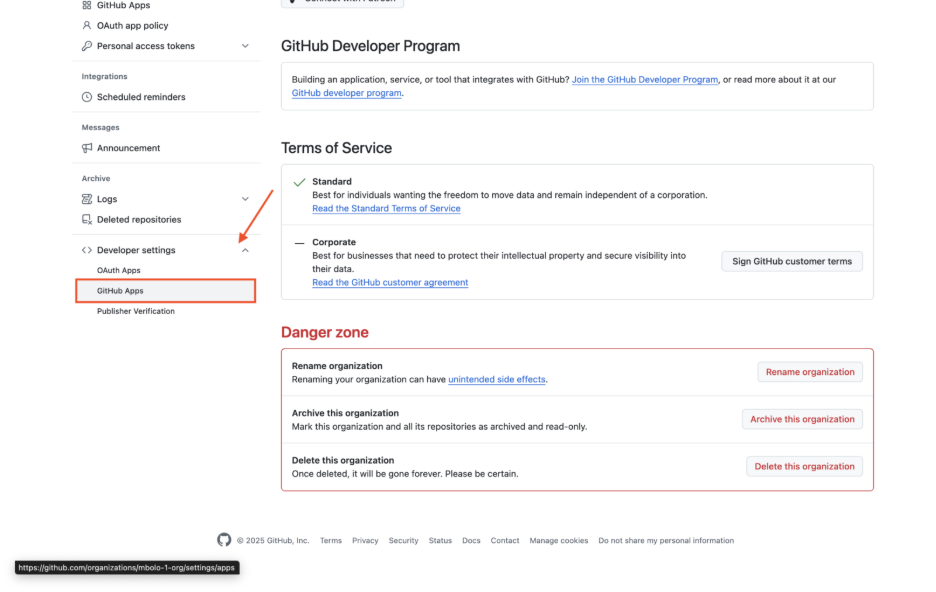

- In the left sidebar, scroll down to Developer settings and select GitHub Apps.

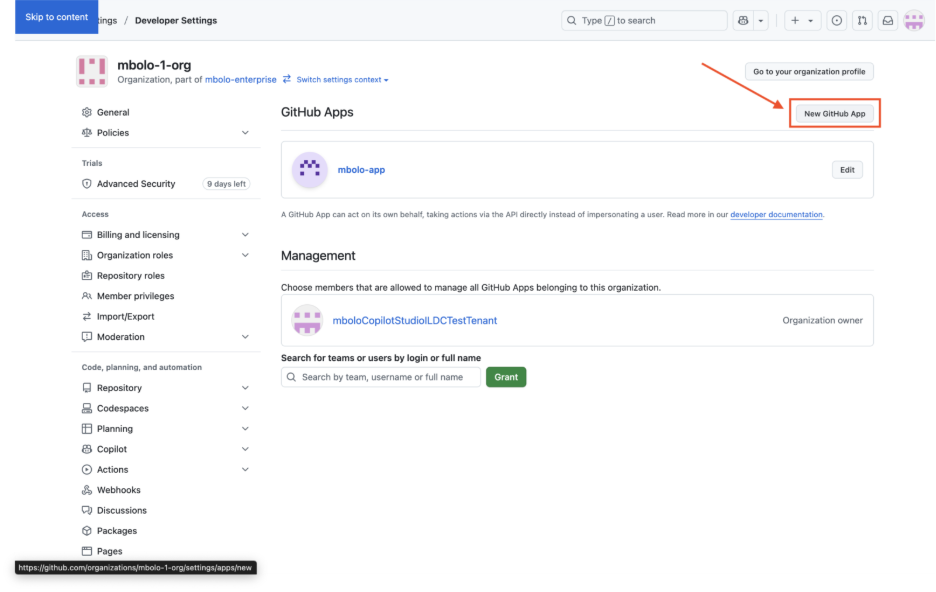

- Select New GitHub App.
Configure the app:
- GitHub app name: Enter the name of your choice.
- Homepage URL: Copy the URL from your browser's address bar.

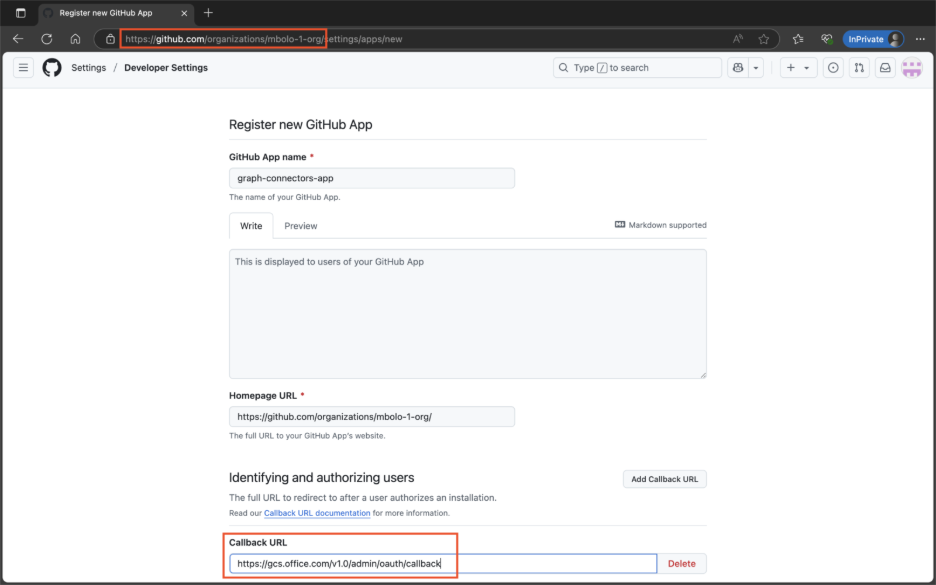

- Callback URL:
- For Microsoft 365 for enterprise:
https://gcs.office.com/v1.0/admin/oauth/callback - For Microsoft 365 Government:
https://gcsgcc.office.com/v1.0/admin/oauth/callback
- For Microsoft 365 for enterprise:
Uncheck the Webhook option.
Set the following permissions:
Repository permissions
- Administration - Read-only
- Metadata - Read-only
- Issues - Read-only
- Webhooks - Read and Write
Organization permissions
- Administration - Read-only
- Members - Read-only
- Webhooks - Read and Write
Account permissions
- Email addresses - Read-only

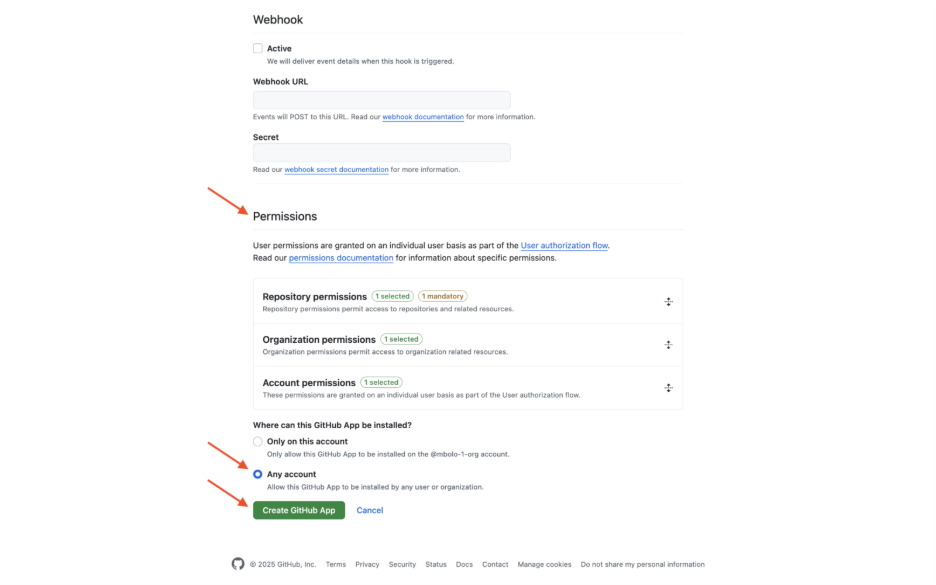

Under Where can this GitHub App be installed, select Any account, and then select Create GitHub App.
Create credentials for the GitHub app

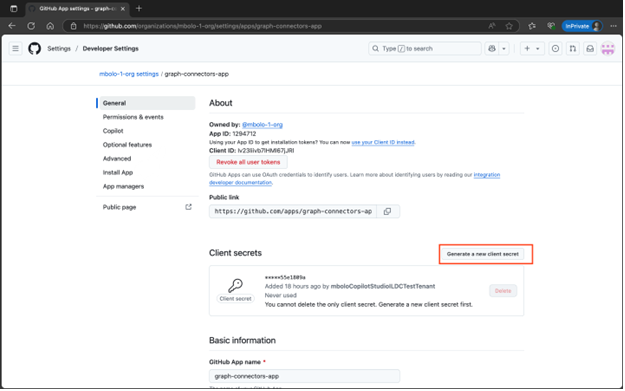

On the GitHub app General page, select Generate a new client secret to generate and copy the client secret.
Install the GitHub app

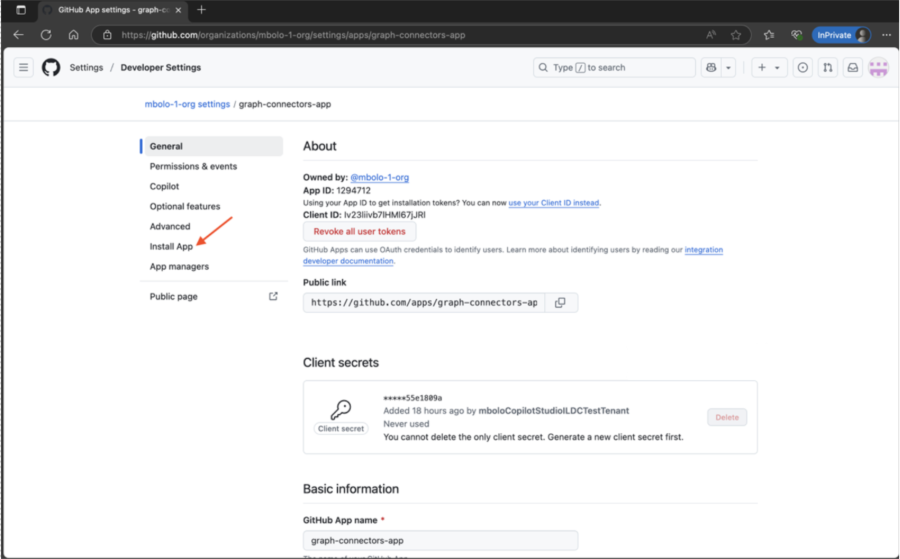

On the General page of the GitHub app, select Install App.
Select the organization where you want to install the app.
Adjust GitHub Server API rate limit
When you ingest large volumes of GitHub data—such as pull requests, issues, or knowledge files—the API rate‑limit configuration in your GitHub Server environment directly affects how quickly the ingestion process is completed. GitHub Server applies a default API limit of 15,000 authenticated requests per hour per user or token. This limit supports smaller datasets, but can slow ingestion when hundreds of thousands or millions of items are processed.
If your organization needs to increase throughput, you can raise the API rate limit. Higher limits allow the connector to retrieve items more quickly, but they also increase load on your GitHub Server infrastructure. Before you update rate‑limit settings, verify that your environment has adequate CPU capacity, storage I/O, and network bandwidth to support the increased request volume. After you update the limit, monitor system performance to ensure stable ingestion at higher throughput.
Rate-limit setting recommendations
Use the guidance in the following table to help you choose an appropriate rate‑limit setting based on the approximate number of pull requests in your GitHub environment.
| Approximate number of items | Recommended rate-limit setting | Approximate time to complete ingestion |
|---|---|---|
| Up to 100,000 | Use default rate‑limit settings (normal ingestion speed) | NA |
| 100,000 to 1,000,000 | Increase rate limit to 30,000 requests/hour | 2 days to 1 week |
| 1,000,000 or more | Use 30,000 requests/hour or higher (depending on server capacity) | 1–2 weeks (varies by environment load) |
Update the API rate-limit setting
To increase the API request limit:
- Sign in to your GitHub Server instance with an admin account.
- In the upper‑right corner, select Site admin to enter administration mode. For more information, see Configuring rate limits.
- In the left pane, select Management Console (or Admin Console, depending on your version).

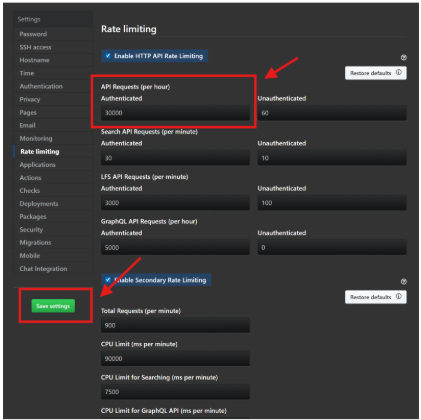

- Open the Rate limiting tab.
- Confirm that Enable HTTP API rate limiting is selected.
- Under API requests (per hour) – Authenticated, enter the rate‑limit value (for example, 30000).
- Select Save settings.
Note
When you save your changes, certain GitHub Server services might restart and cause a brief service interruption. After you save, allow time for the configuration to propagate across the instance.
Configure firewall settings
For added security, you can configure IP firewall rules for your Azure SQL Server or database. For more information, see IP firewall rules.
Add the following client IP ranges in the firewall settings.
| Region | Microsoft 365 Enterprise | Microsoft 365 Government |
|---|---|---|
| NAM | 52.250.92.252/30, 52.224.250.216/30 | 52.245.230.216/30, 20.141.117.64/30 |
| EUR | 20.54.41.208/30, 51.105.159.88/30 | NA |
| APC | 52.139.188.212/30, 20.43.146.44/30 | NA |
IP restrictions can cause the connector to stop working and lead to crawl failures. To resolve this issue, add the connector's IP address to the allowlist.
