Enable agent reactions in Teams

Note

Support for agent reactions in Teams is available in public developer preview.

You can build agents that react to messages as well as send text, minimizing notification fatigue while communicating actions efficiently.

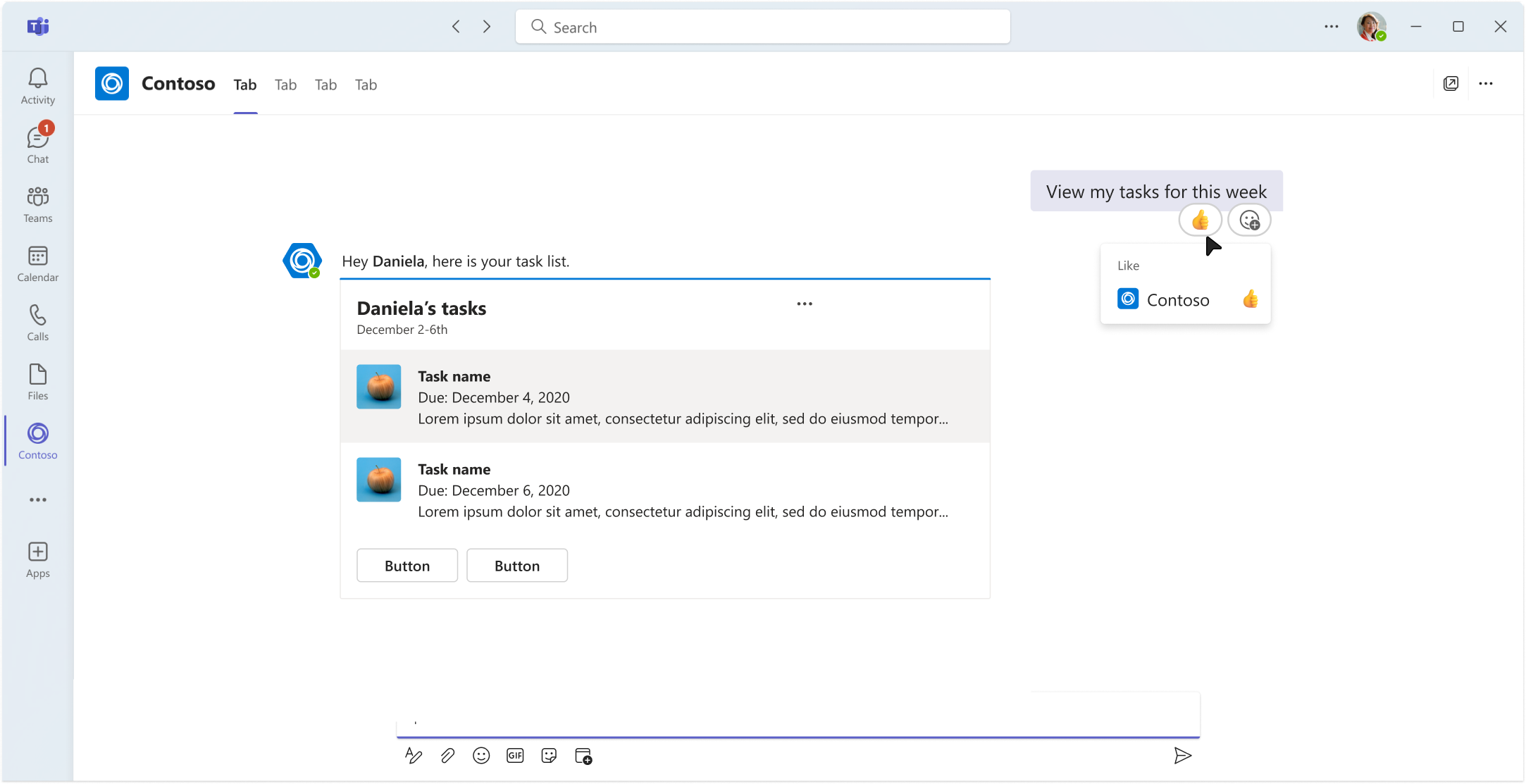

Desktop

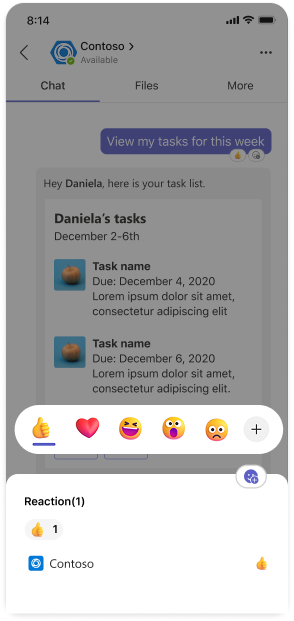

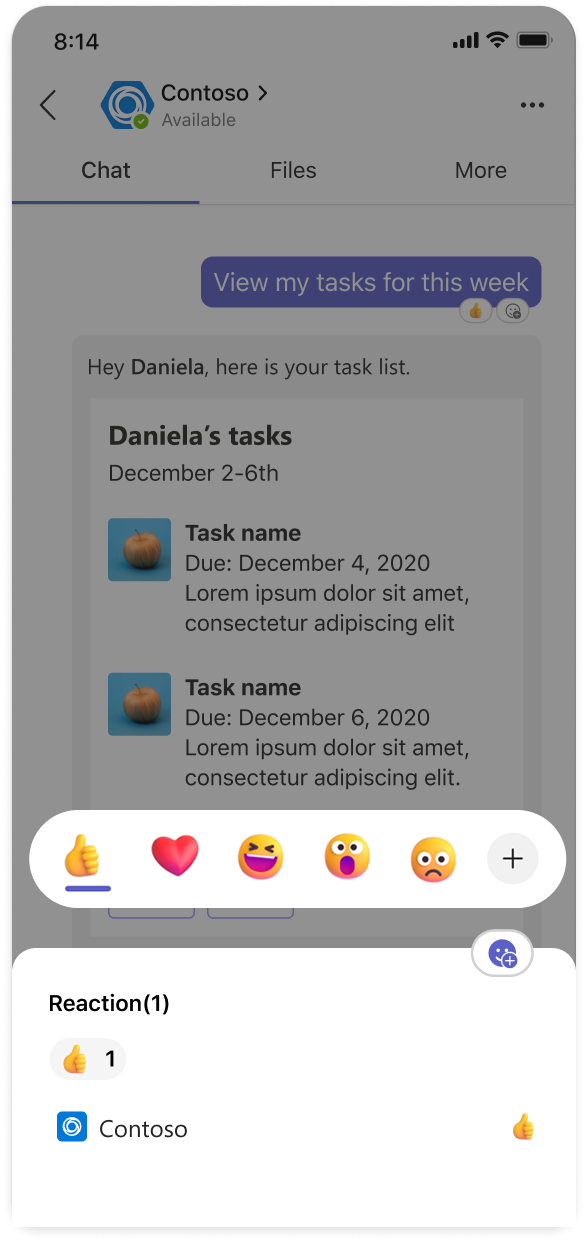

Mobile

Map emojis and reactions to specific agent actions and use the ID to send the right reaction in the conversation.

Key highlights:

• Add reactions
• Remove reactions
• View response codes
• Select skin tone for emojis
• Best practices

Enable an agent to add reactions

You can enable an agent to send reactions using Teams SDK or REST APIs. An agent can send up to two reactions per second. To enable an agent to send a reaction to a message:

1. Use the Teams reactions reference for getting the reactionId for the reactions that you want to add. You can also select a particular skin tone for the emoji by selecting its reactionId.
2. Use Teams SDK or REST API to add reactions to messages.

The following code snippet shows an example of adding the Waving hand reaction to a message:

C#

app.OnMessage(async context =>
{
    await context.Send("Hello! I'll react to this message.");

    // Add a reaction to the incoming message
    await context.Api.Conversations.Reactions.AddAsync(
        context.Activity.Conversation.Id,
        context.Activity.Id,
        new ReactionType("1f44b_wavinghand")
    );
});

See Teams SDK.

TypeScript

app.on('message', async ({ activity, api, send }) => {
  await send("Hello! I'll react to this message.");

  // Add a reaction to the incoming message
  await api.conversations.reactions.add(activity.conversation.id, activity.id, '1f44b_wavinghand');
});

See Teams SDK.

Python

@app.on_message
async def handle_message(ctx: ActivityContext[MessageActivity]):
    await ctx.send("Hello! I'll react to this message.")

    # Add a reaction to the incoming message
    await ctx.api.conversations.reactions.add(
        ctx.activity.conversation.id,
        ctx.activity.id,
        '1f44b_wavinghand'
    )

See Teams SDK.

API

PUT {cloud}/{tenantId}/v3/conversations/{conversationId}/activities/{activityId}/reaction/1f44b_wavinghand

Where,

• cloud is the serviceURL of the bot connector service that must be fetched dynamically.
• tenantId is the ID of the tenant agent or app is registered.
• conversationId is the thread or chat identifier.
• activityId represents the message or activity ID.
• reactionId is the ID of the emoji that you want to add.

Handle existing agent reactions

You can handle reaction requests when an agent has already reacted to a message.

• Reaction already added: If an agent tries to react to a message it has already reacted to, the action succeeds but no duplicate reaction is added.
• Replace a reaction: To enable the agent to replace a reaction it already added, remove the reaction that was added, and then add the new reaction.

Enable an agent to remove reactions

You can choose to enable an agent to remove its reaction from messages. To remove the agent's reaction from a message:

1. Use the Teams reactions reference for getting the reactionId for the reactions that you want to remove.
2. Use Teams SDK or REST API to remove reactions from messages.

The following code snippet shows an example of removing a reaction from a message:

C#

app.OnMessage(async context =>
{
    // First, add a reaction
    await context.Api.Conversations.Reactions.AddAsync(
        context.Activity.Conversation.Id,
        context.Activity.Id,
        new ReactionType("1f44b_wavinghand")
    );

    // Wait a bit, then remove it
    await Task.Delay(2000);
    await context.Api.Conversations.Reactions.DeleteAsync(
        context.Activity.Conversation.Id,
        context.Activity.Id,
        new ReactionType("1f44b_wavinghand")
    );
});

See Teams SDK.

TypeScript

app.on('message', async ({ activity, api }) => {
  // First, add a reaction
  await api.conversations.reactions.add(activity.conversation.id, activity.id, '1f44b_wavinghand');

  // Wait a bit, then remove it
  await new Promise((resolve) => setTimeout(resolve, 2000));
  await api.conversations.reactions.delete(activity.conversation.id, activity.id, '1f44b_wavinghand');
});

See Teams SDK.

Python

import asyncio

@app.on_message
async def handle_message(ctx: ActivityContext[MessageActivity]):
    # First, add a reaction
    await ctx.api.conversations.reactions.add(
        ctx.activity.conversation.id,
        ctx.activity.id,
        '1f44b_wavinghand'
    )

    # Wait a bit, then remove it
    await asyncio.sleep(2)
    await ctx.api.conversations.reactions.delete(
        ctx.activity.conversation.id,
        ctx.activity.id,
        '1f44b_wavinghand'
    )

See Teams SDK.

API

DELETE {cloud}/{tenantId}/v3/conversations/{conversationId}/activities/{activityId}/reaction/1f44b_wavinghand

Where,

• cloud is the serviceURL of the bot connector service that must be fetched dynamically.
• tenantId is the ID of the tenant agent or app is registered.
• conversationId is the thread or chat identifier.
• activityId represents the message or activity ID.
• reactionId is the ID of the emoji that you want to remove.

No additional payload is required as the reaction is defined in the URL.

Response codes

The following are the success and error codes:

Response codes	Description	Action
Success codes
200 OK	Reaction added successfully	NA
200 OK	Deleted reaction successfully	NA
200 OK	Deleted non-existent reaction	NA
Error codes
400 Bad request	The reactionId is invalid or exceeds the maximum allowed length.	Use a valid reactionId from Teams reactions reference.

Note

• 200 OK is also returned if the agent or bot adds a reaction that already exists or removes one that isn’t applied. These operations don’t return errors.
• You can find more information on error codes for sending messages.

Modify skin tone for emojis

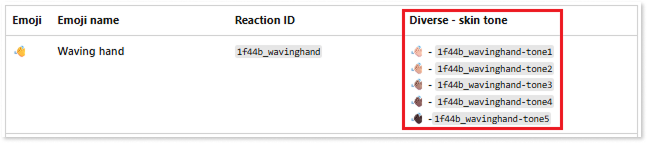

The Teams reactions reference shows skin tone options for emojis. The emojis that offer skin tone are tagged as Diverse. To select a particular skin tone:

1. Choose a reaction tagged as Diverse.

2. Copy the reactionId for the Diverse - skin tone that you want to use in your agent.



3. Use the copied reactionId in your agent's payload to send the selected reaction in the conversation.

The following code snippet shows an example of selecting a specific skin tone of a diverse reaction to a message:

C#

app.OnMessage(async context =>
{
    await context.Send("Hello! I'll react to this message.");

    // Add a reaction to the incoming message
    await context.Api.Conversations.Reactions.AddAsync(
        context.Activity.Conversation.Id,
        context.Activity.Id,
        new ReactionType("1f44b_wavinghand-tone4")
    );
});

TypeScript

app.on('message', async ({ activity, api, send }) => {
  await send("Hello! I'll react to this message.");

  // Add a reaction to the incoming message
  await api.conversations.reactions.add(activity.conversation.id, activity.id, '1f44b_wavinghand-tone4');
});

Python

@app.on_message
async def handle_message(ctx: ActivityContext[MessageActivity]):
    await ctx.send("Hello! I'll react to this message.")

    # Add a reaction to the incoming message
    await ctx.api.conversations.reactions.add(
        ctx.activity.conversation.id,
        ctx.activity.id,
        '1f44b_wavinghand-tone4'
    )

API

PUT {cloud}/{tenantId}/v3/conversations/{conversationId}/activities/{activityId}/reaction/{1f44b_wavinghand-tone4}

Where,

• cloud is the serviceURL of the bot connector service that must be fetched dynamically.
• tenantId is the ID of the tenant agent or app is registered.
• conversationId is the thread or chat identifier.
• activityId represents the message or activity ID.
• reactionId is the ID of the emoji that you want to add.

Best practices

• Employ reactions to improve user experience such as acknowledging a message or providing succinct feedback.
• Avoid excessive use of reactions to minimize notification fatigue for users.
• Ensure your agent's reactions fit the message context and avoid having your agent send multiple reactions to the same message without first removing any existing reactions.

See also

• Teams SDK
• Teams reaction reference
