Action commands (TypeScript) (preview)

[This article is prerelease documentation and is subject to change.]

Action commands allow you to present your users with a modal pop-up called a dialog in Teams. The dialog collects or displays information, processes the interaction, and sends the information back to Teams compose box.

Action command invocation locations

There are three different areas action commands can be invoked from:

1. Compose Area
2. Compose Box
3. Message

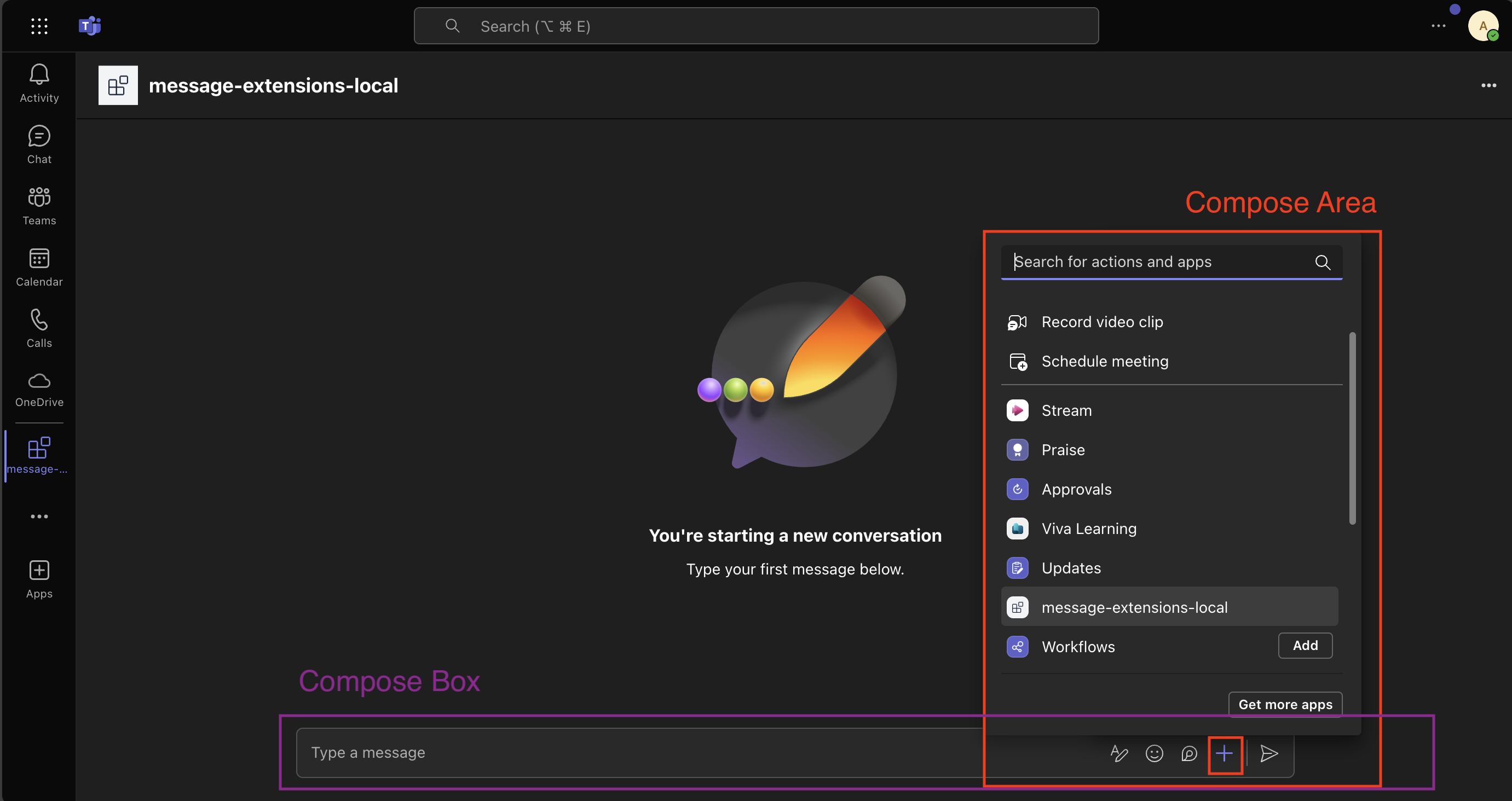

Compose Area and Box

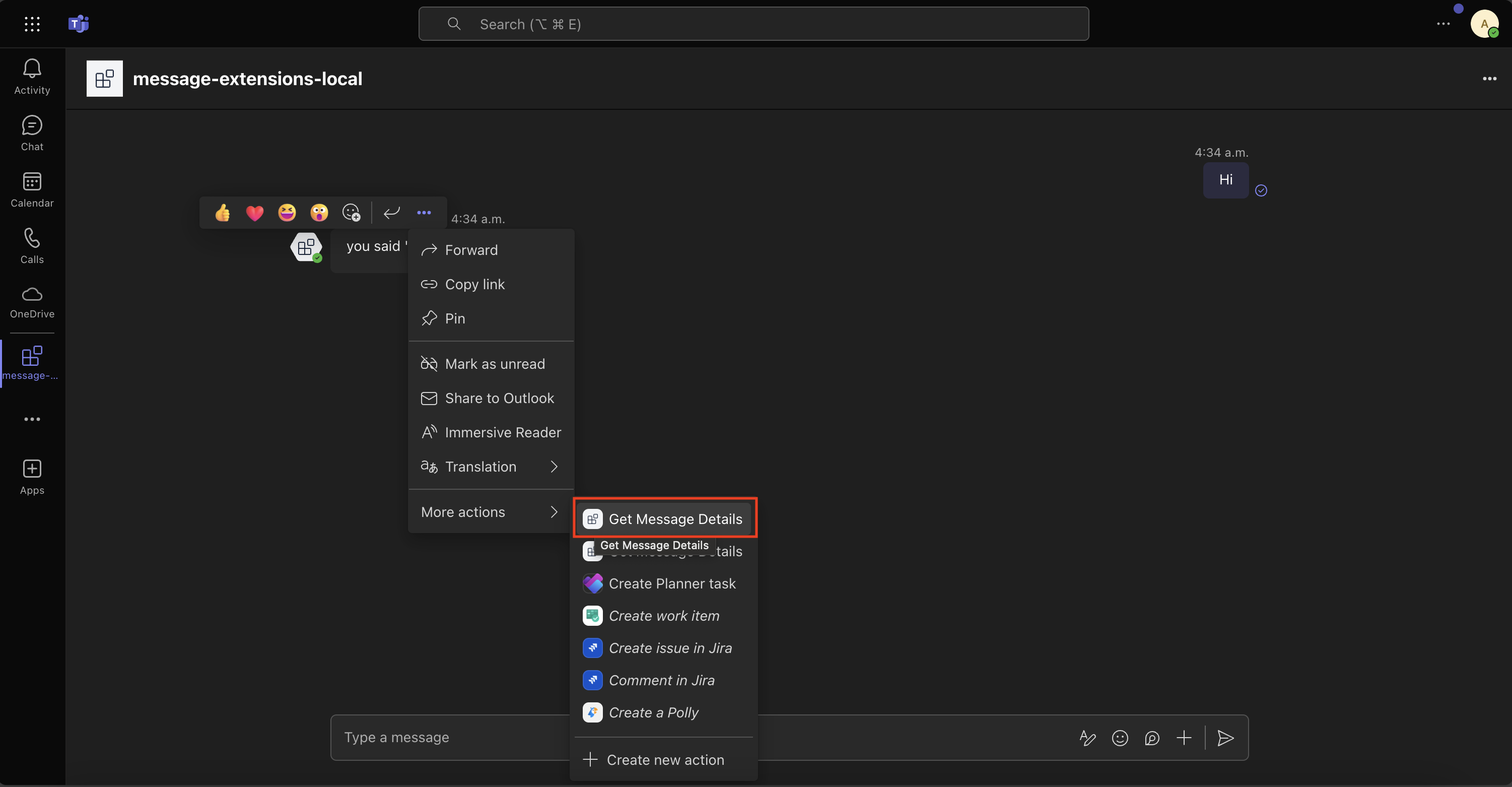

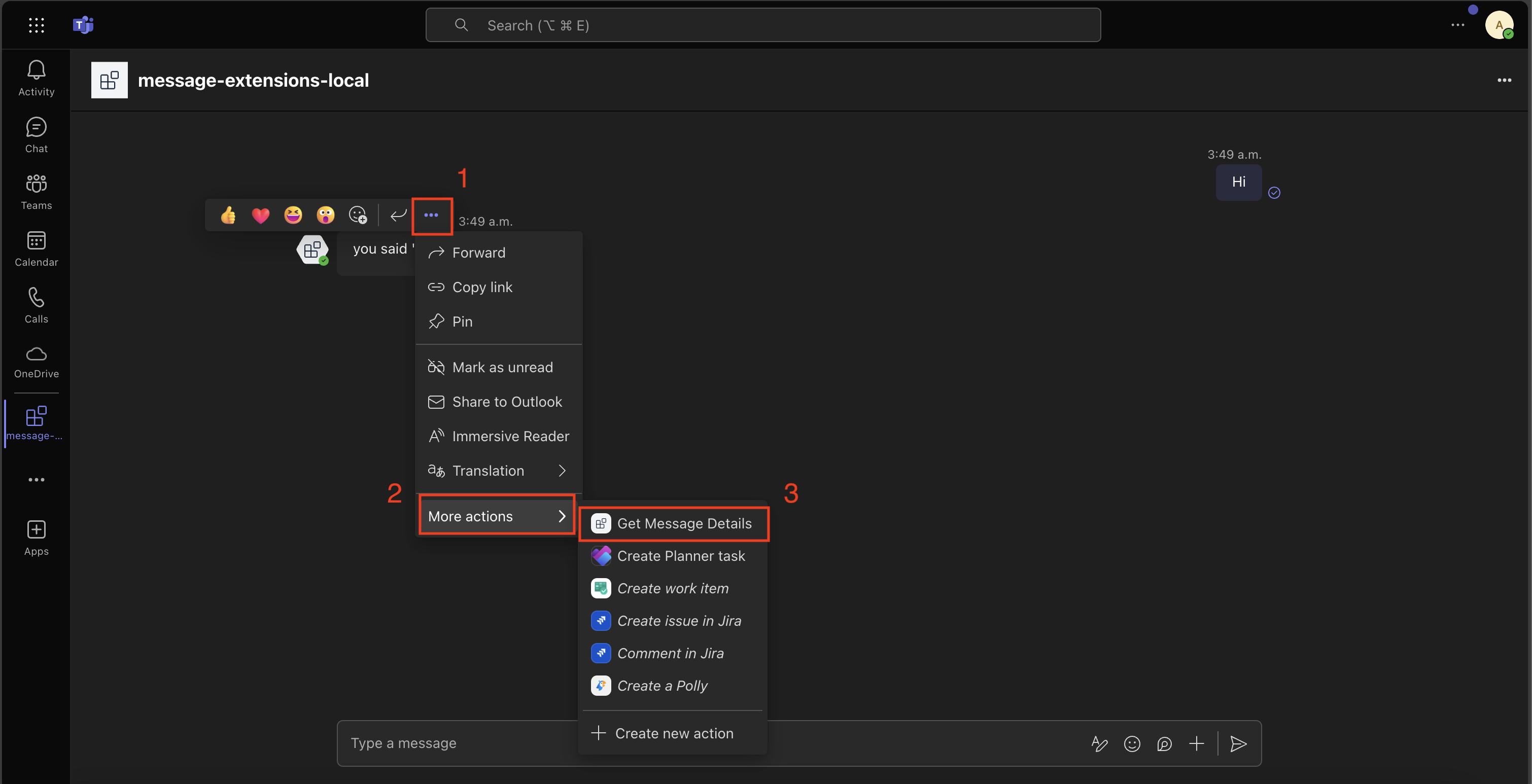

Message action command

Tip

See the Invoke Locations guide to learn more about the different entry points for action commands.

Setting up your Teams app manifest

To use action commands you have define them in the Teams app manifest. Here is an example:

"composeExtensions": [
    {
        "botId": "${{BOT_ID}}",
        "commands": [
            {
            "id": "createCard",
            "type": "action",
            "context": [
                "compose",
                "commandBox"
            ],
            "description": "Command to run action to create a card from the compose box.",
            "title": "Create Card",
            "parameters": [
                {
                    "name": "title",
                    "title": "Card title",
                    "description": "Title for the card",
                    "inputType": "text"
                },
                {
                    "name": "subTitle",
                    "title": "Subtitle",
                    "description": "Subtitle for the card",
                    "inputType": "text"
                },
                {
                    "name": "text",
                    "title": "Text",
                    "description": "Text for the card",
                    "inputType": "textarea"
                }
            ]
            },
            {
                "id": "getMessageDetails",
                "type": "action",
                "context": [
                    "message"
                ],
                "description": "Command to run action on message context.",
                "title": "Get Message Details"
            },
            {
                "id": "fetchConversationMembers",
                "description": "Fetch the conversation members",
                "title": "Fetch Conversation Members",
                "type": "action",
                "fetchTask": true,
                "context": [
                    "compose"
                ]
            },
        ]
    }
]

Here we are defining three different commands:

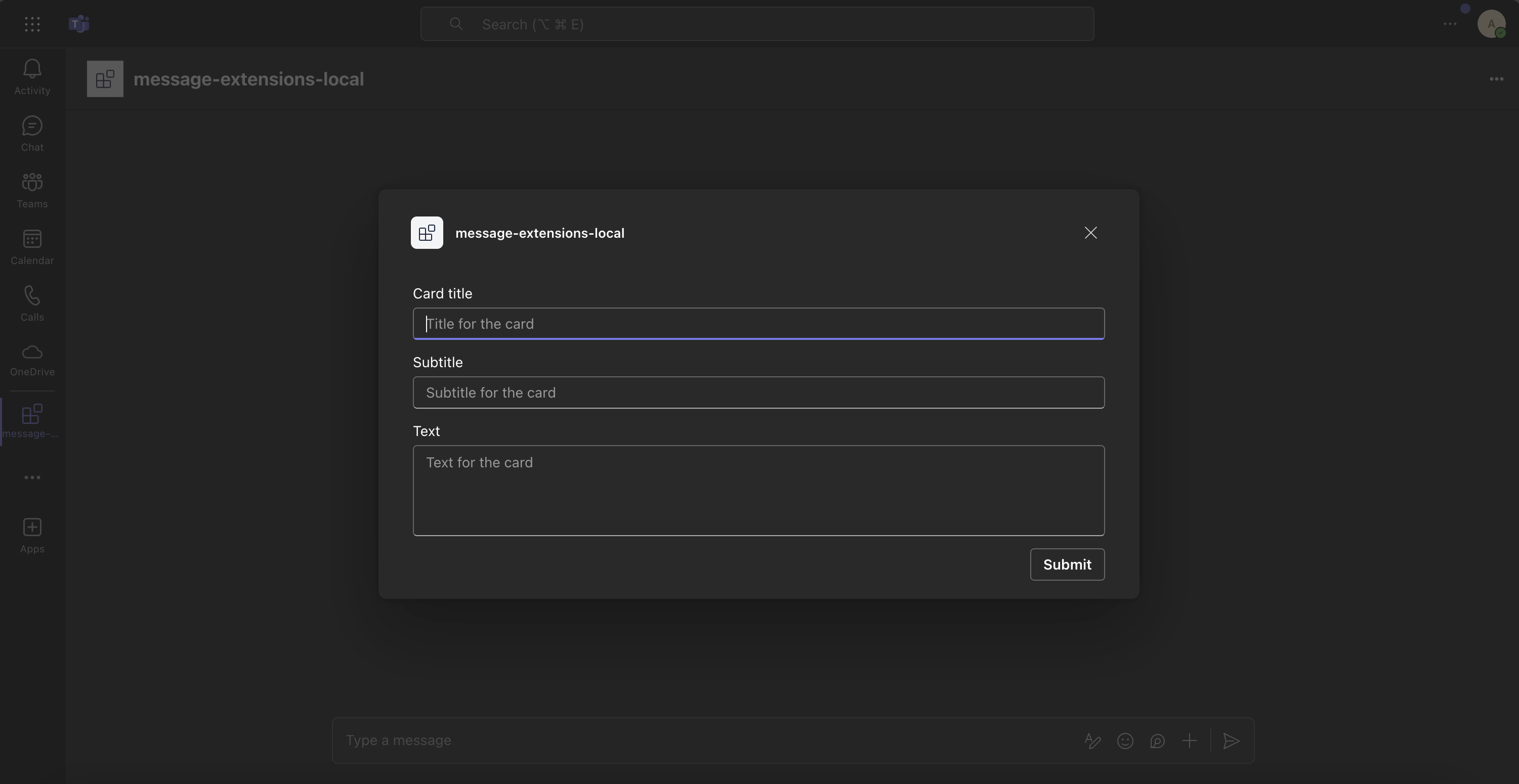

1. createCard - that can be invoked from either the compose or commandBox areas. Upon invocation a dialog will popup asking the user to fill the title, subTitle, and text.

2. getMessageDetails - It is invoked from the message overflow menu. Upon invocation the message payload will be sent to the app which will then return the details like createdDate...etc.

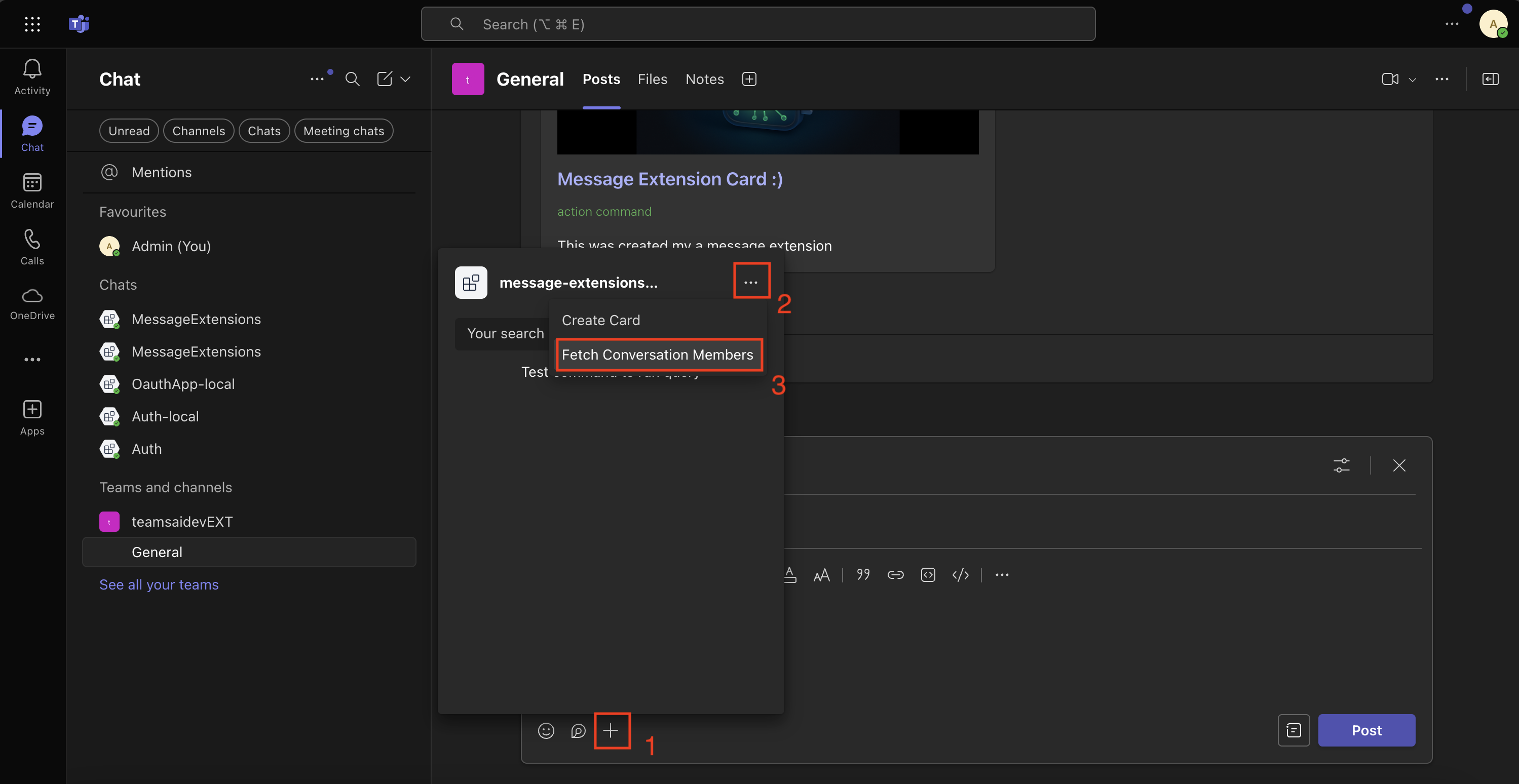

3. fetchConversationMembers - It is invoked from the compose area. Upon invocation the app will return an adaptive card in the form of a dialog with the conversation roster.

Handle submission

Handle submission when the createCard or getMessageDetails actions commands are invoked.

app.on("message.ext.submit", async ({ activity }) => {
  const { commandId } = activity.value;
  let card: IAdaptiveCard;

  if (commandId === "createCard") {
    // activity.value.commandContext == "compose"
    card = createCard(activity.value.data);
  } else if (
    commandId === "getMessageDetails" &&
    activity.value.messagePayload
  ) {
    // activity.value.commandContext == "message"
    card = createMessageDetailsCard(activity.value.messagePayload);
  } else {
    throw new Error(`Unknown commandId: ${commandId}`);
  }

  return {
    composeExtension: {
      type: "result",
      attachmentLayout: "list",
      attachments: [cardAttachment("adaptive", card)],
    },
  };
});

createCard() function

interface FormData {
  title: string;
  subtitle: string;
  text: string;
}

export function createCard(data: FormData) {
  return new AdaptiveCard(
    new Image(IMAGE_URL),
    new TextBlock(data.title, {
      size: "Large",
      weight: "Bolder",
      color: "Accent",
      style: "heading",
    }),
    new TextBlock(data.subtitle, {
      size: "Small",
      weight: "Lighter",
      color: "Good",
    }),
    new TextBlock(data.text, {
      wrap: true,
      spacing: "Medium",
    })
  );
}

createMessageDetailsCard() function

export function createMessageDetailsCard(messagePayload: Message) {
  const cardElements: CardElement[] = [
    new TextBlock("Message Details", {
      size: "Large",
      weight: "Bolder",
      color: "Accent",
      style: "heading",
    }),
  ];

  if (messagePayload?.body?.content) {
    cardElements.push(
      new TextBlock("Content", {
        size: "Medium",
        weight: "Bolder",
        spacing: "Medium",
      }),
      new TextBlock(messagePayload.body.content)
    );
  }

  if (messagePayload?.attachments?.length) {
    cardElements.push(
      new TextBlock("Attachments", {
        size: "Medium",
        weight: "Bolder",
        spacing: "Medium",
      }),
      new TextBlock(
        `Number of attachments: ${messagePayload.attachments.length}`,
        {
          wrap: true,
          spacing: "Small",
        }
      )
    );
  }

  if (messagePayload?.createdDateTime) {
    cardElements.push(
      new TextBlock("Created Date", {
        size: "Medium",
        weight: "Bolder",
        spacing: "Medium",
      }),
      new TextBlock(messagePayload.createdDateTime, {
        wrap: true,
        spacing: "Small",
      })
    );
  }

  if (messagePayload?.linkToMessage) {
    cardElements.push(
      new TextBlock("Message Link", {
        size: "Medium",
        weight: "Bolder",
        spacing: "Medium",
      }),
      new ActionSet(
        new OpenUrlAction(messagePayload.linkToMessage, {
          title: "Go to message",
        })
      )
    );
  }

  return new AdaptiveCard(...cardElements);
}

Handle opening adaptive card dialog

Handle opening adaptive card dialog when the fetchConversationMembers command is invoked.

app.on("message.ext.open", async ({ activity, api }) => {
  const conversationId = activity.conversation.id;
  const members = await api.conversations.members(conversationId).get();
  const card = createConversationMembersCard(members);

  return {
    task: {
      type: "continue",
      value: {
        title: "Conversation members",
        height: "small",
        width: "small",
        card: cardAttachment("adaptive", card),
      },
    },
  };
});

createConversationMembersCard() function

export function createConversationMembersCard(members: Account[]) {
  const membersList = members.map((member) => member.name).join(", ");

  return new AdaptiveCard(
    new TextBlock("Conversation members", {
      size: "Medium",
      weight: "Bolder",
      color: "Accent",
      style: "heading",
    }),
    new TextBlock(membersList, {
      wrap: true,
      spacing: "Small",
    })
  );
}

Resources

• Action commands
• Returning Adaptive Card Previews in Task Modules
