Customize app manifest

  • Article

App manifest (previously called Teams app manifest) describes how your app integrates into Teams. After scaffolding, the default app manifest file is available at appPackage/manifest.json. The app manifest file contains some environment variables with format of ${{XX_XX}}, and the actual values are resolved using Teams Toolkit with env files like env/.env.dev and env/.env.local.

To preview app manifest with actual content, Teams Toolkit generates the preview app manifest files under appPackage/build folder:

└───appPackage
    └───build
        ├───appPackage.{env}.zip - Zipped app package of remote Teams app
        ├───appPackage.local.zip - Zipped app package of local Teams app
        ├───manifest.{env}.json  - Previewed manifest of remote Teams app
        └───manifest.local.json  - Previewed manifest of local Teams app

You can preview the app manifest file in local and remove environments.

Preview the app manifest file in local environment

To preview the app manifest file in local environment, you can press F5 to run local debug. After you generate the environment variables in env/.env.local, the app package and the preview app manifest is built under appPackage/build folder.

You can also trigger Zip Teams App Package from tree view or Teams: Zip Teams app Package from command palette to generate the previewed app manifest and app package.

Screenshot showing the selection of zip Teams App package.

Preview the app manifest file in remote environment

To preview the app manifest file in remote environment, you can trigger Provision from tree view or Teams: Provision in the cloud from command palette. It generates environment variables for remote Teams app, build app package and the preview app manifest under appPackage/build folder.

You can also trigger Zip Teams App Package from tree view or Teams: Zip Teams app Package from command palette to generate the preview app manifest and app package.

Screenshot showing the selection of zip Teams app package in preview app manifest file.

Customize the app manifest for Visual Studio Code

During local debug or provision, Teams Toolkit loads app manifest from appPackage/manifest.json and resolves app manifest by environment variables defined in env/.env.xx, then creates or updates Teams app in Teams Developer Portal.

  1. You can define your own manifest.json file in teamsapp.yml and teamsapp.local.yml. For example, you can put your manifest.json file in test/test.json, and update the manifestPath parameters in yaml files.

    - uses: teamsApp/zipAppPackage # Build Teams app package with latest env value
  with:
  manifestPath: ./test/test.json # Path to manifest template
  outputZipPath: ./appPackage/build/appPackage.${{TEAMSFX_ENV}}.zip
  outputJsonPath: ./appPackage/build/manifest.${{TEAMSFX_ENV}}.json

  2. You can define your own environment variables. The default manifest.json contains some placeholders with format of ${{xx_xx}}. You can define your own environment variables and add placeholders in the manifest.json file. For example, you can customize app description by defining a new environment variable in env/.env.xx file, and update manifest.json with corresponding placeholder.

    .env.dev

    TEAMS_APP_DESCRIPTION=This is an amazing app

    manifest.json

    {
    "$schema": "https://developer.microsoft.com/en-us/json-schemas/teams/v1.16/MicrosoftTeams.schema.json",
    "manifestVersion": "1.16",
    "description": {
        "short": "${{TEAMS_APP_DESCRIPTION}}",
        "full": "Full description of tab0418"
    },
}

Validate Application

After customization, you may want to validate your app manifest or app package. You can trigger Validate Application from tree view, or Teams: ValidateApplication from command palette. There are two options, Validate using manifest schema or Validate app package using validation rules.

Screenshot showing the selection of validate application under utility.

Validate using the app manifest schema

This option renders appPackage/manifest.json with environment variables, and then validates your app manifest with its schema.

Screenshot showing the selection of validate using manifest schema.

CLI command:

teamsfx validate --manifest-path YOUR-PATH-TO-MANIFEST

If you meet MissingEnvironmentVariablesError, it means that Teams Toolkit can't find corresponding environment variables defined in manifest.json. You may need to run Provision or F5 to generate environment variables, or manually update .env.xx file to fulfill the value.

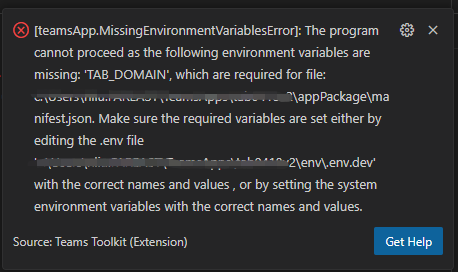

Screenshot showing the Missing Environment Variables Error.

Validate app package using validation rules

This option validates the zipped app package with validation rules.

Screenshot showing the selection of Validate app package using validation rules.

CLI command:

teamsfx validate --app-package-file-path YOUR-PATH-TO-APP-PACKAGE

It has additional validation rules than the app manifest schema. For example, if static tab section has entityId "conversations" and name, the following error appears:

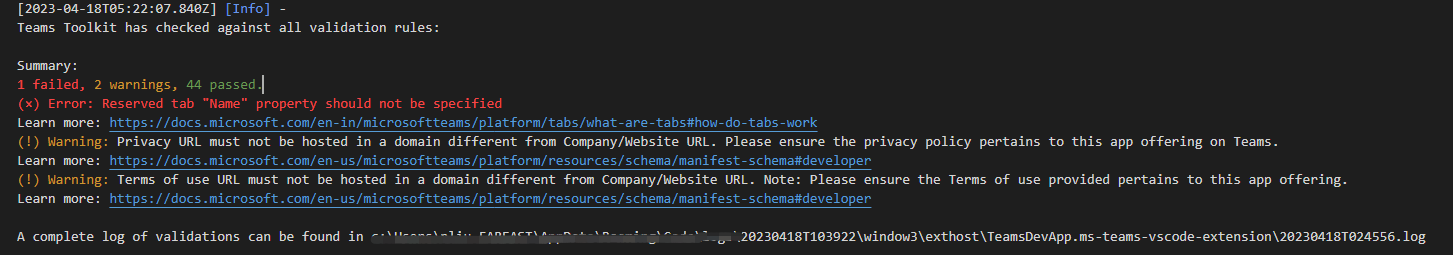

Screenshot showing the validation output.

Update Teams app

After you've previewed and validated the app manifest file, you can sync your local changes to Teams Developer Portal by triggering Teams: Update Teams app command from command palette:

Screenshot showing the selection of Teams update Teams app.

CLI command:

teamsfx update teams-app

Note

The change is reflected in Developer Portal. Any manual updates in Developer Portal are overwritten.

If the app manifest file is outdated due to configuration file change or template change, select any one of the following actions:

  • Preview only: Local app manifest file is overwritten according to current configuration.
  • Preview and update: Local app manifest file is overwritten according to current configuration and also updated to Teams platform.
  • Cancel: No action is taken.

To preview values for local and dev environment

In appPackage/manifest.json, you can go to CodeLens to preview the values for local and dev environment.

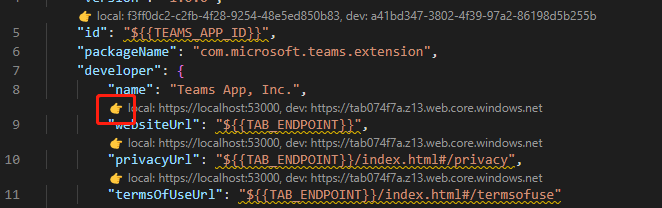

Screenshot showing the codelens v5.

Note

Provision the environment or execute local debug to generate environment variables.

You can go to .env file by selecting the CodeLens, which provide a dropdown list with all the environment names. After selecting one environment, the corresponding .env file opens.

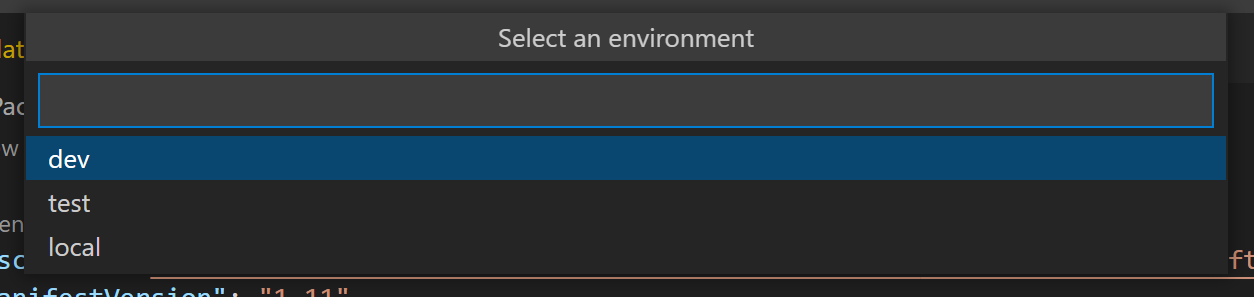

Screenshot showing the selection of dev.

To preview values for all the environment, you can hover over the placeholder. It shows a list of environment names and corresponding values. If you haven't provisioned the environment or executed the local debug, the environment variable may not exist. Select Trigger Teams: Provision in the cloud command to see placeholder value or Trigger local debug to see placeholder value.

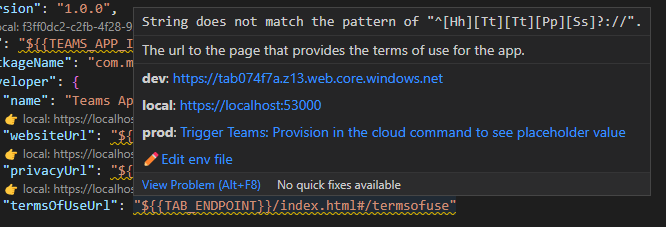

Screenshot showing the placeholder when hovered displays a list with environment names and corresponding values.

See also

Important

We've introduced the Teams Toolkit v5 extension within Visual Studio Code. This version comes to you with many new app development features. We recommend that you use Teams Toolkit v5 for building your Teams app.

Teams Toolkit v4 extension will soon be deprecated.

Customize app manifest for Visual Studio Code

App manifest (previously called Teams app manifest) describes how your app integrates into Teams. The app manifest template file manifest.template.json is available under templates/appPackage folder after scaffolding. The template file with placeholders, and the actual values are resolved by Teams Toolkit using files under .fx/configs and .fx/states for different environments.

To preview app manifest with actual content, Teams Toolkit generates the preview app manifest files under build/appPackage folder:

└───build
    └───appPackage
        ├───appPackage.{env}.zip - Zipped app package of remote Teams app
        ├───appPackage.local.zip - Zipped app package of local Teams app
        ├───manifest.{env}.json  - Previewed manifest of remote Teams app
        └───manifest.local.json  - Previewed manifest of local Teams app

You can preview the app manifest file in local and remote environments.


Preview the app manifest file in local environment

To preview the app manifest file in local environment, you can press F5 to run local debug. After generating default local settings, the app package and the preview app manifest builds under build/appPackage folder.

You can preview local app manifest file by two methods:

  • Use preview option in CodeLens.
  • Use Zip Teams metadata package option.

The following steps help to preview local app manifest file by using preview option in CodeLens:

  1. Select Preview in the CodeLens of manifest.template.json file.

    Screenshot is an example showing the preview in the CodeLens of manifest file.

  2. Select local.

    Screenshot is an example of showing the selection of local in the environment.

To preview the local app manifest file by using Zip Teams metadata package option:

  1. Select manifest.template.json file.

    Screenshot is an example of showing the selection of manifest.template.json.

  2. Select the Teams Toolkit icon in the Visual Studio Code Activity Bar.

  3. Select Zip Teams metadata package under DEPLOYMENT.

    Screenshot is an example of showing the selection of zip Teams metadata package.

  4. Select local.

    Screenshot is an example of showing the selection of local in the environment.

Following is a preview local image:

Screenshot is an example of showing the preview of local.


Preview the app manifest file in remote environment

To preview the app manifest file using Visual Studio Code:

  • Select Provision in the cloud under DEPLOYMENT in Teams Toolkit.

    Screenshot is an example of showing the selection of provision in the cloud resource.

  • To preview the app manifest file using command palette. You can trigger Teams: Provision in the cloud from command palette.

    Screenshot is an example of showing provision cloud resource using command palette.

It generates configuration for remote Teams app, builds package, and preview the app manifest under build/appPackage folder.

You can preview the app manifest file in remote environment by two methods:

  • Use preview option in CodeLens.
  • Use Zip Teams metadata package option.

To preview the app manifest file by using preview option in CodeLens:

  1. Select Preview in the CodeLens of manifest.template.json file.

    Screenshot is an example of showing preview in the CodeLens of manifest file.

  2. Select your environment.

    Screenshot is an example of showing the adding of environment.

    Note

    If there are more than one environment, you need to select the environment you want to preview.

To preview the app manifest file by selecting Zip Teams metadata package in remote environment:

  1. Select manifest.template.json file.

    Screenshot is an example of showing the selection of manifest.template.json.

  2. Select the Teams Toolkit icon in the Visual Studio Code Activity Bar.

  3. Select Zip Teams metadata package under DEPLOYMENT.

    Screenshot is an example of showing the selection of zip Teams metadata package.

  4. Select your environment.

    Screenshot is an example of showing the adding of environment.

    Note

    If there are more than one environment, you need to select the environment you want to preview.

Sync local changes to Developer Portal

After previewing the app manifest file, you can sync your local changes to Developer Portal by the following ways:

  1. Deploy app manifest.

    You can deploy the app manifest in any of the following ways:

    • Right-click the manifest.template.json file, and select Deploy Teams app manifest from context menu.

      Screenshot is an example of showing the selection of deploy app manifest.

    • Trigger Teams: Deploy Teams app manifest by selecting it from the command palette.

      Screenshot is an example of showing the deploy from command palette.

  2. Update to Teams platform.

    You can update to Teams platform in any of the following ways:

    • Select Update to Teams platform on the upper left-corner of manifest.{env}.json.

    • Trigger Teams: Update manifest to Teams platform on the menu bar of manifest.{env}.json. The following image shows dev environment:

      Screenshot is an example of showing the update to Teams platform on the menu bar of manifest.

You can also trigger Teams: Update manifest to Teams platform from the command palette:

Screenshot is an example of showing the selection of Teams: update app manifest to Teams platform from the command palette.

Note

  • The Trigger from editor CodeLens or menu bar updates the current app manifest file to Teams platform.
  • The Trigger from command palette requires selecting target environment.

CLI command:

        teamsfx deploy manifest --include-app-manifest yes

Note

The change is reflected in Developer Portal. Any manual updates in Developer Portal are overwritten.

If the app manifest file is outdated due to configuration file change or template change, select any one of the following actions:

  • Preview only: Local app manifest file is overwritten according to current configuration.
  • Preview and update: Local app manifest file is overwritten according to current configuration and also updated to Teams platform.
  • Cancel: No action is taken.

Screenshot is an example of showing,the navigation to select preview only, preview and update and cancel options when the app manifest file is outdated due to configuration or template change.

Customize your app manifest

Teams Toolkit consists of the following app manifest template files under manifest.template.json folder across local and remote environments:

  • manifest.template.json
  • templates/appPackage

During the local debug or provision, Teams Toolkit loads the app manifest file from manifest.template.json with the configurations from state.{env}.json, config.{env}.json, and creates Teams app in Developer Portal.

Supported placeholders in manifest.template.json

The following list provides supported placeholders in manifest.template.json:

  • {{state.xx}} is pre-defined placeholder, and it's value is resolved by Teams Toolkit defined in state.{env}.json. Ensure not to modify the values in state.{env}.json.
  • {{config.manifest.xx}} is a customized placeholder and it's value is resolved from config.{env}.json.

To add customized parameter

  1. Add customized parameter as follows:
    a. Add a placeholder in manifest.template.json with pattern {{config.manifest.xx}}.
    b. Add a config value in config.{env}.json.

    {
    "manifest": {
     "KEY": "VALUE"
     }
}

  2. You can go to configuration file by selecting any one of the config placeholders Go to config file or View the state file in manifest.template.json.

Validate app manifest

During operations such as Zip Teams metadata package, Teams Toolkit validates app manifest against its schema. The following list provides different ways to validate app manifest:

  • In Visual Studio Code, trigger Teams: Validate manifest file from command palette:

    Screenshot is an example of showing Teams validate the app manifest file from command palette.

  • In CLI, use command:

       teamsfx validate --env local
   teamsfx validate --env dev
   ```

To preview values for local and dev environment

In manifest.template.json, you can go to CodeLens to preview the values for local and dev environment.

Screenshot is an example of showing preview values for local and dev environment.

Note

Provision the environment or execute local debug to generate values for placeholders.

You can go to state file or configuration file by selecting the CodeLens, which provides a drop down list with all the environment names. After selecting one environment, the corresponding state file or configuration file opens.

Screenshot is an example of showing the selection of an environment.

To preview values for all the environments, you can hover over the placeholder. It shows a list with environment names and corresponding values. If you haven't provisioned the environment or executed the local debug, select Trigger Teams: Provision in the cloud command to see placeholder value or Trigger local debug to see placeholder value.

Screenshot is an example of showing the preview values for all environments.

See also
