Define singleton(ODL V6.x)

Applies To: # OData Core lib v6 supported OData Core Lib V6

Defining a singleton in the entity container shares the same simple way as defining an entity set.

This section shows how to define singletons using EdmLib APIs. We will continue to use and extend the sample from the previous sections.

Add a Singleton VipCustomer

In the SampleModelBuilder.cs file, add the following code into the SampleModelBuilder class:

namespace EdmLibSample
{
    public class SampleModelBuilder
    {
        ...
        private EdmSingleton _vipCustomer;
        ...
        public SampleModelBuilder BuildVipCustomer()
        {
            _vipCustomer = _defaultContainer.AddSingleton("VipCustomer", _customerType);
            return this;
        }
        ...
    }
}

This code directly adds a new singleton VipCustomer to the default container.

In the Program.cs file, insert the following code into the Main method:

namespace EdmLibSample
{
    class Program
    {
        public static void Main(string[] args)
        {
            var builder = new SampleModelBuilder();
            var model = builder
                ...
                .BuildCustomerSet()
#region         !!!INSERT THE CODE BELOW!!!
                .BuildVipCustomer()
#endregion
                .GetModel();
            WriteModelToCsdl(model, "csdl.xml");
        }
    }
}

Run the Sample

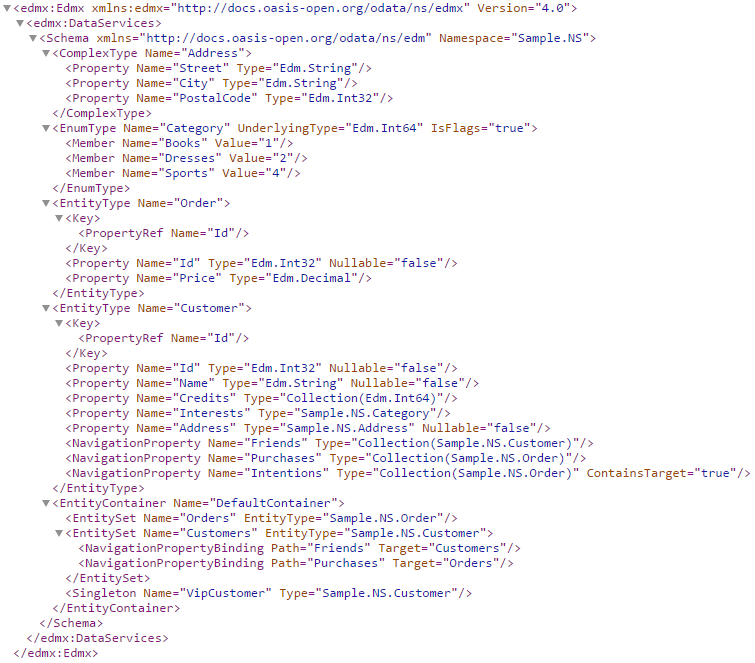

Build and run the sample. Then open the csdl.xml file under the output directory. The content of csdl.xml should look like the following:

References

[Tutorial & Sample] Use Singleton to define your special entity.
