Basic CRUD in ASP.NET Core OData 8 and F#

2023-08-23

Applies To:# OData Web API 8 supported Green circle with a checkmark inside it. OData Web API v8

This tutorial shows how to implement basic CRUD (Create, Read, Update, and Delete) in an ASP.NET Core OData 8 service built in F#.

You'll learn how to:
✅ Create an F# ASP.NET Core application
✅ Install required packages
✅ Add data models
✅ Add an in-memory collection as data source
✅ Build the Edm model and configure the service
✅ Add an OData controller
✅ Run the OData service
✅ Request entity collection
✅ Request a single entity
✅ Create an entity
✅ Update an entity
✅ Delete an entity

Visual Studio 2022 with the ASP.NET and web development workload

Create an ASP.NET Core application

Start Visual Studio 2022 and select Create a new project.
In the Create a new project dialog:
- Enter Empty in the Search for templates search box.
- Select ASP.NET Core Empty project template and select Next.
Name the project BasicCrudInFSharp and select Next.

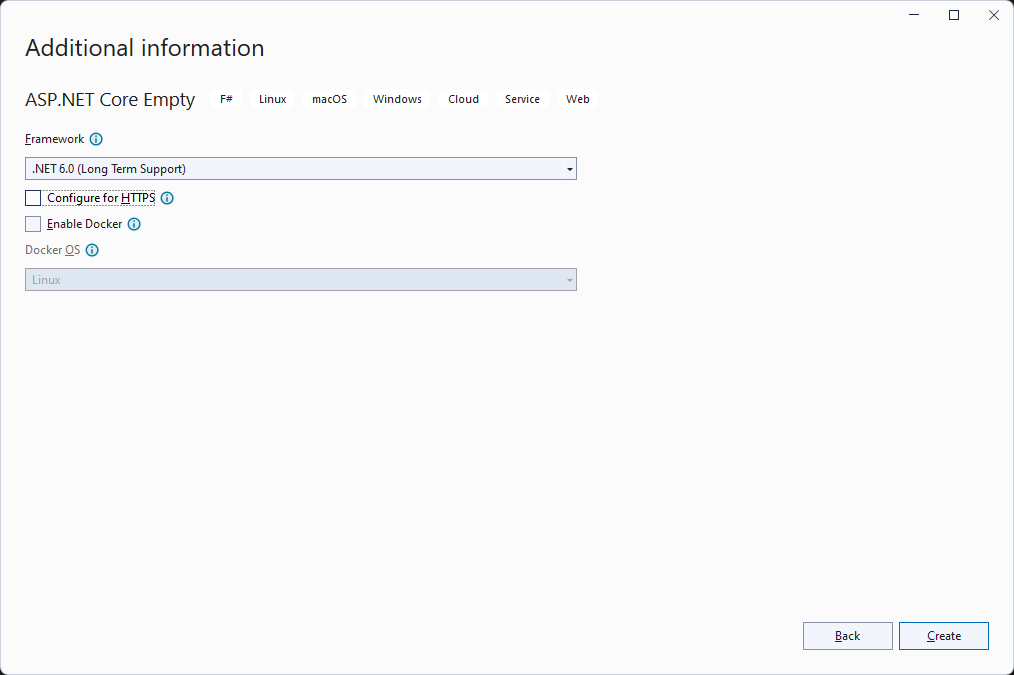

In the Additional information dialog:
- Select .NET 6.0 (Long Term Support).
- Uncheck Configure for HTTPS checkbox.
- Select Create.

Install required packages

Install the following Nuget package:

Microsoft.AspNetCore.OData 8.x

Visual Studio
.NET Core CLI

In the Visual Studio Package Manager Console:

Install-Package Microsoft.AspNetCore.OData

dotnet add package Microsoft.AspNetCore.OData

Add data models

Add a folder named Models to the project and then add the following type:

Person class

namespace BasicCrudInFSharp.Models

type Person() =
    member val Id = 0 with get, set
    member val Name = "" with get, set
    member val Age = 0 with get, set

Add an in-memory collection as data source

Add an in-memory collection to serve as the data source for the OData service:

namespace BasicCrudInFSharp.Data

open BasicCrudInFSharp.Models

module DataSource =
    let private GetPeople() =
        let people = ResizeArray<Person>()

        people.Add(new Person(Id = 1, Name = "Sue", Age = 19))
        people.Add(new Person(Id = 2, Name = "Joe", Age = 17))
        people.Add(new Person(Id = 3, Name = "Luc", Age = 23))

        people

    let People = GetPeople()

NOTE: The F# compiler requires files (and code within a file) to be organized in dependency order. In our project for example, the compiler has to "see" the Person type first before the DataSource module since the latter is dependent on the former. For that reason, you'll need to manually edit the .fsproj file to reorder the files as follows:

<Project Sdk="Microsoft.NET.Sdk.Web">
  <PropertyGroup>
    <TargetFramework>net6.0</TargetFramework>
  </PropertyGroup>
  <ItemGroup>
    <Compile Include="Models\Person.fs" />
    <Compile Include="Data\DataSource.fs" />
    <Compile Include="Program.fs" />
  </ItemGroup>
</Project>

Build the Edm model and configure the service

open Microsoft.AspNetCore.Builder
open Microsoft.Extensions.Hosting
open Microsoft.Extensions.DependencyInjection
open Microsoft.AspNetCore.OData
open Microsoft.OData.ModelBuilder
open BasicCrudInFSharp.Models


[<EntryPoint>]
let main args =
    let builder = WebApplication.CreateBuilder(args)

    let modelBuilder = new ODataConventionModelBuilder()
    modelBuilder.EntitySet<Person>("People") |> ignore

    let model = modelBuilder.GetEdmModel()

    builder.Services.AddControllers().AddOData(fun options ->
        options.EnableQueryFeatures().AddRouteComponents(model) |> ignore) |> ignore

    let app = builder.Build()

    app.UseODataRouteDebug() |> ignore
    app.UseRouting() |> ignore
    app.UseEndpoints(fun endpoints -> endpoints.MapControllers() |> ignore) |> ignore

    app.Run()

    0 // Exit code

We're using the ODataConventionalModelBuilder to build the Edm model. As part of the model, we register an entity set named People - a collection of Person entities.

Next, we add essential OData services by calling the AddOData method, in the process enabling different OData query features - $select, $filter, $orderby, etc.

Lastly, we register the default route by calling the AddRouteComponents method, passing along the Edm model to associate it with.

Add an OData controller

Add a folder named Controllers and then add the following F# class:

namespace BasicCrudInFSharp.Controllers

open System.Threading.Tasks
open Microsoft.AspNetCore.Mvc
open Microsoft.AspNetCore.OData.Deltas
open Microsoft.AspNetCore.OData.Query
open Microsoft.AspNetCore.OData.Routing.Controllers
open BasicCrudInFSharp.Data
open BasicCrudInFSharp.Models

type PeopleController() =
    inherit ODataController()

The PeopleController above inherits from ODataController. The ODataController class implements shared logic required when writing and reading data using the OData formats.

For the reason outline in the add an in-memory collection as data source section, edit the .fsproj file such that PeopleController.fs file appears after DataSource.fs in the ItemGroup.

We will add controller actions to this controller progressively to support different CRUD operations.

Run the OData service

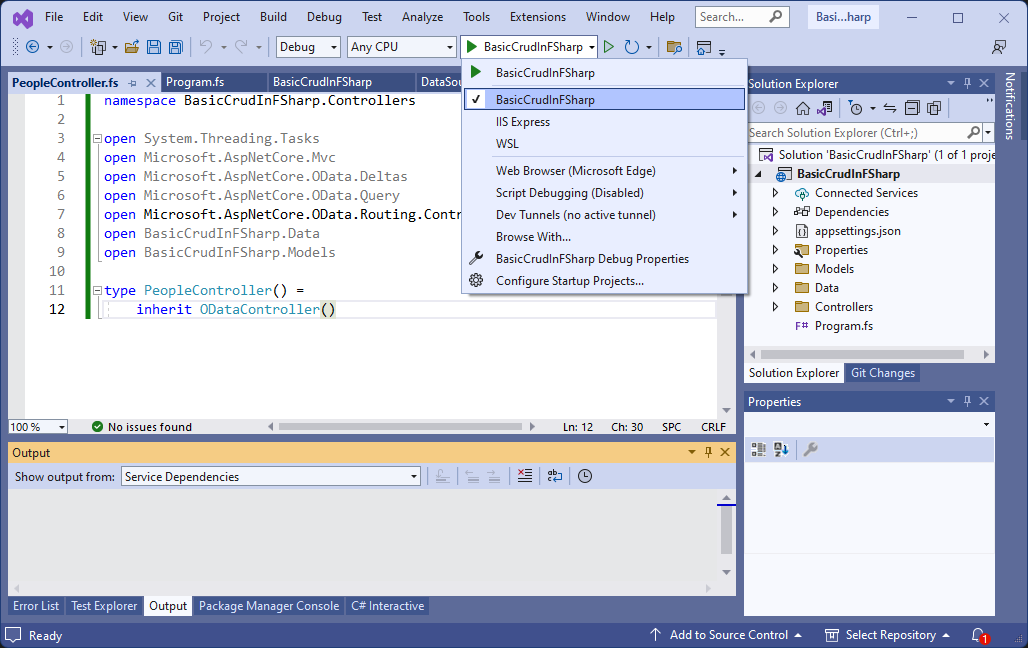

Before running the service, select the debugging profile named after the project - BasicCrudInFSharp - to use ASP.NET Core Kestrel web server.

Press F5 to build and run the application.

You may get a security warning about installation of a certificate from a certification authority (CA). You can choose not to allow the certificate to be installed.

After the application has launched, take note of the endpoint that the application is listening on - http://localhost:5108. The port may differ depending on the version of Visual Studio and other environmental settings.

Stop the application.

In the sections that follow, we implement support for different CRUD operations. After implementing support for each particular operation, you can re-run the application to test the functionality.

Request entity collection

To support the ability to return all Person entities, we implement a controller action to handle that request.

Add the following logic to the PeopleController class:

    [<HttpGet>]
    [<EnableQuery>]
    member this.Get() =
        this.Ok(DataSource.People)

In the above block of code, we're calling the ASP.NET Core built-in Ok method that prepares a 200 OK HTTP response. We are also passing the DataSource.People collection into the method for the collection to be written into the response.

The following GET request returns all Person entities:

GET http://localhost:5108/People

The following JSON payload shows the expected response:

{
    "@odata.context": "http://localhost:5108/$metadata#People",
    "value": [
        {
            "Id": 1,
            "Name": "Sue",
            "Age": 19
        },
        {
            "Id": 2,
            "Name": "Joe",
            "Age": 17
        },
        {
            "Id": 3,
            "Name": "Luc",
            "Age": 23
        }
    ]
}

You can apply any of the supported query options to transform the data before returning the results. For example, to return people aged less than 20, you can apply the $filter query option as follows:

GET http://localhost:5108/People?$filter=Age lt 20

The following JSON payload shows the expected response:

{
    "@odata.context": "http://localhost:5108/$metadata#People",
    "value": [
        {
            "Id": 1,
            "Name": "Sue",
            "Age": 19
        },
        {
            "Id": 2,
            "Name": "Joe",
            "Age": 17
        }
    ]
}

Request a single entity

To support this request, we add a controller action named Get to the PeopleController class. The action should accept a single parameter named key of type int - same type as the Person entity key property:

    [<HttpGet>]
    [<EnableQuery>]
    member this.Get(key : int) =
        match DataSource.People |> Seq.tryFind(fun d -> d.Id.Equals(key)) with
        | None -> this.NotFound() :> ActionResult
        | Some person -> this.Ok(person) :> ActionResult

In the above block of code, we're executing the tryFind method against the People collection to find a Person entity that matches the value of the key parameter. We return a 404 NotFound HTTP status if we don't find any match; otherwise we call Ok method and pass the matched entity to be written into the 200 OK HTTP response.

The following GET request returns the person with a key value of 2:

GET http://localhost:5108/People(2)

The following JSON payload shows the expected response:

{
    "@odata.context": "http://localhost:5108/$metadata#People/$entity",
    "Id": 2,
    "Name": "Joe",
    "Age": 17
}

Create an entity

To support this request, we add a controller action named Post to the PeopleController class. The action should accept a single parameter of type Person, decorated with FromBody attribute:

    [<HttpPost>]
    member this.Post([<FromBody>] person : Person) =
        if not (this.ModelState.IsValid) || person.Id = 0 then
            this.BadRequest() :> ActionResult
        else
            match DataSource.People |> Seq.tryFind(fun d -> d.Id.Equals(person.Id)) with
            | Some _ -> this.Conflict() :> ActionResult
            | None ->
                DataSource.People.Add(person)
                this.Created(person) :> ActionResult

In the above block of code, we're first checking that the model is valid and that the Id property of the person parameter is not 0. If the result is false, we respond with a 400 BadRequest HTTP status.

Next, we're executing the tryFind method against the People collection to find a Person entity that matches the value of the Id property of the person parameter. If a match is found, we respond with a 409 Conflict HTTP status. If no match is found, we add the person object to the People collection before calling Created method that returns a 201 Created HTTP response containing the location of the created entity as a Location header.

The following POST request creates a Person entity:

POST http://localhost:5108/People

Here's the request body:

{
    "Id": 4,
    "Name": "Doe",
    "Age": 18
}

Update an entity

We can update an entity using PUT or PATCH request. The PUT method updates the entire entity (i.e. replaces the entity) while the PATCH method applies a partial update to the entity (i.e. modifies the entity).

Update an entity using `PUT`

To support this request, we add a controller action named Put to the PeopleController class. The action should accept two parameters - the first is the key of the target entity and the second is a parameter of type Person decorated with FromBody attribute:

    [<HttpPut>]
    member this.Put(key : int, [<FromBody>] person : Person) =
        if not (this.ModelState.IsValid) then
            this.BadRequest() :> ActionResult
        else
            match DataSource.People |> Seq.tryFind(fun d -> d.Id.Equals(key)) with
            | None -> this.NotFound() :> ActionResult
            | Some target ->
                target.Name <- person.Name
                target.Age <- person.Age
                this.Ok() :> ActionResult

In the above block of code, we're first checking that the model is valid. If the result is false, we respond with a 400 BadRequest HTTP status.

Next, we're executing the tryFind method against the People collection to find a Person entity that matches the value of the key parameter. If a match is not found, we respond with a 404 NotFound HTTP status. If a match is found, we update the properties of the matched Person entity with the respective property values from the person parameter and then respond with a 200 OK HTTP status.

The following PUT request updates person 3:

PUT http://localhost:5108/People(3)

Here's the request body:

{
    "Id": 3,
    "Name": "Foo",
    "Age": 31
}

The above request will update the entire entity. You can query for the entity to confirm the result of the PUT operation.

Update an entity using `PATCH`

To support this request, we add a controller action named Patch to the PeopleController class. The action should accept two parameters - the first is the key of the target entity and the second is a parameter of type Delta<Person> decorated with FromBody attribute:

    [<HttpPatch>]
    member this.Patch(key : int, [<FromBody>] delta : Delta<Person>) =
        if not (this.ModelState.IsValid) then
            this.BadRequest() :> ActionResult
        else
            match DataSource.People |> Seq.tryFind(fun d -> d.Id.Equals(key)) with
            | None -> this.NotFound() :> ActionResult
            | Some person ->
                delta.Patch(person) |> ignore
                this.Ok() :> ActionResult

In the above block of code, we're first checking that the model is valid. If the result is false, we respond with a 400 BadRequest HTTP status.

Next, we're executing the tryFind method against the People collection to find a Person entity that matches the value of the key parameter. If a match is not found, we respond with a 404 NotFound HTTP status. If a match is found, we execute the Patch method of the Delta<Person> object to update only the modified properties before responding with a 200 OK HTTP status.

The following PATCH request patches person 3:

PATCH http://localhost:5108/People(3)

Here's the request body:

{
    "Name": "Bar"
}

The above request will only update the Name property. You can query for the entity to confirm the result of the PATCH operation.

Delete an entity

To support this request, we add a controller action named Delete to the PeopleController class. The action should accept the key parameter:

    [<HttpDelete>]
    member this.Delete(key : int) =
        match DataSource.People |> Seq.tryFind(fun d -> d.Id.Equals(key)) with
        | None -> this.NoContent()
        | Some person ->
            DataSource.People.Remove(person) |> ignore
            this.NoContent()

In the above block of code, we're executing the tryFind method against the People collection to find a Person entity that matches the value of the key parameter. If a match is not found, we respond with a 204 NoContent HTTP status. If a match is found, we remove the matched Person entity from the People collection before responding with a 204 NoContent HTTP status.

The following DELETE request deletes person 3:

DELETE http://localhost:5108/People(3)
