Edit

Automatically update your signature when switching between Exchange accounts

  • Article

Applying the correct signature to messages when using multiple Exchange accounts is now made easier with the addition of the OnMessageFromChanged and OnAppointmentFromChanged events to the event-based activation feature. The OnMessageFromChanged event occurs when the account in the From field of a message being composed is changed, while the OnAppointmentFromChanged event occurs when the organizer of a meeting being composed is changed. These events further extend the capabilities of signature add-ins and allow them to:

  • Provide users with the convenience to apply custom signatures for each of their accounts.
  • Enable mailbox delegates to more accurately and efficiently manage outgoing messages and meeting requests from multiple mailboxes.
  • Ensure that users' messages and appointments meet their organization's communication and marketing policies.

The following sections walk you through how to develop an event-based add-in that handles the OnMessageFromChanged event to automatically update a message's signature when the mail account in the From field is changed.

Note

The OnMessageFromChanged and OnAppointmentFromChanged events were introduced in requirement set 1.13. For information about client support for these events, see Supported clients and platforms.

Supported clients and platforms

The following tables list client-server combinations that support the OnMessageFromChanged and OnAppointmentFromChanged events. Select the tab for the applicable event.

Client Exchange Online Exchange 2019 on-premises (Cumulative Update 12 or later) Exchange 2016 on-premises (Cumulative Update 22 or later)
Windows
Version 2304 (Build 16327.20248) or later		 Supported Supported Supported
Mac
Version 16.77.816.0 or later		 Supported Not applicable Not applicable
Web browser (modern UI) Supported Not applicable Not applicable
iOS Not applicable Not applicable Not applicable
Android Not applicable Not applicable Not applicable

Prerequisites

To test the walkthrough, you must have at least two Exchange accounts.

Set up your environment

Complete the Outlook quick start, which creates an add-in project with the Yeoman generator for Office Add-ins.

Configure the manifest

Note

The OnMessageFromChanged and OnAppointmentFromChanged events aren't yet supported for the Unified manifest for Microsoft 365 (preview).

To enable the add-in to activate when the OnMessageFromChanged event occurs, the Runtimes element and LaunchEvent extension point must be configured in the VersionOverridesV1_1 node of the manifest.

In addition to the OnMessageFromChanged event, the OnNewMessageCompose event is also configured in the manifest, so that a signature is added to a message being composed if a default Outlook signature isn't already configured on the current account.

  1. In your code editor, open the quick start project.

  2. Open the manifest.xml file located at the root of your project.

  3. Select the entire <VersionOverrides> node (including open and close tags), replace it with the following XML, then save your changes.

    <VersionOverrides xmlns="http://schemas.microsoft.com/office/mailappversionoverrides" xsi:type="VersionOverridesV1_0">
  <VersionOverrides xmlns="http://schemas.microsoft.com/office/mailappversionoverrides/1.1" xsi:type="VersionOverridesV1_1">
    <Requirements>
      <bt:Sets DefaultMinVersion="1.13">
        <bt:Set Name="Mailbox"/>
      </bt:Sets>
    </Requirements>
    <Hosts>
      <Host xsi:type="MailHost">
        <Runtimes>
          <!-- HTML file that references or contains inline JavaScript event handlers.
               This is used by event-based activation add-ins in Outlook on the web and Outlook on the new Mac UI. -->
          <Runtime resid="WebViewRuntime.Url">
            <!-- JavaScript file that contains the event handlers.
                 This is used by event-based activation add-ins in Outlook on Windows. -->
            <Override type="javascript" resid="JSRuntime.Url"/>
          </Runtime>
        </Runtimes>
        <DesktopFormFactor>
          <FunctionFile resid="Commands.Url"/>
          <ExtensionPoint xsi:type="MessageComposeCommandSurface">
            <OfficeTab id="TabDefault">
              <Group id="msgComposeGroup">
                <Label resid="GroupLabel"/>
                <Control xsi:type="Button" id="msgComposeOpenPaneButton">
                  <Label resid="TaskpaneButton.Label"/>
                  <Supertip>
                    <Title resid="TaskpaneButton.Label"/>
                    <Description resid="TaskpaneButton.Tooltip"/>
                  </Supertip>
                  <Icon>
                    <bt:Image size="16" resid="Icon.16x16"/>
                    <bt:Image size="32" resid="Icon.32x32"/>
                    <bt:Image size="80" resid="Icon.80x80"/>
                  </Icon>
                  <Action xsi:type="ShowTaskpane">
                    <SourceLocation resid="Taskpane.Url"/>
                  </Action>
                </Control>
                <Control xsi:type="Button" id="ActionButton">
                  <Label resid="ActionButton.Label"/>
                  <Supertip>
                    <Title resid="ActionButton.Label"/>
                    <Description resid="ActionButton.Tooltip"/>
                  </Supertip>
                  <Icon>
                    <bt:Image size="16" resid="Icon.16x16"/>
                    <bt:Image size="32" resid="Icon.32x32"/>
                    <bt:Image size="80" resid="Icon.80x80"/>
                  </Icon>
                  <Action xsi:type="ExecuteFunction">
                    <FunctionName>action</FunctionName>
                  </Action>
                </Control>
              </Group>
            </OfficeTab>
          </ExtensionPoint>
          <!-- Configures event-based activation. -->
          <ExtensionPoint xsi:type="LaunchEvent">
            <LaunchEvents>
              <LaunchEvent Type="OnNewMessageCompose" FunctionName="onNewMessageComposeHandler"/>
              <LaunchEvent Type="OnMessageFromChanged" FunctionName="onMessageFromChangedHandler"/>
            </LaunchEvents>
            <!-- Identifies the runtime to be used (also referenced by the <Runtime> element). -->
            <SourceLocation resid="WebViewRuntime.Url"/>
          </ExtensionPoint>
        </DesktopFormFactor>
      </Host>
    </Hosts>
    <Resources>
      <bt:Images>
        <bt:Image id="Icon.16x16" DefaultValue="https://localhost:3000/assets/icon-16.png"/>
        <bt:Image id="Icon.32x32" DefaultValue="https://localhost:3000/assets/icon-32.png"/>
        <bt:Image id="Icon.80x80" DefaultValue="https://localhost:3000/assets/icon-80.png"/>
      </bt:Images>
      <bt:Urls>
        <bt:Url id="Commands.Url" DefaultValue="https://localhost:3000/commands.html"/>
        <bt:Url id="Taskpane.Url" DefaultValue="https://localhost:3000/taskpane.html"/>
        <bt:Url id="JSRuntime.Url" DefaultValue="https://localhost:3000/launchevent.js"/>
        <bt:Url id="WebViewRuntime.Url" DefaultValue="https://localhost:3000/commands.html"/>
      </bt:Urls>
      <bt:ShortStrings>
        <bt:String id="GroupLabel" DefaultValue="Contoso Add-in"/>
        <bt:String id="TaskpaneButton.Label" DefaultValue="Show Taskpane"/>
        <bt:String id="ActionButton.Label" DefaultValue="Perform an action"/>
      </bt:ShortStrings>
      <bt:LongStrings>
        <bt:String id="TaskpaneButton.Tooltip" DefaultValue="Opens a pane displaying all available properties."/>
        <bt:String id="ActionButton.Tooltip" DefaultValue="Perform an action when clicked."/>
      </bt:LongStrings>
    </Resources>
  </VersionOverrides>
</VersionOverrides>

Tip

Implement the event handlers

Event handlers must be configured for the OnNewMessageCompose and OnMessageFromChanged events. The onNewMessageComposeHandler function adds a signature to a newly created message if a default one isn't already configured on the current account. When the account in the From field is changed, the onMessageFromChangedHandler function updates the signature based on this newly selected account.

  1. From the same quick start project, navigate to the ./src directory, then create a new folder named launchevent.

  2. In the ./src/launchevent folder, create a new file named launchevent.js.

  3. Open the file ./src/launchevent/launchevent.js in your code editor and add the following JavaScript code.

    /*
 * Copyright (c) Microsoft Corporation. All rights reserved. Licensed under the MIT license.
 * See LICENSE in the project root for license information.
 */

// The OnNewMessageCompose event handler that adds a signature to a new message.
function onNewMessageComposeHandler(event) {
    const item = Office.context.mailbox.item;

    // Check if a default Outlook signature is already configured.
    item.isClientSignatureEnabledAsync({ asyncContext: event }, (result) => {
        if (result.status === Office.AsyncResultStatus.Failed) {
            console.log(result.error.message);
            return;
        }

        // Add a signature if there's no default Outlook signature configured.
        if (result.value === false) {
            item.body.setSignatureAsync(
                "<i>This is a sample signature.</i>",
                { asyncContext: result.asyncContext, coercionType: Office.CoercionType.Html },
                addSignatureCallback
            );
        }
    });
}

// The OnMessageFromChanged event handler that updates the signature when the email address in the From field is changed.
function onMessageFromChangedHandler(event) {
    const item = Office.context.mailbox.item;
    const signatureIcon =
    "iVBORw0KGgoAAAANSUhEUgAAACcAAAAnCAMAAAC7faEHAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAzUExURQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAKMFRskAAAAQdFJOUwAQIDBAUGBwgI+fr7/P3+8jGoKKAAAACXBIWXMAAA7DAAAOwwHHb6hkAAABT0lEQVQ4T7XT2ZalIAwF0DAJhMH+/6+tJOQqot6X6joPiouNBo3w9/Hd6+hrYnUt6vhLcjEAJevVW0zJxABSlcunhERpjY+UKoNN5+ZgDGu2onNz0OngjP2FM1VdyBW1LtvGeYrBLs7U5I1PTXZt+zifcS3Icw2GcS3vxRY3Vn/iqx31hUyTnV515kdTfbaNhZLI30AceqDiIo4tyKEmJpKdP5M4um+nUwfDWxAXdzqMNKQ14jLdL5ntXzxcRF440mhS6yu882Kxa30RZcUIjTCJg7lscsR4VsMjfX9Q0Vuv/Wd3YosD1J4LuSRtaL7bzXGN1wx2cytUdncDuhA3fu6HPTiCvpQUIjZ3sCcHVbvLtbNTHlysx2w9/s27m9gEb+7CTri6hR1wcTf2gVf3wBRe3CMbcHYvTODkXhnD0+178K/pZ9+n/C1ru/2HAPwAo7YM1X4+tLMAAAAASUVORK5CYII=";

    // Get the currently selected From account.
    item.from.getAsync({ asyncContext: event }, (result) => {
        if (result.status === Office.AsyncResultStatus.Failed) {
            console.log(result.error.message);
            return;
        }

        // Create a signature based on the currently selected From account.
        const name = result.value.displayName;
        const options = { asyncContext: { event: result.asyncContext, name: name }, isInline: true };
        item.addFileAttachmentFromBase64Async(signatureIcon, "signatureIcon.png", options, (result) => {
            if (result.status === Office.AsyncResultStatus.Failed) {
                console.log(result.error.message);
                return;
            }

            // Add the created signature to the mail item.
            const signature = "<img src='cid:signatureIcon.png'>" + result.asyncContext.name;
            item.body.setSignatureAsync(
                signature,
                { asyncContext: result.asyncContext.event, coercionType: Office.CoercionType.Html },
                addSignatureCallback
            );
        });
    });
}

// Callback function to add a signature to the mail item.
function addSignatureCallback(result) {
    if (result.status === Office.AsyncResultStatus.Failed) {
        console.log(result.error.message);
        return;
    }

    console.log("Successfully added signature.");
    result.asyncContext.completed();
}

// IMPORTANT: To ensure your add-in is supported in the Outlook client on Windows, remember to
// map the event handler name specified in the manifest's LaunchEvent element to its JavaScript counterpart.
if (Office.context.platform === Office.PlatformType.PC || Office.context.platform == null) {
    Office.actions.associate("onNewMessageComposeHandler", onNewMessageComposeHandler);
    Office.actions.associate("onMessageFromChangedHandler", onMessageFromChangedHandler);
}

Important

Windows: At present, imports aren't supported in the JavaScript file where you implement the handling for event-based activation.

Tip

Event-based add-ins running in Outlook on Windows don't run code included in the Office.onReady() and Office.initialize functions. We recommend adding your add-in startup logic, such as checking the user's Outlook version, to your event handlers instead.

Update the commands HTML file

  1. From the ./src/commands folder, open commands.html.

  2. Add the following code below the existing script tag.

    <script type="text/javascript" src="../launchevent/launchevent.js"></script>

  3. Save your changes.

Update webpack config settings

  1. From the root directory of the project, open the webpack.config.js file.

  2. Locate the plugins array within the config object and add the following new object to the beginning of the array.

    new CopyWebpackPlugin({
  patterns: [
    {
      from: "./src/launchevent/launchevent.js",
      to: "launchevent.js",
    },
  ],
}),

  3. Save your changes.

Try it out

  1. Run the following commands in the root directory of your project. When you run npm start, the local web server will start (if it isn't already running) and your add-in will be sideloaded.

    npm run build

    npm start

    Note

    If your add-in wasn't automatically sideloaded, then follow the instructions in Sideload Outlook add-ins for testing to manually sideload the add-in in Outlook.

  2. In your preferred Outlook client, create a new message. If you don't have a default Outlook signature configured, the add-in adds one to the newly created message.

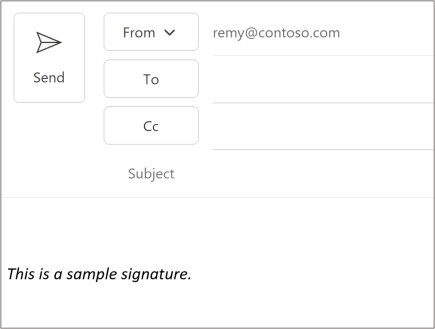

    A sample signature added to a newly composed message when a default Outlook signature isn't configured on the account.

  3. Enable the From field, if applicable. For guidance on how to enable it, see the "Why is the From button missing?" section of Change the account used to send email messages.

  4. Select From, then choose a different Exchange account. Alternatively, manually enter the Exchange email address by selecting From > Other Email Address. An updated signature is added to the message, replacing the previous one.

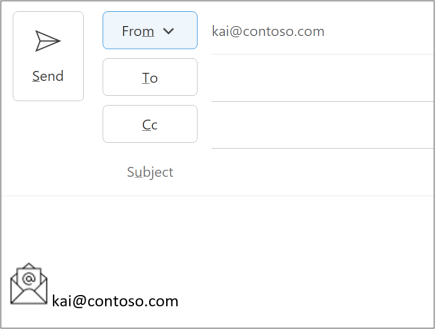

    A sample of an updated signature with a logo when the account in the From field is changed.

Troubleshoot your add-in

For guidance on how to troubleshoot your event-based activation add-in, see the "Troubleshooting guide" section of Configure your Outlook add-in for event-based activation.

Deploy to users

Similar to other event-based add-ins, add-ins that use the OnMessageFromChanged and OnAppointmentFromChanged events must be deployed by an organization's administrator. For guidance on how to deploy your add-in via the Microsoft 365 admin center, see the "Deploy to users" section of Configure your Outlook add-in for event-based activation.

Event behavior and limitations

Because the OnMessageFromChanged and OnAppointmentFromChanged events are supported through the event-based activation feature, the same behavior and limitations apply to add-ins that activate as a result of this event. For a detailed description, see Event-based activation behavior and limitations.

In addition to these characteristics, the following aspects also apply when an add-in activates on these events.

  • The OnMessageFromChanged event is only supported in message compose mode, while the OnAppointmentFromChanged event is only supported in appointment compose mode.
  • In Outlook on Windows, only the OnMessageFromChanged event is supported.
  • The OnMessageFromChanged and OnAppointmentFromChanged events only support Exchange accounts. In messages being composed, the Exchange account is selected from the From field dropdown list or manually entered in the field. In appointments being composed, the Exchange account is selected from the organizer field dropdown list. If a user switches to a non-Exchange account in the From or organizer field, the Outlook client automatically clears out the signature set by the previously selected account.
  • Delegate and shared mailbox scenarios are supported.
  • The OnAppointmentFromChanged event isn't supported in Microsoft 365 group calendars. If a user switches from their Exchange account to a Microsoft 365 group calendar account in the organizer field, the Outlook client automatically clears out the signature set by the Exchange account.
  • When switching to another Exchange account in the From or organizer field, the add-ins for the previously selected account, if any, are terminated, and the add-ins associated with the newly selected account are loaded before the OnMessageFromChanged or OnAppointmentFromChanged event is initiated.
  • Email account aliases are supported. When an alias for the current account is selected in the From or organizer field, the OnMessageFromChanged or OnAppointmentFromChanged event occurs without reloading the account's add-ins.
  • When the From or organizer field dropdown list is opened by mistake or the same account that appears in the From or organizer field is reselected, the OnMessageFromChanged or OnAppointmentFromChanged event occurs, but the account's add-ins aren't terminated or reloaded.

See also
