To display information about an Address Book object to the user, the client has to first request the display template from the server by calling the NspiGetTemplateInfo function, as described in [MS-NSPI] and [MS-OXNSPI] section 3.1.4.1.18. The first step is to bind to the server by using the NspiBind function call, as described in [MS-NSPI] and [MS-OXNSPI] section 3.1.4.1.1, to retrieve an RPC context handle for the server.
For example, the NspiGetTemplateInfo function is called to get the template to display data about a mail user by passing the ulType parameter with the mail user display type (DT_MAILUSER).
The following are the input parameters for an example of a call to the NspiGetTemplateInfo function.
Note Only relevant information, and not all parameters, is shown. For more information about the parameters, see [MS-NSPI] and [MS-OXNSPI] section 3.1.4.1.18.
-
dwFlags: 0x00000061 ulType: 0x00000000 pDN: (null) dwCodePage: 0x000004e4 dwLocaleID: 0x00000409
The call returns a PropertyRow_r structure in the ppData return parameter. The following is an example of the ppData parameter that can be returned.
-
ppData cValues - 0x00000001 ulAdrEntryPad - not used - 0x00000000 Prop0 ulPropTag - PidTagTemplateData (0x00010102) ulReserved - not used - 0x00000000 TRowSet - Type - 0x00000001 cRows - 0x00000041 Row0 XPos - 0x00000000 XDelta - 0x00000000 YPos - 0x00000000 YDelta- 0x00000000 ControlType - 0x00000008 ControlFlags - 0x00000ce4 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x0000092c General Row1 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000003 YDelta- 0x00000029 ControlType - 0x00000006 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000934 Name Row2 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x0000000f YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000939 &First: Row3 XPos - 0x00000053 XDelta - 0x00000025 YPos - 0x0000000d YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a06001e ulSize - 0x00000040 ulString - 0x00000941 * Row4 XPos - 0x0000007b XDelta - 0x0000002c YPos - 0x0000000f YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000943 Ini&tials: Row5 XPos - 0x000000a8 XDelta - 0x0000000f YPos - 0x0000000d YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a0a001e ulSize - 0x00000006 ulString - 0x0000094e * Row6 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x0000000f YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000950 &Last: Row7 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000000d YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a11001e ulSize - 0x00000040 ulString - 0x00000957 * Row8 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x0000001e YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000959 Display&: Row9 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x0000001c YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3001001e ulSize - 0x00000100 ulString - 0x00000963 * Row10 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x0000001e YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000965 Al&ias: Row11 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000001c YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a00001e ulSize - 0x00000040 ulString - 0x0000096d * Row12 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x00000032 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x0000096f Add&ress: Row13 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x00000030 YDelta- 0x0000001b ControlType - 0x00000001 ControlFlags - 0x00000001 ControlStructure dwType - 0x3a29001e ulSize - 0x00000400 ulString - 0x00000979 * Row14 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x00000050 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x0000097b Cit&y: Row15 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x0000004e YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a27001e ulSize - 0x00000080 ulString - 0x00000982 * Row16 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x0000005f YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000984 &State: Row17 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x0000005d YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a28001e ulSize - 0x00000080 ulString - 0x0000098c * Row18 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x0000006e YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x0000098e &Zip code: Row19 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x0000006c YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a2a001e ulSize - 0x00000028 ulString - 0x00000999 * Row20 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x0000007d YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x0000099b Co&untry/Region: Row21 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x0000007b YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a26001e ulSize - 0x00000003 ulString - 0x000009ac * Row22 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000032 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009ae Titl&e: Row23 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x00000030 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a17001e ulSize - 0x00000040 ulString - 0x000009b6 * Row24 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000041 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009b8 Co&mpany: Row25 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000003f YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a16001e ulSize - 0x00000040 ulString - 0x000009c2 * Row26 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000050 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009c4 &Department: Row27 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000004e YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a18001e ulSize - 0x00000040 ulString - 0x000009d1 * Row28 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x0000005f YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009d3 &Office: Row29 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000005d YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a19001e ulSize - 0x00000080 ulString - 0x000009dc * Row30 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x0000006e YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009de Assista&nt: Row31 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000006c YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a30001e ulSize - 0x00000100 ulString - 0x000009ea * Row32 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x0000007d YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009ec P&hone: Row33 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x0000007b YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a08001e ulSize - 0x00000040 ulString - 0x000009f4 * Row34 XPos - 0x00000000 XDelta - 0x00000000 YPos - 0x00000000 YDelta- 0x00000000 ControlType - 0x00000008 ControlFlags - 0x00000ce5 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x000009f6 Organization Row35 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000004 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a03 &Manager: Row36 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x0000000f YDelta- 0x00000014 ControlType - 0x00000002 ControlFlags - 0x00000002 ControlStructure dwType - 0x8005000d ulSize - 0x00000000 ulString - 0x00000a0d * Row37 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000025 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a0f &Direct reports: Row38 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000030 YDelta- 0x00000060 ControlType - 0x00000002 ControlFlags - 0x00000000 ControlStructure dwType - 0x800e000d ulSize - 0x00000000 ulString - 0x00000a20 * Row39 XPos - 0x00000000 XDelta - 0x00000000 YPos - 0x00000000 YDelta- 0x00000000 ControlType - 0x00000008 ControlFlags - 0x00000ce6 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a22 Phone/Notes Row40 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000003 YDelta- 0x00000050 ControlType - 0x00000006 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a2e Phone numbers Row41 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x00000012 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a3c Bu&siness: Row42 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x00000010 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a08001e ulSize - 0x00000040 ulString - 0x00000a47 * Row43 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000012 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a49 &Home: Row44 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x00000010 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a09001e ulSize - 0x00000040 ulString - 0x00000a50 * Row45 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x00000022 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a52 Busi&ness 2: Row46 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x00000020 YDelta- 0x00000060 ControlType - 0x0000000c ControlFlags - 0x00000001 ControlStructure dwType - 0x3a1b101e ulSize - 0x00000040 ulString - 0x00000a5f * Row47 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000022 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a61 H&ome 2: Row48 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x00000020 YDelta- 0x00000060 ControlType - 0x0000000c ControlFlags - 0x00000001 ControlStructure dwType - 0x3a2f101e ulSize - 0x00000040 ulString - 0x00000a6a * Row49 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x00000032 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a6c &Fax: Row50 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x00000030 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a23001e ulSize - 0x00000040 ulString - 0x00000a72 * Row51 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000032 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a74 &Mobile: Row52 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x00000030 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a1c001e ulSize - 0x00000040 ulString - 0x00000a7d * Row53 XPos - 0x0000000c XDelta - 0x00000046 YPos - 0x00000042 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a7f Ass&istant: Row54 XPos - 0x00000053 XDelta - 0x00000064 YPos - 0x00000040 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a2e001e ulSize - 0x00000040 ulString - 0x00000a8b * Row55 XPos - 0x000000bd XDelta - 0x00000046 YPos - 0x00000042 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a8d Pa&ger: Row56 XPos - 0x00000103 XDelta - 0x00000064 YPos - 0x00000040 YDelta- 0x0000000c ControlType - 0x00000001 ControlFlags - 0x00000000 ControlStructure dwType - 0x3a21001e ulSize - 0x00000040 ulString - 0x00000a95 * Row57 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x0000005a YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000a97 No&tes: Row58 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000064 YDelta- 0x0000002b ControlType - 0x00000001 ControlFlags - 0x00000001 ControlStructure dwType - 0x3004001e ulSize - 0x00000400 ulString - 0x00000a9f * Row59 XPos - 0x00000000 XDelta - 0x00000000 YPos - 0x00000000 YDelta- 0x00000000 ControlType - 0x00000008 ControlFlags - 0x00000ce7 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000aa1 Member Of Row60 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000004 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000aab &Group membership: Row61 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x0000000e YDelta- 0x00000084 ControlType - 0x00000002 ControlFlags - 0x00000000 ControlStructure dwType - 0x8008000d ulSize - 0x00000000 ulString - 0x00000abe * Row62 XPos - 0x00000000 XDelta - 0x00000000 YPos - 0x00000000 YDelta- 0x00000000 ControlType - 0x00000008 ControlFlags - 0x00000ce8 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000ac0 E-mail Addresses Row63 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x00000004 YDelta- 0x00000008 ControlType - 0x00000000 ControlFlags - 0x00000000 ControlStructure dwType - 0x00000000 ulSize - 0x00000000 ulString - 0x00000ad1 &E-mail addresses: Row64 XPos - 0x00000006 XDelta - 0x00000167 YPos - 0x0000000e YDelta- 0x00000084 ControlType - 0x0000000b ControlFlags - 0x00000000 ControlStructure dwType - 0x800f101e ulSize - 0x00000000 ulString - 0x00000ae4 * 0000 01 00 00 00 41 00 00 00-00 00 00 00 00 00 00 00 ...A........... 0010 00 00 00 00 00 00 00 00-08 00 00 00 e4 0c 00 00 ............... 0020 00 00 00 00 00 00 00 00-2c 09 00 00 06 00 00 00 .......,....... 0030 67 01 00 00 03 00 00 00-29 00 00 00 06 00 00 00 .......)....... 0040 00 00 00 00 00 00 00 00-00 00 00 00 34 09 00 00 ...........4... 0050 0c 00 00 00 46 00 00 00-0f 00 00 00 08 00 00 00 ...F........... 0060 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ............... 0070 39 09 00 00 53 00 00 00-25 00 00 00 0d 00 00 00 9...S......... 0080 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 06 3a ..............: 0090 40 00 00 00 41 09 00 00-7b 00 00 00 2c 00 00 00 ...A...{...,... 00a0 0f 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 ............... 00b0 00 00 00 00 00 00 00 00-43 09 00 00 a8 00 00 00 .......C....... 00c0 0f 00 00 00 0d 00 00 00-0c 00 00 00 01 00 00 00 ............... 00d0 00 00 00 00 1e 00 0a 3a-06 00 00 00 4e 09 00 00 ......:....N... 00e0 bd 00 00 00 46 00 00 00-0f 00 00 00 08 00 00 00 ...F........... 00f0 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ............... 0100 50 09 00 00 03 01 00 00-64 00 00 00 0d 00 00 00 .......d....... 0110 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 11 3a ..............: 0120 40 00 00 00 57 09 00 00-0c 00 00 00 46 00 00 00 ...W.......F... 0130 1e 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 ................ 0140 00 00 00 00 00 00 00 00-59 09 00 00 53 00 00 00 ........Y...S... 0150 64 00 00 00 1c 00 00 00-0c 00 00 00 01 00 00 00 d............... 0160 00 00 00 00 1e 00 01 30-00 01 00 00 63 09 00 00 .......0....c... 0170 bd 00 00 00 46 00 00 00-1e 00 00 00 08 00 00 00 ....F........... 0180 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0190 65 09 00 00 03 01 00 00-64 00 00 00 1c 00 00 00 e.......d....... 01a0 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 00 3a ...............: 01b0 40 00 00 00 6d 09 00 00-0c 00 00 00 46 00 00 00 @...m.......F... 01c0 32 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 2............... 01d0 00 00 00 00 00 00 00 00-6f 09 00 00 53 00 00 00 ........o...S... 01e0 64 00 00 00 30 00 00 00-1b 00 00 00 01 00 00 00 d...0........... 01f0 01 00 00 00 1e 00 29 3a-00 04 00 00 79 09 00 00 ......):....y... 0200 0c 00 00 00 46 00 00 00-50 00 00 00 08 00 00 00 ....F...P....... 0210 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00................ 0220 7b 09 00 00 53 00 00 00-64 00 00 00 4e 00 00 00 {...S...d...N... 0230 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 27 3a ..............': 0240 80 00 00 00 82 09 00 00-0c 00 00 00 46 00 00 00 ............F... 0250 5f 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 _............... 0260 00 00 00 00 00 00 00 00-84 09 00 00 53 00 00 00 ............S... 0270 64 00 00 00 5d 00 00 00-0c 00 00 00 01 00 00 00 d...]........... 0280 00 00 00 00 1e 00 28 3a-80 00 00 00 8c 09 00 00 ......(:........ 0290 0c 00 00 00 46 00 00 00-6e 00 00 00 08 00 00 00 ....F...n....... 02a0 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 02b0 8e 09 00 00 53 00 00 00-64 00 00 00 6c 00 00 00 ....S...d...l... 02c0 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 2a 3a ..............*: 02d0 28 00 00 00 99 09 00 00-0c 00 00 00 46 00 00 00 (...........F... 02e0 7d 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 }............... 02f0 00 00 00 00 00 00 00 00-9b 09 00 00 53 00 00 00 ............S... 0300 64 00 00 00 7b 00 00 00-0c 00 00 00 01 00 00 00 d...{........... 0310 00 00 00 00 1e 00 26 3a-03 00 00 00 ac 09 00 00 ......&:........ 0320 bd 00 00 00 46 00 00 00-32 00 00 00 08 00 00 00 ....F...2....... 0330 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0340 ae 09 00 00 03 01 00 00-64 00 00 00 30 00 00 00 ........d...0... 0350 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 17 3a ...............: 0360 40 00 00 00 b6 09 00 00-bd 00 00 00 46 00 00 00 @...........F... 0370 41 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 A............... 0380 00 00 00 00 00 00 00 00-b8 09 00 00 03 01 00 00 ................ 0390 64 00 00 00 3f 00 00 00-0c 00 00 00 01 00 00 00 d...?........... 03a0 00 00 00 00 1e 00 16 3a-40 00 00 00 c2 09 00 00 .......:@....... 03b0 bd 00 00 00 46 00 00 00-50 00 00 00 08 00 00 00 ....F...P....... 03c0 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 03d0 c4 09 00 00 03 01 00 00-64 00 00 00 4e 00 00 00 ........d...N... 03e0 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 18 3a ...............: 03f0 40 00 00 00 d1 09 00 00-bd 00 00 00 46 00 00 00 @...........F... 0400 5f 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 _............... 0410 00 00 00 00 00 00 00 00-d3 09 00 00 03 01 00 00 ................ 0420 64 00 00 00 5d 00 00 00-0c 00 00 00 01 00 00 00 d...]........... 0430 00 00 00 00 1e 00 19 3a-80 00 00 00 dc 09 00 00 .......:........ 0440 bd 00 00 00 46 00 00 00-6e 00 00 00 08 00 00 00 ....F...n....... 0450 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0460 de 09 00 00 03 01 00 00-64 00 00 00 6c 00 00 00 ........d...l... 0470 0c 00 00 00 01 00 00 00-00 00 00 00 1e 00 30 3a ..............0: 0480 00 01 00 00 ea 09 00 00-bd 00 00 00 46 00 00 00 ............F... 0490 7d 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 }............... 04a0 00 00 00 00 00 00 00 00-ec 09 00 00 03 01 00 00 ................ 04b0 64 00 00 00 7b 00 00 00-0c 00 00 00 01 00 00 00 d...{........... 04c0 00 00 00 00 1e 00 08 3a-40 00 00 00 f4 09 00 00 .......:@....... 04d0 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 04e0 08 00 00 00 e5 0c 00 00-00 00 00 00 00 00 00 00 ................ 04f0 f6 09 00 00 06 00 00 00-67 01 00 00 04 00 00 00 ........g....... 0500 08 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0510 00 00 00 00 03 0a 00 00-06 00 00 00 67 01 00 00 ............g... 0520 0f 00 00 00 14 00 00 00-02 00 00 00 02 00 00 00 ................ 0530 0d 00 05 80 00 00 00 00-0d 0a 00 00 06 00 00 00 ................ 0540 67 01 00 00 25 00 00 00-08 00 00 00 00 00 00 00 g............. 0550 00 00 00 00 00 00 00 00-00 00 00 00 0f 0a 00 00 ................ 0560 06 00 00 00 67 01 00 00-30 00 00 00 60 00 00 00 ....g...0...`... 0570 02 00 00 00 00 00 00 00-0d 00 0e 80 00 00 00 00 ................ 0580 20 0a 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ............... 0590 00 00 00 00 08 00 00 00-e6 0c 00 00 00 00 00 00 ................ 05a0 00 00 00 00 22 0a 00 00-06 00 00 00 67 01 00 00 ....".......g... 05b0 03 00 00 00 50 00 00 00-06 00 00 00 00 00 00 00 ....P........... 05c0 00 00 00 00 00 00 00 00-2e 0a 00 00 0c 00 00 00 ................ 05d0 46 00 00 00 12 00 00 00-08 00 00 00 00 00 00 00 F............... 05e0 00 00 00 00 00 00 00 00-00 00 00 00 3c 0a 00 00 ............<... 05f0 53 00 00 00 64 00 00 00-10 00 00 00 0c 00 00 00 S...d........... 0600 01 00 00 00 00 00 00 00-1e 00 08 3a 40 00 00 00 ...........:@... 0610 47 0a 00 00 bd 00 00 00-46 00 00 00 12 00 00 00 G.......F....... 0620 08 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0630 00 00 00 00 49 0a 00 00-03 01 00 00 64 00 00 00 ....I.......d... 0640 10 00 00 00 0c 00 00 00-01 00 00 00 00 00 00 00 ................ 0650 1e 00 09 3a 40 00 00 00-50 0a 00 00 0c 00 00 00 ...:@...P....... 0660 46 00 00 00 22 00 00 00-08 00 00 00 00 00 00 00 F..."........... 0670 00 00 00 00 00 00 00 00-00 00 00 00 52 0a 00 00 ............R... 0680 53 00 00 00 64 00 00 00-20 00 00 00 60 00 00 00 S...d... ...`... 0690 0c 00 00 00 01 00 00 00-1e 10 1b 3a 40 00 00 00 ...........:@... 06a0 5f 0a 00 00 bd 00 00 00-46 00 00 00 22 00 00 00 _.......F..."... 06b0 08 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 06c0 00 00 00 00 61 0a 00 00-03 01 00 00 64 00 00 00 ....a.......d... 06d0 20 00 00 00 60 00 00 00-0c 00 00 00 01 00 00 00 ...`........... 06e0 1e 10 2f 3a 40 00 00 00-6a 0a 00 00 0c 00 00 00 ../:@...j....... 06f0 46 00 00 00 32 00 00 00-08 00 00 00 00 00 00 00 F...2........... 0700 00 00 00 00 00 00 00 00-00 00 00 00 6c 0a 00 00 ............l... 0710 53 00 00 00 64 00 00 00-30 00 00 00 0c 00 00 00 S...d...0....... 0720 01 00 00 00 00 00 00 00-1e 00 23 3a 40 00 00 00 ..........#:@... 0730 72 0a 00 00 bd 00 00 00-46 00 00 00 32 00 00 00 r.......F...2... 0740 08 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0750 00 00 00 00 74 0a 00 00-03 01 00 00 64 00 00 00 ....t.......d... 0760 30 00 00 00 0c 00 00 00-01 00 00 00 00 00 00 00 0............... 0770 1e 00 1c 3a 40 00 00 00-7d 0a 00 00 0c 00 00 00 ...:@...}....... 0780 46 00 00 00 42 00 00 00-08 00 00 00 00 00 00 00 F...B........... 0790 00 00 00 00 00 00 00 00-00 00 00 00 7f 0a 00 00 ................ 07a0 53 00 00 00 64 00 00 00-40 00 00 00 0c 00 00 00 S...d...@....... 07b0 01 00 00 00 00 00 00 00-1e 00 2e 3a 40 00 00 00 ...........:@... 07c0 8b 0a 00 00 bd 00 00 00-46 00 00 00 42 00 00 00 ........F...B... 07d0 08 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 07e0 00 00 00 00 8d 0a 00 00-03 01 00 00 64 00 00 00 ............d... 07f0 40 00 00 00 0c 00 00 00-01 00 00 00 00 00 00 00 @............... 0800 1e 00 21 3a 40 00 00 00-95 0a 00 00 06 00 00 00 ..!:@........... 0810 67 01 00 00 5a 00 00 00-08 00 00 00 00 00 00 00 g...Z........... 0820 00 00 00 00 00 00 00 00-00 00 00 00 97 0a 00 00 ................ 0830 06 00 00 00 67 01 00 00-64 00 00 00 2b 00 00 00 ....g...d...+... 0840 01 00 00 00 01 00 00 00-1e 00 04 30 00 04 00 00 ...........0.... 0850 9f 0a 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0860 00 00 00 00 08 00 00 00-e7 0c 00 00 00 00 00 00 ................ 0870 00 00 00 00 a1 0a 00 00-06 00 00 00 67 01 00 00 ............g... 0880 04 00 00 00 08 00 00 00-00 00 00 00 00 00 00 00 ................ 0890 00 00 00 00 00 00 00 00-ab 0a 00 00 06 00 00 00 ................ 08a0 67 01 00 00 0e 00 00 00-84 00 00 00 02 00 00 00 g............... 08b0 00 00 00 00 0d 00 08 80-00 00 00 00 be 0a 00 00 ................ 08c0 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 08d0 08 00 00 00 e8 0c 00 00-00 00 00 00 00 00 00 00 ................ 08e0 c0 0a 00 00 06 00 00 00-67 01 00 00 04 00 00 00 ........g....... 08f0 08 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 ................ 0900 00 00 00 00 d1 0a 00 00-06 00 00 00 67 01 00 00 ............g... 0910 0e 00 00 00 84 00 00 00-0b 00 00 00 00 00 00 00 ................ 0920 1e 10 0f 80 00 00 00 00-e4 0a 00 00 47 65 6e 65 ............Gene 0930 72 61 6c 00 4e 61 6d 65-00 26 46 69 72 73 74 3a ral.Name.&First: 0940 00 2a 00 49 6e 69 26 74-69 61 6c 73 3a 00 2a 00 .*.Ini&tials:.*. 0950 26 4c 61 73 74 3a 00 2a-00 44 69 73 70 6c 61 79 &Last:.*.Display 0960 26 3a 00 2a 00 41 6c 26-69 61 73 3a 00 2a 00 41 &:.*.Al&ias:.*.A 0970 64 64 26 72 65 73 73 3a-00 2a 00 43 69 74 26 79 dd&ress:.*.Cit&y 0980 3a 00 2a 00 26 53 74 61-74 65 3a 00 2a 00 26 5a :.*.&State:.*.&Z 0990 69 70 20 63 6f 64 65 3a-00 2a 00 43 6f 26 75 6e ip code:.*.Co&un 09a0 74 72 79 2f 52 65 67 69-6f 6e 3a 00 2a 00 54 69 try/Region:.*.Ti 09b0 74 6c 26 65 3a 00 2a 00-43 6f 26 6d 70 61 6e 79 tl&e:.*.Co&mpany 09c0 3a 00 2a 00 26 44 65 70-61 72 74 6d 65 6e 74 3a :.*.&Department: 09d0 00 2a 00 26 4f 66 66 69-63 65 3a 00 2a 00 41 73 .*.&Office:.*.As 09e0 73 69 73 74 61 26 6e 74-3a 00 2a 00 50 26 68 6f sista&nt:.*.P&ho 09f0 6e 65 3a 00 2a 00 4f 72-67 61 6e 69 7a 61 74 69 ne:.*.Organizati 0a00 6f 6e 00 26 4d 61 6e 61-67 65 72 3a 00 2a 00 26 on.&Manager:.*.& 0a10 44 69 72 65 63 74 20 72-65 70 6f 72 74 73 3a 00 Direct reports:. 0a20 2a 00 50 68 6f 6e 65 2f-4e 6f 74 65 73 00 50 68 *.Phone/Notes.Ph 0a30 6f 6e 65 20 6e 75 6d 62-65 72 73 00 42 75 26 73 one numbers.Bu&s 0a40 69 6e 65 73 73 3a 00 2a-00 26 48 6f 6d 65 3a 00 iness:.*.&Home:. 0a50 2a 00 42 75 73 69 26 6e-65 73 73 20 32 3a 00 2a *.Busi&ness 2:.* 0a60 00 48 26 6f 6d 65 20 32-3a 00 2a 00 26 46 61 78 .H&ome 2:.*.&Fax 0a70 3a 00 2a 00 26 4d 6f 62-69 6c 65 3a 00 2a 00 41 :.*.&Mobile:.*.A 0a80 73 73 26 69 73 74 61 6e-74 3a 00 2a 00 50 61 26 ss&istant:.*.Pa& 0a90 67 65 72 3a 00 2a 00 4e-6f 26 74 65 73 3a 00 2a ger:.*.No&tes:.* 0aa0 00 4d 65 6d 62 65 72 20-4f 66 00 26 47 72 6f 75 .Member Of.&Grou 0ab0 70 20 6d 65 6d 62 65 72-73 68 69 70 3a 00 2a 00 p membership:.*. 0ac0 45 2d 6d 61 69 6c 20 41-64 64 72 65 73 73 65 73 E-mail Addresses 0ad0 00 26 45 2d 6d 61 69 6c-20 61 64 64 72 65 73 73 .&E-mail address 0ae0 65 73 3a 00 2a 00 es:.*.

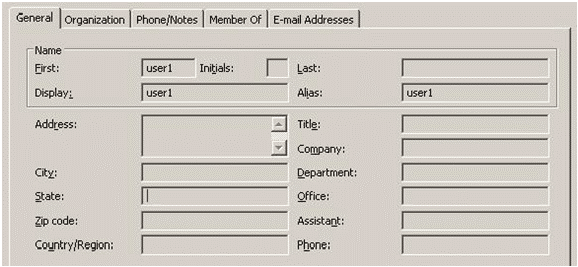

By processing the template in this PropertyRow_r structure, the dialog box shown in the following figure is created.
Figure 2: Address Book object display dialog box
The client then retrieves the properties specified in the template from the requested Address Book object to populate the various dialog controls.
