The Analysis Services metadata model, called a Unified Dimensional Model (UDM), provides a bridge between users and the data sources. A UDM is constructed over one or more physical data sources, and it allows end-user queries using one of a variety of client tools, such as Microsoft Office Excel.

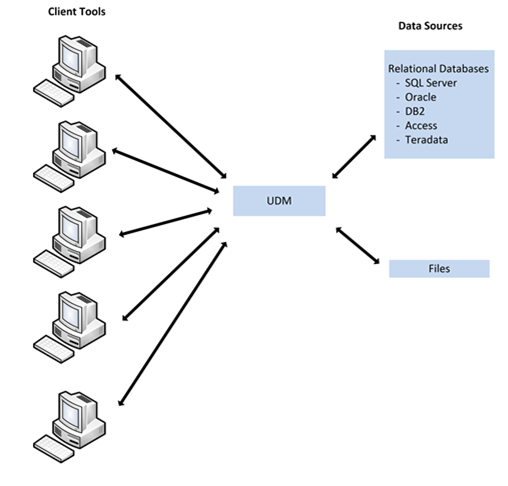

Figure 1: Unified Dimensional Model
A UDM contains information about:
Data source connections.
A schema snapshot for data that exists in a data source.
The user-visible concepts, such as dimensions, hierarchies, and key performance indicators.
Mapping between the user-visible concepts and the underlying data sources.
Calculations that encapsulate business logic, such as a three-month moving average.
Security roles and associated authorizations.
For more information about the UDM, see [MSDN-UDM].
A UDM is typically defined by IT professionals using Business Intelligence Development Studio. During the development process, UDM metadata is stored in proprietary XML-based files. Once this UDM definition is complete, it can be deployed by Business Intelligence Development Studio to an analysis server by using the SQL Server Analysis Services Protocol [MS-SSAS] where it is stored in a proprietary format. For more information about Business Intelligence Development Studio, see [MSDN-BIDS].
