The following is an example of the RDL for a report in Schema version RDL 2010/01. It shows the usage of the various properties of a Report element. The example uses elements for describing the data: DataSources and DataSets; elements for describing the structure and layout for two ReportSection elements: Page, including Page.PageHeader and Page.PageFooter, and Body; and elements for describing the ReportParameters and Variables for the report.
The following figure shows an example rendering of this report.

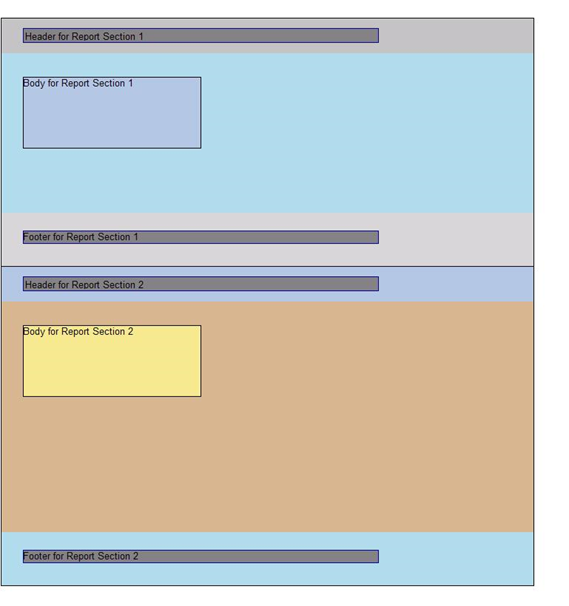

Figure 10: RDL schema 2010/01 report rendering
-
1 <?xml version="1.0" encoding="utf-8"?> 2 <Report xmlns="http://schemas.microsoft.com/sqlserver/reporting/2010/01/reportdefinition"> 3 <AutoRefresh>3600</AutoRefresh> 4 <DataSources> 5 <DataSource Name="DataSource1"> 6 <ConnectionProperties> 7 <DataProvider>SQL</DataProvider> 8 <ConnectString>data source=DataServer; initial catalog=northwind;</ConnectString> 9 </ConnectionProperties> 10 </DataSource> 11 </DataSources> 12 <DataSets> 13 <DataSet Name="DataSet1"> 14 <Fields> 15 <Field Name="ProductID"> 16 <DataField>ProductID</DataField> 17 </Field> 18 <Field Name="ProductName"> 19 <DataField>ProductName</DataField> 20 </Field> 21 <Field Name="SupplierID"> 22 <DataField>SupplierID</DataField> 23 </Field> 24 <Field Name="CategoryID"> 25 <DataField>CategoryID</DataField> 26 </Field> 27 <Field Name="QuantityPerUnit"> 28 <DataField>QuantityPerUnit</DataField> 29 </Field> 30 <Field Name="UnitPrice"> 31 <DataField>UnitPrice</DataField> 32 </Field> 33 <Field Name="UnitsInStock"> 34 <DataField>UnitsInStock</DataField> 35 </Field> 36 <Field Name="UnitsOnOrder"> 37 <DataField>UnitsOnOrder</DataField> 38 </Field> 39 <Field Name="ReorderLevel"> 40 <DataField>ReorderLevel</DataField> 41 </Field> 42 <Field Name="Discontinued"> 43 <DataField>Discontinued</DataField> 44 </Field> 45 </Fields> 46 <Query> 47 <DataSourceName>DataSource1</DataSourceName> 48 <CommandText>Select * From Products</CommandText> 49 </Query> 50 </DataSet> 51 </DataSets> 52 <ReportSections> 53 <ReportSection> 54 <Body> 55 <ReportItems> 56 <Textbox Name="BodyTextbox1"> 57 <CanGrow>true</CanGrow> 58 <KeepTogether>true</KeepTogether> 59 <Paragraphs> 60 <Paragraph> 61 <TextRuns> 62 <TextRun> 63 <Value>Body for Report Section 1</Value> 64 </TextRun> 65 </TextRuns> 66 </Paragraph> 67 </Paragraphs> 68 <Top>0.33333in</Top> 69 <Left>0.3125in</Left> 70 <Height>1in</Height> 71 <Width>2.5in</Width> 72 <Style> 73 <Border> 74 <Color>Black</Color> 75 <Style>Solid</Style> 76 <Width>1pt</Width> 77 </Border> 78 <BackgroundColor>LightSteelBlue</BackgroundColor> 79 </Style> 80 </Textbox> 81 </ReportItems> 82 <Height>2.5in</Height> 83 <Style> 84 <BackgroundColor>LightBlue</BackgroundColor> 85 </Style> 86 </Body> 87 <Width>6.5in</Width> 88 <Page> 89 <PageHeader> 90 <Height>0.5in</Height> 91 <PrintOnFirstPage>true</PrintOnFirstPage> 92 <PrintOnLastPage>true</PrintOnLastPage> 93 <PrintBetweenSections>true</PrintBetweenSections> 94 <ReportItems> 95 <Textbox Name="HeaderTextbox1"> 96 <Paragraphs> 97 <Paragraph> 98 <TextRuns> 99 <TextRun> 100 <Value>Header for Report Section 1</Value> 101 </TextRun> 102 </TextRuns> 103 </Paragraph> 104 </Paragraphs> 105 <Top>0.14583in</Top> 106 <Left>0.3125in</Left> 107 <Height>0.19792in</Height> 108 <Width>5in</Width> 109 <Style> 110 <Border> 111 <Color>DarkBlue</Color> 112 <Style>Solid</Style> 113 <Width>1pt</Width> 114 </Border> 115 <BackgroundColor>Gray</BackgroundColor> 116 <PaddingLeft>2pt</PaddingLeft> 117 <PaddingRight>2pt</PaddingRight> 118 <PaddingTop>2pt</PaddingTop> 119 <PaddingBottom>2pt</PaddingBottom> 120 </Style> 121 </Textbox> 122 </ReportItems> 123 <Style> 124 <BackgroundColor>Silver</BackgroundColor> 125 </Style> 126 </PageHeader> 127 <PageFooter> 128 <Height>0.75in</Height> 129 <PrintOnFirstPage>true</PrintOnFirstPage> 130 <PrintOnLastPage>true</PrintOnLastPage> 131 <PrintBetweenSections>true</PrintBetweenSections> 132 <ReportItems> 133 <Textbox Name="FooterTextbox1"> 134 <CanGrow>true</CanGrow> 135 <KeepTogether>true</KeepTogether> 136 <Paragraphs> 137 <Paragraph> 138 <TextRuns> 139 <TextRun> 140 <Value>Footer for Report Section 1</Value> 141 </TextRun> 142 </TextRuns> 143 </Paragraph> 144 </Paragraphs> 145 <Top>0.25in</Top> 146 <Left>0.3125in</Left> 147 <Height>0.17708in</Height> 148 <Width>5in</Width> 149 <Style> 150 <Border> 151 <Color>DarkBlue</Color> 152 <Style>Solid</Style> 153 <Width>1pt</Width> 154 </Border> 155 <BackgroundColor>Gray</BackgroundColor> 156 </Style> 157 </Textbox> 158 </ReportItems> 159 <Style> 160 <BackgroundColor>LightGrey</BackgroundColor> 161 </Style> 162 </PageFooter> 163 <PageWidth>8.5in</PageWidth> 164 <PageHeight>5in</PageHeight> 165 <InteractiveWidth>8.5in</InteractiveWidth> 166 <LeftMargin>0.5in</LeftMargin> 167 <RightMargin>0.5in</RightMargin> 168 <TopMargin>0.25in</TopMargin> 169 <BottomMargin>0.25in</BottomMargin> 170 <Style> 171 <Border> 172 <Color>Black</Color> 173 <Style>Solid</Style> 174 <Width>1pt</Width> 175 </Border> 176 </Style> 177 </Page> 178 </ReportSection> 179 <ReportSection> 180 <Body> 181 <ReportItems> 182 <Textbox Name="BodyTextbox2"> 183 <CanGrow>true</CanGrow> 184 <KeepTogether>true</KeepTogether> 185 <Paragraphs> 186 <Paragraph> 187 <TextRuns> 188 <TextRun> 189 <Value>Body for Report Section 2</Value> 190 </TextRun> 191 </TextRuns> 192 </Paragraph> 193 </Paragraphs> 194 <Top>0.33333in</Top> 195 <Left>0.3125in</Left> 196 <Height>1in</Height> 197 <Width>2.5in</Width> 198 <Style> 199 <Border> 200 <Color>Black</Color> 201 <Style>Solid</Style> 202 <Width>1pt</Width> 203 </Border> 204 <BackgroundColor>Khaki</BackgroundColor> 205 </Style> 206 </Textbox> 207 </ReportItems> 208 <Height>3in</Height> 209 <Style> 210 <BackgroundColor>Tan</BackgroundColor> 211 </Style> 212 </Body> 213 <Width>6.5in</Width> 214 <Page> 215 <PageHeader> 216 <Height>0.5in</Height> 217 <PrintOnFirstPage>true</PrintOnFirstPage> 218 <PrintOnLastPage>true</PrintOnLastPage> 219 <PrintBetweenSections>true</PrintBetweenSections> 220 <ReportItems> 221 <Textbox Name="HeaderTextbox2"> 222 <Paragraphs> 223 <Paragraph> 224 <TextRuns> 225 <TextRun> 226 <Value>Header for Report Section 2</Value> 227 </TextRun> 228 </TextRuns> 229 </Paragraph> 230 </Paragraphs> 231 <Top>0.14583in</Top> 232 <Left>0.3125in</Left> 233 <Height>0.19792in</Height> 234 <Width>5in</Width> 235 <Style> 236 <Border> 237 <Color>DarkBlue</Color> 238 <Style>Solid</Style> 239 <Width>1pt</Width> 240 </Border> 241 <BackgroundColor>Gray</BackgroundColor> 242 <PaddingLeft>2pt</PaddingLeft> 243 <PaddingRight>2pt</PaddingRight> 244 <PaddingTop>2pt</PaddingTop> 245 <PaddingBottom>2pt</PaddingBottom> 246 </Style> 247 </Textbox> 248 </ReportItems> 249 <Style> 250 <BackgroundColor>LightSteelBlue</BackgroundColor> 251 </Style> 252 </PageHeader> 253 <PageFooter> 254 <Height>0.75in</Height> 255 <PrintOnFirstPage>true</PrintOnFirstPage> 256 <PrintOnLastPage>true</PrintOnLastPage> 257 <PrintBetweenSections>true</PrintBetweenSections> 258 <ReportItems> 259 <Textbox Name="FooterTextbox2"> 260 <CanGrow>true</CanGrow> 261 <KeepTogether>true</KeepTogether> 262 <Paragraphs> 263 <Paragraph> 264 <TextRuns> 265 <TextRun> 266 <Value>Footer for Report Section 2</Value> 267 </TextRun> 268 </TextRuns> 269 </Paragraph> 270 </Paragraphs> 271 <Top>0.25in</Top> 272 <Left>0.3125in</Left> 273 <Height>0.17708in</Height> 274 <Width>5in</Width> 275 <Style> 276 <Border> 277 <Color>DarkBlue</Color> 278 <Style>Solid</Style> 279 <Width>1pt</Width> 280 </Border> 281 <BackgroundColor>Gray</BackgroundColor> 282 </Style> 283 </Textbox> 284 </ReportItems> 285 <Style> 286 <BackgroundColor>LightBlue</BackgroundColor> 287 </Style> 288 </PageFooter> 289 <PageWidth>8.5in</PageWidth> 290 <PageHeight>5in</PageHeight> 291 <InteractiveWidth>8.5in</InteractiveWidth> 292 <LeftMargin>0.5in</LeftMargin> 293 <RightMargin>0.5in</RightMargin> 294 <TopMargin>0.25in</TopMargin> 295 <BottomMargin>0.25in</BottomMargin> 296 <Style> 297 <Border> 298 <Color>Black</Color> 299 <Style>Solid</Style> 300 <Width>1pt</Width> 301 </Border> 302 </Style> 303 </Page> 304 </ReportSection> 305 </ReportSections> 306 <Language>=User!Language</Language> 307 <Variables> 308 <Variable Name="ReportVariable1"> 309 <Value>=1</Value> 310 </Variable> 311 </Variables> 312 <ConsumeContainerWhitespace>true</ConsumeContainerWhitespace> 313 <ReportParameters> 314 <ReportParameter Name="Product"> 315 <DataType>String</DataType> 316 <DefaultValue> 317 <DataSetReference> 318 <DataSetName>DataSet1</DataSetName> 319 <ValueField>ProductID</ValueField> 320 </DataSetReference> 321 </DefaultValue> 322 <Prompt>Product</Prompt> 323 <ValidValues> 324 <DataSetReference> 325 <DataSetName>DataSet1</DataSetName> 326 <ValueField>ProductID</ValueField> 327 <LabelField>ProductName</LabelField> 328 </DataSetReference> 329 </ValidValues> 330 <MultiValue>true</MultiValue> 331 </ReportParameter> 332 <ReportParameter Name="Quantity"> 333 <DataType>Integer</DataType> 334 <DefaultValue> 335 <Values> 336 <Value DataType="Integer">0</Value> 337 </Values> 338 </DefaultValue> 339 <Prompt>Quantity</Prompt> 340 <ValidValues> 341 <ParameterValues> 342 <ParameterValue> 343 <Value DataType="Integer">0</Value> 344 <Label>0</Label> 345 </ParameterValue> 346 <ParameterValue> 347 <Value DataType="Integer">10</Value> 348 <Label>10</Label> 349 </ParameterValue> 350 <ParameterValue> 351 <Value DataType="Integer">50</Value> 352 <Label>50</Label> 353 </ParameterValue> 354 </ParameterValues> 355 </ValidValues> 356 </ReportParameter> 357 </ReportParameters> 358</Report>
