The following is an example of the RDL for a report in Schema version RDL 2005/01. It shows the usage of the various properties of a Report. This example shows elements for describing the data: DataSources and DataSets; elements for describing the structure and layout: Report.PageHeader, Report.PageFooter, and Body; and elements for describing the ReportParameters for the report.

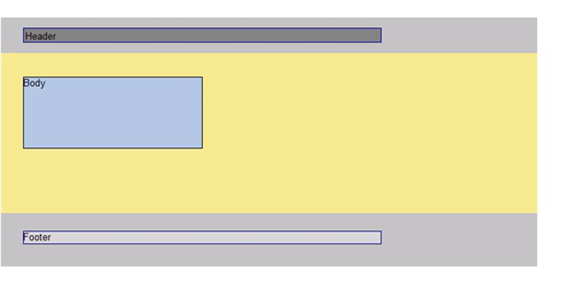

The following figure shows an example rendering of this report.
Figure 11: RDL schema 2005/01 report rendering
-
1 <?xml version="1.0" encoding="utf-8"?> 2 <Report xmlns="http://schemas.microsoft.com/sqlserver/reporting/2005/01/reportdefinition"> 3 <DataSources> 4 <DataSource Name="DataSource1"> 5 <ConnectionProperties> 6 <DataProvider>SQL</DataProvider> 7 <ConnectString>data source=DataServer; initial catalog=Northwind;</ConnectString> 8 </ConnectionProperties> 9 </DataSource> 10 </DataSources> 11 <DataSets> 12 <DataSet Name="DataSet1"> 13 <Fields> 14 <Field Name="ProductID"> 15 <DataField>ProductID</DataField> 16 </Field> 17 <Field Name="ProductName"> 18 <DataField>ProductName</DataField> 19 </Field> 20 <Field Name="SupplierID"> 21 <DataField>SupplierID</DataField> 22 </Field> 23 <Field Name="CategoryID"> 24 <DataField>CategoryID</DataField> 25 </Field> 26 <Field Name="QuantityPerUnit"> 27 <DataField>QuantityPerUnit</DataField> 28 </Field> 29 <Field Name="UnitPrice"> 30 <DataField>UnitPrice</DataField> 31 </Field> 32 <Field Name="UnitsInStock"> 33 <DataField>UnitsInStock</DataField> 34 </Field> 35 <Field Name="UnitsOnOrder"> 36 <DataField>UnitsOnOrder</DataField> 37 </Field> 38 <Field Name="ReorderLevel"> 39 <DataField>ReorderLevel</DataField> 40 </Field> 41 <Field Name="Discontinued"> 42 <DataField>Discontinued</DataField> 43 </Field> 44 </Fields> 45 <Query> 46 <DataSourceName>DataSource1</DataSourceName> 47 <CommandText>Select * From Products</CommandText> 48 </Query> 49 </DataSet> 50 </DataSets> 51 <Body> 52 <ReportItems> 53 <Textbox Name="BodyTextbox"> 54 <CanGrow>true</CanGrow> 55 <Value>Body</Value> 56 <Top>0.33333in</Top> 57 <Left>0.3125in</Left> 58 <Height>1in</Height> 59 <Width>2.5in</Width> 60 <Style> 61 <BorderColor> 62 <Default>Black</Default> 63 </BorderColor> 64 <BorderStyle> 65 <Default>Solid</Default> 66 </BorderStyle> 67 <BorderWidth> 68 <Default>1pt</Default> 69 </BorderWidth> 70 <BackgroundColor>LightSteelBlue</BackgroundColor> 71 </Style> 72 </Textbox> 73 </ReportItems> 74 <Height>2.5in</Height> 75 <Style> 76 <BackgroundColor>Khaki</BackgroundColor> 77 </Style> 78 </Body> 79 <PageHeader> 80 <Height>0.5in</Height> 81 <PrintOnFirstPage>true</PrintOnFirstPage> 82 <PrintOnLastPage>true</PrintOnLastPage> 83 <ReportItems> 84 <Textbox Name="HeaderTextbox"> 85 <Value>Header</Value> 86 <Top>0.14583in</Top> 87 <Left>0.3125in</Left> 88 <Height>0.19792in</Height> 89 <Width>5in</Width> 90 <Style> 91 <BorderColor> 92 <Default>DarkBlue</Default> 93 </BorderColor> 94 <BorderStyle> 95 <Default>Solid</Default> 96 </BorderStyle> 97 <BorderWidth> 98 <Default>1pt</Default> 99 </BorderWidth> 100 <BackgroundColor>Gray</BackgroundColor> 101 <PaddingLeft>2pt</PaddingLeft> 102 <PaddingRight>2pt</PaddingRight> 103 <PaddingTop>2pt</PaddingTop> 104 <PaddingBottom>2pt</PaddingBottom> 105 </Style> 106 </Textbox> 107 </ReportItems> 108 <Style> 109 <BackgroundColor>Silver</BackgroundColor> 110 </Style> 111 </PageHeader> 112 <PageFooter> 113 <Height>0.75in</Height> 114 <PrintOnFirstPage>true</PrintOnFirstPage> 115 <PrintOnLastPage>true</PrintOnLastPage> 116 <ReportItems> 117 <Textbox Name="FooterTextbox"> 118 <CanGrow>true</CanGrow> 119 <Value>Footer</Value> 120 <Top>0.25in</Top> 121 <Left>0.3125in</Left> 122 <Height>0.17708in</Height> 123 <Width>5in</Width> 124 <Style> 125 <BorderColor> 126 <Default>DarkBlue</Default> 127 </BorderColor> 128 <BorderStyle> 129 <Default>Solid</Default> 130 </BorderStyle> 131 <BorderWidth> 132 <Default>1pt</Default> 133 </BorderWidth> 134 <BackgroundColor>LightGray</BackgroundColor> 135 </Style> 136 </Textbox> 137 </ReportItems> 138 <Style> 139 <BackgroundColor>Silver</BackgroundColor> 140 </Style> 141 </PageFooter> 142 <PageWidth>8.5in</PageWidth> 143 <PageHeight>6in</PageHeight> 144 <InteractiveWidth>8.5in</InteractiveWidth> 145 <LeftMargin>0.5in</LeftMargin> 146 <RightMargin>0.5in</RightMargin> 147 <TopMargin>0.25in</TopMargin> 148 <BottomMargin>0.25in</BottomMargin> 149 <Width>6.5in</Width> 150 <Language>=User!Language</Language> 151 <ReportParameters> 152 <ReportParameter Name="Product"> 153 <DataType>String</DataType> 154 <DefaultValue> 155 <DataSetReference> 156 <DataSetName>DataSet1</DataSetName> 157 <ValueField>ProductID</ValueField> 158 </DataSetReference> 159 </DefaultValue> 160 <Prompt>Product</Prompt> 161 <ValidValues> 162 <DataSetReference> 163 <DataSetName>DataSet1</DataSetName> 164 <ValueField>ProductID</ValueField> 165 <LabelField>ProductName</LabelField> 166 </DataSetReference> 167 </ValidValues> 168 <MultiValue>true</MultiValue> 169 </ReportParameter> 170 <ReportParameter Name="Quantity"> 171 <DataType>Integer</DataType> 172 <DefaultValue> 173 <Values> 174 <Value>0</Value> 175 </Values> 176 </DefaultValue> 177 <Prompt>Quantity</Prompt> 178 <ValidValues> 179 <ParameterValues> 180 <ParameterValue> 181 <Value>0</Value> 182 <Label>0</Label> 183 </ParameterValue> 184 <ParameterValue> 185 <Value>10</Value> 186 <Label>10</Label> 187 </ParameterValue> 188 <ParameterValue> 189 <Value>50</Value> 190 <Label>50</Label> 191 </ParameterValue> 192 </ParameterValues> 193 </ValidValues> 194 </ReportParameter> 195 </ReportParameters> 196</Report>
