Each sector, except for the header, is identified by a nonnegative, 32-bit sector number. The following sector numbers above 0xFFFFFFFA are reserved and MUST NOT be used to identify the location of a sector in a compound file.
Sector name |
Integer value |
Description |
---|---|---|
REGSECT |
0x00000000 - 0xFFFFFFF9 |
Regular sector number. |
MAXREGSECT |
0xFFFFFFFA |
Maximum regular sector number. |
Not applicable |
0xFFFFFFFB |
Reserved for future use. |
DIFSECT |
0xFFFFFFFC |
Specifies a DIFAT sector in the FAT. |
FATSECT |
0xFFFFFFFD |
Specifies a FAT sector in the FAT. |
ENDOFCHAIN |
0xFFFFFFFE |
End of a linked chain of sectors. |
FREESECT |
0xFFFFFFFF |
Specifies an unallocated sector in the FAT, Mini FAT, or DIFAT. |
The following list contains the types of sectors that are allowed in a compound file. Their structures are described in sections 2.2 through 2.8.
Sector type |
Array entry length |
Purpose |
---|---|---|
Header |
Not applicable |
A single sector with fields that are needed to read the other structures of the compound file. This sector must be at file offset 0. |
FAT |
4 bytes |
Main allocator of space within the compound file. |
DIFAT |
4 bytes |
Used to locate FAT sectors in the compound file. |
Mini FAT |
4 bytes |
Allocator for mini stream user-defined data. |
Directory |
128 bytes |
Contains storage object and stream object metadata. |
User-defined Data |
Not applicable |
User-defined data for stream objects. |
Range Lock |
Not applicable |
A single sector that is used to manage concurrent access to the compound file. This sector must cover file offset 0x7FFFFFFF. |
Unallocated Free |
Not applicable |
Empty space in the compound file. |
Compound file sectors can contain unallocated free space, user-defined data for stream objects, directory sectors containing directory entries, FAT sectors containing the FAT entries, DIFAT sectors containing the DIFAT entries, and mini FAT sectors containing the mini FAT entries. Compound file sectors can be located at any sector-sized offset in the file, with the exception of the header and range lock sector.

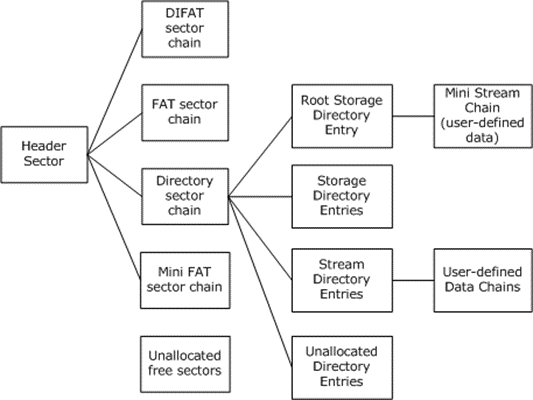

Figure 10: Example of the hierarchy of compound file sectors
All the sector types are eventually linked back to the header sector, except for the range lock sector and unallocated free sectors. Unallocated free sectors are marked in the FAT as FREESECT (0xFFFFFFFF). Unallocated free sectors can be in the middle of the file, and they can be created by extending the file size and allocating additional FAT sectors to cover the increased length. The range lock sector is identified by a fixed file offset (0x7FFFFFFF) in the compound file.
In a compound file, all sector chains MUST contain valid sector numbers, less than or equal to MAXREGSECT (0xFFFFFFFA). In a sector chain, the last sector's next pointer MUST be ENDOFCHAIN (0xFFFFFFFE). All sectors in a sector chain MUST NOT be part of any other sector chain in the same file. A sector chain MUST NOT link to a sector appearing earlier in the same chain, which would result in a cycle. Finally, the actual sector count MUST match the size that is specified for a sector chain.
