4.2 Message Exchanges During DHCP Information Request

A DHCP transaction for acquiring IP configuration options that involves NAP enforcement consists of the DHCPINFORM and DHCPACK messages as specified in sections 3.1.4.3, 3.1.5.3, and 3.2.5.3. The following figure demonstrates such a transaction.

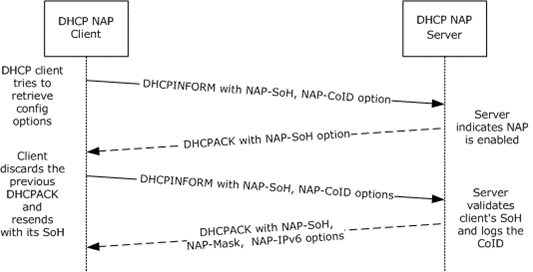

Figure 5: DHCP client request
