The DNS Server Management Protocol is a client/server protocol that is used to remotely query, monitor and configure DNS server settings, its zones, and resource records. The protocol allows a client to access DNS server settings and properties and also to enumerate all DNS data stored on the server (DNS zones and DNS records).
The DNS Server Management Protocol is a simple protocol with no state shared across RPC method calls. Each RPC method call contains one complete request. Output from one method call can be used as input to another call but the DNS Server Management Protocol does not provide for locking of DNS data across method calls. For example, a client can enumerate DNS zones with one call and retrieve the properties of one or more of the enumerated DNS zones with another call. However, no guarantee is made that the zone has not been deleted by another DNS Server Management Protocol client between these two method calls.
When the DNS server is directory server-integrated, some client requests can require or trigger Lightweight Directory Access Protocol (LDAP) requests from the DNS server to the local directory server or another directory server.
In particular, the DNS server can use the defaultNamingContext of the directory server's rootDSE, a DNS domain partition named DnsDomainZones, or a DNS forest partition named DnsForestZones to store zone information and zone records. (See section 2.3 for a discussion of the schemas used to store this information.) A DNS Server integrated with a directory server creates and automatically enlists itself in these default application directory partitions. Alternatively, zone information and zone records can be stored in additional application directory partitions, which can be created (and removed) by the DNS Server Management Protocol client in order to control the granularity of zone replication. Zones created in these additional application directory partitions will only be visible to directory servers enlisted in those partitions, thus allowing for granular control over replication.
A typical remote management involves the client querying or setting the configuration parameters of the DNS server. The client can also enumerate DNS zones and the DNS records stored in one or more zones. The client can modify the configuration of the DNS server as required. The client can also add, delete, or modify DNS zones or the DNS records held in zones as required. For example, a remote management client can:
Set or retrieve the server's forwarders.
Set or retrieve various DNS server settings.
Create or modify zones.
Create or modify zone records.
This usually involves sending a request to the DNS server specifying the type of operation (get, set and execute are examples of types of operations) to perform and any specific parameters that are associated with that operation. The DNS server responds to the client with the result of the operation.

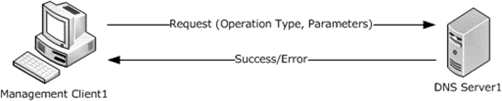

The following diagram shows an example of a remote client creating a zone on the DNS server using the DNS server Management Protocol. The client sends a request to the server with the operation type and parameters. The server responds with a success or an error.
Figure 1: DNS Server Management Protocol
