1.3.2.3 High-Level Block Diagram

The following diagram provides a high-level view of the protocol roles and their interaction with other entities.

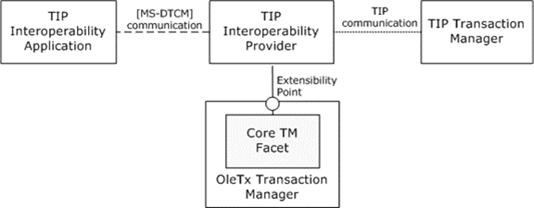

Interaction of MSDTC Connection Manager: OleTx Transaction Internet Protocol roles

Figure 1: Interaction of MSDTC Connection Manager: OleTx Transaction Internet Protocol roles
