This example demonstrates the use cases that are described in section 2.5.1.1.
The sequence in this example describes how the application creates an SMB share at a given path in the object store of a given server.
Prerequisites
The participating client and server computers are configured to belong to the same Active Directory domain.
The admin tool has acquired an RPC calling context by using the procedure, as described in [MS-SRVS] section 2.1.
The specific path that is to be provisioned for remote access must exist in the local object store of the file server.
Initial System State
A share with the specified share name does not exist on the server computer.
Final System State
A share with the specified share name is created on the server computer.

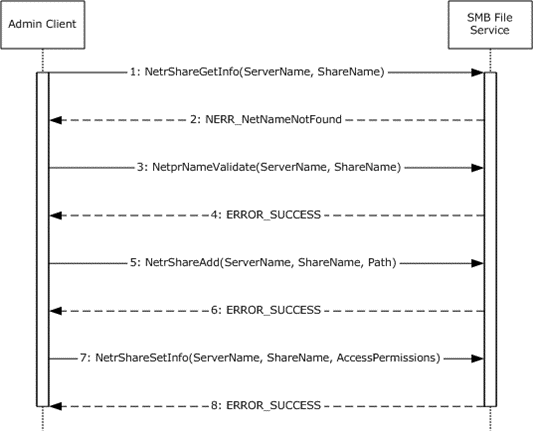

The following sequence diagram shows the creation of a share on the SMB server by the admin tool.
Figure 11: Sequence diagram for creating an SMB share
Sequence of Events
The admin client calls the NetrShareGetInfo method ([MS-SRVS] section 3.1.4.10). It specifies the share name and server name to check if a share with the given name exists.
The SMB File Service returns the NERR_NetNameNotFound error code to indicate that the share with the given name does not exist.
The admin client invokes the NetprNameValidate method ([MS-SRVS] section 3.1.4.32) to check the share name.
The SMB File Service returns a success code.
The admin client calls the NetrShareAdd method ([MS-SRVS] section 3.1.4.7). It specifies the share name, local object store path, and various options that are provided by the caller.
The SMB File Service returns a success code.
The admin client calls the NetrShareSetInfo method ([MS-SRVS] section 3.1.4.11). It specifies the share name and the access permissions.
The SMB File Service returns a success code.
