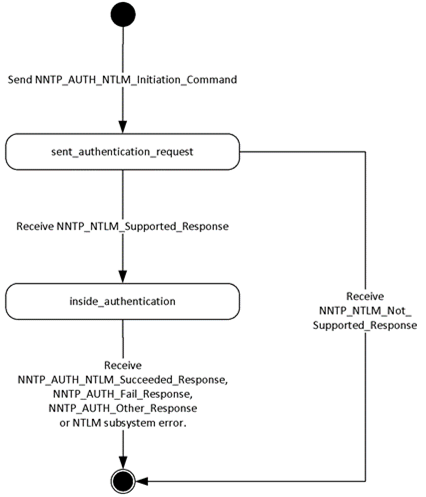

Figure 2: Client state model for NNTP_NTLM authentication
The abstract data model for NTLM Authentication: NNTP Extension has the following states:
start
This is the state of the client before the NNTP_AUTH_NTLM_Initiation_Command has been sent.
sent_authentication_request
This is the state of the client after the NNTP_AUTH_NTLM_Initiation_Command has been sent.
inside_authentication
This is the state that a client enters after it has received an NNTP_NTLM_Supported_Response. In this state, the client initializes the NTLM software and repeats the following steps:
Encapsulates the NTLM message that is returned by the NTLM software into an NNTP message.
Waits for a response from the server.
De-encapsulates NNTP message data that is received, if any, from the other party and converts it to NTLM message data.
Passes it to the NTLM software.
Sends the NNTP message to the other party.
This state terminates when:
For the server: the NTLM software reports completion with either a successful or failed authentication status. The server then sends the client an NNTP_AUTH_NTLM_Succeeded_Response message or NNTP_AUTH_Fail_Response message, as described in [RFC2980].
For the client: an NNTP_AUTH_NTLM_Succeeded_Response message or NNTP_AUTH_Fail_Response message is received.
For either client or server: any failure is reported by the NTLM software.
completed_authentication
This is the state of the client when it exits the inside_authentication state. The rules for how the inside_authentication state is exited are specified in section 3.1.5.
