1.3 Overview

The Remote Authentication Dial-In User Service (RADIUS) Protocol, as specified in [RFC2865], provides authentication, authorization, and accounting (AAA) of endpoints in scenarios such as wireless networking, dial-up networking, and virtual private networking (VPN). This document specifies the Microsoft vendor-specific attributes (VSAs) that are passed over RADIUS between the network access server (NAS) and the RADIUS server to authenticate and authorize connection requests, as well as to configure the level of network access provided by the NAS, and account for usage.

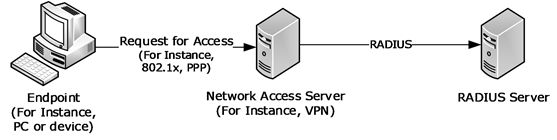

The following figure shows a common deployment model for the RADIUS Protocol.

Figure 1: Common RADIUS deployment model

A NAS provides network access to endpoints (for example, a client PC or device). A NAS can be a network infrastructure device, such as a switch or a wireless access point, or it can be a server, such as a VPN gateway or dial-up server.

Endpoints initiate communication with a NAS to establish connectivity with a network. A variety of protocols can be used to establish connectivity with a network, such as 802.1x (as described in [IEEE802.1X]) or Point-to-Point Protocol (PPP) (as described in [RFC1661]). The NAS then exchanges RADIUS messages with a RADIUS server to authenticate and authorize the endpoint's connectivity to the network. The RADIUS server is configured with policy to accept or reject the endpoint's connectivity request and to instruct the NAS regarding the network restrictions to enforce on the endpoint, if appropriate.

The RADIUS Protocol includes an extensibility mechanism that enables NAS vendors and RADIUS server vendors to expose features that are specific to their products through the use of vendor-specific attributes (VSAs) , as specified in [RFC2865] section 5.26.

This document defines or otherwise describes the VSAs that are specific to Microsoft.
