Add, move, or delete tabs on a form using the form designer.

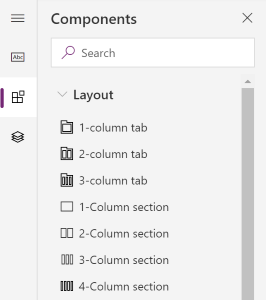

To add tabs to a form, use the Components pane.
Note
Tabs can only be added on main forms. More information: Form types
These are the properties available to configure a tab when you create or edit a form using the form designer.
Area | Name | Description |
---|---|---|
Display options | Tab label | The localizable label for the tab visible to users. This property is required. |
Display options | Name | The unique name for the tab that is used when referencing it in scripts. The name can contain only alphanumeric characters and underscores. This property is required. |
Display options | Expand this tab by default | The tab state can toggle between expanded or collapsed using form scripts or by people selecting the label. Choose the default state for the tab. |
Display options | Hide tab | When selected, tab is hidden by default and can be shown using code. |
Display options | Hide on phone | The tab can be hidden to render a condensed version of this form on phone screens. |
Formatting | Layout | Tabs may have up to three columns. Use these options to set the number of tabs and what percentage of the total width they should fill. |
You can move a tab on a form using drag and drop or cut and paste actions.
Open the form designer to create or edit a form. More information: Create a form or Edit a form
In the form preview, select the tab that you want to delete from the form.
On the command bar, select Delete.
Repeat steps 2-3 above if you want to delete more tabs.
On the command bar, select Save to save the form, or select Publish if you want to save and make your changes visible to users.
Note
Overview of the model-driven form designer
Create, edit, or configure forms using the form designer
Add, configure, move, or delete columns on a form
Add, configure, move, or delete components on a form
Add, configure, move, or delete sections on a form
Configure header properties in the form designer
Add and configure a subgrid component on a form
Add and configure a quick view component on a form
Configure a lookup component on a form
Using the tree view in the form designer
Create and edit columns
