Get data from Excel workbook files

Excel icon

Microsoft Excel is one of the most widely used business applications around. It’s also one of the most common ways to get your data into Power BI.

What types of workbooks does Power BI support?

Power BI supports importing or connecting to workbooks created in Excel 2007 and later. Workbooks must be saved as .xlsx or .xlsm file type and be under 1 GB. Some features described in this article are only available in later versions of Excel.

Workbooks with ranges or tables of data

If your workbook has simple worksheets with ranges of data, to get the most out of your data in Power BI, be sure to format those ranges as tables. This way, when creating reports in Power BI, you’ll see named tables and columns in the Fields pane, making it much easier to visualize your data.

Workbooks with data models

Workbooks can contain a data model with one or more tables of data loaded into it by using linked tables, Power Query (Get & Transform in Excel 2016), or Power Pivot. Power BI supports all data model properties such as relationships, measures, hierarchies, and KPIs.

Note

Workbooks with data models cannot be shared across Power BI tenants. For example, a user who logs in to Power BI using a contoso.com account cannot share an Excel workbook with a user who logs in using a Power BI login account from woodgrovebank.com.

Workbooks with connections to external data sources

If you use Excel to connect to an external data source, once your workbook is in Power BI, you can create reports and dashboards based on data from that connected data source. You can also set up Scheduled Refresh to automatically connect right to the data source and get updates. You’ll no longer need to refresh manually from the Data ribbon in Excel. Any visualizations in reports and tiles in dashboards based on data from that data source are updated automatically. To learn more, see Data refresh in Power BI.

Workbooks with PivotTables and charts

How your PivotTables and charts appear or don't appear in Power BI depends on where your workbook file is saved and how you choose to get it into Power BI. We'll go into this more below.

Data types

Power BI supports the following data types: Whole Number, Decimal Number, Currency, Date, True/False, Text. Marking data as specific data types in Excel will improve the Power BI experience.

Streamlined upload to Power BI

Beginning in November 2022, there's a new and streamlined experience for uploading files to the Power BI service. In the workspace into which you want to add files, you’ll see an Upload drop-down menu option next to the New button. You can use the drop-down menu to connect to files stored in OneDrive for Business or any SharePoint site to which you have access, or you can upload them from your computer through the Browse menu option. The following image shows the menu options.

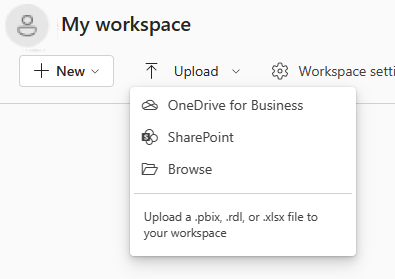

Screen shot of add file menu option.

If you choose to upload a local file, a copy of the file is added to the workspace. If you use the OneDrive for Business or SharePoint option, Power BI creates a connection to the file and as you make changes to the file in SharePoint, Power BI can automatically sync those changes approximately each hour.

A benefit of uploading files this way, in addition to being easy to use, is that the OneDrive for Business and SharePoint options use the same file selection interface used in many other Microsoft products.

Rather than having to paste a direct URL to a given SharePoint site, which was previously required, you can now simply select one of your sites through the Quick access section or the More places links.

When uploading an Excel file this way, your workbook appears in Power BI just like it would in Excel Online, as shown in the following image.

Screen shot of workbook appearing in Power B I.

Currently, if you want to import the data from the Excel file into a Power BI dataset, you can continue to use the get data experience described later in this article.

If you don't have a subscription, OneDrive for Business and SharePoint options will be disabled, but you can still browse for local files on your computer. The following image shows the subscription options disabled, with the Browse option highlighted.

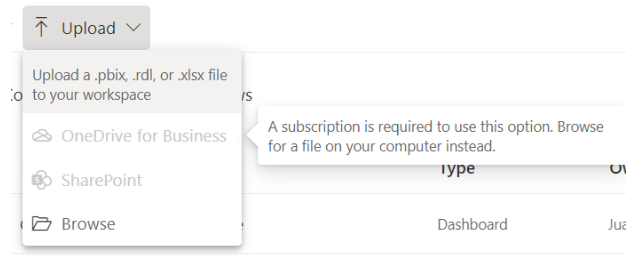

Screen shot of subscription services disabled.

You cannot upload files from personal OneDrive accounts, but you can continue using the get data experience described later in this article for workbooks in personal OneDrive accounts.

Prepare your workbook for Power BI

Watch this helpful video to learn more about how to make sure your Excel workbooks are ready for Power BI.

Note

This video might use earlier versions of Power BI Desktop or the Power BI service.

Where your workbook file is saved makes a difference

Local - If you save your workbook file to a local drive on your computer or another location in your organization, from Power BI you can load your file into Power BI. Your file will actually remain on your local drive, so the whole file isn’t really imported into Power BI. What really happens is a new dataset is created in Power BI and data and the data model (if any) from the workbook are loaded into the dataset. Excel 2016 also has the Publish feature (under the File menu). Using Publish is effectively the same as using Get Data > Files > Local File from Power BI, but is often easier to update your dataset in Power BI if you’re regularly making changes to the workbook.

OneDrive - Business – If you have OneDrive for Business and you sign into it with the same account you sign into Power BI with, this is by-far the most effective way to keep your work in Excel and your dataset, reports, and dashboards in Power BI in-sync. Because both Power BI and OneDrive are in the cloud, Power BI connects to your workbook file on OneDrive about every hour. If any changes are found, your dataset, reports, and dashboards are automatically updated in Power BI. Just like if you saved your workbook to a local drive, you can also use Publish to update your dataset and reports in Power BI immediately; otherwise Power BI will automatically synchronize, usually within an hour.

OneDrive - Personal – If you save your workbook files to your own OneDrive account, you’ll get many of the same benefits as you would with OneDrive for Business. The biggest difference is when you first connect to your file (using Get Data > Files > OneDrive – Personal) you’ll need to sign in to your OneDrive with your Microsoft account, which is usually different from what you use to sign in to Power BI. When signing in with your OneDrive with your Microsoft account, be sure to select the Keep me signed in option. This way, Power BI will be able to connect to your workbook file about every hour and make sure your dataset and reports in Power BI are in-sync.

SharePoint Team-Sites – Saving your Power BI Desktop files to SharePoint – Team Sites is much the same as saving to OneDrive for Business. The biggest difference is how you connect to the file from Power BI. You can specify a URL or connect to the root folder.

One Excel workbook – two ways to use it

If you save your workbook files to OneDrive, you'll have a couple of ways you can explore your data in Power BI

Screenshot of OneDrive for Business, showing the option to Import or Connect to Excel data.

Import Excel data into Power BI

When you choose Import, any supported data in tables and/or a data model are imported into a new dataset in Power BI.

You can continue editing your workbook. When your changes are saved, they’ll be synchronized with the dataset in Power BI, usually within about an hour. If you need more immediate gratification, you can just click Publish again, and your changes are exported. Any visualizations you have in reports and dashboards will be updated, too, based on the following table.

Refresh triggers:

Report tiles Dashboard tiles
Open report (after the cache has expired) Open the dashboard (after the cache is refreshed)
Select Refresh in the report Select Refresh in the dashboard
Automatically for pinned tiles (when the cache is refreshed) if the dashboard is already open

Note

Pinned pages do not have the automatic refresh feature.

Choose this option if you’ve used Get & Transform data or Power Pivot to load data into a data model.

In Excel 2016, you can also use Publish > Export. It's essentially the same thing. To learn more, see Publish to Power BI from Excel 2016.

Connect, manage and view Excel in Power BI

When you choose Connect, your workbook will appear in Power BI just like it would in Excel Online. But, unlike Excel Online, you’ll have some great features to help you pin elements from your worksheets right to your dashboards.

You can’t edit your workbook in Power BI. But if you need to make some changes, you can click Edit, and then choose to edit your workbook in Excel Online or open it in Excel on your computer. Any changes you make are saved to the workbook on OneDrive.

Choose this option if you only have data in worksheets, or you have ranges, PivotTables and charts you want to pin to dashboards.

In Excel 2016, you can also use Publish > Upload. It's essentially the same thing. To learn more, see Publish to Power BI from Excel 2016.

Import or connect to an Excel workbook from Power BI

  1. In Power BI, in the nav pane, click Get Data.

    Screenshot of Get Data, showing the button in the navigation pane.

  2. In Files, click Get.

    Screenshot of the Files dialog, showing the Get button.

  3. Find your file.

    Screenshot of four tiles to find your file, showing the Local File, OneDrive Business, OneDrive Personal, and SharePoint tiles.

  4. If your workbook file is on OneDrive or SharePoint - Team Sites, choose Import or Connect.

Local Excel workbooks

You can also use a local Excel file and upload it into Power BI. Simply select Local File from the previous menu, then navigate to where you have your Excel workbooks saved.

Screenshot of the Local File tile, showing how to navigate to select the Excel workbooks.

Once selected, choose to Upload your file into Power BI.

Screenshot of the Local File dialog, showing the Upload your Excel file to Power B I selection.

Once your workbook is uploaded, you get a notification that the workbook is now in your list of workbooks. You can find it in the nav pane in the Workbooks section of the workspace, and in the content list for the workspace.

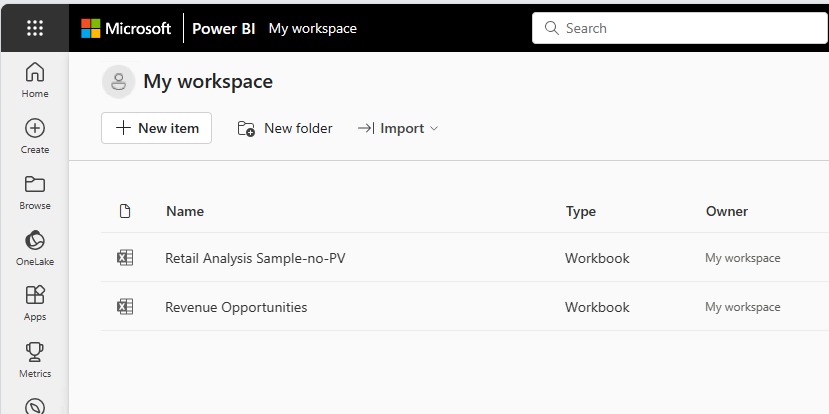

Screenshot of the Workbooks section, showing the Excel workbook.

Local Excel workbooks open in Excel Online within Power BI. Unlike Excel workbooks stored on OneDrive or SharePoint - Team sites, you can't edit local Excel files within Power BI.

Publish from Excel 2016 to your Power BI site

Using the Publish to Power BI feature in Excel 2016 is effectively the same as using Get Data in Power BI to import or connect to your file. We won't go into the details here, but you can see Publish to Power BI from Excel 2016 to learn more.

Note

If you upload an Excel workbook connected to an on-premises SSAS cube, the underlying data model cannot be refreshed in the Power BI service.

Troubleshooting

Workbook file too big? Check out Reduce the size of an Excel workbook to view it in Power BI.

Currently, when you choose Import, Power BI only imports data that is part of a named table or a data model. As a result, if the workbook contains no named tables or Excel data models, you might see this error: "We couldn't find any data in your Excel workbook". This article explains how to fix your workbook and re-import it.

Limitations

At the moment, the upload of Excel workbooks to a Power BI workspace isn't supported for sovereign cloud customers. Also, scheduled refresh of Excel workbooks with connection to an on-premises SQL Server Analysis Services tabular models through a gateway won't work.

Next steps

Explore your data - Once you get data and reports from your file into Power BI, it's time to explore. Just right-click the new dataset and then click Explore. If you chose to connect to a workbook file on OneDrive in step 4, your workbook will appear in Reports. When you click on it, it will open in Power BI, just as it would if it were in Excel Online.

Schedule refresh - If your Excel workbook file connects to external data sources, or you imported from a local drive, you can set up scheduled refresh to make sure your dataset or report is always up-to-date. In most cases, setting up scheduled refresh is quite easy to do, but going into the details is outside the scope of this article. See Data refresh in Power BI to learn more.
