On-object formatting API (preview)

On-object formatting allows users to quickly and easily modify the format of visuals by directly selecting the elements they want to modify. When an element is selected, the format pane automatically navigates and expands the specific formatting setting for the selected element. For more information about on-object formatting, see On-object formatting in Power BI Desktop.

To add these functionalities to your visual, each visual needs to provide a subselection style option and shortcut for each subselectable region.

Note

• Visuals that support on-object formatting need to implement the getFormattingModel API which is available from API version 5.1.
• If you are using powerbi-visuals-utils-formattingmodel, use version 6.0.0 at least.

Create an on-object experience

Use the subselection service when the user selects a subselectable element to send Power BI the subselection. Provide the subselection styles and shortcuts using the subselction API. The subselection helper can be used to simplify the process.

Format mode

Format mode is a new mode where the user can turn onObject formatting on and off when in authoring mode. The visual is updated with the status of the format mode in the update options. The update options also include the currently subselected subSelection as CustomVisualSubSelection.

How to implement the on-object formatting API

Capabilities file

In the capabilites.json file, add the following properties to declare that the visual supports on-object formatting:

{
  "supportsOnObjectFormatting": true,
  "enablePointerEventsFormatMode": true,
}

IVisual interface

The visual needs to implement the VisualOnObjectFormatting interface as part of the IVisual interface.

VisualOnObjectFormatting contains three methods:

• getSubSelectionStyles
• getSubSelectionShortcuts
• getSubSelectables

getSubSelectionStyles

Each visual is required to implement a getSubSelectionStyles method, which is called when a subselectable element is subselected. The getSubSelectionStyles method is provided with the current subselected elements as a CustomVisualSubSelection array and is expected to return either a SubSelectionStyles object or undefined.

There are three categories of subselection styles that cover most scenarios:

• Text
• Numeric Text
• Shape

Each SubSelectionStyles object provides a different experience for the user for modifying the style of an element.

getSubSelectionShortcuts

To provide more options for the user, the visual must implement the getSubSelectionShortcuts method. This method returns either VisualSubSelectionShortcuts or undefined. Additionally, if SubSelectionShortcuts are provided, a VisualNavigateSubSelectionShortcut must also be provided so that when a user subselects an element and the format pane is open, the pane automatically scrolls to the appropriate card.

There are several subselection shortcuts to modify the visual state. Each one defines a menu item in the context menu with the appropriate label.

Sub-Selection Disambiguation Menu: The On-Object disambiguation menu provides a method for users to select their desired subselection when it's not clear which visual element is being subselected. This often happens when the user subselects the background of the visual. For the disambiguous menu to present more subselections, the visual must provide all subselections via the getSubSelectables method.

getSubSelectables

To provide subselections to the disambiguation menu, the visual needs to implement the getSubSelectables method. This method is provided an optional filterType argument, of type SubSelectionStylesType and returns an array of CustomVisualSubSelection or undefined. If the HTMLSubSelectionHelper is being utilized to create a subselection, the HTMLSubSelectionHelper.getSubSelectables() method can be used to gather subselectable elements from the DOM.

Sub-Selection Direct Text Editing: With On-Object formatting, you can double-click the text of a subs-electable element to directly edit it. To provide direct-edit capability, you need to provide a RectangleSubSelectionOutline with the appropriate cVDirectEdit Property populated with a SubSelectableDirectEdit object. The outline can either be provided as a custom outline or, if you're using the HTMLSubSelectionHelper you can use the SubSelectableDirectEdit attribute. (See the attributes provided by the HTMLSubSelectionHelper)

Adding a direct edit for a specific datapoint (using selectors) isn't yet supported.

FormattingId interface

The following interface is used to reference the subSelection shortcuts and styles.

interface FormattingId {
            objectName: string;
            propertyName: string;
            selector?: powerbi.data.Selector;
        }

• objectName: the object name as declared in the capabilities.json.
• propertyName: the property name of an object as declared in the capabilities.json.
• selector: if the datapoint has a selectionId, use selectionId.getSelector(), this selector must be the same as provided for the formatting model slice.

Examples

In this example, we build a custom visual that has two objects, colorSelector and directEdit. We use the HTMLSubSelectionHelper from the onobjectFormatting utils, to handle most of the subSelection job. For more information, see on-object utils.

First, we build cards for the formatting pane and provide subSelectionShortcuts and styles for each subselectable.

Define the objects

Define the objects and declare that the visual is supporting OnObject Formatting in the capabilities.json:

"objects": {
      "directEdit": {
      "properties": {
        "show": {
          "displayName": "Show",
          "type": {
            "bool": true
          }
        },
        "textProperty": {
          "displayName": "Text",
          "type": {
            "text": true
          }
        },
        "fontFamily": {
          "type": {
            "formatting": {
              "fontFamily": true
            }
          }
        },
        "fontSize": {
          "type": {
            "formatting": {
              "fontSize": true
            }
          }
        },
        "bold": {
          "type": {
            "bool": true
          }
        },
        "italic": {
          "type": {
            "bool": true
          }
        },
        "underline": {
          "type": {
            "bool": true
          }
        },
        "fontColor": {
          "displayName": "Font Color",
          "type": {
            "fill": {
              "solid": {
                "color": true
              }
            }
          }
        },
        "background": {
          "displayName": "Background",
          "type": {
            "fill": {
              "solid": {
                "color": true
              }
            }
          }
        },
        "position": {
          "displayName": "Position",
          "type": {
            "enumeration": [
              { "displayName": "Left", "value": "Left" }, { "displayName": "Right", "value": "Right" }
            ]
          }
        }
      }
    },
    "colorSelector": {
      "displayName": "Data Colors",
      "properties": {
        "fill": {
          "displayName": "Color",
          "type": {
            "fill": {
              "solid": {
                "color": true
              }
            }
          }
        }
      }
    },
   },
  "supportsOnObjectFormatting": true,
  "enablePointerEventsFormatMode": true,

Build the formatting cards

Build their formatting cards using the formattingModel utils.

Color selector card settings

class ColorSelectorCardSettings extends Card {
    name: string = "colorSelector";
    displayName: string = "Data Colors";
    slices = [];
}

Add a method to the formattingSetting so we can populate the slices dynamically for the colorSelector object (our datapoints).

populateColorSelector(dataPoints: BarChartDataPoint[]) {
        let slices: formattingSettings.ColorPicker[] = this.colorSelector.slices;
        if (dataPoints) {
            dataPoints.forEach(dataPoint => {
                slices.push(new formattingSettings.ColorPicker({
                    name: "fill",
                    displayName: dataPoint.category,
                    value: { value: dataPoint.color },
                    selector: dataPoint.selectionId.getSelector(),
                }));
            });
        }
    }

We pass the selector of the specific datapoint in the selector field. This selector is the one used when implementing the get APIs of the OnObject.

Direct edit card settings

class DirectEditSettings extends Card {
    displayName = 'Direct Edit';
    name = 'directEdit';
    private minFontSize: number = 8;
    private defaultFontSize: number = 11;
    show = new formattingSettings.ToggleSwitch({
        name: "show",
        displayName: undefined,
        value: true,
    });
    topLevelSlice = this.show;
    textProperty = new formattingSettings.TextInput({
        displayName: "Text Property",
        name: "textProperty",
        value: "What is your quest?",
        placeholder: ""
    });
    position = new formattingSettings.ItemDropdown({
        name: 'position',
        items: [{ displayName: 'Left', value: 'Left' }, { displayName: 'Right', value: 'Right' }],
        value: { displayName: 'Right', value: 'Right' }
    });
    font = new formattingSettings.FontControl({
        name: "font",
        displayName: 'Font',
        fontFamily: new formattingSettings.FontPicker({
            name: "fontFamily",
            displayName: "Font Family",
            value: "Segoe UI, wf_segoe-ui_normal, helvetica, arial, sans-serif"
        }),
        fontSize: new formattingSettings.NumUpDown({
            name: "fontSize",
            displayName: "Font Size",
            value: this.defaultFontSize,
            options: {
                minValue: {
                    type: powerbi.visuals.ValidatorType.Min,
                    value: this.minFontSize,
                }
            }
        }),
        bold: new formattingSettings.ToggleSwitch({
            name: 'bold',
            displayName: "Font Size",
            value: true
        }),
        italic: new formattingSettings.ToggleSwitch({
            name: 'italic',
            displayName: "Font Size",
            value: true
        }),
        underline: new formattingSettings.ToggleSwitch({
            name: 'underline',
            displayName: "Font Size",
            value: true
        })
    });
    fontColor = new formattingSettings.ColorPicker({
        name: "fontColor",
        displayName: "Color",
        value: { value: "#000000" }
    });
    background = new formattingSettings.ColorPicker({
        name: "background",
        displayName: "Color",
        value: { value: "#FFFFFF" }
    });
    slices = [this.show, this.textProperty, this.font, this.fontColor, this.background, this.position];
}

Use subselection helper attributes

Add the HTMLSubSelectionHelper attributes to our objects. To see which attributes the HTMLSubSelectionHelper provide, check the on object utils documentation.

• For the directEdit attribute:

  import {
     HtmlSubSelectableClass, HtmlSubSelectionHelper, SubSelectableDirectEdit as SubSelectableDirectEditAttr,
     SubSelectableDisplayNameAttribute, SubSelectableObjectNameAttribute, SubSelectableTypeAttribute
  } from 'powerbi-visuals-utils-onobjectutils';

  const DirectEdit: powerbi.visuals.SubSelectableDirectEdit = {
      reference: {
          objectName: 'directEdit',
          propertyName: 'textProperty'
      },
      style: SubSelectableDirectEditStyle.Outline,
  };
  private visualDirectEditSubSelection = JSON.stringify(DirectEdit);

  this.directEditElement
              .classed('direct-edit', true)
              .classed('hidden', !this.formattingSettings.directEditSettings.show.value)
              .classed(HtmlSubSelectableClass, options.formatMode && this.formattingSettings.directEditSettings.show.value)
              .attr(SubSelectableObjectNameAttribute, 'directEdit')
              .attr(SubSelectableDisplayNameAttribute, 'Direct Edit')
              .attr(SubSelectableDirectEditAttr, this.visualDirectEditSubSelection)


  The HTMLSubSelectionHelper uses the SubSelectableDirectEditAttr attribute to provide the directEdit reference of the directEdit outline, so a direct edit starts when a user double clicks on the element.



• For the colorSelector:

  barSelectionMerged
            .attr(SubSelectableObjectNameAttribute, 'colorSelector')
            .attr(SubSelectableDisplayNameAttribute, (dataPoint: BarChartDataPoint) => this.formattingSettings.colorSelector.slices[dataPoint.index].displayName)
            .attr(SubSelectableTypeAttribute, powerbi.visuals.SubSelectionStylesType.Shape)
            .classed(HtmlSubSelectableClass, options.formatMode)



Define references

Define the following interface to simplify the examples:

Note

The cardUid you provide should be the same as the one provided for the getFormattingModel API. For example, if you're using powerbi-visuals-utils-formattingmodel, provide the cardUid as Visual-cardName-card, where the cardName is the name you assigned to this card in the formatting model settings. Otherwise, provide it as the Visual-cardUid you assigned to this card.

interface References {
    cardUid?: string;
    groupUid?: string;
    fill?: FormattingId;
    font?: FormattingId;
    fontColor?: FormattingId;
    show?: FormattingId;
    fontFamily?: FormattingId;
    bold?: FormattingId;
    italic?: FormattingId;
    underline?: FormattingId;
    fontSize?: FormattingId;
    position?: FormattingId;
    textProperty?: FormattingId;
}

For the purpose of this example, create an enum for the objects names:

const enum BarChartObjectNames {
    ColorSelector = 'colorSelector',
    DirectEdit = 'directEdit'
}

• References for the directEdit object:

const directEditReferences: References = {
    cardUid: 'Visual-directEdit-card',
    groupUid: 'directEdit-group',
    fontFamily: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'fontFamily'
    },
    bold: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'bold'
    },
    italic: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'italic'
    },
    underline: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'underline'
    },
    fontSize: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'fontSize'
    },
    fontColor: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'fontColor'
    },
    show: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'show'
    },
    position: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'position'
    },
    textProperty: {
        objectName: BarChartObjectNames.DirectEdit,
        propertyName: 'textProperty'
    }
};

• For colorSelector:

const colorSelectorReferences: References = {
    cardUid: 'Visual-colorSelector-card',
    groupUid: 'colorSelector-group',
    fill: {
        objectName: BarChartObjectNames.ColorSelector,
        propertyName: 'fill'
    }
};

Implement APIs

Now let's implement the get APIs for the onObject formatting and provide them in the visualOnObjectFormatting:

1. In the constructor code, provide the get methods in the visualOnObjectFormatting:

   public visualOnObjectFormatting: powerbi.extensibility.visual.VisualOnObjectFormatting;
   constructor(options: VisualConstructorOptions) {
           this.subSelectionHelper = HtmlSubSelectionHelper.createHtmlSubselectionHelper({
                    hostElement: options.element,
                    subSelectionService: options.host.subSelectionService,
                    selectionIdCallback: (e) => this.selectionIdCallback(e),
               });

    this.visualOnObjectFormatting = {
                   getSubSelectionStyles: (subSelections) => this.getSubSelectionStyles(subSelections),
                   getSubSelectionShortcuts: (subSelections, filter) => this.getSubSelectionShortcuts(subSelections, filter),
                   getSubSelectables: (filter) => this. getSubSelectables(filter)
               }
      }

   private getSubSelectionStyles(subSelections: CustomVisualSubSelection[]): powerbi.visuals.SubSelectionStyles | undefined {
           const visualObject = subSelections[0]?.customVisualObjects[0];
           if (visualObject) {
               switch (visualObject.objectName) {
                   case BarChartObjectNames.ColorSelector:
                       return this.getColorSelectorStyles(subSelections);
                    case BarChartObjectNames.DirectEdit:
                       return this.getDirectEditStyles();
               }
           }
       }

   private getSubSelectionShortcuts(subSelections: CustomVisualSubSelection[], filter: SubSelectionShortcutsKey | undefined):    VisualSubSelectionShortcuts | undefined {
           const visualObject = subSelections[0]?.  customVisualObjects[0];
           if (visualObject) {
               switch (visualObject.objectName) {
                   case BarChartObjectNames.ColorSelector:
                       return this.getColorSelectorShortcuts(subSelections);
                   case BarChartObjectNames.DirectEdit:
                       return this.getDirectEditShortcuts();
               }
           }
       }


2. Implement the getSubSelection shortcuts and style for the colorSelector:

   private getColorSelectorShortcuts(subSelections:  CustomVisualSubSelection[]): VisualSubSelectionShortcuts   {
           const selector = subSelections[0].customVisualObjects[0].selectionId?.getSelector();
           return [
               {
                   type: VisualShortcutType.Reset,
                   relatedResetFormattingIds: [{
                       ...colorSelectorReferences.fill,
                       selector
                   }],
               },
               {
                   type: VisualShortcutType.Navigate,
                   destinationInfo: { cardUid: colorSelectorReferences.cardUid },
                   label: 'Color'
               }
           ];
       }

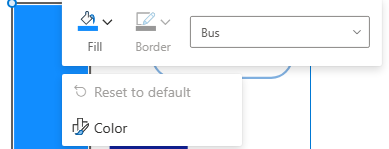

   The above shortcut returns relevant menu item in the context menu and adds the following functionalities:

   • VisualShortcutType.Navigate: when a user selects on one of the bars (data point), and the formatting pane is open, the format pane scrolls to the color selector card and open it
   • VisualShortcutType.Reset: adds a reset shortcut to the context menu. It's enabled if the fill color was changed.

   private getColorSelectorStyles(subSelections: CustomVisualSubSelection[]): SubSelectionStyles {
           const selector = subSelections[0].customVisualObjects[0].selectionId?.getSelector();
           return {
               type: SubSelectionStylesType.Shape,
               fill: {
                   label: 'Fill',
                   reference: {
                       ...colorSelectorReferences.fill,
                    selector
                   },
               },
           };
       }


When a user right-clicks on a bar, the following appears:

When changing the color:

Subsection shortcuts

To implement the subSelection shortcuts and styles for the directEdit:

private getDirectEditShortcuts(): VisualSubSelectionShortcuts {
        return [
            {
                type: VisualShortcutType.Reset,
                relatedResetFormattingIds: [
                    directEditReferences.bold,
                    directEditReferences.fontFamily,
                    directEditReferences.fontSize,
                    directEditReferences.italic,
                    directEditReferences.underline,
                    directEditReferences.fontColor,
                    directEditReferences.textProperty
                ]
            },
            {
                type: VisualShortcutType.Toggle,
                relatedToggledFormattingIds: [{
                    ...directEditReferences.show,
                }],
                ...directEditReferences.show,
                disabledLabel: 'Delete',
            },
            {
                type: VisualShortcutType.Picker,
                ...directEditReferences.position,
                label: 'Position'
            },
            {
                type: VisualShortcutType.Navigate,
                destinationInfo: { cardUid: directEditReferences.cardUid },
                label: 'Direct edit'
            }
        ];
    }

This shortcut adds a relevant menu item in the context menu and adds the following functionalities:

• VisualShortcutType.Reset: adds a reset to the default item to the context menu, when one of the properties provided in relatedResetFormattingIds array changes.
• VisualShortcutType.Toggle: adds a Delete options to the context menu. When clicked, the toggle switch for the directEdit card is turned off.
• VisualShortcutType.Picker: Adds an option in the context menu to pick between Right and Left, since we added the position slice in the formatting card for the directEdit.
• VisualShortcutType.Navigate: When the format pane is open and the user selects the directEdit element, the format pane scrolls and opens the directEdit card.

private getDirectEditStyles(): SubSelectionStyles {
        return {
            type: powerbi.visuals.SubSelectionStylesType.Text,
            fontFamily: {
                reference: {
                    ...directEditReferences.fontFamily
                },
                label: 'font family'
            },
            bold: {
                reference: {
                    ...directEditReferences.bold
                },
                label: 'bold'
            },
            italic: {
                reference: {
                    ...directEditReferences.italic
                },
                label: 'italic'
            },
            underline: {
                reference: {
                    ...directEditReferences.underline
                },
                label: 'underline'
            },
            fontSize: {
                reference: {
                    ...directEditReferences.fontSize
                },
                label: 'font size'
            },
            fontColor: {
                reference: {
                    ...directEditReferences.fontColor
                },
                label: 'font color'
            },
            background: {
                reference: {
                    objectName: 'directEdit',
                    propertyName: 'background'
                },
                label: 'background'
            }
        }
    }

We provided the relevant properties as we added them in the formattingSettings.

The following image illustrates how the UI looks when right-clicking on the directEdit element:

Localization

The visual should handle the localization and provide localized strings.

GitHub resources

• All on object formatting interfaces can be found in (link to be provided once the API is released) in on-object-formatting-api.d.ts
• We recommend using the [on object utils], which include the [HTMLSubSelectionHelper](link to be provided once the API is released)
• You can find an example of a custom visual SampleBarChart that uses API version 5.8.0 and implements the support for the on object formatting using the on object utils at (link to be provided once the API is released)

Related content

• Subselection API
• On-object utils
