Configure additional settings for OAuth 2.0 providers

As explained in Configure an OAuth 2.0 provider for Power Pages, you can configure several identity providers that use the OAuth 2.0 protocol. The additional authentication settings in this section apply to the Microsoft, LinkedIn, Facebook, Google, and Twitter providers.

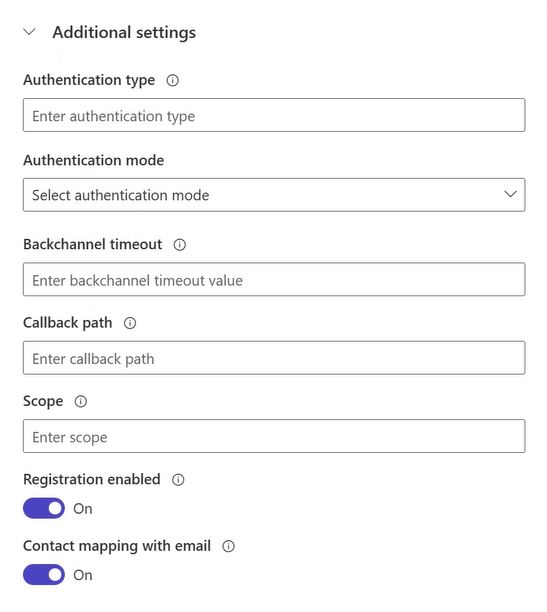

To configure the additional settings for any OAuth 2.0 identity provider, select Configure from the provider settings page, and expand Additional settings.

Setting	Description
Authentication type	The OWIN authentication middleware type. Example: https://sts.windows.net/contoso.onmicrosoft.com/
Authentication mode	The OWIN authentication middleware mode.
Backchannel timeout	Timeout value in milliseconds for back-channel communications: MicrosoftAccountAuthenticationOptions.BackchannelTimeout.
Callback path	The request path within the application's base path where the user-agent will be returned: MicrosoftAccountAuthenticationOptions.CallbackPath.
Sign in As authentication type	The name of another authentication middleware that will be responsible for actually issuing a user claims identity: MicrosoftAccountAuthenticationOptions.SignInAsAuthenticationType.
Scope	A comma-separated list of permissions to request: MicrosoftAccountAuthenticationOptions.Scope.
Registration Enabled	Enables or disables the registration requirement for the existing identity provider. When this is disabled, the user is denied registration with an error if no contact record exists for the user. When this is enabled, user registration is allowed for a new user only if the site setting Authentication/Registration/Enabled is set to true.
Contact mapping with email	Specifies whether contacts are mapped to a corresponding email. When enabled, this setting associates a unique contact record with a matching email address, and then automatically assigns the external identity provider to the contact after the user successfully signs in.
