Use governance components

After you've become familiar with your environments and resources, you might start thinking about governance processes for your apps. You might want to gather additional information about your apps from your makers, or audit specific connectors or app usage.

Watch an overview of how to use the Governance components solution.

The Governance components solution contains assets relevant to admins and makers. More information: Set up governance components

Compliance processes

Watch a walk-through of how the compliance process works.

Flows

Note

These flows are part of the Core components solution; however, most of its functionality is implemented in the Governance components solution. This is in order to facilitate easier shipping for Dataverse for Teams.

Flow Type Schedule
Admin | Compliance request complete apps v3 Automated Triggered if the Power Apps Approval BPF is marked complete.
Admin | Compliance request complete bots v3 Automated Triggered if the Chatbot Approval BPF is marked complete.
Admin | Compliance request complete custom connector v3 Automated Triggered if the Custom Connector Approval BPF is marked complete.
Admin | Compliance request complete flow v3 Automated Triggered if the Flow Approval BPF is marked complete.
Admin | Compliance Teams Environment BPF kickoff v3 Automated Triggered if a business justification is submitted for a Microsoft Teams environment.
Admin | Compliance Detail request v3 Scheduled Facilitate the process described in App auditing process.

Admin | Compliance Detail request v3

This flow works in conjunction with other apps and flows in the Center of Excellence (CoE) Starter Kit to facilitate the process described in App auditing process. Compliance detail request emails are sent for apps and chatbots.

This flow sends an email to users who have apps in the tenant that aren't compliant with the following thresholds:

  • The app is shared with more than 20 users or at least one group, and no business justification details have been provided for it.

  • The app does have business justification details, but hasn't been published in 60 days (so it's likely not on the latest version of Power Apps) or is missing a description.

  • The app has business justification details and an indication of high business impact, but no mitigation plan has been submitted to the attachments field.

This flow sends an email to users who have chatbots in the tenant that aren't compliant with the following thresholds:

  • The chatbot has been launched more than 50 times, and no business justification details have been provided for it.

  • The chatbot has business justification details and an indication of high business impact, but no mitigation plan has been submitted to the attachments field.

You can customize the criteria for when makers are asked to provide a business justification using environment variables. Default values are provided.

You can customize the email sent out by the flow; by default, it will look like the following image:

The compliance detail request email informs a maker that they own an app that is currently missing compliance details, which means it needs to be audited by an admin per the support policy. Makers are prompted to complete the business justification and mitigation plan details in the Developer Compliance Center app to document the intended use of the app.

Apps

Developer Compliance Center

This app is used in the auditing process as a tool for users to check whether their app, flow, chatbot or custom connector is compliant, and to submit information to the CoE admins as business justification to stay in compliance.

Permission: As soon as you're using the app auditing process, this app needs to be shared with your app makers. If you intend to use this process, modify the Welcome email flow to add users to a security group, and then share this app with the security group.

Prerequisite: This app uses Microsoft Dataverse. If you have installed this solution in a production environment, end users need to have a Per User license, or the app needs to be assigned a Per App license, or the environment needs to be covered by pay-as-you-go. If you have installed this solution in a Dataverse for Teams environment, a Microsoft 365 license is required for every user.

Compliance Status

A traffic light indicates how compliant the resource is in relation to a predefined rule set.

  • Apps are compliant if the app description is populated, the business justification is submitted, and the app has been published in the past 60 days.
  • Flows are compliant if the flow description is populated, the business justification is submitted, and the flow isn't suspended.
  • Chatbots are compliant if the chatbot description and the business justification are populated, and the chatbot isn't suspended.
  • Custom connectors are compliant if the custom connector description, business justification, and conditions of use are populated.

Customize: Verify that the compliance criteria matches your requirements, and update if necessary.

Makers can achieve compliance by providing additional information through the Support Details form:

  • Business Justification: Describe the business need and the problem you're solving with this solution.
  • Business Impact: Define the operational impact this solution has on the people using it.
  • Access Management: Describe who has access to this resource, how access is managed (individual user access or access through group membership) and how joiners/movers/leavers processes are managed.
  • Dependencies: Describe any dependencies this solution uses—for example, external or internal APIs or Azure resources.
  • Conditions of use: (For connectors only) Describe in which situations the connector can and should be used.
  • Mitigation Plan provided: For critical solutions, upload a mitigation plan that details what business users will do in the event of an outage.

Customize: Verify that the Support Details form matches your requirements, and update if necessary.

Developer Compliance Center overview.

Developer Compliance Center app detail.

Business process flows

Note

Business process flows (BPFs) are not available if you have installed the Core Components in Dataverse for Teams.

Power Apps App Approval BPF

This process helps the admin audit the app approval process by providing a visualization of the stage in the process they're currently on. The audit stages are:

  • Validate maker requirements.
  • Assess risk.
  • Highlight the app in the app catalog.

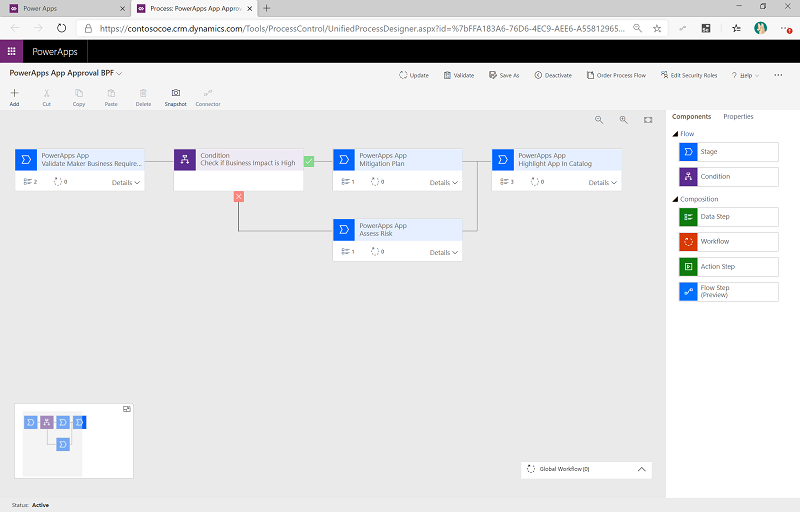

Power Apps App Approval BPF - Implementation.

Power Apps App Approval BPF - Validate Maker Requirements.

Flow Approval BPF

This process helps the admin audit the flow approval process by providing a visualization of the stage in the process they're currently on. The audit stages are:

  • Validate maker requirements.
  • Assess risk.
  • Complete the admin review.

Flow Approval BPF - Implementation.

Flow Approval BPF - Validate Maker Requirements.

Custom Connector Approval BPF

This process helps the admin audit the custom connector approval process by providing a visualization of the stage in the process they're currently on. The audit stages are:

  • Validate maker requirements.
  • Assess risk.
  • Complete the admin review.

Custom Connector Approval BPF - Implementation.

Custom Connector Approval BPF - Validate Maker Requirements.

Chatbot Approval BPF

This process helps the admin audit the chatbot approval process by providing a visualization of the stage in the process they're currently on. The audit stages are:

  • Validate maker requirements.
  • Assess risk.
  • Complete the admin review.

Chatbot Approval BPF - Implementation.

Chatbot Approval BPF - Validate Maker Requirements.

Activate the business process flows

All business process flows are disabled by default. To enable them, do the following:

  1. Go to make.powerapps.com and set the current environment to the same environment where the CoE solution is installed.

  2. Select Solutions > Center of Excellence.

  3. Select Process from the filter option at the top.

  4. In Power Apps App Approval BPF, select the ellipsis (…) button, and then select Turn On.

  5. Repeat the previous step for Flow Approval BPF, Custom Connector Approval BPF, and Chatbot Approval BPF.

Inactivity processes

Watch a walk-through of how the inactivity process works.

Tables

Inactivity notifications approval

Represents inactivity notifications approval tasks started during the Admin | Inactivity notifications v2 flows.

Flows

Flow Type Schedule
Microsoft Teams Admin | Ask for Business Justification when Microsoft Teams environment is created Automated Triggered by admin | Sync Template v3
Microsoft Teams Admin | Weekly Clean Up of Microsoft Teams environments Schedule Weekly
Admin | Inactivity notifications v2 (Check Approval) Schedule Daily
Admin | Inactivity notifications v2 (Clean Up and Delete) Schedule Daily
Admin | Inactivity notifications (Start Approval for Apps) Schedule Weekly
Admin | Inactivity notifications (Start Approval for Flows) Schedule Weekly
Admin | Email Managers Ignored Approvals Instant Weekly
Admin | Broken Connection Cleanup Instant Weekly

Admin | Inactivity notifications v2 (Start Approval for Apps)

Checks for apps that haven't been modified or launched in the last six months (this time span is configurable) and asks the app owner (via flow approvals) whether the app can be deleted.

It recommends that the app owner take a backup of the app in the event that they would like to restore it at some later point.

This flow starts the approval process and writes the approval task to the Archive Approval Dataverse table.

Inactivity notifications v2 (Start Approval for Apps) flow.

Customize: By default, this flow will assign approvals to the app owner. In order to test in a debug environment, in which you don't want to involve users, you can update the ProductionEnvironment environment variable to No, and the approvals will be sent to the admin account instead.

Inactivity notifications v2 - workflow for Apps.

Admin | Inactivity notifications v2 (Start Approval for Flows)

Similar to the previous flow, but for flows rather than apps. This flow checks for flows that haven't been modified in the last six months (this time span is configurable) and asks the flow owner (via flow approvals) whether the flow can be deleted.

It recommends that the flow owner take a backup of the app in the event that they would like to restore it at some later point.

This flow starts the approval process and writes the approval task to the Archive Approval Dataverse table.

Customize: By default, this flow will assign approvals to the flow owner. In order to test in a debug environment, in which you don't want to involve users, you can update the ProductionEnvironment environment variable to No, and the approvals will be sent to the admin account instead.

Inactivity notifications - workflow for Flows.

Admin | Inactivity notifications (Check Approval)

On a scheduled interval, checks for approval responses created by the Start Approval flows described above and, if newly approved, marks the approved date so that the Inactivity notifications v2 (Clean Up and Delete) flow (described below) can delete it after the user has time to archive.

If approved in the past, but before deletion, it sends a reminder to archive the app or flow before deletion.

Admin | Inactivity notifications (Clean Up and Delete)

Runs daily and does two cleanup tasks for the workflow.

  1. Deletes the flows and apps that were approved for deletion more than three weeks ago (configurable).
  2. Deletes expired approval requests that were created over a month ago. If a maker ignores an approval request, their app or flow will not get deleted, however they will receive another approval request again in the future. Additionally, their manager will receive a notification on ignored requests.

Admin | Email Managers Ignored Inactivity notifications Approvals

This flow works with the other Inactivity notifications flows in that it looks for approvals from this system that have been ignored by makers for one month or more and sends their manager a list of these, asking they help by encouraging their employees to approve or reject the request.

Mail sent to managers.

Admin | Broken Connection Cleanup

Runs weekly deletes connection references that are errored out and which were last modified at least 30 days ago (configurable).

Apps

Cleanup Old Objects App

As makers are asked to respond if objects are still useful with the Archival flows above, they will sometimes ignore these asks. In that case, a flow above will send their manager this email.

Mail sent to managers.

The manager can click the link in the mail and be brought to this app for cleaning.

They can choose which employee to work on first.

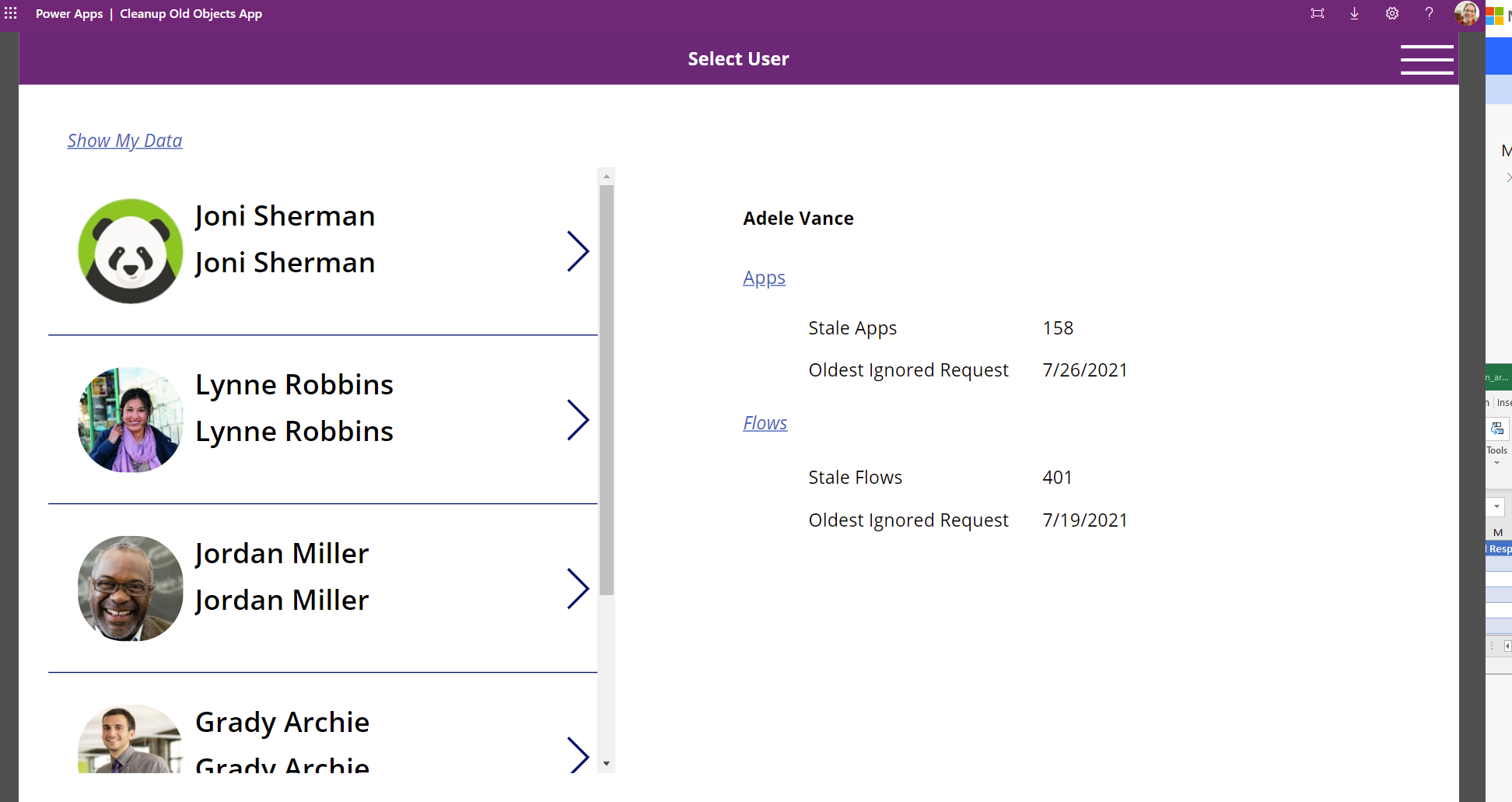

Select user screen.

And then for each employee, either reject the deletion or send a reminder.

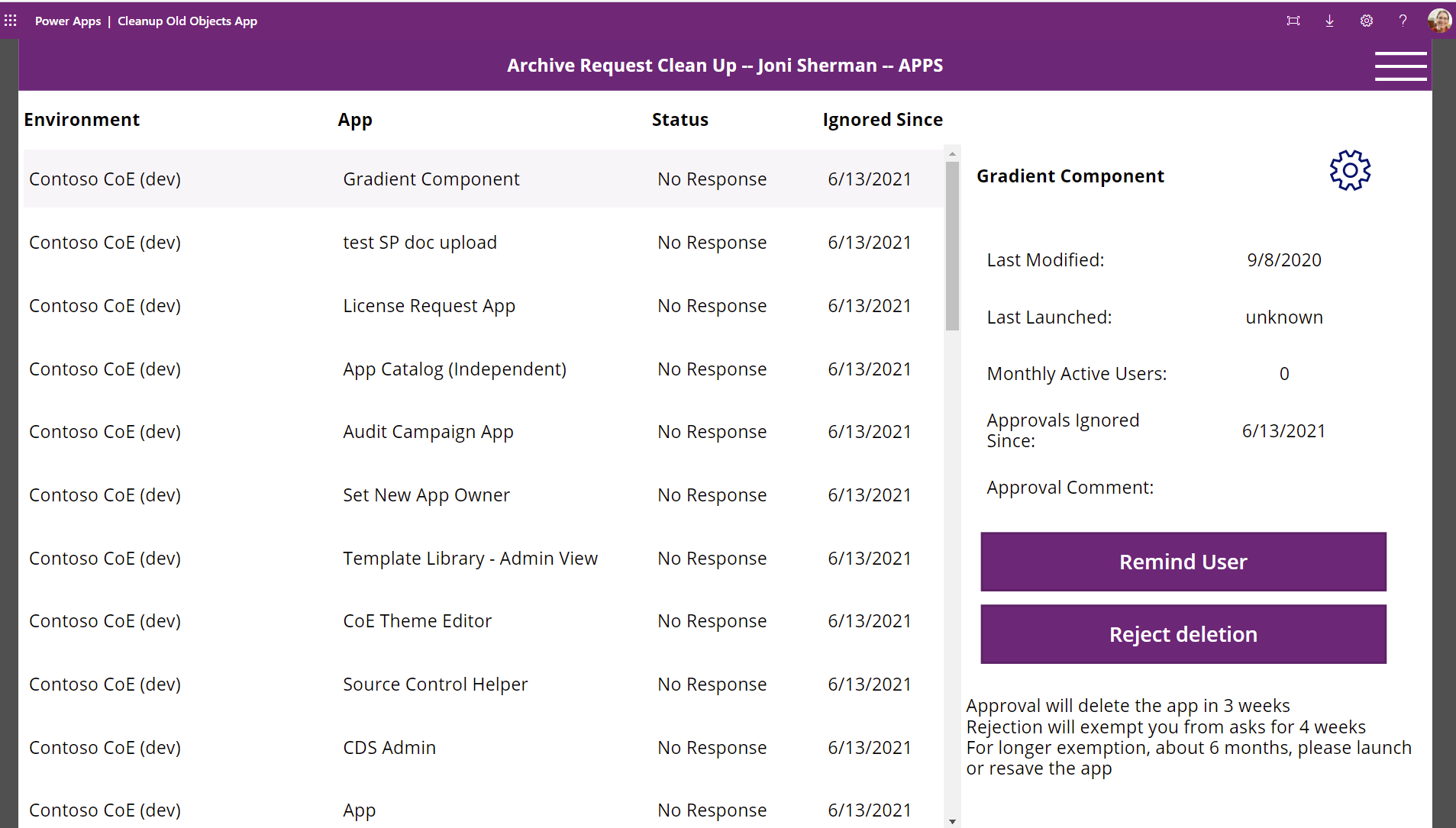

Cleanup screen.

They can send the person to the app to do the cleanup as well. There, they'll be able to approve/reject deletion for all their objects.

Send reminder mail screen.

App and Flow Inactivity Notifications Clean Up View

This app gives the admin a view of all objects currently being considered for archival and deletion. An admin can filter to the apps that have been rejected with a note to review:

View all objects in review.

And if the reason is sound, they can choose to exempt the object from future runs and consideration for archival and deletion.

Excuse from archival flows.

Microsoft Teams governance

Note

These components will not work in GCC High and DoD as posting adaptive cards to Teams is not supported in those regions.

Flows

Flow Type Schedule
Microsoft Teams Admin | Ask for Business Justification when Microsoft Teams environment is created Automated Triggered by Admin | Sync Template v3
Microsoft Teams Admin | Weekly Clean Up of Microsoft Teams environments Schedule Weekly
Microsoft Teams Admin | Send Reminder Mail Schedule Daily

Microsoft Teams Admin | Ask for Business Justification when Microsoft Teams environment is created

This flow runs daily and checks whether new environments of type Microsoft Teams have been created. Team owners who have created Microsoft Teams environments receive an adaptive card via Teams that prompts them to provide a business justification.

Additionally, this flow also sends a welcome email to new team owners to provide them with further information about their environment. A link to the policy documentation you have set up as part of configuring the CoE Settings is included in this email.

Save a copy of this flow if you want to change the wording in the emails or adaptive cards.

Learn more about the Microsoft Teams governance process in the CoE Starter Kit: Microsoft Teams environment audit process

Microsoft Teams Admin | Weekly Clean Up of Microsoft Teams environments

Note

You can now configure environment policies in Power Platform Admin Center to delete inactive Dataverse for Teams environments. As this feature is now available in Power Platform Admin Center, we will deprecate inactivity based deletion in the CoE Starter Kit effective November 2022.
Learn more: Automatic deletion of inactive Microsoft Dataverse for Teams environments

Important

This flow deletes environments for which no business justification exists, or where the business justification has been rejected. Environment owners have 7 days to provide a business justification before the environment gets deleted.

This flow runs weekly and deletes environments that:

  • Have been created more than 7 days ago and have no business justification, or the business justification has been rejected by the admin.
  • Have been created more than 90 days ago and have no apps or flows in the environment.

Note

Currently, bots created via Power Virtual Agents in Microsoft Teams environments aren't discoverable in the CoE Starter Kit.

Environments are deleted from the tenant and marked as deleted in the Environment table of the CoE Starter Kit. You can view deleted environments in the Power Platform Admin View.

Important

You can recover a recently deleted environment (within seven days of deletion) by using the Power Platform admin center or the Power Apps cmdlet Recover-AdminPowerAppEnvironment. More information: Recover environment

Save a copy of this flow in case you want to make any changes to the criteria for when environments are deleted.

Learn more about the Microsoft Teams governance process in the CoE Starter Kit: Microsoft Teams environment audit process

Microsoft Teams Admin | Send Reminder Mail

This flow sends a daily reminder email to environment owners who have been asked for a business justification for their Dataverse for Teams environment but haven't yet provided one. The email additionally provides information on how to turn on flow integration in Microsoft Teams.

Cleanup for orphaned resources

Note

These components will not work in GCC High and DoD as posting adaptive cards to Teams is not supported in those regions.

Watch a walk-through of how the clean-up for orphaned objects process works.

Flows

Flow Type Schedule
Request Orphaned Objects Reassigned (Child) Instant child
Request Orphaned Objects Reassigned (Parent) Schedule daily

Request Orphaned Objects Reassigned (Parent)

On a daily basis, this collects all the orphaned objects in the tenant and attempts to associate them with the manager of the former owner. It then sends a Teams bot note to each impacted manager and lets them know there are objects to clean, and then concurrently calls the child flow for each manager.

A list of orphaned objects that can't resolve to a previous manager is sent to the admin email so that admins know which orphaned objects need to be cleaned manually.

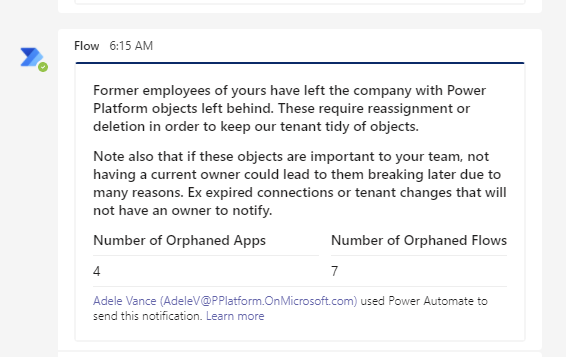

Orphaned object count.

Request Orphaned Objects Reassigned (Child)

This flow is triggered daily for every manager who has objects owned by former employees who have left the company. It shows all the cloud flows and canvas apps owned by the former employees and lets the manager decide what to do:

  1. Email themselves the list.
  2. Take ownership of them all.
  3. Delete them all.
  4. Assign them all to someone else.
  5. See each one individually.

Orphaned object list.

If they choose to see the items individually, then they can make these decisions granularly.

Orphaned object item.

App Quarantine process

Environment variables

Name Description Default value
Quarantine Apps after x days of non-compliance If using the Compliance flow for apps to gather compliance details from makers, specify if you want to quarantine apps if they're not compliant. Specified in days. 7 days

Flows

Flow Type Schedule
Admin | Quarantine non-compliant apps Scheduled Daily
Admin | Set app quarantine status Automated When the Quarantine App field in the PowerApps App table is changed

Admin | Quarantine non-compliant apps

This flow runs on a schedule and checks if any apps need quarantining based on the following criteria:

  • Environment is included in the quarantine process.
  • Compliance details have been requested, but are not yet submitted, and are pending longer than specified in the "Quarantine Apps after x days of non-compliance" environment variable.
  • App is not already quarantined.
  • Admin Risk Assessment status is not complete.

For any apps matching the above criteria, the app quarantine status is set to Yes. Note that a maker submitting compliance details via the Developer Compliance Center does not automatically release their app from quarantine, an admin will have to perform a risk assessment and manually release the app from quarantine using the Power Platform Admin View.

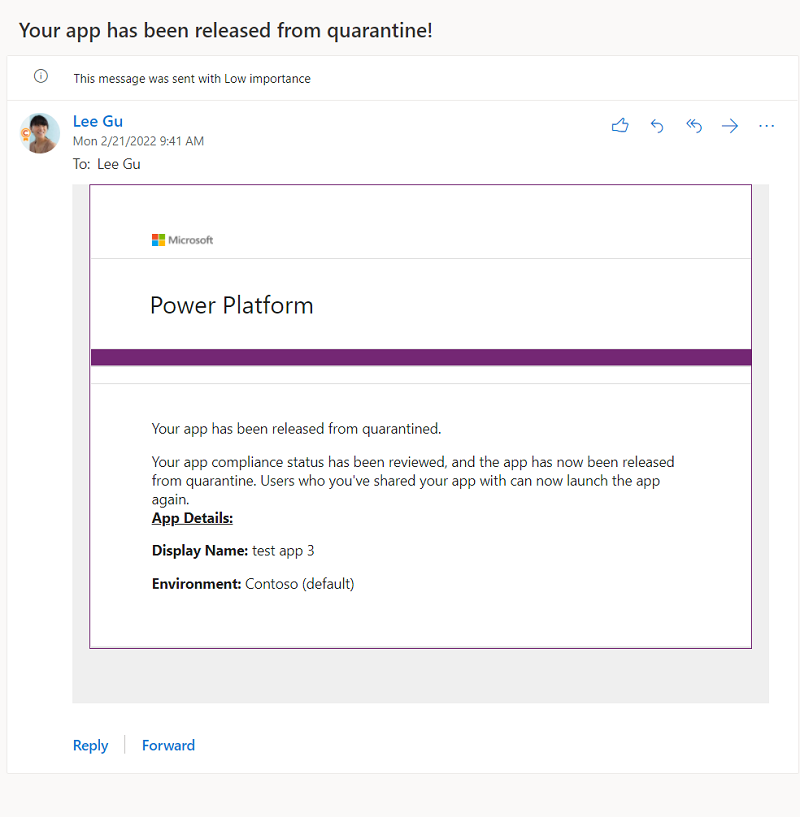

To release an app from quarantine, use the Power Platform Admin View to set the Quarantine App field to No and mark the Admin Requirement - Risk Assessment State as Complete.

Admin | Set app quarantine status

This flow is triggered automatically if the app quarantine status field of the Power Apps App table is updated.

This field:

  • Is set to Yes by the Admin | Quarantine non-compliant apps.
  • Can be updated to either Yes or No manually by the admin from the Power Platform Admin View to quarantine apps or release apps from quarantine.

This flow sets the quarantine status of the app.

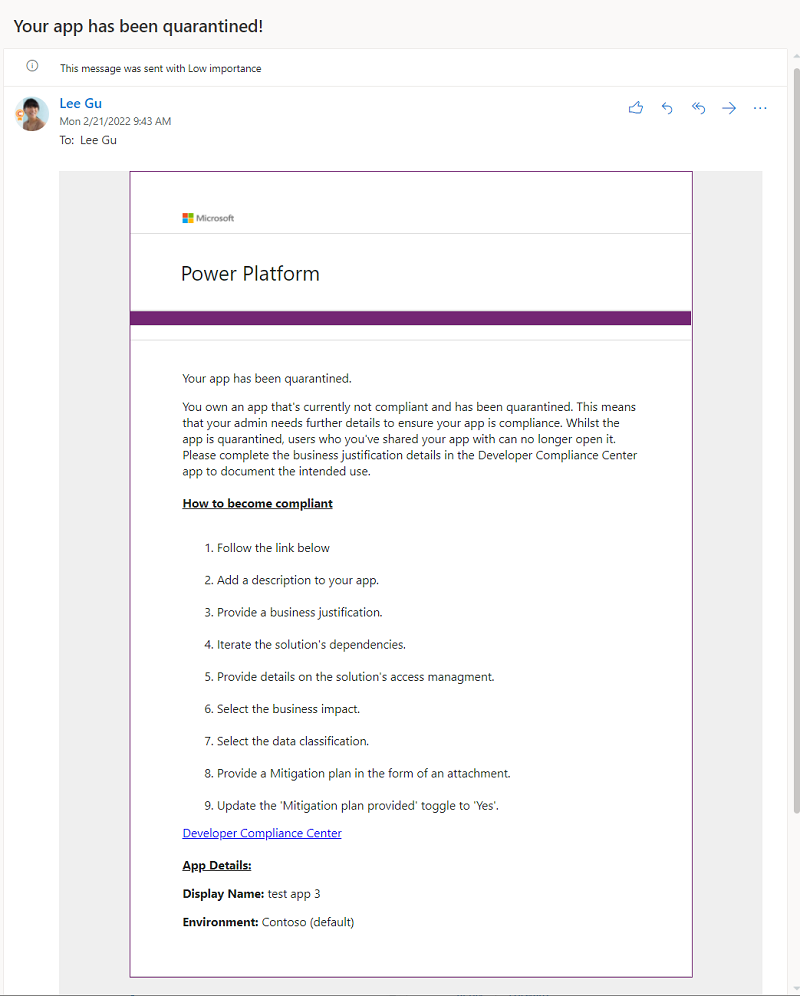

If the app is quarantined, an email is sent to the maker to inform them their app can no longer be launched.

The app maker gets an email notification to inform them their app has been quarantined, and to ask them to submit compliance details in the Developer Compliance Center app.

If the app is released from quarantine, an email is sent to the maker to inform them the app is available for use again.

The app maker gets an email notification to inform them their app has been released from quarantine.

Apps that are quarantined are also flagged in the Developer Compliance Center.

Quarantined apps are highlighted as such in the Developer Compliance Center app.
