Azure Analysis Services database
Summary
| Item | Description |
|---|---|
| Release State | General Availability |
| Products | Power BI (Semantic models) Power BI (Dataflows) Fabric (Dataflow Gen2) Power Apps (Dataflows) Dynamics 365 Customer Insights |
| Authentication Types Supported | Basic Microsoft account Organizational account Windows |
| M Function Reference | AnalysisServices.Database AnalysisServices.Databases |
Note
Some capabilities may be present in one product but not others due to deployment schedules and host-specific capabilities.
Prerequisites
An Azure subscription. Go to Get Azure free trial.
An Azure Analysis Services server. Follow the instructions at Quickstart: Create a server - Portal for creating the server using the Azure portal. Other articles in this section also include information on creating a server using PowerShell, Bicep, or an Azure Resource Manager (ARM) template. This connector article assumes that you've already created an Azure Analysis Services server and have an existing database on the server.
Capabilities Supported
- Import
- Connect live (Power BI semantic models)
- Advanced options
- MDX or DAX query
Connect to Azure Analysis Services database from Power Query Desktop
To make the connection, take the following steps:
Select the Azure Analysis Services database option in the connector selection. More information: Where to get data

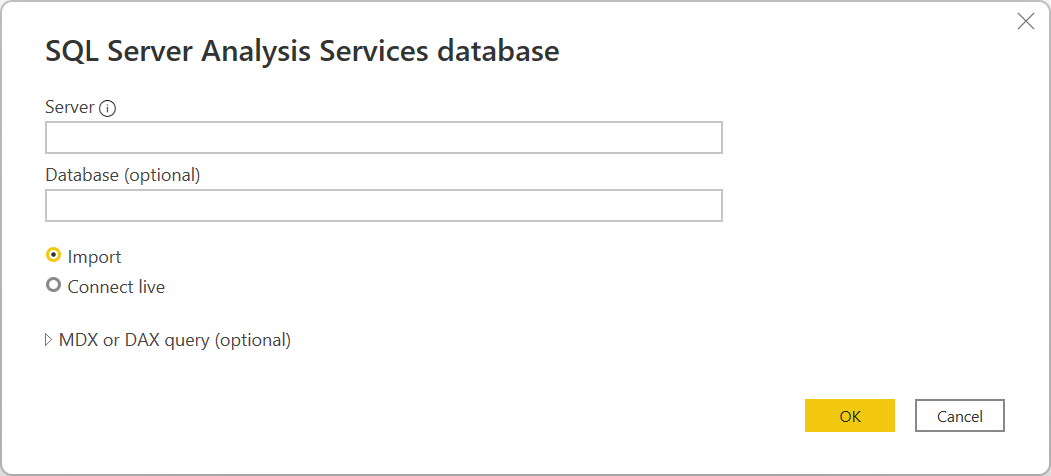

In the SQL Server Analysis Services database dialog that appears, provide the name of the server and database (optional).
Note
Only Power BI Desktop will display the Import and Connect live options. If you're connecting using Power BI Desktop, selecting Connect live uses a live connection to load the connected data directly to Power BI Desktop. In this case, you can't use Power Query to transform your data before loading the data to Power BI Desktop. For the purposes of this article, the Import option is selected. For more information about using a live connection in Power BI Desktop, go to Connect to Analysis Services tabular data in Power BI Desktop.
Select OK.

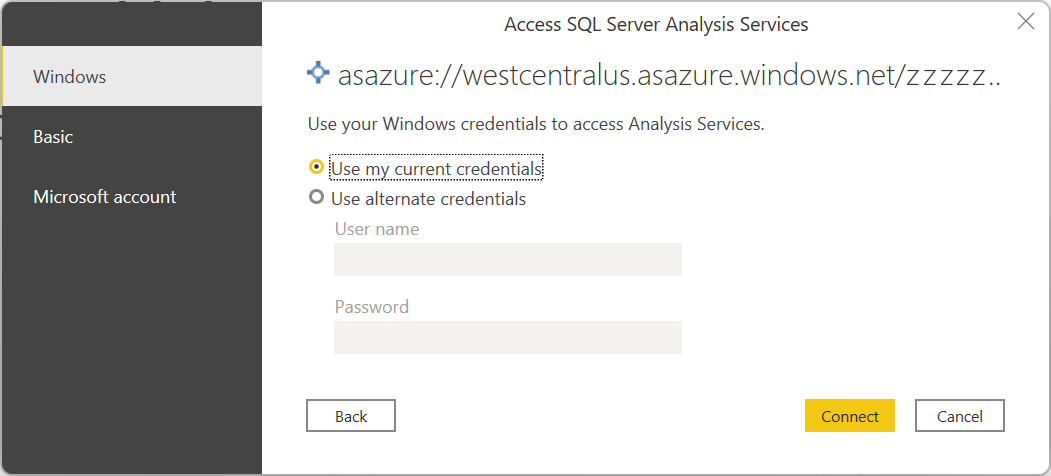

If you're connecting to this database for the first time, select the authentication type and input your credentials. Then select Connect.

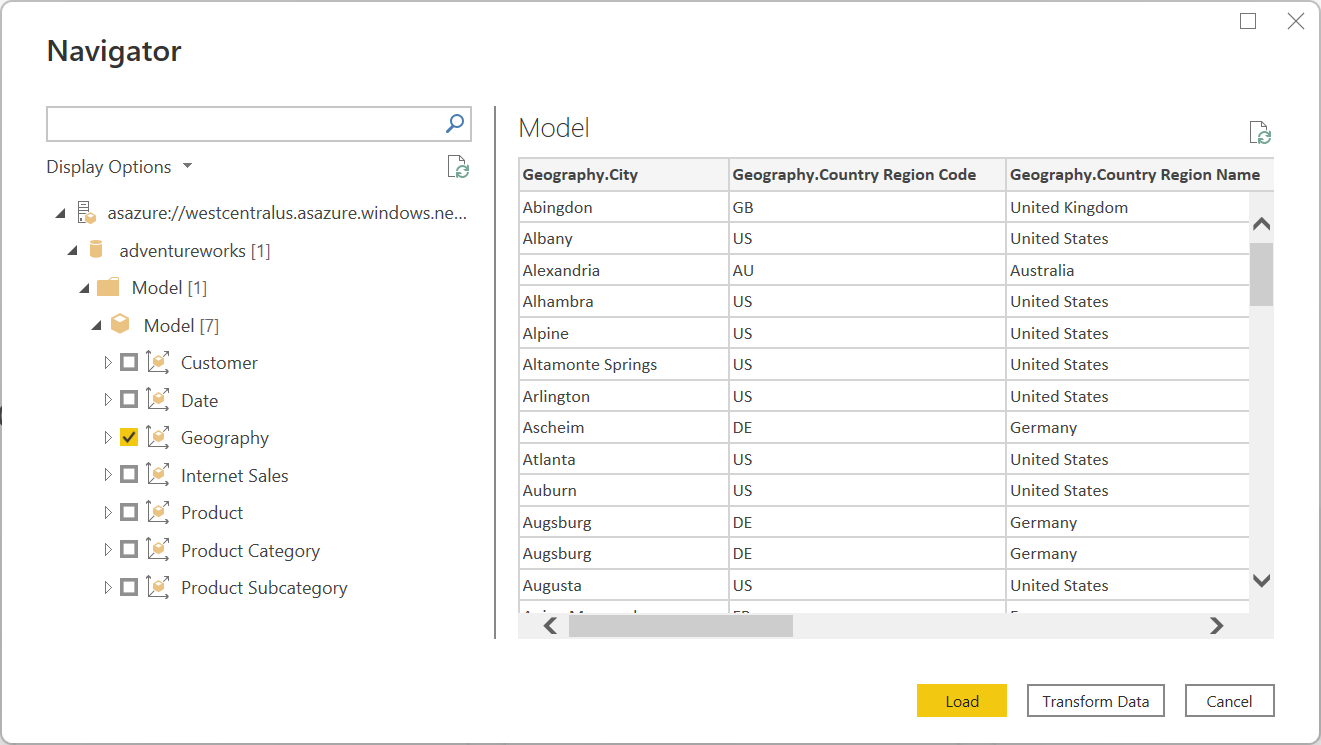

In Navigator, select the database information you want, then either select Load to load the data or Transform Data to continue transforming the data in the Power Query editor.
Connect to Azure Analysis Services database from Power Query Online
To make the connection, take the following steps:
Select the Azure Analysis Services database option in the connector selection. More information: Where to get data
In the Connect to data source page, provide the name of the server and database (optional).
If needed, select an on-premises data gateway.
If you're connecting to this database for the first time, select the authentication kind and input your credentials.
Select Next to continue.
In Navigator, select the data you require, and then select Transform data.
Connect using advanced options
Power Query provides an advanced option that you can add to your query if needed.
| Advanced option | Description |
|---|---|
| MDX or DAX statement | Optionally provides a specific MDX or DAX statement to the Azure Analysis Services database server to execute. |
Once you've entered a value in the advanced option, select OK in Power Query Desktop or Next in Power Query Online to connect to your Azure Analysis Services database.
Troubleshooting
Error indicates “invalid credentials”

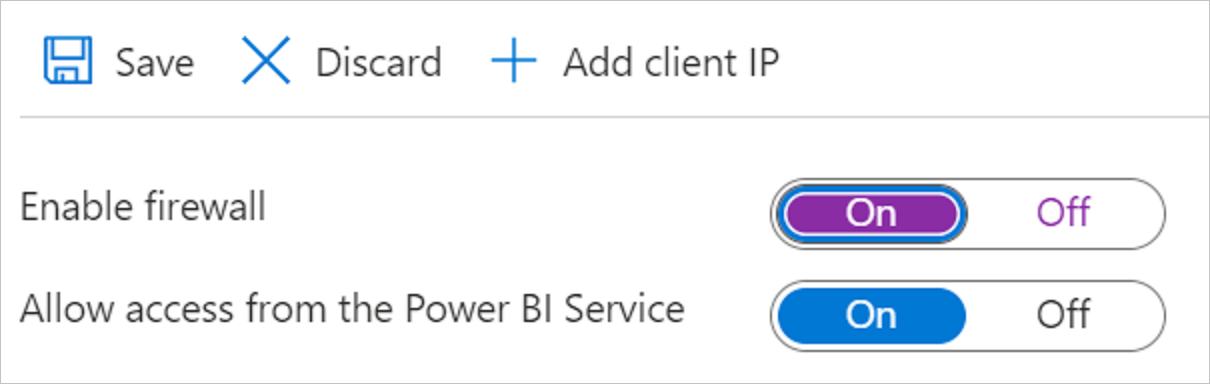

If you've enabled the firewall in Azure Analysis Services and you're getting an “invalid credentials” error, you might need to allowlist the IP addresses of the Power Query Online clusters, even if you've allowed access from the Power BI service in your Azure Analysis Services server firewall.
To allowlist the Power Query Online clusters, download the Azure IP ranges and service tags from the Microsoft Download Center. You'll need to allowlist the IP addresses from the PowerQueryOnline service tag. For more information on how to configure the server firewall, go to Quickstart: Configure server firewall - Portal.
