FHIR Relationships

  • Article

This article describes how to establish relationships between tables that have been imported using the Power Query connector for FHIR.

Introduction

FHIR resources are related to each other, for example, an Observation that references a subject (Patient):

{
    "resourceType": "Observation",
    "id": "1234",
    "subject": {
        "reference": "Patient/456"
    }

    // ... Other fields
}

Some of the resource reference fields in FHIR can refer to multiple different types of resources (for example, Practitioner or Organization). To facilitate an easier way to resolve references, the Power Query connector for FHIR adds a synthetic field to all imported resources called <referenceId>, which contains a concatenation of the resource type and the resource ID.

To establish a relationship between two tables, you can connect a specific reference field on a resource to the corresponding <referenceId> field on the resource you would like it linked to. In simple cases, Power BI will even detect this for you automatically.

Establishing FHIR relationships in Power BI

In this section, we'll show an example of establishing a relationship between the Observation.subject.reference field and the <referenceId> field on Patient.

  1. When importing data, select the Patient and Observation tables:

    Screenshot with the Patient and Observation tables selected in the Power Query Navigator dialog.

    Then select Transform Data.

  2. Expand the subject column on Observation to reveal subject.reference:

    Screenshot of the Power Query editor with the subject column selected and expanded to reveal the columns drop down menu.

    After expanding, you should see the list of subject references:

    Screenshot of the Power Query editor showing the new expanded subject references column.

  3. Make any other modifications you need to the query and save the modified query.

  4. Select Manage Relationships in the Power BI client:

    Screenshot of the Power Query editor, with the Manage relationships option in the Home tab emphasized.

  5. Establish the relationship. In this simple example, Power BI will likely have detected the relationship automatically:

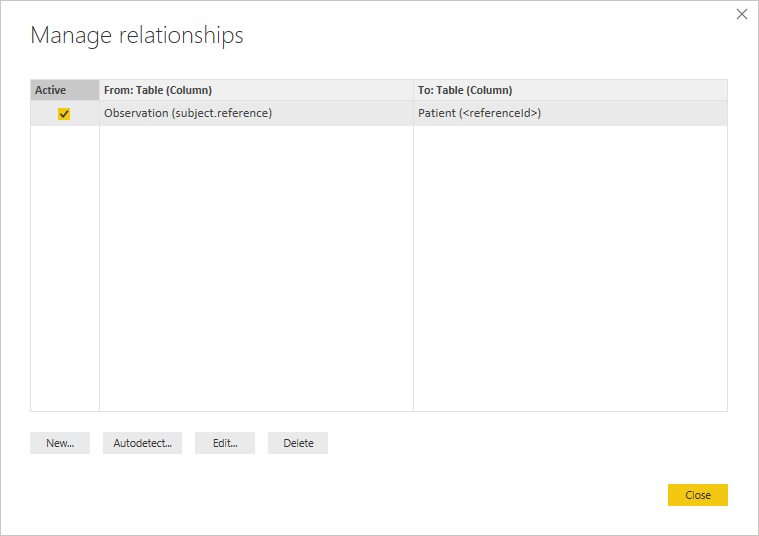

    Screenshot of the Manage relationships dialog, with the relationship automatically detected and displayed.

    If not, you can add it manually:

    Screenshot of the Manage relationships dialog, with no detected relationships, and the new button emphasized.

    You can edit the details of the relationship:

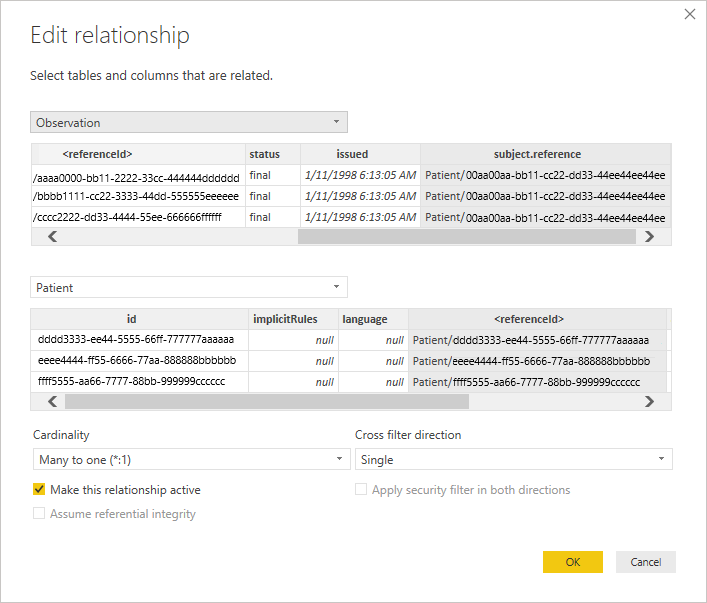

    Screenshot of the Edit relationships dialog, with the Observation and Patient columns selected.

    Edit relationship.

Summary

Resources in FHIR are related. These relationships need to be established on data imported with the Power Query connector for FHIR. The <referenceId> field is a synthetic field added to all imported FHIR data that will help establish the relationships.

Next steps

In this article, you've learned how to establish relationships between tables imported with the Power Query connector for FHIR. Next, explore query folding with the Power Query connector for FHIR.
