SAP Business Warehouse Message Server

Note

The SAP Business Warehouse (BW) Message Server connector is now certified for SAP BW/4HANA as of June 2020.

Summary

Item Description
Release State General Availability
Products Power BI (Datasets)
Power BI (Dataflows)
Power Apps (Dataflows)
Authentication Types Supported Windows (desktop)
Database (desktop)
Basic (online)
Function Reference Documentation SapBusinessWarehouse.Cubes
sapbusinesswarehouseexecutionmode.DataStream
SapBusinessWarehouseExecutionMode.BasXml
SapBusinessWarehouseExecutionMode.BasXmlGzip

Note

Some capabilities may be present in one product but not others due to deployment schedules and host-specific capabilities.

Prerequisites

Important

Version 1.0 of the SAP BW Message Server connector has been deprecated. New connections will use Implementation 2.0 of the SAP BW Message Server connector. All support for version 1.0 will be removed from the connector in the near future.

You'll need an SAP account to sign in to the website and download the drivers. If you're unsure, contact the SAP administrator in your organization.

To use the SAP BW Message Server connector in Power BI Desktop or Power Query Online, you must install the SAP .NET Connector 3.0. Access to the download requires a valid S-user. Contact your SAP Basis team to get the SAP .NET Connector 3.0. You can download the SAP .NET Connector 3.0 from SAP. The connector comes in 32-bit and 64-bit versions. Choose the version that matches your Power BI Desktop installation. For Power Query Online, choose the 64-bit version. Currently, the website lists two versions for .NET 4.0 framework:

  • SAP Connector for Microsoft .NET 3.0.23.0 for Windows 32 bit (x86) as a zip file (6,928 KB), May 28, 2020
  • SAP Connector for Microsoft .NET 3.0.23.0 for Windows 64 bit (x64) as a zip file (7,225 KB), May 28, 2020

When you install, in Optional setup steps, make sure you select Install assemblies to GAC.

Select to install assemblies to GAC.

Note

Be sure to use SAP .NET Connector 3.0. The SAP BW Application Server connector doesn't currently support SAP .NET Connector 3.1.

Capabilities Supported

  • Import
  • Direct Query
  • Advanced
    • Language code
    • Execution mode
    • Batch size
    • MDX statement
    • Enable characteristic structures

Connect to an SAP BW Message Server from Power Query Desktop

To connect to an SAP BW Message Server:

  1. From the Home tab of Power BI Desktop, select Get Data > SAP Business Warehouse Message Server.

  2. Enter the server, system number, client ID, and logon group of the SAP BW Message Server you want to connect to. This example uses SAPBWTestServer as the server name, a system number of 100, a client ID of 837, and a logon group of PURCHASING.

    Note

    You can also use router strings to connect to your data. More information: Connect using router strings

    The rest of this example describes how to import your data into Power Query Desktop, which is the default setting for Data Connectivity mode. If you want to use DirectQuery to load your data, see Connect to SAP Business Warehouse by using DirectQuery in Power BI.

    If you want to use any of the advanced options for this connector to fine-tune your query, go to Use advanced options.

    When you've finished filling in the relevant information, select OK.

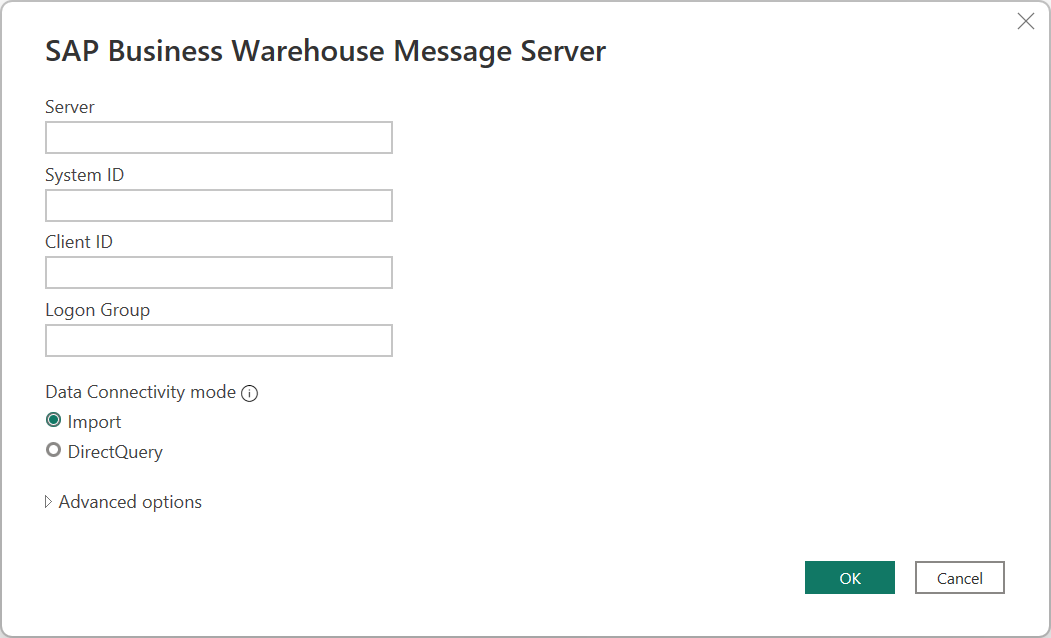

    Enter the SAP Business Warehouse Message Server information.

  3. When accessing the database for the first time, the SAP BW Message Server requires database user credentials. Power Query Desktop offers two authentication modes for SAP BW connections—user name/password authentication (Database), and Windows authentication (single sign-on). SAML authentication isn't currently supported. Select either Windows or Database. If you select Database authentication, enter your user name and password. If you select Windows authentication, go to Windows Authentication and single sign-on to learn more about the requirements for Windows authentication.

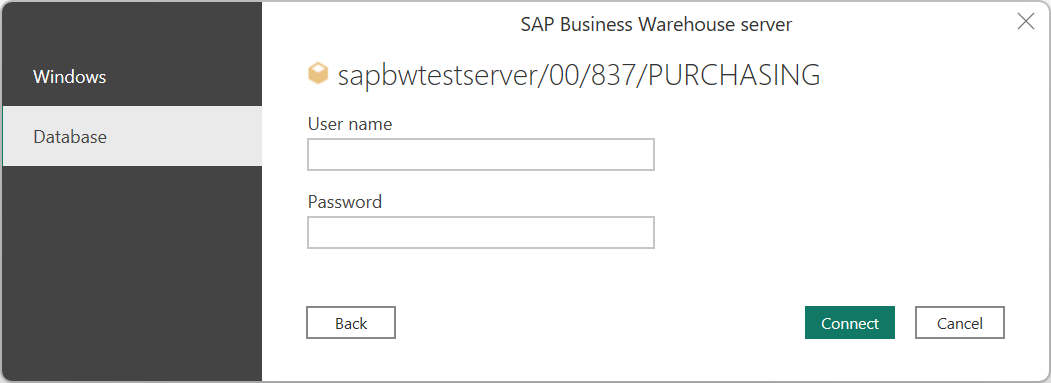

    Enter the message server credentials.

    Then select Connect.

    For more information about authentication, go to Authentication with a data source.

  4. From the Navigator dialog box, select the items you want to use. When you select one or more items from the server, the Navigator dialog box creates a preview of the output table. For more information about navigating the SAP BW Message Server query objects in Power Query, go to Navigate the query objects.

    Message Server navigator view from Power Query Desktop.

  5. From the Navigator dialog box, you can either transform the data in the Power Query Editor by selecting Transform Data, or load the data by selecting Load.

Connect to an SAP BW Message Server from Power Query Online

To connect to an SAP BW Message Server from Power Query Online:

  1. From the Data sources page, select SAP BW Message Server.

  2. Enter the server, system number, client ID, and logo group of the SAP BW Message Server you want to connect to. This example uses SAPBWTestServer as the server name, a system number of 100, a client ID of 837, and a logon group of PURCHASING.

  3. Select the on-premises data gateway you want to use to connect to the data.

  4. Set Authentication Kind to Basic. Enter your user name and password.

    SAP BW Message Server online sign-in.

  5. You can also select from a set of advanced options to fine-tune your query.

  6. Select Next to connect.

  7. From the Navigator dialog box, select the items you want to use. When you select one or more items from the server, the Navigator dialog box creates a preview of the output table. For more information about navigating the SAP BW Message Server query objects in Power Query, go to Navigate the query objects.

  8. From the Navigator dialog box, you can transform the data in the Power Query Editor by selecting Transform Data.

    SAP BW Message Server Navigator view from Power Query Online.

Connect using router strings

SAP router is an SAP program that acts as an intermediate station (proxy) in a network connection between SAP systems, or between SAP systems and external networks. SAP router controls the access to your network, and, as such, is a useful enhancement to an existing firewall system (port filter). Figuratively, the firewall forms an impenetrable "wall" around your network. However, since some connections need to penetrate this wall, a "gate" has to be made in the firewall. SAP router assumes control of this gate. In short, SAP router provides you with the means of controlling access to your SAP system.

Router strings in Power Query

To establish a connection to an SAP BW system through an SAP router, you can use router strings in place of the server name in the Power Query connection settings.

The syntax used for the router string is:

<SAP router 1><SAP router 2>.....<SAP router n><destination : message server>

Where:

  • <SAP router> = /H/<sap router host name>/S/<sap router port>
  • <destination> = /M/<message server host name>/S/<message server port or service name>/G/<logon group>

Note

/S/<port> can be omitted if the port is the default port (3299).

The following table contains examples of some router strings.

Destination Example Router string
Message Server SAP Router with message server port /H/saprouter-maq/S/3299/M/bwmpms.mycompany.com/S/3214
Message Server SAP Router with logon group /H/saprouter-maq/S/3299/M/bwmpms.mycompany.com/S/3214/G/space

Considerations

  • Router strings can include passwords, prefixed by either /P/ or /W/. Passwords aren't supported in Power Query router strings as this could be unsafe. Using a password will result in an error.

  • Router strings also allow the use of symbolic SAP system names, prefixed with /R/. This type of string isn't supported in Power Query.

  • In Power Query, you can use the "router string" syntax to specify a custom port, so router strings with a single station are allowed. Router strings can then be identified as starting with either /H/ or /M/. Any other input is assumed to be a server name/IP address.

  • To allow you to use the same router strings you use in other tools, the /G/ option in the router string is supported. When provided, it should match the value specified in the "Logon group" parameter.

  • If a message server port is specified, it will be sent. Under these circumstances, the SystemId is omitted from the connection string as it’s no longer required. However, you must still provide a value for SystemId even though it won't be used to establish the connection.
