Handling Resource Path

The M engine identifies a data source using a combination of its Kind and Path. When a data source is encountered during a query evaluation, the M engine will try to find matching credentials. If no credentials are found, the engine returns a special error that results in a credential prompt in Power Query.

The Kind value comes from Data Source Kind definition.

The Path value is derived from the required parameters of your data source function(s). Optional parameters aren't factored into the data source path identifier. As a result, all data source functions associated with a data source kind must have the same parameters. There's special handling for functions that have a single parameter of type Uri.Type. See below for further details.

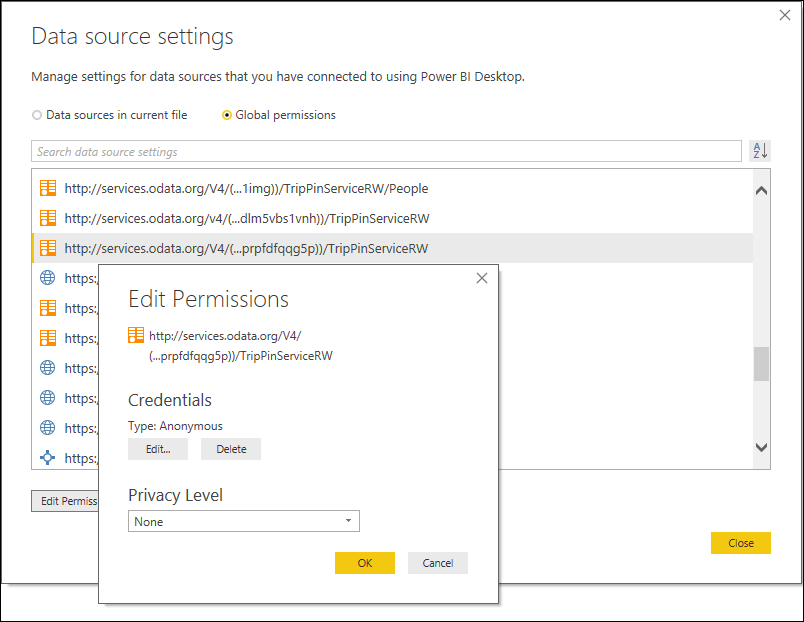

You can see an example of how credentials are stored in the Data source settings dialog in Power BI Desktop. In this dialog, the Kind is represented by an icon, and the Path value is displayed as text.

Data source settings dialog.

[Note] If you change your data source function's required parameters during development, previously stored credentials will no longer work (because the path values no longer match). You should delete any stored credentials any time you change your data source function parameters. If incompatible credentials are found, you may receive an error at runtime.

Data Source Path Format

The Path value for a data source is derived from the data source function's required parameters.

By default, you can see the actual string value in the Data source settings dialog in Power BI Desktop, and in the credential prompt. if the Data Source Kind definition has included a Label value, you'll see the label value instead.

For example, the data source function in the HelloWorldWithDocs sample has the following signature:

HelloWorldWithDocs.Contents = (message as text, optional count as number) as table => ...

The function has a single required parameter (message) of type text, and will be used to calculate the data source path. The optional parameter (count) will be ignored. The path would be displayed as follows:

Credential prompt:

Credential prompt with path.

Data source settings UI:

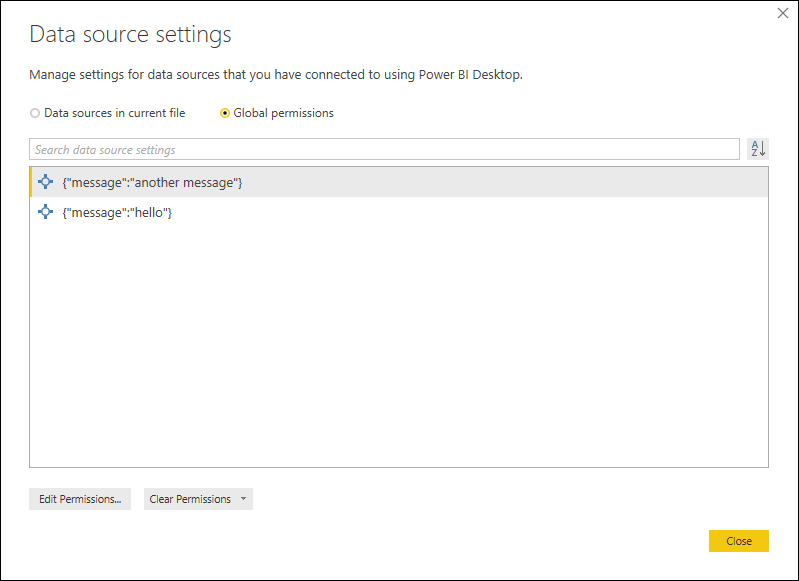

Data source settings UI.

When a Label value is defined, the data source path value won't be shown:

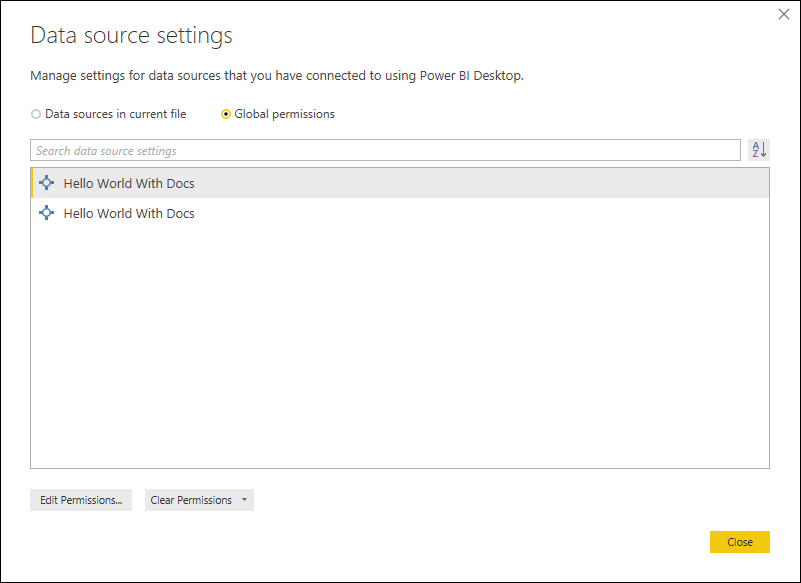

Data source settings with label.

[Note] We currently recommend that you do not include a Label for your data source if your function has required parameters, as users won't be able to distinguish between the different credentials they've entered. We are hoping to improve this in the future (that is, allowing data connectors to display their own custom data source paths).

Functions with a Uri parameter

Because data sources with a Uri-based identifier are so common, there's special handling in the Power Query UI when dealing with Uri-based data source paths. When a Uri-based data source is encountered, the credential dialog provides a dropdown allowing the user to select the base path, rather than the full path (and all paths in-between).

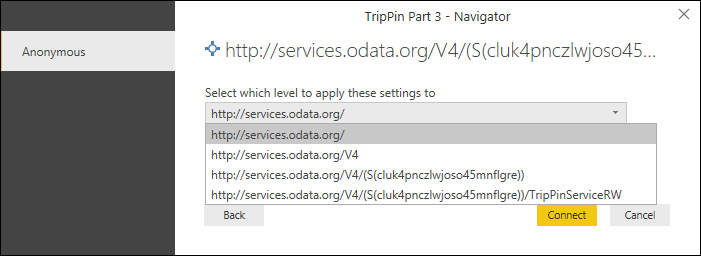

Setting path that credentials apply to.

As Uri.Type is an ascribed type rather than a primitive type in the M language, you'll need to use the Value.ReplaceType function to indicate that your text parameter should be treated as a Uri.

shared GithubSample.Contents = Value.ReplaceType(Github.Contents, type function (url as Uri.type) as any);
